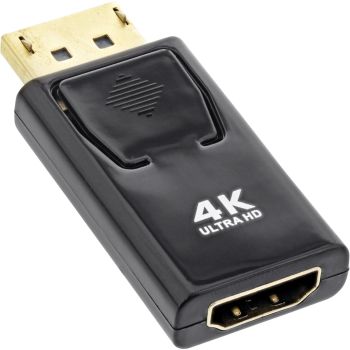

InLine® converter DisplayPort male / HDMI female, 4K/60Hz, with audio content_copy

4K transmission from DisplayPort to HDMI with audioUHD image at 60 Hz: Supports 3840 x 2160 at 60 Hz with RGB and YCbCr 4:4:4.
Direct connection to HDMI displays: Connects DisplayPort sources to a monitor or projector.
Active signal conversion: Compatible with DP and DP++ outputs for a reliable connection.
Video and audio over one cable: Transmits video and audio to the HDMI input.
High bandwidth and robust contacts: Up to 18 Gb/s, gold-plated contacts.
With this active DisplayPort-to-HDMI converter you connect HDMI monitors or projectors to a DisplayPort interface. Compatibility with DisplayPort 1.2a and HDMI 2.0 enables Ultra HD up to 3840 x 2160 at 60 Hz, including RGB and YCbCr 4:4:4. Audio signals are transmitted at the same time. The defined signal direction from the DisplayPort output to the HDMI input ensures clear, practical use.
In professional IT environments, for on-site installations and in service deployments, the converter facilitates integrating existing HDMI displays into existing infrastructures of companies and public institutions.
Connector: 1x DisplayPort plug to 1x HDMI A socket
Standard: DisplayPort 1.2a, HDMI 2.0
Converter type: Active
Chipset: IT6563
Signal direction: DisplayPort output to HDMI input
Data rate: Up to 18 Gb/s
Resolution: Up to 3840 x 2160 at 60 Hz
Color space: RGB, YCbCr 4:4:4
Contacts: Gold-plated
Color: Black
Packaging: PE bag with EAN code

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Connector 1	DisplayPort male
Connector 2	HDMI
Connector 1 gender	Male
Connector 2 gender	Female
DisplayPort version	1.2a
Maximum resolution	3840 x 2160 pixels
Data transfer rate	18 Gbit/s
Maximum refresh rate	60 Hz
Product colour	Black
Other features
Dimensions (WxDxH)	23 x 50 x 10 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	70 mm
Package depth	120 mm
Package height	10 mm
Package weight	13 g
Package volume	100 cm³
Technical data
Width packaging	0.070m
Supported display resolution	Up to 3840 x 2160 @ 60 Hz
Side B	HDMI A female
Housing material	Plastic
Chipset	IT6563
Length packaging	0.120m
Packaging volume	0.0001m³
Net weight	0.010kg
Type	Active converter
Article width	2.30cm
Side A	DisplayPort plug
Input	DisplayPort
Article height	1.00cm
Colour	Black
Compatibility HDMI	HDMI 2.0
Output	HDMI
Article length	5.00cm
Height packaging	0.010m
Signal	Audio/Video
Compatibility DisplayPort	DisplayPort 1.2a, HDMI 2.0
Weight	0.013kg
Audio signals
Weight & dimensions
Weight	10 g
Width	23 mm
Depth	50 mm
Height	10 mm

---
