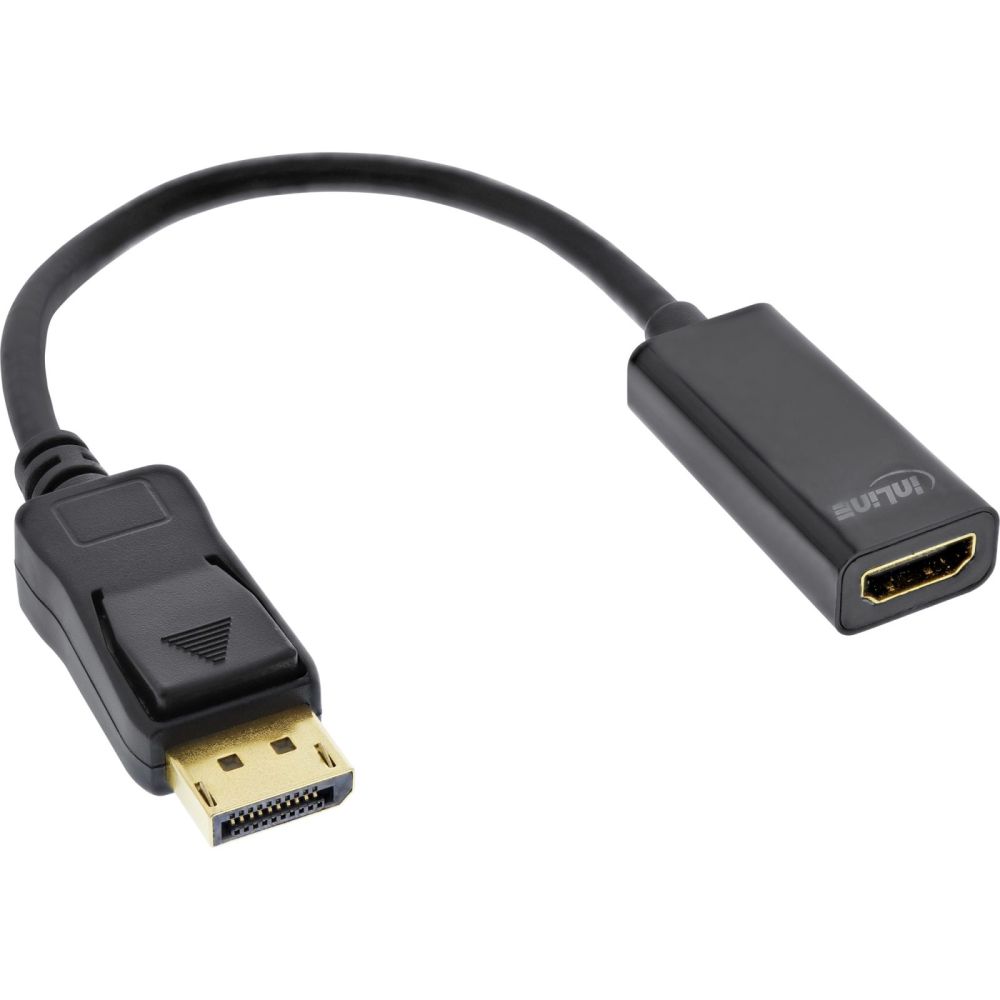

InLine® DisplayPort to HDMI Adaptor with Audio, DisplayPort M / HDMI F, 4K/60Hz content_copy

4K60 video and audio from DisplayPort to HDMIFast connection from DisplayPort to HDMI: Connect HDMI monitors and projectors directly to DisplayPort outputs.
4K60 with full color space and audio: Up to 3840 x 2160 at 60 Hz, RGB and YCbCr 4:4:4; transmits video and audio.
Stable signal quality in everyday use: Triple-shielded cable with full copper conductors and gold-plated contacts.
Easy, driverless use: Passive cable for DP++ outputs; clear signal direction from DisplayPort to HDMI.
With this adapter cable, you connect displays with an HDMI input to a DisplayPort interface. It transmits video and audio and supports resolutions up to 3840 x 2160 at 60 Hz as well as 2560 x 1440 at 144 Hz (depending on the system and connected hardware). The clear signal direction from the DisplayPort output to the HDMI input, along with high-quality shielding and full copper conductors, reliably delivers clean video and audio quality.
In professional IT environments, in on-site installations or service deployments, the cable connects workstations, conference rooms and presentation areas without rewiring. It integrates into existing infrastructures of companies and public institutions when HDMI displays are used with computers or docking stations with DisplayPort.
Connection: 1x DisplayPort plug to 1x HDMI-A socket
Standard: DisplayPort 1.2a, HDMI 2.0
Signal direction: DisplayPort output to HDMI monitor input
Data rate: up to 18 Gb/s
Resolution: up to 3840 x 2160 at 60 Hz; 2560 x 1440 at 144 Hz
Color space: RGB, YCbCr 4:4:4
Audio: video and audio signals
Shielding: triple-shielded
Conductor: full copper
Contacts: gold-plated
Compatibility: passive cable for DP++ outputs
Chipset: Parade PS176
Color: black

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Cable length	0.15 m
Connector 1	DisplayPort
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Female
HDMI version	2.0
DisplayPort version	1.2a
Maximum resolution	3840 x 2160 pixels
Data transfer rate	18 Gbit/s
Maximum refresh rate	60 Hz
Number of shielding layers	3
Product colour	Black
Other features
Dimensions (WxDxH)	20 x 150 x 15 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	90 mm
Package depth	140 mm
Package height	20 mm
Package weight	29 g
Package volume	300 cm³
Technical data
Compatibility HDMI	HDMI 2.0
Length packaging	0.140m
Article length	15.00cm
Chipset	Parade PS176
Width packaging	0.090m
Packaging volume	0.0003m³
Article height	1.50cm
Supported display resolution	Up to 3840 x 2160 @ 60 Hz
Side B	HDMI A female
Height packaging	0.020m
Signal	Audio/Video
Input	DisplayPort
UL E-number	E550843
Side A	DisplayPort plug
Compatibility DisplayPort	DisplayPort 1.2a
Output	HDMI
Article width	2.00cm
Colour	Black
Data transmission rate	18Gb/s
Net weight	0.027kg
Weight	0.029kg
Audio signals
UL
Weight & dimensions
Weight	27 g
Width	20 mm
Depth	150 mm
Height	15 mm

---
