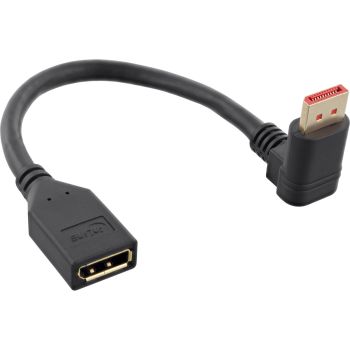

InLine® DisplayPort 1.4 adapter cable M/F, 8K4K, downward angled, black/gold content_copy

Space-saving DisplayPort 1.4 adapter for high-resolution setupsMore room behind the monitor: The down-angled plug allows close-to-wall mounting and neat cable routing.
8K and 4K output per DP 1.4: Supports up to 7680x4320 @30 Hz RGB/4:4:4 as well as 8K @60 Hz with 4:2:0 or DSC.
Stable signal transmission: Triple-shielded cable and gold-plated contacts reliably deliver a low-interference image.
Easy adaptation of existing setups: DisplayPort socket (straight) to DisplayPort plug (down-angled) for short connections.
This short DisplayPort 1.4 adapter cable connects a DisplayPort socket to a down-angled DisplayPort plug. This allows you to route cables neatly even in tight mounting spaces and reduce kinks, while supporting high-resolution signals up to 8K and 4K at high refresh rates. The triple shielding and gold-plated contacts contribute to reliable transmission.
In professional IT environments, during on-site setups and in service deployments, the angled plug eases connection in existing infrastructures. In companies and public institutions, it supports tidy, space-saving setup when devices are placed close to walls or housed in racks.
Connector: DisplayPort socket (straight) to DisplayPort plug (down-angled)
Standard: DisplayPort 1.4
Shielding: triple-shielded
Contacts: gold-plated
Color: black
Supported resolutions: UHD-II/FUHD 7680x4320 (8K4K) @30 Hz RGB/4:4:4 and @60 Hz RGB/4:2:0 or DSC; UHD 3840x2160 @120 Hz RGB/4:4:4 8 bit HDR OFF; UHD 3840x2160 @120 Hz RGB/4:2:2 12 bit HDR ON; UHD 3840x2160 @60 Hz RGB/4:4:4 12 bit HDR ON; Full HD 1920x1080; HD 1280x720

Features
Connector contacts plating	Gold
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Cable length	0.15 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Female
Connector 2 gender	Male
Product colour	Black
Other features
Depth	150 mm
Height	10 mm
Width	22 mm
Packaging data
Package width	75 mm
Package depth	75 mm
Package height	13 mm
Package weight	38 g
Package volume	100 cm³
Technical data
Length packaging	0.075m
Article height	1.00cm
DisplayPort specification	DisplayPort 1.4
Side B	DisplayPort male angled downwards
Operation temperature	-10 - 60°C
Side A	DisplayPort female
Packaging volume	0.0001m³
Storage temperature	-20 - 70°C
Weight	0.038kg
Net weight	0.035kg
Shielding	Triple shielding
Length	0.15m
Design	Round cable
Maximum display resolution	7680x4320@60Hz
Signal	Video
Height packaging	0.013m
Width packaging	0.075m
Article length	15.00cm
Data transmission rate	32.4Gb/s
Outer diameter	7.0mm
Article width	2.20cm
Colour	Black
Gold plated contacts
UL
Weight & dimensions
Weight	35 g

---
