InLine® DisplayPort 1.4 adapter cable M/F, 8K4K, angled right, black/gold content_copy

Space-saving DisplayPort connector with 90° exitMore space behind the display: Right-angled DisplayPort plug prevents cable kinks in your setup.
Continue using existing cabling with ease: Straight DisplayPort socket enables a clean adaptation without rewiring.
Low-interference video transmission: Triple-shielded cable and gold-plated contacts reduce external influences.
8K and 4K compatible: 7680x4320 @30 Hz or @60 Hz with 4:2:0 or DSC; 3840x2160 @120 Hz depending on chroma subsampling/HDR.

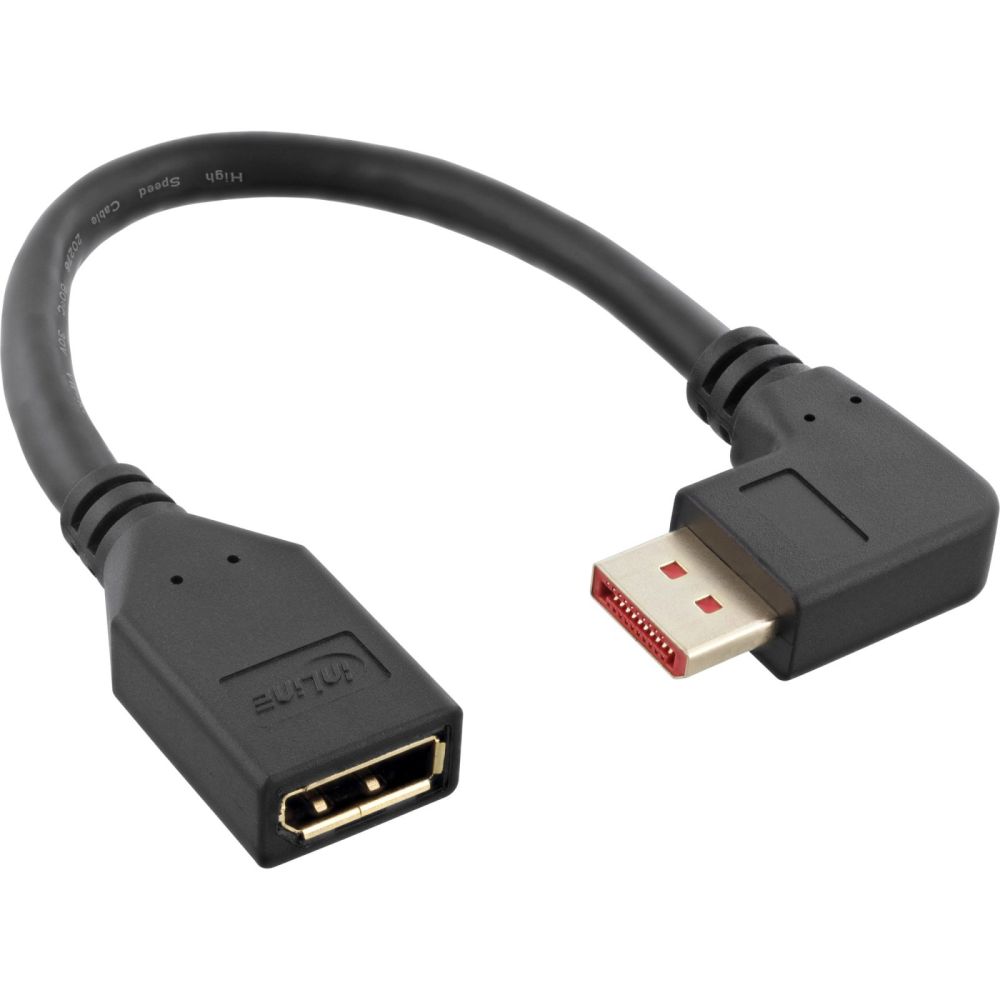

The short DisplayPort 1.4 adapter cable with a straight DisplayPort socket and a right-angled DisplayPort plug creates space behind displays and media players. It allows strain-relieved, kink-free cable routing for wall mounting or in narrow racks and integrates existing DisplayPort connections without rewiring. The supported resolutions reach up to 8K according to the specified formats.
In professional IT environments, for on-site deployments and in service use, it simplifies connection in existing infrastructures of companies and public institutions, for example behind wall mounts, in meeting rooms or with digital signage systems, and provides a tidy, reliable connection.
Connector: DisplayPort socket (straight) to DisplayPort plug (right-angled)
Standard: DisplayPort 1.4
Shielding: triple shielded
Contacts: gold-plated
Color: black
Supported resolutions: UHD-II/FUHD 7680x4320 (8K4K) @30 Hz RGB/4:4:4; @60 Hz RGB/4:2:0 or DSC; UHD 3840x2160 @120 Hz RGB/4:4:4 8 bit HDR OFF; UHD 3840x2160 @120 Hz RGB/4:2:2 12 bit HDR ON; UHD 3840x2160 @60 Hz RGB/4:4:4 12 bit HDR ON; FullHD 1920x1080; HD 1280x720

Features
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 3840 x 2160, 7680 x 4320
Supported video modes	4320p, 720p, 1080p, 2160p
Maximum refresh rate	120 Hz
Cable length	0.15 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Number of shielding layers	3
Plug and Play
Other features
Depth	150 mm
Height	10 mm
Width	22 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	80 mm
Package depth	80 mm
Package height	12 mm
Package weight	38 g
Package type	Polybag
Package volume	100 cm³
Technical data
DisplayPort specification	DisplayPort 1.4
Side A	DisplayPort female
Outer diameter	7.0mm
UL E-number	E550843
Weight	0.038kg
Height packaging	0.012m
Article length	15.00cm
Width packaging	0.080m
Article height	1.00cm
Side B	DisplayPort male right angled
Maximum display resolution	7680x4320@60Hz
Signal	Video
Operation temperature	-10 - 60°C
Shielding	Triple shielding
Data transmission rate	32.4Gb/s
Length	0.15m
Net weight	0.035kg
Design	Round cable
Length packaging	0.080m
Article width	2.20cm
Colour	Black
Packaging volume	0.0001m³
Storage temperature	-20 - 70°C
UL
Gold plated contacts
Weight & dimensions
Weight	35 g

---
