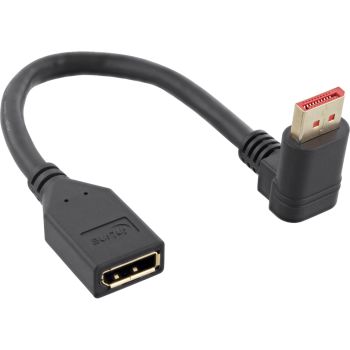

InLine® DisplayPort 1.4 adapter cable M/F, 8K4K, upward angled, black/gold content_copy

Space-saving 8K connectivity with upward-angled DisplayPortBetter cable exit with limited space: Upward-angled DisplayPort plug prevents kinks behind monitors and mounts.
Continue using existing cabling: Straight DisplayPort socket-to-plug enables flexible adaptation without modification.
High resolutions and frame rates: Supports 8K4K and 4K up to 120 Hz depending on source and display.
Reliable signal routing: Triple shielding and gold-plated contacts reduce interference.
This short adapter cable connects a straight DisplayPort socket to an upward-angled DisplayPort plug. It simplifies cable routing on tightly mounted monitors, desk grommets, or wall mounts and relieves the connectors. It enables high-resolution video transmission up to 8K4K as well as 4K at high frame rates in compact setups.
In professional IT environments and on-site installations, the angled design provides additional clearance behind devices and in racks. In existing infrastructures of companies and public institutions, it provides tidy cable routing, reduces mechanical stress, and simplifies service operations.
Connection: DisplayPort socket (straight) to DisplayPort plug (upward-angled)
Standard: DisplayPort 1.4
Shielding: triple shielded
Contacts: gold-plated contacts
Color: black
Supported resolutions: UHD-II/FUHD 7680x4320 (8K4K) 30 Hz RGB/4:4:4; 7680x4320 (8K4K) 60 Hz RGB/4:2:0 or DSC; UHD 3840x2160 120 Hz RGB/4:4:4 8 bit HDR OFF; UHD 3840x2160 120 Hz RGB/4:2:2 12 bit HDR ON; UHD 3840x2160 60 Hz RGB/4:4:4 12 bit HDR ON; Full HD 1920x1080; HD 1280x720

Features
Connector contacts plating	Gold
DisplayPort version	1.4
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Cable length	0.15 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Other features
Depth	150 mm
Height	11 mm
Width	21 mm
Packaging data
Package width	80 mm
Package depth	80 mm
Package height	18 mm
Package weight	38 g
Package volume	200 cm³
Technical data
Side A	DisplayPort female
Packaging volume	0.0002m³
Storage temperature	-20 - 70°C
Length packaging	0.080m
Article width	2.10cm
Colour	Black
Outer diameter	7.0mm
UL E-number	E550843
Weight	0.038kg
Height packaging	0.018m
Article length	15.00cm
Data transmission rate	32.4Gb/s
Width packaging	0.080m
Article height	1.10cm
Maximum display resolution	7680x4320@60Hz
Side B	DisplayPort male angled upwards
Operation temperature	-10 - 60°C
Shielding	Triple shielding
Net weight	0.035kg
Design	Round cable
Length	0.15m
Signal	Video
DisplayPort specification	DisplayPort 1.4
Gold plated contacts
UL
Weight & dimensions
Weight	35 g

---
