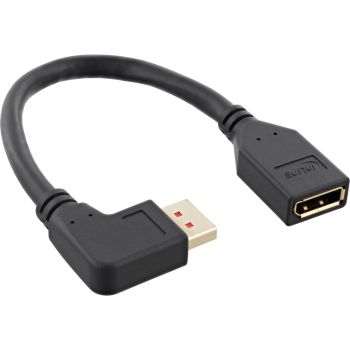

InLine® DisplayPort 1.4 adapter cable M/F, 8K4K, angled left, black/gold, 0.15m content_copy

Space-saving 8K DisplayPort connection with angled plugMore clearance behind devices: Left-angled DisplayPort plug prevents tight bend radii and cable kinks.
Stable signal quality even at high resolutions: Triple shielding and gold-plated contacts reduce interference.
Flexible adaptation of existing cabling: Straight DisplayPort socket extends existing runs without re-cabling.
DP 1.4 compliant: Supports 8K up to 60 Hz (with 4:2:0 or DSC) and 4K up to 120 Hz.
The short DisplayPort 1.4 adapter cable routes a straight DisplayPort socket to a left-angled plug. This allows you to route connections safely in tight setups and organize cable management behind monitors, media players, or graphics cards without stressing the connectors. Triple shielding and gold-plated contacts support reliable transmission for sharp images and smooth frame rates.
It proves itself in professional IT environments, in on-site installations and service operations as well as in existing infrastructures of companies and public institutions, for example in conference rooms, AV racks, or on space-saving wall mounts.
Connection: DisplayPort socket (straight) to DisplayPort plug (left-angled)
Standard: DisplayPort 1.4
Shielding: triple shielded
Contacts: gold-plated
Color: black
Supported resolutions: 7680x4320 (8K) 30 Hz RGB/4:4:4; 7680x4320 (8K) 60 Hz RGB/4:2:0 or DSC; 3840x2160 (4K) 120 Hz RGB/4:4:4 8 bit HDR OFF; 3840x2160 (4K) 120 Hz RGB/4:2:2 12 bit HDR ON; 3840x2160 (4K) 60 Hz RGB/4:4:4 12 bit HDR ON; 1920x1080; 1280x720

Features
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 3840 x 2160, 7680 x 4320
Supported video modes	4320p, 720p, 1080p, 2160p
Maximum refresh rate	120 Hz
Cable length	0.15 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Female
Product colour	Black
Number of shielding layers	3
Plug and Play
Other features
Depth	150 mm
Height	10 mm
Width	22 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	75 mm
Package depth	75 mm
Package height	10 mm
Package weight	38 g
Package type	Polybag
Package volume	100 cm³
Technical data
Packaging volume	0.0001m³
Storage temperature	-20 - 70°C
Maximum display resolution	7680x4320@60Hz
Signal	Video
Operation temperature	-10 - 60°C
Shielding	Triple shielding
Width packaging	0.075m
Article height	1.00cm
Side B	DisplayPort male left angled
Article length	15.00cm
Height packaging	0.010m
Side A	DisplayPort female
Outer diameter	7.0mm
UL E-number	E550843
Weight	0.038kg
Data transmission rate	32.4Gb/s
Length packaging	0.075m
Article width	2.20cm
Colour	Black
Length	0.15m
Net weight	0.036kg
Design	Round cable
DisplayPort specification	DisplayPort 1.4
Gold plated contacts
UL
Weight & dimensions
Weight	36 g

---
