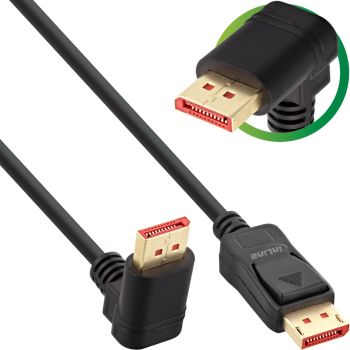

InLine® DisplayPort 1.4 cable, 8K4K, upward angled, black/gold, 3 m content_copy

High-resolution video transmission with 8K4K and flexible cable routingTargeted cable routing: The upward-angled DisplayPort plug routes the cable upwards with a suitably oriented socket. Practical for limited space behind a monitor.
Detailed 8K4K display: The DisplayPort 1.4 cable supports 7680x4320 at 30 Hz with RGB/4:4:4 and at 60 Hz with RGB/4:2:0 or DSC. Use compatible displays with a suitable signal output.
Smooth 4K video output: At 3840x2160, up to 120 Hz is specified with RGB/4:4:4 and 8 Bit without HDR or RGB/4:2:2 and 12 Bit with HDR. Actual output depends on the connected devices.
Shielded connection: Triple shielding helps reduce electromagnetic interference in video transmission. Gold-plated contacts complete the DisplayPort cable.
Suitable for monitor setups: A straight and an upward-angled DisplayPort plug connect devices with matching sockets. Cable routing can be planned with suitable port positioning.
The InLine DisplayPort 1.4 cable connects computers and monitors with matching DisplayPort ports. The straight and upward-angled plugs offer practical options for workstation setup or display installation.
The plug shape can simplify installation at hard-to-reach monitor ports. The cable runs upwards at the angled end, allowing routing to suit the equipment layout. Check the position and orientation of your DisplayPort socket.
The cable also suits high-resolution applications. With compatible equipment, use the supported modes for detailed graphics, high-resolution video or large desktops. Achievable resolution and refresh rate depend on the connected devices.
The cable integrates into existing connection layouts at fixed monitor workstations. Choose the length to suit your device spacing and consider the angled connector direction for a practical DisplayPort connection.
Data transfer rate: 32.4 Gb/s
4K at 60 Hz with HDR: 3840x2160, RGB/4:4:4, 12 Bit, HDR ON
Full HD: 1920x1080
HD: 1280x720
Outer diameter: 7.0 mm
Operating temperature: -10 to 60 °C
Signal type: Video

Features
Connector 1 form factor	Straight
Connector 2 form factor	Angled
DisplayPort version	1.4
Cable length	3 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Number of shielding layers	3
Colour sampling	4:2:2, 4:4:4
Latching connectors
Magnetically shielded
Plug and Play
Other features
Depth	3000 mm
Height	20 mm
Width	20 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	170 mm
Package depth	240 mm
Package height	30 mm
Package weight	213 g
Package type	Polybag
Package volume	1300 cm³
Technical data
Width packaging	0.170m
Article length	300.00cm
Colour	Black
Height packaging	0.030m
DisplayPort specification	DisplayPort 1.4
Weight	0.213kg
Maximum display resolution	7680x4320@60Hz
Signal	Video
Data transmission rate	32.4Gb/s
Net weight	0.200kg
Outer diameter	7.0mm
Article width	2.00cm
Length packaging	0.240m
Article height	2.00cm
Side A	DisplayPort plug
Side B	DisplayPort male angled upwards
Storage temperature	-20 - 70°C
Shielding	Triple shielding
Packaging volume	0.0013m³
UL E-number	E550843
Operation temperature	-10 - 60°C
Design	Round cable
Gold plated contacts
UL
Weight & dimensions
Weight	200 g

---
