InLine® DisplayPort 1.4 cable, 8K4K, upward angled, black/gold, 2 m content_copy

High-resolution video transmission with 8K4K and flexible cable routingTargeted cable routing: The upward-angled DisplayPort plug routes the cable upwards with a suitably oriented socket. Practical for limited space behind a monitor.
Detailed 8K4K display: The DisplayPort 1.4 cable supports 7680x4320 at 30 Hz with RGB/4:4:4 and at 60 Hz with RGB/4:2:0 or DSC. Use compatible displays with a suitable signal output.
Smooth 4K video output: At 3840x2160, up to 120 Hz is specified with RGB/4:4:4 and 8 Bit without HDR or RGB/4:2:2 and 12 Bit with HDR. Actual output depends on the connected devices.
Shielded connection: Triple shielding helps reduce electromagnetic interference in video transmission. Gold-plated contacts complete the DisplayPort cable.

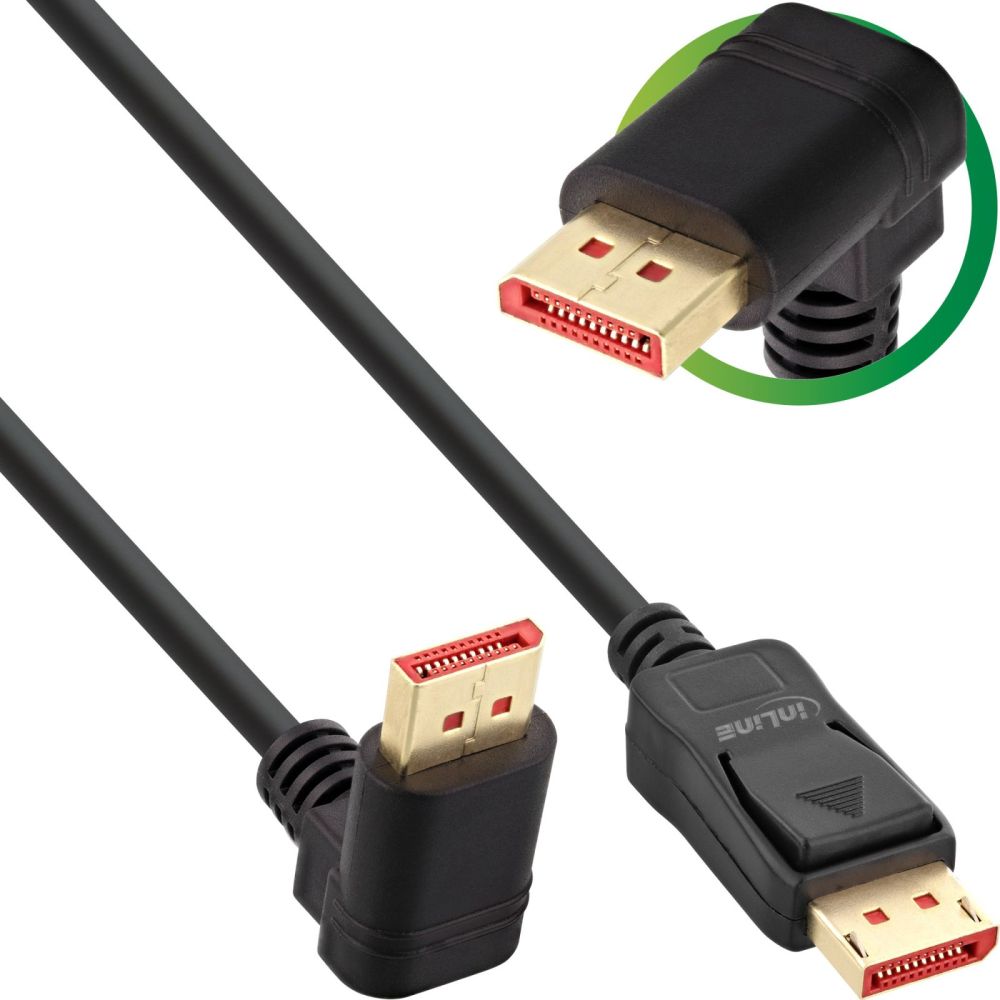

Suitable for monitor setups: A straight and an upward-angled DisplayPort plug connect devices with matching sockets. Cable routing can be planned with suitable port positioning.
The InLine DisplayPort 1.4 cable connects computers and monitors with matching DisplayPort ports. The straight and upward-angled plugs offer practical options for workstation setup or display installation.
The plug shape can simplify installation at hard-to-reach monitor ports. The cable runs upwards at the angled end, allowing routing to suit the equipment layout. Check the position and orientation of your DisplayPort socket.
The cable also suits high-resolution applications. With compatible equipment, use the supported modes for detailed graphics, high-resolution video or large desktops. Achievable resolution and refresh rate depend on the connected devices.
The cable integrates into existing connection layouts at fixed monitor workstations. Choose the length to suit your device spacing and consider the angled connector direction for a practical DisplayPort connection.
Data transfer rate: 32.4 Gb/s
4K at 60 Hz with HDR: 3840x2160, RGB/4:4:4, 12 Bit, HDR ON
Full HD: 1920x1080
HD: 1280x720
Outer diameter: 7.0 mm
Operating temperature: -10 to 60 °C
Signal type: Video

Features
Connector contacts plating	Gold
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	7680 x 4320
Cable length	2 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Other features
Depth	2000 mm
Height	14 mm
Width	21 mm
Packaging data
Package width	145 mm
Package depth	145 mm
Package height	20 mm
Package weight	129 g
Package volume	500 cm³
Technical data
Outer diameter	7.0mm
UL E-number	E550843
Width packaging	0.145m
Article height	1.40cm
Weight	0.129kg
Maximum display resolution	7680x4320@60Hz
Signal	Video
DisplayPort specification	DisplayPort 1.4
Packaging volume	0.0005m³
Storage temperature	-20 - 70°C
Shielding	Triple shielding
Side B	DisplayPort male angled upwards
Operation temperature	-10 - 60°C
Design	Round cable
Net weight	0.122kg
Data transmission rate	32.4Gb/s
Article length	200.00cm
Colour	Black
Length packaging	0.145m
Article width	2.10cm
Side A	DisplayPort plug
Height packaging	0.020m
Gold plated contacts
UL
Weight & dimensions
Weight	122 g

---
