InLine® DisplayPort 1.4 cable, 8K4K, upward angled, black/gold, 1 m content_copy

High-resolution video transmission with 8K4K and flexible cable routingTargeted cable routing: The upward-angled DisplayPort plug routes the cable upwards with a suitably oriented socket. Practical for limited space behind a monitor.
Detailed 8K4K display: The DisplayPort 1.4 cable supports 7680x4320 at 30 Hz with RGB/4:4:4 and at 60 Hz with RGB/4:2:0 or DSC. Use compatible displays with a suitable signal output.
Smooth 4K video output: At 3840x2160, up to 120 Hz is specified with RGB/4:4:4 and 8 Bit without HDR or RGB/4:2:2 and 12 Bit with HDR. Actual output depends on the connected devices.
Shielded connection: Triple shielding helps reduce electromagnetic interference in video transmission. Gold-plated contacts complete the DisplayPort cable.

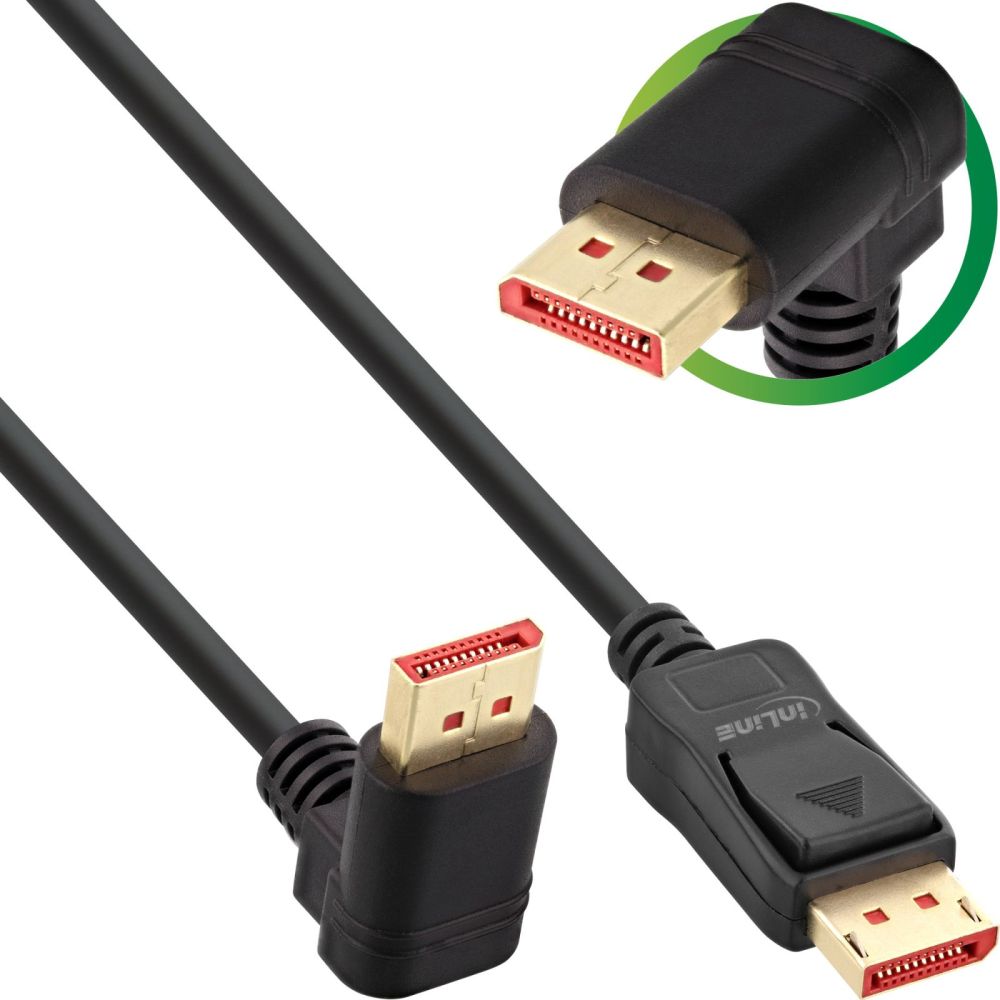

Suitable for monitor setups: A straight and an upward-angled DisplayPort plug connect devices with matching sockets. Cable routing can be planned with suitable port positioning.
The InLine DisplayPort 1.4 cable connects computers and monitors with matching DisplayPort ports. The straight and upward-angled plugs offer practical options for workstation setup or display installation.
The plug shape can simplify installation at hard-to-reach monitor ports. The cable runs upwards at the angled end, allowing routing to suit the equipment layout. Check the position and orientation of your DisplayPort socket.
The cable also suits high-resolution applications. With compatible equipment, use the supported modes for detailed graphics, high-resolution video or large desktops. Achievable resolution and refresh rate depend on the connected devices.
The cable integrates into existing connection layouts at fixed monitor workstations. Choose the length to suit your device spacing and consider the angled connector direction for a practical DisplayPort connection.
Data transfer rate: 32.4 Gb/s
4K at 60 Hz with HDR: 3840x2160, RGB/4:4:4, 12 Bit, HDR ON
Full HD: 1920x1080
HD: 1280x720
Outer diameter: 7.0 mm
Operating temperature: -10 to 60 °C
Signal type: Video

Features
Connector 1 form factor	Angled
Connector 2 form factor	Straight
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320
Cable length	1 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Other features
Depth	1000 mm
Height	13 mm
Width	20 mm
Packaging data
Package width	130 mm
Package depth	130 mm
Package height	15 mm
Package weight	79 g
Package type	Polybag
Package volume	300 cm³
Technical data
Packaging volume	0.0003m³
Storage temperature	-20 - 70°C
Height packaging	0.015m
Width packaging	0.130m
Article height	1.30cm
Side A	DisplayPort plug
Data transmission rate	32.4Gb/s
Length packaging	0.130m
Article width	2.00cm
Weight	0.079kg
DisplayPort specification	DisplayPort 1.4
Article length	100.00cm
Colour	Black
Maximum display resolution	7680x4320@60Hz
Signal	Video
Outer diameter	7.0mm
UL E-number	E550843
Side B	DisplayPort male angled upwards
Operation temperature	-10 - 60°C
Shielding	Triple shielding
Net weight	0.072kg
Design	Round cable
Gold plated contacts
UL
Weight & dimensions
Weight	72 g

---
