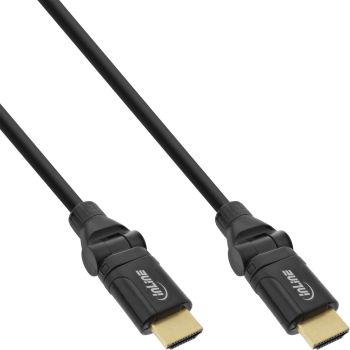

InLine® HDMI High Speed Cable with Ethernet, angled plug, black, 0.5m
|
5,53 EUR |
|||||||||||
|
( 6,58 EUR incl. VAT ) ≈ £4.63 | ≈ $6.19 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193593 | ||||||||||
| Mfg Part No: | 17055W | ||||||||||
| UPC/EAN: | 4043718251865 | ||||||||||
| Weight: | 0.04 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 17055W:
Stable signal quality: Triple shielding and twisted-pair construction minimise interference and ensure reliable transmission of high-quality picture and sound
4K support: Transmits video resolutions up to 4K x 2K at 30 Hz, as well as Full HD and 3D content, for clear display of films, presentations and applications
More features with HDMI Ethernet: Supports Audio Return Channel and HDMI Ethernet Channel to reduce the need for additional cables and enable more efficient connection of compatible devices
Durable design: Gold-plated contacts improve conductivity and reduce corrosion for a permanently stable connection even with frequent use
This HDMI cable offers a reliable solution for the transmission of audio and video signals in various applications. It supports High Speed HDMI with Ethernet and enables resolutions up to 4K x 2K at 30 Hz as well as Full HD and 3D content.
The flexible angled plug facilitates installation in confined spaces. Particularly with TVs or monitors mounted close to the wall, this design ensures a secure connection without placing excessive strain on the connectors.
Thanks to the HDMI Ethernet Channel, compatible devices can be networked directly via the cable. Additionally, the Audio Return Channel enables the transmission of audio signals from the TV to an audio system without the need for a separate audio cable.
The triple shielding, combined with the twisted-pair construction, protects the signal transmission from external interference. Gold-plated contacts improve conductivity and enhance reliability even with frequent use.
The cable is suitable for connecting televisions, monitors, projectors, AV receivers or computers and supports typical applications such as streaming, presentations or multimedia playback.
HDMI Standard: 1.4 High Speed with Ethernet
Supported resolution: up to 4K x 2K @ 30 Hz
Supported features: 3D, ARC, HEC
Connector type: HDMI Type A male to HDMI Type A male (ST/ST)
Connector: flexibly bendable, flat design
Contacts: gold-plated
Shielding: triple
Internal construction: twisted pair
Conductor material: copper strands
Conductor cross-section: AWG 30
Outer diameter: 6.0 mm
Cable colour: black
| Certificates | |
| Certification | UL |
| Features | |
| Cable length | 0.5 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Angled |
| Product colour | Black |
| HDMI version | 1.4 |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum refresh rate | 30 Hz |
| AWG wire size | 30 |
| Connector contacts plating | Gold |
| 3D | |
| Audio Return Channel (ARC) | |
| HDMI Ethernet channel | |
| Unidirectional | |
| Other features | |
| Depth | 500 mm |
| Height | 11 mm |
| Width | 20 mm |
| Dimensions (WxDxH) | 20 x 500 x 11 mm |
| Packaging data | |
| Package width | 86 mm |
| Package depth | 130 mm |
| Package height | 20 mm |
| Package weight | 40 g |
| Quantity per pack | 1 pc(s) |
| Technical data | |
| Height packaging | 0.020m |
| Length packaging | 0.130m |
| Article length | 50.00cm |
| Weight | 0.040kg |
| Packaging volume | 0.0003m³ |
| Article width | 2.00cm |
| Diameter | AWG 30 |
| Maximum display resolution | 4096x2160 @30Hz |
| Complies with HDMI standard | HDMI 1.4 |
| Net weight | 0.036kg |
| Outer diameter | 6.0mm |
| Article height | 1.10cm |
| Side B | HDMI A plug |
| Maximum HDTV resolution | 3840x2160 @60Hz |
| Side A | HDMI A plug |
| Variant | Flexible angle plug, gold plated contacts |
| Shielding | Triple shielding |
| Type | HDMI 1.4 |
| Width packaging | 0.086m |
| Colour | Black |
| UL E-number | E358026 |
| Signal | Audio/Video |
| Active cable | |
| UL | |
| Gold plated contacts | |
| Weight & dimensions | |
| Weight | 36 g |
| Package volume | 300 cm³ |
