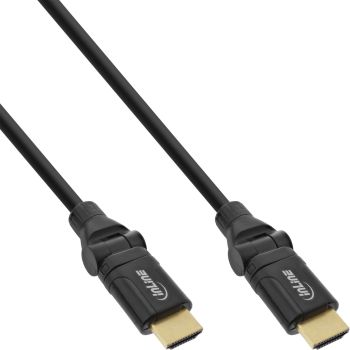

InLine® HDMI High Speed Cable with Ethernet, angled plug, black, 3m
|
8,10 EUR |
|
|
( 9,64 EUR incl. VAT ) ≈ £6.78 | ≈ $9.06 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193901 |
| Mfg Part No: | 17003W |
| UPC/EAN: | 4043718184491 |
| Weight: | 0.152 kg |
Product information for Inline 17003W:
4K HDMI cable with Ethernet and flexible angled plug for space-saving connectionsSpace-saving connection: The flexible angled plug allows for easy installation with devices mounted close to the wall and permanently reduces strain on the HDMI ports
Stable signal quality: Triple shielding and twisted-pair construction minimise interference and ensure reliable transmission of high-quality picture and sound
4K support: Transmits video resolutions up to 4K x 2K at 30 Hz, as well as Full HD and 3D content, for clear display of films, presentations and applications
More features with HDMI Ethernet: Supports Audio Return Channel and HDMI Ethernet Channel to reduce the need for additional cables and enable more efficient connection of compatible devices
Durable design: Gold-plated contacts improve conductivity and reduce corrosion for a permanently stable connection even with frequent use
This HDMI cable offers a reliable solution for the transmission of audio and video signals in various applications. It supports High Speed HDMI with Ethernet and enables resolutions up to 4K x 2K at 30 Hz as well as Full HD and 3D content.
The flexible angled plug facilitates installation in confined spaces. Particularly with TVs or monitors mounted close to the wall, this design ensures a secure connection without placing excessive strain on the connectors.
Thanks to the HDMI Ethernet Channel, compatible devices can be networked directly via the cable. Additionally, the Audio Return Channel enables the transmission of audio signals from the TV to an audio system without the need for a separate audio cable.
The triple shielding, combined with the twisted-pair construction, protects the signal transmission from external interference. Gold-plated contacts improve conductivity and enhance reliability even with frequent use.
The cable is suitable for connecting televisions, monitors, projectors, AV receivers or computers and supports typical applications such as streaming, presentations or multimedia playback.
HDMI Standard: 1.4 High Speed with Ethernet
Supported resolution: up to 4K x 2K @ 30 Hz
Supported features: 3D, ARC, HEC
Connector type: HDMI Type A male to HDMI Type A male (ST/ST)
Connector: flexibly bendable, flat design
Contacts: gold-plated
Shielding: triple
Internal construction: twisted pair
Conductor material: copper strands
Conductor cross-section: AWG 30
Outer diameter: 6.0 mm
Cable colour: black
Stable signal quality: Triple shielding and twisted-pair construction minimise interference and ensure reliable transmission of high-quality picture and sound
4K support: Transmits video resolutions up to 4K x 2K at 30 Hz, as well as Full HD and 3D content, for clear display of films, presentations and applications
More features with HDMI Ethernet: Supports Audio Return Channel and HDMI Ethernet Channel to reduce the need for additional cables and enable more efficient connection of compatible devices
Durable design: Gold-plated contacts improve conductivity and reduce corrosion for a permanently stable connection even with frequent use
This HDMI cable offers a reliable solution for the transmission of audio and video signals in various applications. It supports High Speed HDMI with Ethernet and enables resolutions up to 4K x 2K at 30 Hz as well as Full HD and 3D content.
The flexible angled plug facilitates installation in confined spaces. Particularly with TVs or monitors mounted close to the wall, this design ensures a secure connection without placing excessive strain on the connectors.
Thanks to the HDMI Ethernet Channel, compatible devices can be networked directly via the cable. Additionally, the Audio Return Channel enables the transmission of audio signals from the TV to an audio system without the need for a separate audio cable.
The triple shielding, combined with the twisted-pair construction, protects the signal transmission from external interference. Gold-plated contacts improve conductivity and enhance reliability even with frequent use.
The cable is suitable for connecting televisions, monitors, projectors, AV receivers or computers and supports typical applications such as streaming, presentations or multimedia playback.
HDMI Standard: 1.4 High Speed with Ethernet
Supported resolution: up to 4K x 2K @ 30 Hz
Supported features: 3D, ARC, HEC
Connector type: HDMI Type A male to HDMI Type A male (ST/ST)
Connector: flexibly bendable, flat design
Contacts: gold-plated
Shielding: triple
Internal construction: twisted pair
Conductor material: copper strands
Conductor cross-section: AWG 30
Outer diameter: 6.0 mm
Cable colour: black
| Certificates | |
| Certification | UL |
| Features | |
| Cable length | 3 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Product colour | Black |
| HDMI version | 1.4 |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| AWG wire size | 30 |
| Connector contacts plating | Gold |
| Connector gender | Male/Male |
| 3D | |
| Unidirectional | |
| Other features | |
| Depth | 3000 mm |
| Height | 12 mm |
| Width | 21 mm |
| Dimensions (WxDxH) | 21 x 3000 x 12 mm |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 175 mm |
| Package height | 25 mm |
| Package weight | 152 g |
| Technical data | |
| Side A | HDMI A plug |
| Type | HDMI 1.4 |
| Weight | 0.152kg |
| Variant | Flexible angle plug, gold plated contacts |
| Packaging volume | 0.0006m³ |
| Article width | 2.10cm |
| Length packaging | 0.175m |
| Article length | 300.00cm |
| Side B | HDMI A plug |
| Outer diameter | 6.0mm |
| Article height | 1.20cm |
| Diameter | AWG 30 |
| Maximum HDTV resolution | 3840x2160 @60Hz |
| Net weight | 0.142kg |
| Complies with HDMI standard | HDMI 1.4 |
| UL E-number | E358026 |
| Signal | Audio/Video |
| Maximum display resolution | 4096x2160 @30Hz |
| Shielding | Triple shielding |
| Height packaging | 0.025m |
| Width packaging | 0.150m |
| Colour | Black |
| UL | |
| Gold plated contacts | |
| Active cable | |
| Weight & dimensions | |
| Weight | 142 g |
| Package volume | 600 cm³ |
Questions & answers
What is the delivery time of InLine® HDMI High Speed Cable with Ethernet, angled plug, black, 3m?
The article InLine® HDMI High Speed Cable with Ethernet, angled plug, black, 3m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 17003W to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® HDMI High Speed Cable with Ethernet, angled plug, black, 3m always at the best possible price. We can give you a discount of 2% on InLine® HDMI High Speed Cable with Ethernet, angled plug, black, 3m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
