InLine® Mains adapter cable, IEC C14 threaded to earthing contact socket, 3m content_copy

C14 angled to earth-contact adapter cable for space-saving power connectionsSpace-saving angled plug for confined installation spaces: The angled C14 connector reduces the depth required behind equipment and makes it easier to route cables in cabinets, racks and technical areas.
C14 to earth contact for flexible connections: Use existing C14 sockets on the UPS to connect devices with earth contact plugs safely and without modifying the power distribution.
Four lengths for a tidy installation: Choose 0.5 m, 1 m, 2 m or 3 m to suit the distance and avoid unnecessary cable loops for a structured and organised layout.
Reliable power transmission up to 10 A: The adapter cable is designed for a maximum current load of 10 A and supports the stable operation of typical devices in the working environment.
Suitable conductor cross-section depending on length: The versions up to 2 m use 3G0.75 mm², the 3 m version uses 3G1.00 mm² and supports a reliable power supply over longer cable runs.

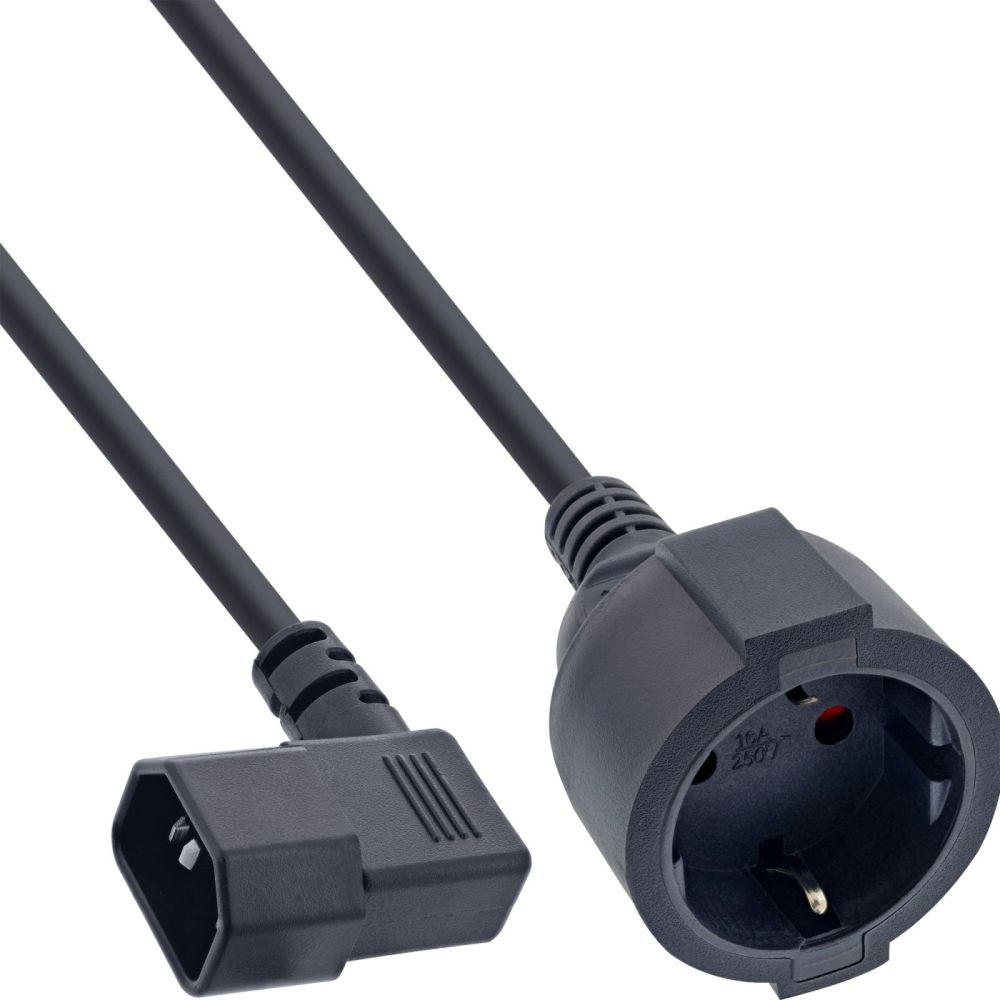

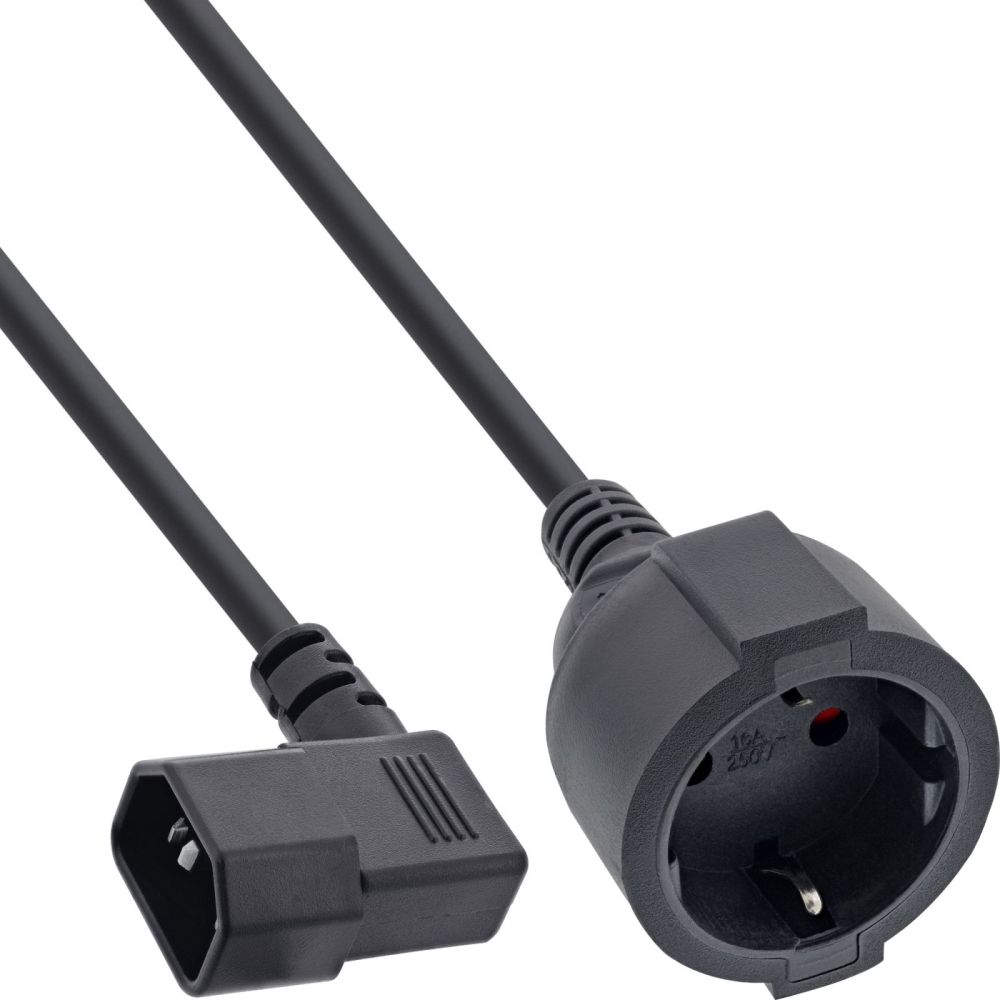

This mains adapter cable connects an angled C14 connector for IT equipment to a grounded socket, providing a practical solution for existing C14 outlets. The angled plug reduces the required installation depth and makes routing easier in confined spaces.
The cable is suitable for use with UPS systems when devices with earthed plugs are to be operated from a C14 outlet. This allows existing connections to be used flexibly without altering the existing power distribution.
Four lengths are available to ensure a neat installation. With lengths of 0.5 m, 1 m, 2 m and 3 m, the cable routing can be adapted to suit the installation situation. This helps to avoid excess cable and keeps the cabling tidy.
The current-carrying capacity is up to 10 A. The versions up to 2 m use a conductor cross-section of 3G0.75 mm². The 3 m version has a cross-section of 3G1.00 mm². This enables reliable power transmission for many typical applications.
Connection A: C14 for IT equipment, angled
Connection B: EAR-compliant socket
Rated current: 10 A
Conductor cross-section 0.5 m / 1 m / 2 m: 3G0.75 mm²
Conductor cross-section 3 m: 3G1.00 mm²
Variants: 0.5 m, 1 m, 2 m, 3 m

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	3 m
Connector 1	IEC C14
Connector 2	Schuko
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Number of conductors	3
Conductor cross section	3G0.75
Connector 1 lockable
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Dimensions (WxDxH)	55 x 3000 x 50 mm

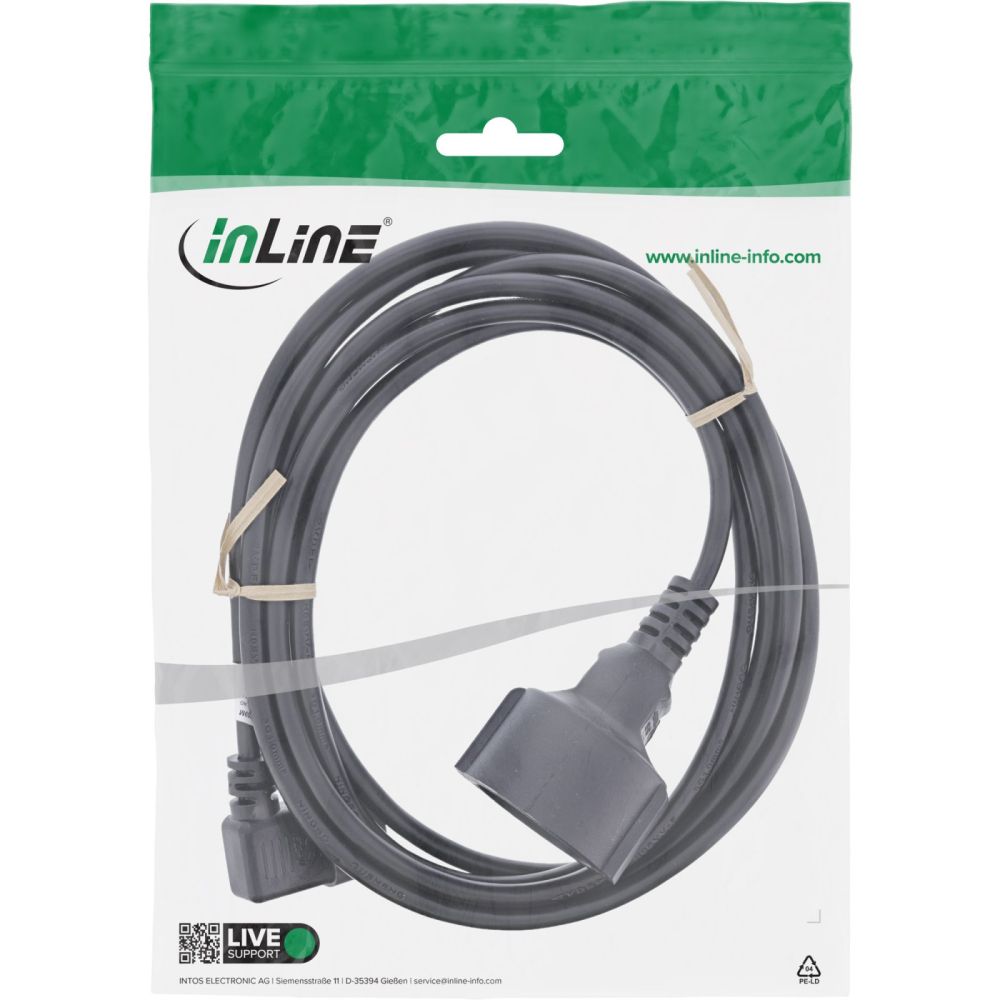

Packaging data
Package width	190 mm
Package depth	240 mm
Package height	55 mm
Package weight	363 g
Package volume	2500 cm³
Power
Input current	10 A
Technical data
Storage temperature	-20 bis 70°C
Harmonization	H05VV-F
Weight	0.363kg
Length packaging	0.240m
Article height	5.00cm
Colour	Black
Width packaging	0.190m
Side B	Earthing contact female
Signal	Power
Net weight	0.351kg
Article length	300.00cm
Side A	IEC-C14 (cold appliances)
Height packaging	0.055m
Operation temperature	-10 bis 60°C
Diameter	3G1.0
Packaging volume	0.0025m³
Article width	5.50cm
UL
Weight & dimensions
Width	55 mm
Depth	3000 mm
Height	50 mm
Weight	351 g

---
