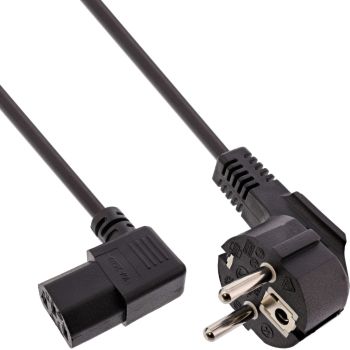

InLine® Power cable, CEE 7/7 angled / 3pin IEC C13 male angled, 0.5m
|
2,43 EUR |
|||||||||||
|
( 2,89 EUR incl. VAT ) ≈ £2.03 | ≈ $2.72 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22193595 | ||||||||||
| Mfg Part No: | 16752B | ||||||||||
| UPC/EAN: | 4043718112777 | ||||||||||
| Weight: | 0.112 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 16752B:
Space-saving angled plug: The angled safety plug and the right-angled C13 connection enable neat cable routing with minimal wall clearance.
Tested safety with VDE certification: The three-core H05VV-F cable is designed for a maximum current consumption of 10 amps.
Robust plug design: Moulded plugs in die-cast design support a stable mechanical connection.
Versatile use in the IT sector: Suitable for personal computers, monitors, printers and other devices with an IEC 60320 C13 connection.
The InLine power cable with CEE 7/7 to IEC 60320 C13 safety plug ensures a reliable and safe power supply for your IT and electrical devices. Devices with a cold device connection can be connected to the 250 volt power supply with up to 10 amps in accordance with standards.
Thanks to the angled safety plug and the right-angled C13 connection, installation is particularly space-saving.
The three-core H05VV-F cable is VDE-certified and meets the safety requirements for daily use.
With different lengths and colour options in black and grey, the power cable can be flexibly adapted to different installation situations.
Plug type on mains side: CEE 7/7 safety plug, angled
Plug type on device side: IEC 60320 C13, angled to the right
Cable type: H05VV-F
Rated voltage: 250V
Max. current consumption: 10A
Design: three-core
Certification: VDE
Plug: moulded (die-cast)
| Features | |
| Product colour | Black |
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| Cable length | 0.5 m |
| Connector 1 | C13 coupler |
| Connector 2 | CEE7/7 |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Angled |
| Conductor cross section | 0.75 mm² |
| Connector 1 lockable | |
| Connector 2 lockable | |
| Packaging data | |
| Package width | 174 mm |
| Package depth | 245 mm |
| Package height | 53 mm |
| Package weight | 112 g |
| Package volume | 2300 cm³ |
| Technical data | |
| Variant | Angled |
| Side A | CEE7/7 plug |
| Height packaging | 0.053m |
| Diameter | 3G0.75mm² |
| Outer diameter | 6,2mm |
| Net weight | 0.110kg |
| Packaging volume | 0.0023m³ |
| Article length | 50.00cm |
| Colour | Black |
| Width packaging | 0.174m |
| Signal | Power |
| Length packaging | 0.245m |
| Operation temperature | -10 bis 60°C |
| Side B | IEC-C13 (cold appliances) |
| Packing | Retail |
| Harmonization | H05VV-F |
| Storage temperature | -20 bis 70°C |
| Weight | 0.112kg |
| UL | |
| Weight & dimensions | |
| Depth | 500 mm |
| Weight | 110 g |
