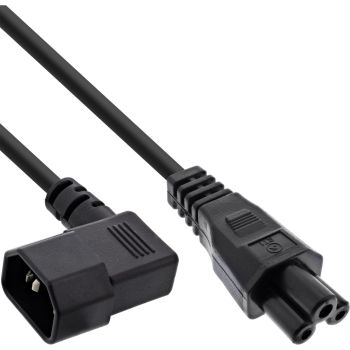

InLine® Mains cable, C14 female angled to C5 male, black, 5m content_copy

C14 angled refrigeration unit cable to C5 for optimised cable routingSpace-saving connection: The angled C14 connector significantly reduces the space required behind equipment and allows for a neat installation even where there is little clearance from the wall or within a rack.
High compatibility: Suitable for devices with an IEC C5 cloverleaf connector and power supply via C14, ideal for many IT devices and power supplies in daily use.
Robust construction: Moulded connectors increase stability and ensure a reliable power supply even with frequent use and movement of the cable.
Flexible cable routing: The 3-core PVC cable H05VV-F is easy to route and facilitates a structured and tidy installation without unnecessary strain on the connection.
Various lengths available: Available in 1 m, 2 m, 3 m and 5 m, suitable for short connections or longer distances between the power source and the device.
This power cable with an angled C14 socket to C5 plug enables a space-saving and reliable power connection for compatible devices. The angled design is particularly advantageous when devices are installed close to walls or in confined spaces. This facilitates cable routing and reduces strain on the connection area.
The combination of IEC C14 and C5 cloverleaf plugs is frequently used in power supplies and various IT devices. The cable supports a stable power supply and can be flexibly integrated into existing installations.
The use of moulded plugs increases mechanical durability. This ensures long-lasting use even with regular reconnection. The H05VV-F PVC cable has a 3-core construction and offers good conditions for neat and structured installation.
Depending on the application, a choice of different lengths is available. With 1 m, 2 m, 3 m or 5 m options, a suitable variant is available for different requirements. This allows the installation to be customised and avoids unnecessary excess cable.
Connection 1: IEC 60320 C14 socket, angled
Connection 2: IEC 60320 C5 plug
Cable type: H05VV-F
Conductor: 3-core
Colour: black
Lengths: 1 m, 2 m, 3 m, 5 m

Features
Product colour	Black
Connector 1 gender	Female
Connector 2 gender	Male
Cable length	5 m
Connector 1	C14 coupler
Connector 2	C5 coupler
Connector 1 standard	IEC 60320
Connector 2 standard	IEC 60320
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Cable type	H05VV-F 3G 1
Number of conductors	3
Conductor cross section	1 mm²
Other features
Country of origin	China
Packaging data
Package type	Polybag
Package width	190 mm
Package depth	240 mm
Package height	50 mm
Package weight	443 g
Technical data
Width packaging	0.190m
Net weight	0.431kg
Diameter	3G1.0
Height packaging	0.030m
Signal	Power
Packaging volume	0.0014m³
Article width	4.50cm
Harmonization	H05VV-F
Outer diameter	6.8mm
Article height	2.00cm
Colour	Black
Packing	Retail
Length	5m
Length packaging	0.240m
Article length	500.00cm
Side A	IEC-C14 (cold appliances)
Weight	0.443kg
Side B	IEC-C5 plug
UL
Weight & dimensions
Width	45 mm
Height	20 mm
Diameter	6.8 mm
Weight	431 g

---
