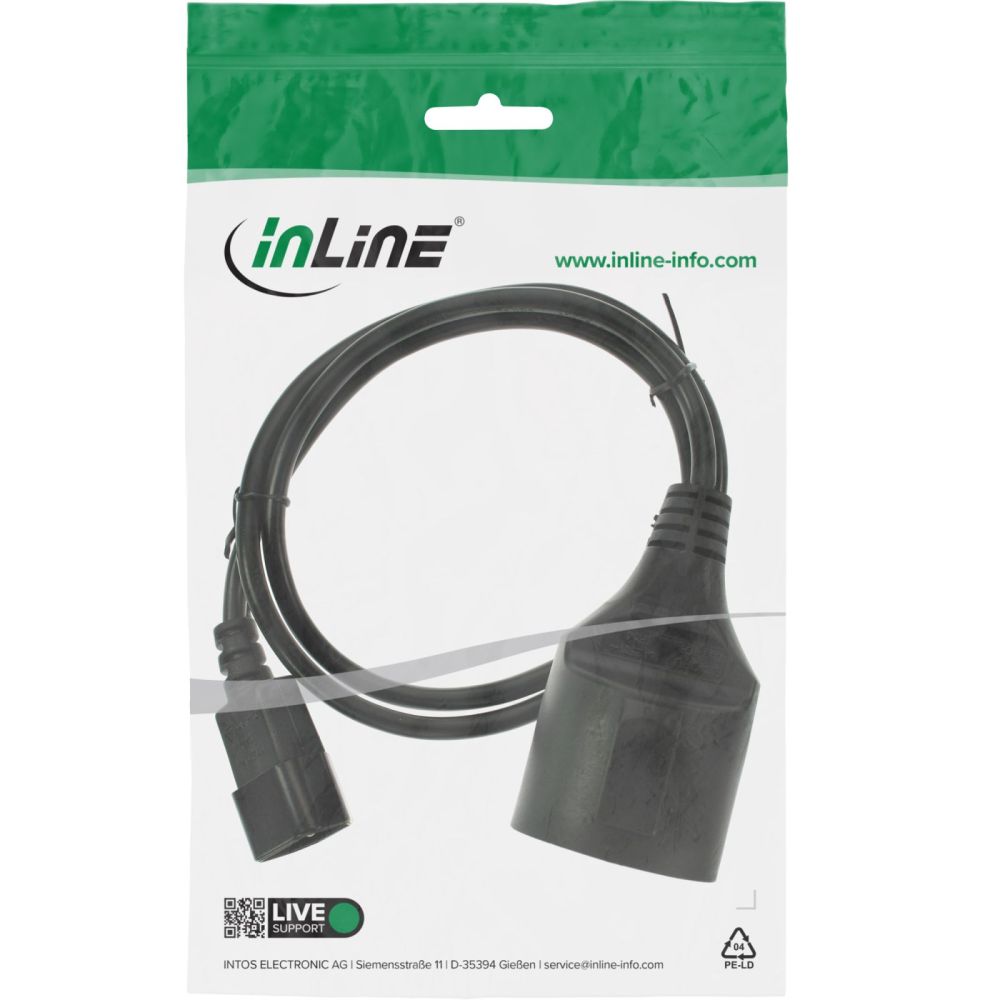

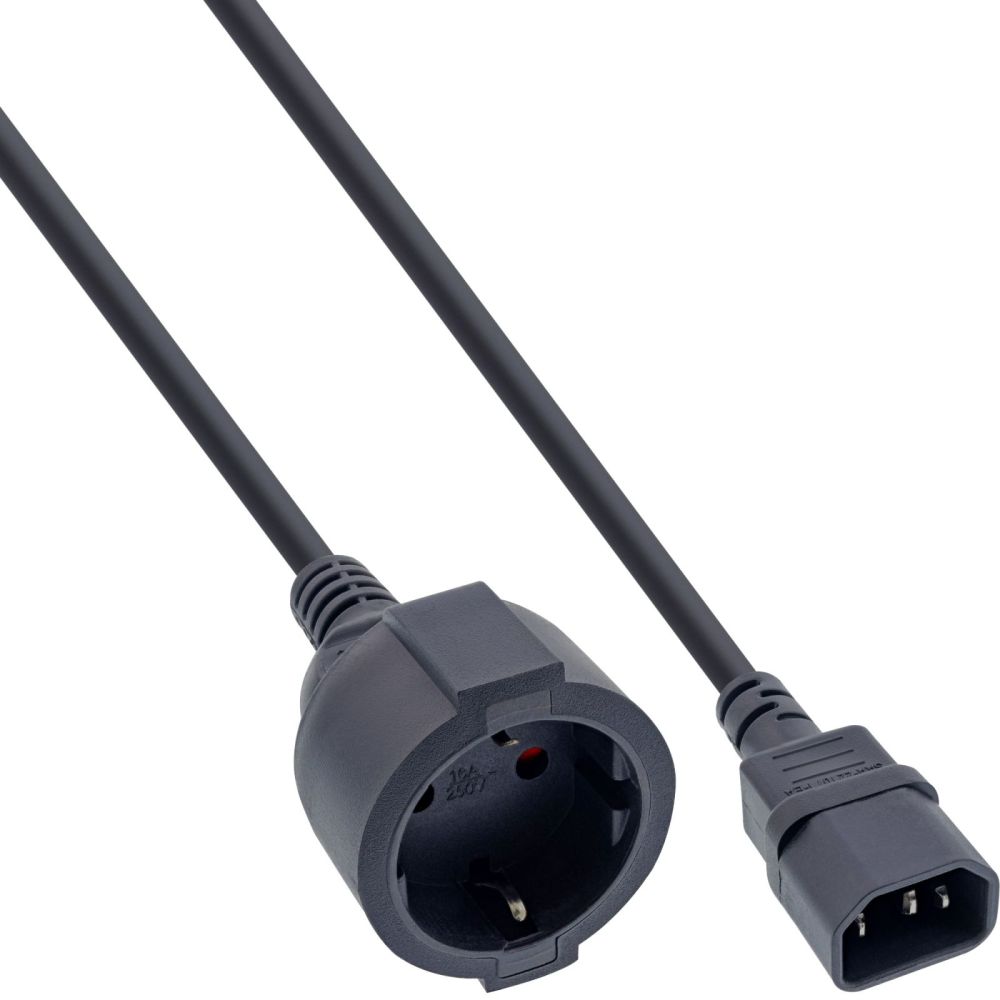

INLINE Power Adapter Cable Cold Devices C14 to Protective Contact Socket for UPS 0.5m content_copy

C14 to EAR adapter cable for UPS and PDU applicationsEnables flexible power connection to C14 sockets: This adapter cable allows you to connect devices with EAR plugs directly to a C14 socket, such as those found on UPS units or PDUs.
Reliable performance up to 2500 W: Rated for 10 A at 250 V and a maximum power consumption of 2500 W. Ideal for numerous components in IT and network installations.
Optimal solution for 48,3 cm ( 19 inch ) racks: Perfectly suited for use in server cabinets to make efficient use of existing C14 outlets and flexibly expand existing power distribution.
Clean and safe adapter solution: No infrastructure modification required. The cable provides a practical connection between a C14 socket and a grounded socket.
Available in several lengths: Available in 0.5 m, 1 m, 2 m and 3 m. This allows for structured cable routing tailored to specific requirements.
The InLine power adapter cable with C14 to earthed socket enables flexible power connection to existing C14 sockets. Such connections are typically found on UPS systems or PDUs within a 48,3 cm ( 19 inch ) server rack.
With a rating of 10 A at 250 V and a maximum power of 2500 W, the adapter cable is suitable for numerous electrical devices within professional IT environments. It connects a C14 power outlet to a grounded socket, providing a practical solution when devices with grounded plugs need to be connected to a suitable power source.
The cable is available in several lengths and supports structured cable management within the rack or technical area. Please note that the maximum power consumption of the connected device must not exceed 2500 W.
Connector A: C14 power socket
Connector B: EAR-compliant socket
Maximum power: 2500 W
Rated current: 10 A
Rated voltage: 250 V
Length options: 0.5 m, 1 m, 2 m, 3 m

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Male
Cable length	0.5 m
Connector 1	Power plug type F
Connector 2	C14 coupler
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable type	H05VV-F
Conductor cross section	0.75 mm²
Number of cable cores	3
Core size	0.75 mm²
Other features
Dimensions (WxDxH)	55 x 500 x 55 mm
Packaging data
Quantity per pack	1 pc(s)
Package width	150 mm
Package depth	130 mm
Package height	55 mm
Package weight	157 g
Package volume	2300 cm³
Power
Maximum current	10 A
Technical data
Height packaging	0.055m
Harmonization	H05VV-F
Outer diameter	6,2mm
Article width	5.50cm
Side A	IEC-C14 (cold appliances)
Packaging volume	0.0023m³
Storage temperature	-20 bis 70°C
Weight	0.157kg
Side B	Earthing contact female
Width packaging	0.150m
Article length	50.00cm
Length packaging	0.130m
Article height	5.50cm
Net weight	0.149kg
Diameter	3G0.75mm²
Packing	Retail
Signal	Power
Operation temperature	-10 bis 60°C
Colour	Black
UL
Weight & dimensions
Width	55 mm
Depth	500 mm
Height	55 mm
Weight	149 g

---
