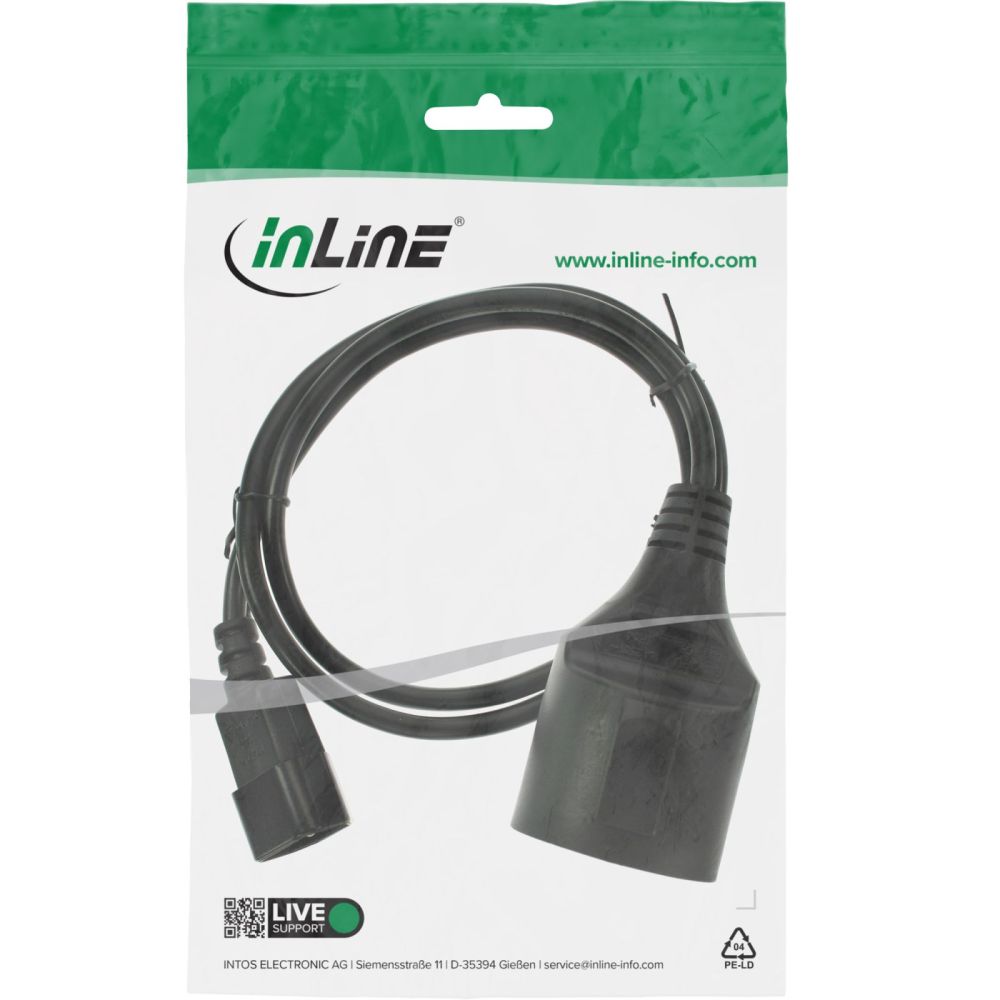

INLINE power adapter cable IEC-60320 C14 to German type F socket 3x 0,75mm2 max. for USV 1m content_copy

C14 to EAR adapter cable for UPS and PDU applicationsEnables flexible power connection to C14 sockets: This adapter cable allows you to connect devices with EAR plugs directly to a C14 socket, such as those found on UPS units or PDUs.
Reliable performance up to 2500 W: Rated for 10 A at 250 V and a maximum power consumption of 2500 W. Ideal for numerous components in IT and network installations.
Optimal solution for 48,3 cm ( 19 inch ) racks: Perfectly suited for use in server cabinets to make efficient use of existing C14 outlets and flexibly expand existing power distribution.
Clean and safe adapter solution: No infrastructure modification required. The cable provides a practical connection between a C14 socket and a grounded socket.
Available in several lengths: Available in 0.5 m, 1 m, 2 m and 3 m. This allows for structured cable routing tailored to specific requirements.

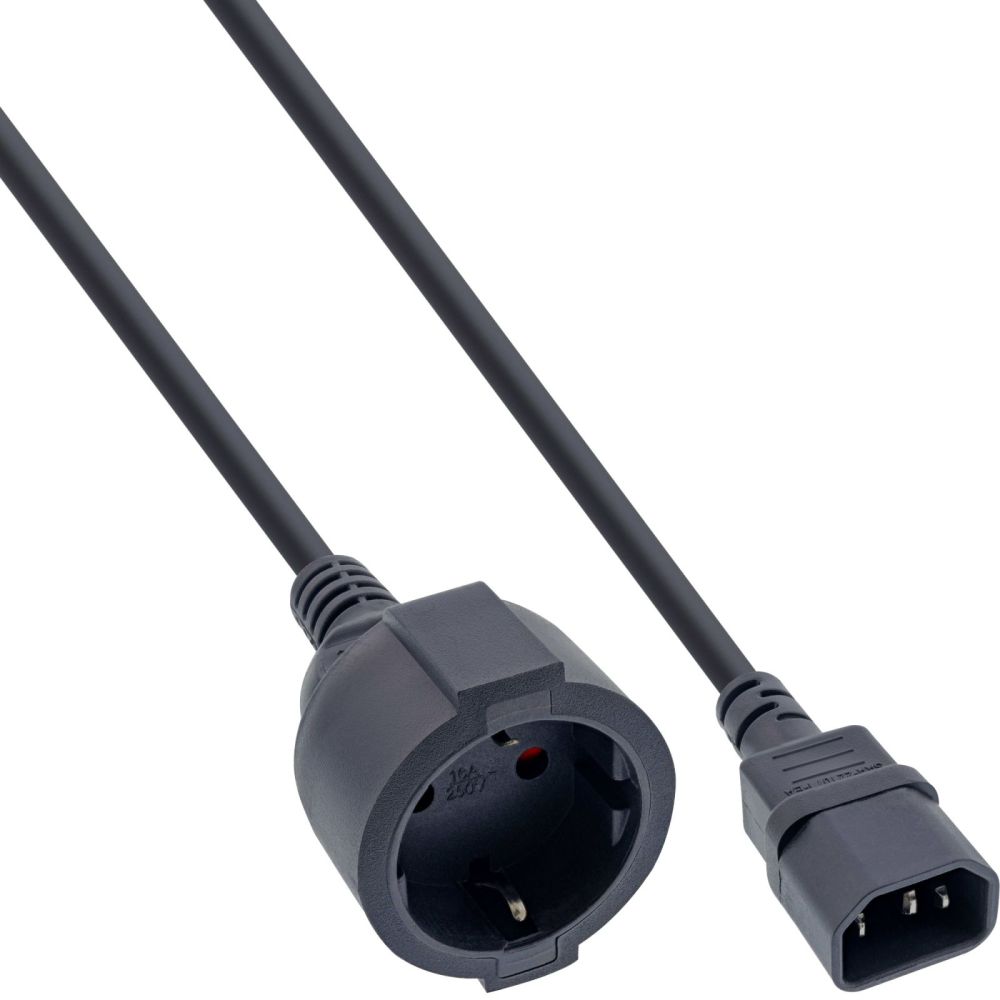

The InLine power adapter cable with C14 to earthed socket enables flexible power connection to existing C14 sockets. Such connections are typically found on UPS systems or PDUs within a 48,3 cm ( 19 inch ) server rack.
With a rating of 10 A at 250 V and a maximum power of 2500 W, the adapter cable is suitable for numerous electrical devices within professional IT environments. It connects a C14 power outlet to a grounded socket, providing a practical solution when devices with grounded plugs need to be connected to a suitable power source.
The cable is available in several lengths and supports structured cable management within the rack or technical area. Please note that the maximum power consumption of the connected device must not exceed 2500 W.
Connector A: C14 power socket
Connector B: EAR-compliant socket
Maximum power: 2500 W
Rated current: 10 A
Rated voltage: 250 V
Length options: 0.5 m, 1 m, 2 m, 3 m

Features
Product colour	Black
Cable length	1 m
Conductor cross section	0.75 mm²
Other features
Dimensions (WxDxH)	50 x 1000 x 50 mm
Packaging data
Package width	175 mm
Package depth	225 mm
Package height	59 mm
Package weight	189 g
Package volume	2300 cm³
Technical data
Height packaging	0.059m
Net weight	0.182kg
Length	1m
Packaging volume	0.0023m³
Width packaging	0.175m
Article length	100.00cm
Packing	Retail
Harmonization	H05VV-F
Outer diameter	6.2mm
Article width	5.00cm
Weight	0.189kg
Length packaging	0.225m
Article height	5.00cm
Side A	IEC-C14 (cold appliances)
Diameter	3G0.75mm²
UL
Weight & dimensions
Width	50 mm
Depth	1000 mm
Height	50 mm
Weight	182 g

---
