Inline 16635
Kaltgeräteverlängerung 5 m content_copy

The InLine cold equipment extension cable, article number 16635, is a 5 metre long power cable for extending the 250 V power connection for electronic devices in the computer field. It connects a male IEC 60320 C14 connector at one end to a female IEC 60320 C13 socket at the other, enabling devices such as PCs, monitors, printers, uninterruptible power supplies (UPS), and power distribution units (PDUs) to be connected to existing power sources. The extension is achieved via a PVC cable of type H05VV-F, suitable for indoor use and offering high mechanical and thermal resistance.

Applications
This cable is specifically designed for use in offices, server rooms, and IT infrastructures where flexible power supply for cold equipment is required. The term cold equipment refers to devices that do not generate high temperatures and are therefore suitable for use with this plug system. It is commonly used to extend the reach of power outlets without the need to install additional sockets. Use in UPS systems or PDUs enables central power distribution, keeping cabling structured and clear.

Functions and Features in Detail

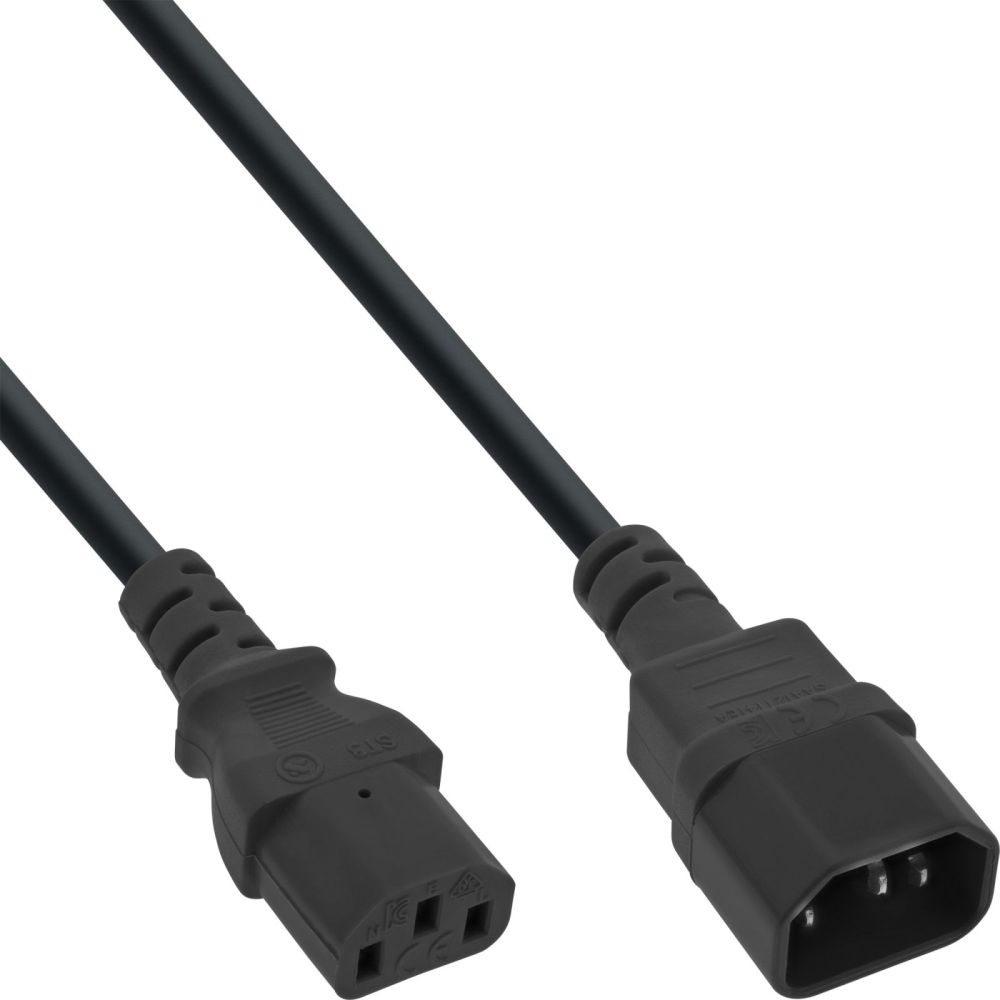

The connectors are designed as moulded plugs, where the metallic contacts are injected under pressure into the plastic housing. This design increases mechanical stability and prevents contacts from loosening during frequent plugging and unplugging. The connector at end A is an IEC-C14 plug, which is inserted into the device’s power supply. At end B, there is an IEC-C13 socket, which is inserted into a socket or power supply unit. The cable is black in colour, allowing it to blend discreetly into IT environments.

Technology Explained Simply
The cable consists of a 3-pole cable with a cross-section of 3G1.0 mm², meaning three individual conductors (live, neutral, earth) each have a cross-section of 1.0 mm². This cross-section is sufficient for powering devices with typical power consumption in the IT sector. The outer diameter is 6.4 mm, enabling compact and flexible installation. The harmonised standard H05VV-F describes a flexible, PVC-insulated cable intended for indoor use. The operating temperature ranges from -10 °C to 60 °C, ensuring suitability for normal indoor conditions. The storage temperature is -20 °C to 70 °C, allowing storage in dry rooms under normal conditions.

Compatibility and Accessories
The cable is compatible with all devices featuring an IEC-C13 connection, such as PCs, monitors, printers, or power supply extensions. On the other end, it can be plugged into any socket or power supply unit that provides an IEC-C14 socket. It is not intended for outdoor use, as no IP protection rating is specified. Use in UPS systems or PDUs is possible, as these devices often feature IEC-C13 sockets.

Installation and Mounting
Installation is done by simply plugging the connector into the corresponding socket. No additional tools or mounting work are required. The cable extension is immediately ready for use once the connection is made. The 5 metre cable length allows flexible placement of devices in the room without requiring additional extensions or sockets.

Operational Advantages
Using this cable enables clean and structured cabling, especially in IT environments. The moulded connectors increase service life and prevent accidental contact loosening. The PVC insulation provides sufficient protection against mechanical stress and is suitable for indoor use. The combination of length, cross-section, and plug system makes this cable a reliable solution for powering cold equipment in offices and server rooms.

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	5 m
Conductor cross section	1 mm²
Packaging data
Package width	290 mm
Package depth	300 mm
Package height	25 mm
Package weight	425 g
Package volume	2200 cm³
Technical data
Height packaging	0.030m
Operation temperature	-10 bis 60°C
Colour	Black
Side A	IEC-C13 (cold appliances)
Net weight	0.416kg
Article length	500.0cm
Outer diameter	6.4mm
Signal	Power
Side B	IEC-C14 (cold appliances)
Width packaging	0.290m
Weight	0.425kg
Harmonization	H05VV-F

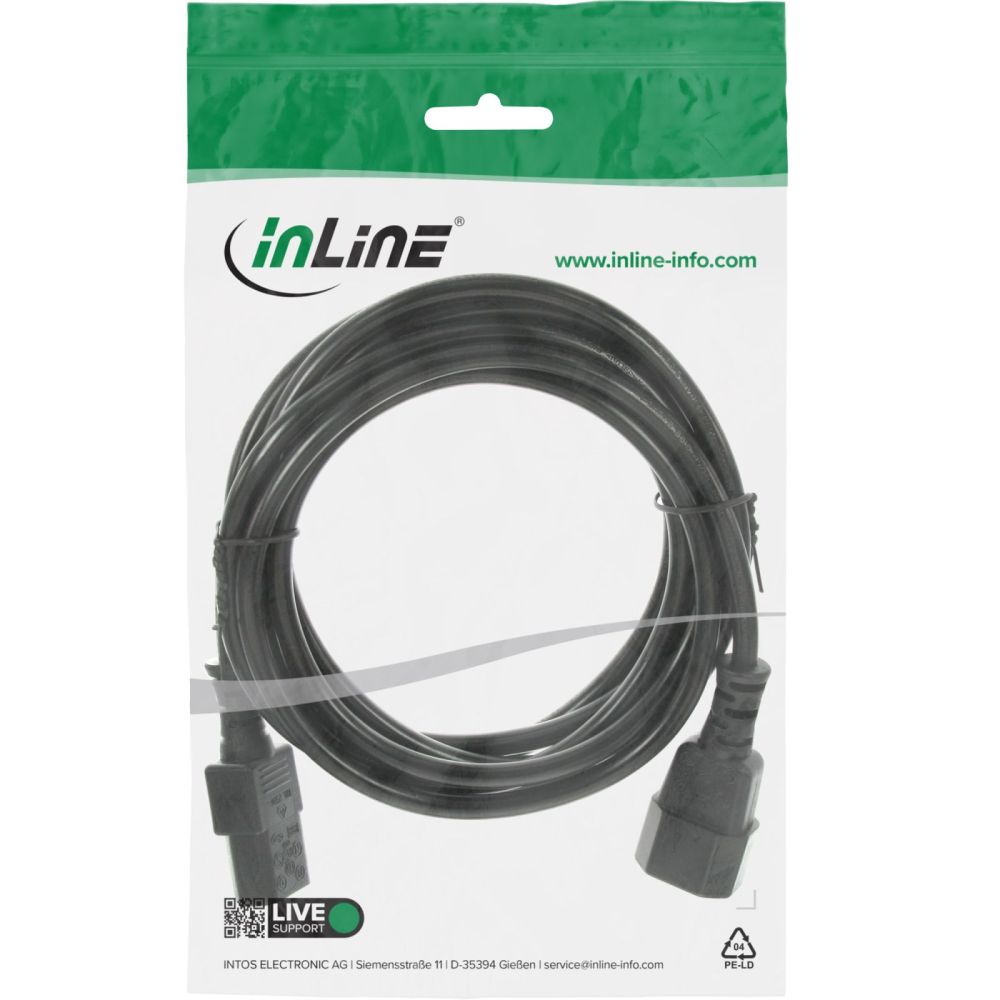

Packing	Retail
Storage temperature	-20 bis 70°C
Diameter	3G1.0mm²
Length packaging	0.300m
Length	5m
Packaging volume	0.0022m³
UL
Weight & dimensions
Weight	416 g

---
