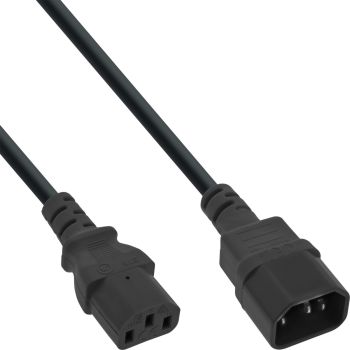

INLINE Power cable 3pin IEC M/F black 3m content_copy

The InLine cold appliance extension cable, type 16632B, is a power cable for extending the 250 V power connection for electronic devices in the computer field. It connects an IEC C13 plug on a device to an IEC C14 plug on the power source, thereby extending the cable reach by 3 metres. The cable is black and suitable for use with PCs, monitors, printers, as well as uninterruptible power supplies (UPS) or power distribution units (PDUs). The connection is made via a 3-pole cold appliance connector, designed for the safe power supply of devices with high energy demand.

Cold appliance extension is the designation for this product, specifically designed for extending power cables. The connectors comply with IEC 60320 standard, with a C13 plug (socket) at one end and a C14 plug (plug) at the other. These connectors are standard on computers, monitors, and other IT devices, allowing the cable to be directly integrated into existing installations. The connection is mechanically stable, as the plugs are moulded (die-cast), ensuring high mechanical strength and durability.

PVC cable H05VV-F forms the core of the cable. This cable is made of polyvinyl chloride (PVC) and complies with the harmonised standard H05VV-F, intended for flexible power cables with a nominal cross-section of 1 mm² per conductor. The total cable has a cross-section of 3G1.0 mm², meaning three individual conductors each with 1 mm² cross-section. The outer diameter is 6.4 mm, enabling compact and flexible handling. The cable is designed for indoor use and provides sufficient insulation for the nominal voltage range of 250 V.

Operating temperature ranges from -10 °C to 60 °C, allowing use in typical office and server environments. The storage temperature is -20 °C to 70 °C, ensuring the cable remains undamaged even during short-term storage under extreme conditions. The cable dimensions are 28 mm (width) × 3000 mm (length) × 20 mm (height), with a weight of 241 g. The packaging is retail packaging with dimensions 195 mm (width) × 255 mm (depth) × 28 mm (height) and a package weight of 286 g.

Compatibility and accessories include use with devices featuring an IEC C13 plug (socket) or an IEC C14 plug (plug). These are typical connectors on computers, monitors, printers, servers, and UPS systems. The cable can also be used in combination with power distribution units (PDUs) to organise the power supply for multiple devices via a central power cable. Use is exclusively indoors, as no special protection ratings such as IP67 or similar for outdoor use are specified.

Mounting and installation are performed by simply plugging the connectors into the corresponding sockets. No additional tools or mounting aids are required. The moulded plugs ensure a secure and durable connection, even under frequent plugging and unplugging. The cable extension is thus suitable for use in IT infrastructures, offices, and server rooms where flexible and reliable power supply is required.

Operational advantages include easy handling, high mechanical stability of the moulded plugs, and compatibility with a wide range of IT devices. The extension allows devices to be connected to a power source that is not directly accessible, without requiring additional sockets or power distributors. The use of H05VV-F cable ensures sufficient power transmission and safety during use in typical working environments.

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	3 m
Conductor cross section	1 mm²
Other features
Dimensions (WxDxH)	28 x 3000 x 20 mm
Packaging data
Package width	195 mm
Package depth	255 mm
Package height	28 mm
Package weight	286 g
Package volume	1400 cm³
Technical data
Diameter	3G1.0mm²
Article width	2.8cm
Weight	0.286kg
Packaging volume	0.0014m³
Side B	IEC-C14 (cold appliances)
Storage temperature	-20 bis 70°C
Colour	Black
Height packaging	0.028m
Net weight	0.241kg
Article length	300.0cm
Packing	Retail
Operation temperature	-10 bis 60°C
Article height	2.0cm
Length packaging	0.255m
Signal	Power
Outer diameter	6.4mm
Side A	IEC-C13 (cold appliances)
Width packaging	0.195m
Harmonization	H05VV-F
UL
Weight & dimensions
Width	28 mm
Depth	3000 mm
Height	20 mm
Weight	241 g

---
