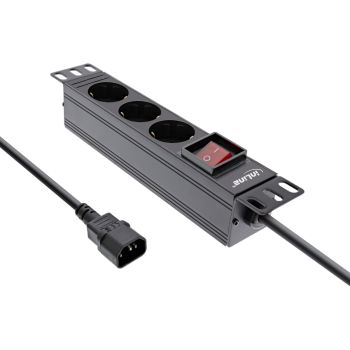

InLine® 25,4 cm ( 10 inch ) socket strip, 3-way earthing contact, C14 connection, with switch
|
29,00 EUR |
|
|
( 34,51 EUR incl. VAT ) ≈ £24.27 | ≈ $32.45 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193599 |
| Mfg Part No: | 16421K |
| UPC/EAN: | 4043718303014 |
| Weight: | 0.599 kg |
Product information for Inline 16421K:
Sockets according to DIN 49440, rotated by 45°
Maximum total load 2500 W
Cable: H05VV-F3G1.5mm², length 2m, with straight IEC-C14 plug e.g. for connection to a UPS
Dimensions strip: Width 25,4 cm ( 10 inch ) (254mm), height: 1HE (45mm), Depth 45mm
Aluminium-power strip
Colour: Black RAL9004
| Certificates | |
| Certification | |
| Features | |
| Product colour | Black |
| Housing material | Aluminium, Plastic |
| Rack capacity | 1U |
| On/off switch | |
| Other features | |
| Dimensions (WxDxH) | 45 x 255 x 55 mm |
| Size (imperial) | 25.4 cm (10") |
| Packaging data | |
| Package width | 95 mm |
| Package depth | 300 mm |
| Package height | 55 mm |
| Package weight | 599 g |
| Package volume | 1600 cm³ |
| Package type | Box |
| Ports & interfaces | |
| Power plug | C14 coupler |
| Power | |
| AC outlets quantity | 3 AC outlet(s) |
| Technical data | |
| Cable | 3G1.5mm² |
| Net weight | 0.539kg |
| Alignment of connections | 45° |
| Max. output power | 2500W |
| Number of protected outlets (CEE 7/3) | 3 |
| Height packaging | 0.055m |
| Length packaging | 0.300m |
| Article height | 5.50cm |
| Colour | Black |
| Packaging volume | 0.0016m³ |
| Article width | 4.50cm |
| Material | plastic, aluminium |
| Input voltage | 230V |
| Weight | 0.599kg |
| Width packaging | 0.095m |
| Article length | 25.50cm |
| Output current | 10A |
| Switch | With |
| Supply line | Power cable with C14 plug |
| Type | 10" |
| GS tested | |
| With overvoltage protection | |
| Touch protection | |
| Technical details | |
| Type | Single-phase |
| Weight & dimensions | |
| Weight | 539 g |
| Cable length | 2 m |
| Width | 45 mm |
| Depth | 255 mm |
| Height | 55 mm |
Questions & answers
What is the delivery time of InLine® 25,4 cm ( 10 inch ) socket strip, 3-way earthing contact, C14 connection, with switch?
The article InLine® 25,4 cm ( 10 inch ) socket strip, 3-way earthing contact, C14 connection, with switch is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 16421K to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® 25,4 cm ( 10 inch ) socket strip, 3-way earthing contact, C14 connection, with switch always at the best possible price. We can give you a discount of 2% on InLine® 25,4 cm ( 10 inch ) socket strip, 3-way earthing contact, C14 connection, with switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
