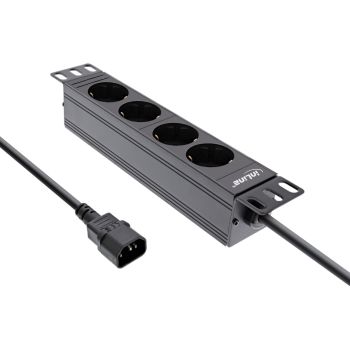

InLine® 25,4 cm ( 10 inch ) socket strip, 4-way earthing contact, C14 connection, w/o switch
|
22,00 EUR |
|
|
( 26,18 EUR incl. VAT ) ≈ £18.41 | ≈ $24.62 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193468 |
| Mfg Part No: | 16421J |
| UPC/EAN: | 4043718303007 |
| Weight: | 0.593 kg |
Product information for Inline 16421J:
Sockets according to DIN 49440, rotated by 45°
Maximum total load 2500W
Supply line: H05VV-F3G1.5mm², length 2m, with straight IEC-C14 plug e.g. for connection to a UPS
Dimensions: Width 25,4 cm ( 10 inch ) (254mm), height: 1U ( 45mm), depth 45mm
Aluminum strip
Color: black RAL9004
| Certificates | |
| Certification | |
| Features | |
| Product colour | Black |
| Housing material | Aluminium, Plastic |
| Rack capacity | 1U |
| On/off switch | |
| Other features | |
| Dimensions (WxDxH) | 45 x 255 x 45 mm |
| Size (imperial) | 25.4 cm (10") |
| Packaging data | |
| Package width | 95 mm |
| Package depth | 300 mm |
| Package height | 57 mm |
| Package weight | 593 g |
| Package volume | 1700 cm³ |
| Package type | Box |
| Ports & interfaces | |
| Power plug | C14 coupler |
| Power | |
| AC outlets quantity | 4 AC outlet(s) |
| Technical data | |
| Packaging volume | 0.0017m³ |
| Article length | 25.50cm |
| Cable | 3G1.5mm² |
| Net weight | 0.534kg |
| Length packaging | 0.300m |
| Weight | 0.593kg |
| Width packaging | 0.095m |
| Output current | 10A |
| Height packaging | 0.057m |
| Article height | 4.50cm |
| Number of protected outlets (CEE 7/3) | 4 |
| Supply line | Power cable with C14 plug |
| Article width | 4.50cm |
| Colour | Black |
| Type | 10" |
| Input voltage | 230V |
| Switch | Without |
| Alignment of connections | 45° |
| Max. output power | 2500W |
| Material | plastic, aluminium |
| GS tested | |
| With overvoltage protection | |
| Touch protection | |
| Technical details | |
| Type | Single-phase |
| Weight & dimensions | |
| Weight | 534 g |
| Cable length | 2 m |
| Width | 45 mm |
| Depth | 255 mm |
| Height | 45 mm |
Questions & answers
What is the delivery time of InLine® 25,4 cm ( 10 inch ) socket strip, 4-way earthing contact, C14 connection, w/o switch?
The article InLine® 25,4 cm ( 10 inch ) socket strip, 4-way earthing contact, C14 connection, w/o switch is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 16421J to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® 25,4 cm ( 10 inch ) socket strip, 4-way earthing contact, C14 connection, w/o switch always at the best possible price. We can give you a discount of 2% on InLine® 25,4 cm ( 10 inch ) socket strip, 4-way earthing contact, C14 connection, w/o switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
