InLine® 25,4 cm ( 10 inch ) socket strip, 3-way earthing contact, C14 connection, w/o switch
|
19,00 EUR |
|
|
( 22,61 EUR incl. VAT ) ≈ £15.90 | ≈ $21.26 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193369 |
| Mfg Part No: | 16421I |
| UPC/EAN: | 4043718302994 |
| Weight: | 0.581 kg |

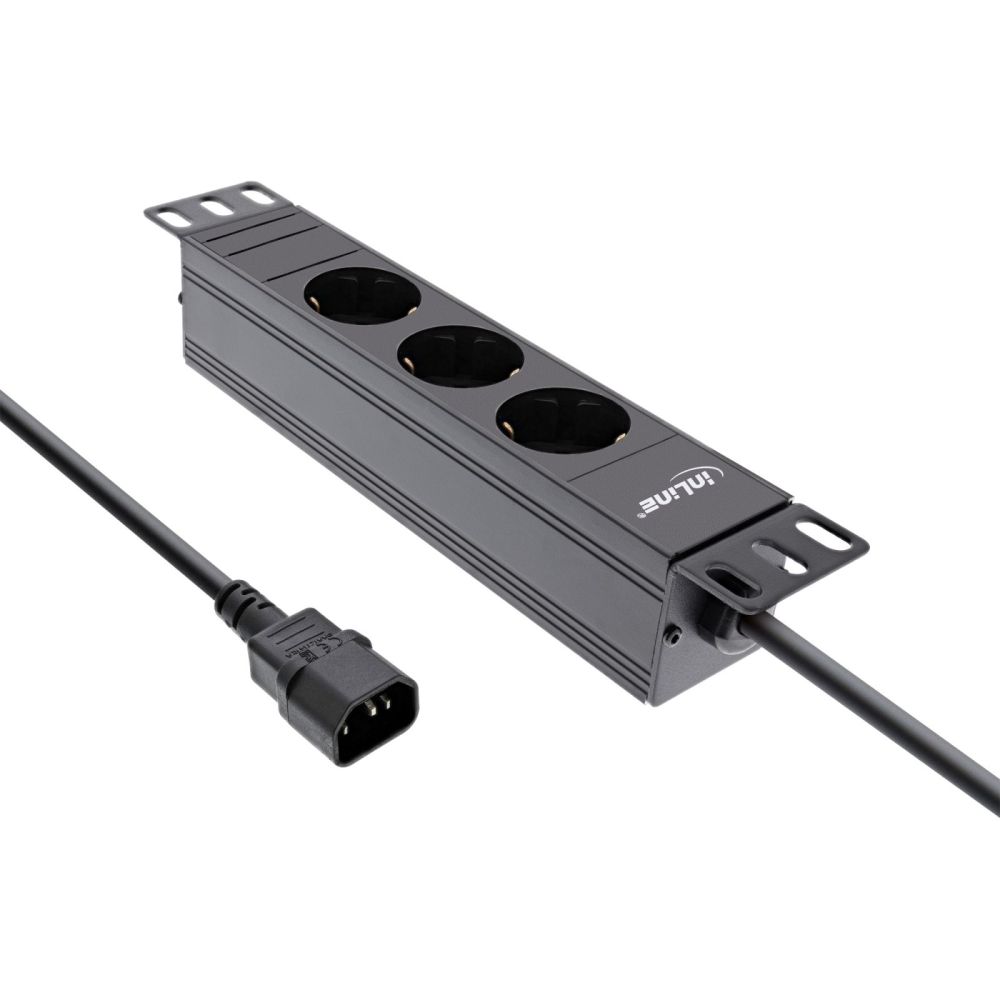

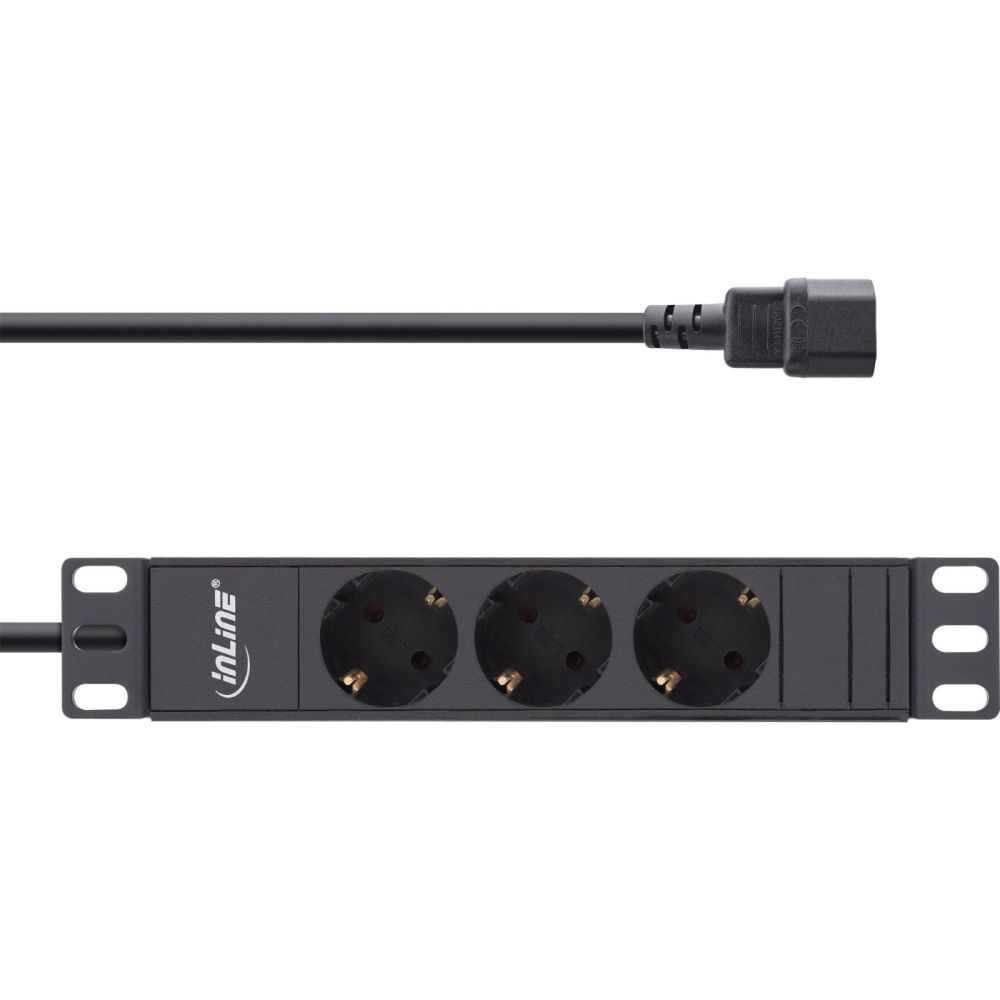

Product information for Inline 16421I:
Sockets according to DIN 49440, rotated by 45 °
Maximum total load 2500 W
Supply line: H05VV-F3G1.5mm², length 2m, with straight IEC-C14 plug, e.g. for connection to a UPS
Dimensions of bar: width 25,4 cm ( 10 inch ) (254mm), height: 1U (45mm), depth 45mm
Aluminum strip
Color: black RAL9004
| Certificates | |
| Certification | |
| Features | |
| Product colour | Black |
| Housing material | Aluminium, Plastic |
| Rack capacity | 1U |
| On/off switch | |
| Other features | |
| Dimensions (WxDxH) | 45 x 255 x 45 mm |
| Size (imperial) | 25.4 cm (10") |
| Packaging data | |
| Package width | 97 mm |
| Package depth | 300 mm |
| Package height | 55 mm |
| Package weight | 581 g |
| Package volume | 1700 cm³ |
| Package type | Box |
| Ports & interfaces | |
| Power plug | C14 coupler |
| Power | |
| AC outlets quantity | 3 AC outlet(s) |
| Technical data | |
| Max. output power | 2500W |
| Number of protected outlets (CEE 7/3) | 3 |
| Height packaging | 0.055m |
| Article height | 4.50cm |
| Material | plastic, aluminium |
| Switch | Without |
| Cable | 3G1.5mm² |
| Net weight | 0.521kg |
| Alignment of connections | 45° |
| Type | 10" |
| Supply line | Power cable with C14 plug |
| Article width | 4.50cm |
| Input voltage | 230V |
| Packaging volume | 0.0017m³ |
| Article length | 25.50cm |
| Length packaging | 0.300m |
| Colour | Black |
| Weight | 0.581kg |
| Width packaging | 0.097m |
| Output current | 10A |
| With overvoltage protection | |
| Touch protection | |
| GS tested | |
| Technical details | |
| Type | Single-phase |
| Weight & dimensions | |
| Weight | 521 g |
| Cable length | 2 m |
| Width | 45 mm |
| Depth | 255 mm |
| Height | 45 mm |
