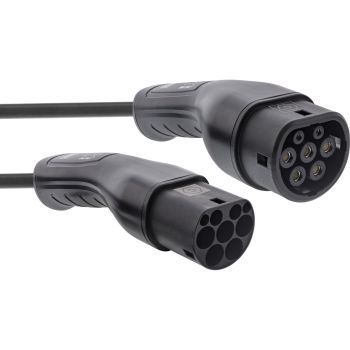

InLine® EV car charging cable Type 2, 22 kW, 3-phase, 10 m content_copy

Type 2 EV charging cable for fast and safe charging up to 22 kWFast AC charging: Charge your electric vehicle or plug-in hybrid at up to 22 kW (32 A) at compatible Type 2 charging points and wall boxes. The EV charging cable supports 3-phase charging and can also be used for 1-phase or 2-phase charging.
High compatibility: Suitable for vehicles with a Type 2 or CCS2 charging port. The charging cable safely connects your vehicle to public charging stations or a wallbox. Not suitable for Type 1, CCS1, CHAdeMO, Tesla Supercharger or GB/T charging points.
Robust cable for outdoor use: The TPU cable H07BZ5-F is designed for daily outdoor use. It is UV- and oil-resistant, as well as halogen-free and low-smoke. The temperature range of -30 to +50 °C allows for use in a variety of weather conditions.
Reliably protected: Protective caps on both plugs shield the contacts from dirt and moisture. With an IP65 protection rating when plugged in and IP65 when unplugged and fitted with protective caps, the cable is also suitable for demanding operating conditions.
Convenient storage: The supplied storage bag, featuring hook-and-loop fasteners and eyelets, makes it easy to transport the cable safely in your vehicle. This ensures the Type 2 charging cable remains clean, neatly stowed away and ready for immediate use at any time.
With the InLine EV Type 2 car charging cable, you can conveniently charge electric vehicles and plug-in hybrids at public AC charging stations or at a wallbox with a Type 2 charging socket. The 3-phase charging cable supports charging powers of up to 22 kW at 32 A and can also be used for 1-phase or 2-phase charging.
The robust TPU cable (H07BZ5-F) is designed for long-term outdoor use. It is UV- and oil-resistant, as well as halogen-free and low-smoke. The temperature range of -30 to +50 °C ensures reliable operation in a variety of weather conditions.
Protective caps on both plugs help to protect the contacts from dirt and moisture. With an IP65 protection rating when plugged in and an IP65 rating when unplugged and fitted with protective caps, the cable is suitable for regular use at public charging points or at home. The supplied storage bag ensures safe and tidy transport in the vehicle.
Type 2 connector in accordance with IEC EN 62196
Charging power up to 22 kW
32 A
3-phase
Supports 1-phase and 2-phase charging
Suitable for Type 2 and CCS2 charging ports
Not compatible with Type 1
Not compatible with CCS1
Not compatible with CHAdeMO
Not compatible with Tesla Supercharger
Not compatible with GB/T charging points
TPU cable H07BZ5-F
Temperature range -30 to +50 °C
UV-resistant
Oil-resistant
Halogen-free
Low-smoke IP65 protection rating (when plugged in) IP65 protection rating (when unplugged with protective caps)
Includes storage bag with hook-and-loop fasteners and eyelets

Features
Cable colour	Black
Handle colour	Black
Connector 1	Type 2
Connector 2	Type 2
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector gender	Male
International Protection (IP) code	IP65
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Packaging data
Package width	370 mm
Package depth	360 mm
Package height	180 mm
Package weight	4.1 kg
Package volume	24000 cm³
Quantity per pack	1 pc(s)
Power
Number of phases	3
Maximum operating power (three-phase)	22 kW
Maximum operating current (three-phase)	32 A
Technical data
Special feature	IP65
Width packaging	0.370m
Signal	Power
Type	Car charger cable
Net weight	5.380kg
Side A	Type 2 plug male (car charger cable)
Operation temperature	-30 bis +50°C
Colour	Black
Design	3-phase 22kW
Packaging volume	0.0240m³
Height packaging	0.180m
Side B	Type 2 plug female (car charger cable)
Article width	7.00cm
Outer diameter	16.8mm
Length	10m
Length packaging	0.360m
Article height	7.00cm
Weight	6.250kg
Article length	1000.00cm
Weight & dimensions
Cable length	10 m
Cable diameter	1.68 cm
Weight	3.17 kg

---
