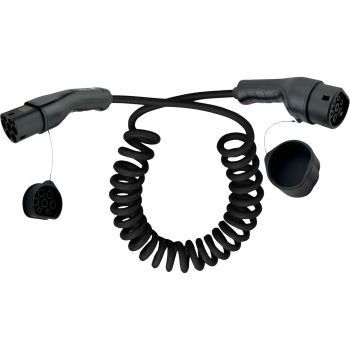

InLine® EV Type 2 spiral car charging cable, 11 kW, 3-phase, 3 m
|
81,17 EUR |
|
|
( 96,59 EUR incl. VAT ) ≈ £67.94 | ≈ $90.83 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22193205 |
| Mfg Part No: | 16273S |
| UPC/EAN: | 4043718348923 |
| Weight: | 2.174 kg |
Product information for Inline 16273S:
Type 2 coiled charging cable for electric cars up to 11 kW with flexible handlingSpace-saving coiled design: The Type 2 charging cable remains compact during charging, reduces excess cable and makes it easier to use with wall boxes and charging stations.
Up to 11 kW charging power: The 3-phase EV charging cable supports charging powers of up to 11 kW and can also be used for 1-phase and 2-phase charging.
Robust for outdoor use: The TPU cable H07BZ5-F is UV-resistant, oil-resistant, halogen-free and designed for temperatures ranging from -30 °C to +50 °C.
Protected against dust and moisture: Protective caps and IP65 protection when plugged in ensure reliable use in various weather conditions.
High vehicle compatibility: Suitable for vehicles with Type 2 and CCS2 charging ports, as well as for use at public charging stations and private wallboxes.
The InLine Type 2 spiral charging cable has been developed for convenient charging of electric vehicles and plug-in hybrids at public charging stations and private wallboxes. Thanks to its spiral design, the cable remains compact during charging and minimises excess cable on the ground.
The 3-phase EV charging cable supports charging power of up to 11 kW and can also be used for 1-phase and 2-phase charging. This makes it suitable for a variety of charging situations and offers great flexibility in everyday use.
The high-quality H07BZ5-F TPU cable is designed for long-term outdoor use. It is halogen-free, low-smoke, UV-resistant and oil-resistant. The temperature range of -30 °C to +50 °C allows for use in a variety of weather conditions.
Protective caps on the connectors help to reduce dirt and moisture during transport and storage. The storage bag supplied ensures safe transport and tidy storage in the vehicle.
Type 2 to Type 2 in accordance with IEC EN 62196
16 A
3-phase
Up to 11 kW
1-phase up to 3.7 kW
2-phase up to 7.4 kW IP65 with protective caps when not connected
Suitable for Type 2 and CCS2 charging ports
Up to 11 kW charging power: The 3-phase EV charging cable supports charging powers of up to 11 kW and can also be used for 1-phase and 2-phase charging.
Robust for outdoor use: The TPU cable H07BZ5-F is UV-resistant, oil-resistant, halogen-free and designed for temperatures ranging from -30 °C to +50 °C.
Protected against dust and moisture: Protective caps and IP65 protection when plugged in ensure reliable use in various weather conditions.
High vehicle compatibility: Suitable for vehicles with Type 2 and CCS2 charging ports, as well as for use at public charging stations and private wallboxes.
The InLine Type 2 spiral charging cable has been developed for convenient charging of electric vehicles and plug-in hybrids at public charging stations and private wallboxes. Thanks to its spiral design, the cable remains compact during charging and minimises excess cable on the ground.
The 3-phase EV charging cable supports charging power of up to 11 kW and can also be used for 1-phase and 2-phase charging. This makes it suitable for a variety of charging situations and offers great flexibility in everyday use.
The high-quality H07BZ5-F TPU cable is designed for long-term outdoor use. It is halogen-free, low-smoke, UV-resistant and oil-resistant. The temperature range of -30 °C to +50 °C allows for use in a variety of weather conditions.
Protective caps on the connectors help to reduce dirt and moisture during transport and storage. The storage bag supplied ensures safe transport and tidy storage in the vehicle.
Type 2 to Type 2 in accordance with IEC EN 62196
16 A
3-phase
Up to 11 kW
1-phase up to 3.7 kW
2-phase up to 7.4 kW IP65 with protective caps when not connected
Suitable for Type 2 and CCS2 charging ports
| Features | |
| Cable colour | Black |
| Handle colour | Black |
| Connector 1 | Type 2 |
| Connector 2 | Type 2 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector gender | Male |
| International Protection (IP) code | IP65 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 360 mm |
| Package height | 180 mm |
| Package weight | 4.1 kg |
| Package volume | 24000 cm³ |
| Quantity per pack | 1 pc(s) |
| Power | |
| Number of phases | 3 |
| Minimum operating power (single-phase) | 3.7 kW |
| Maximum operating power (three-phase) | 11 kW |
| Maximum operating current (three-phase) | 16 A |
| Technical data | |
| Type | Car charger cable |
| Packaging volume | 0.0160m³ |
| Weight | 2.174kg |
| Length packaging | 0.360m |
| Article height | 7.00cm |
| Design | 3-phase 11kW |
| Article length | 300.00cm |
| Side A | Type 2 plug male (car charger cable) |
| Side B | Type 2 plug female (car charger cable) |
| Article width | 7.00cm |
| Outer diameter | 16.8mm |
| Signal | Power |
| Height packaging | 0.120m |
| Net weight | 1.435kg |
| Special feature | IP65 |
| Width packaging | 0.370m |
| Operation temperature | -30 bis +50°C |
| Colour | Black |
| Weight & dimensions | |
| Cable length | 3 m |
| Cable diameter | 1.68 cm |
| Weight | 3.17 kg |
