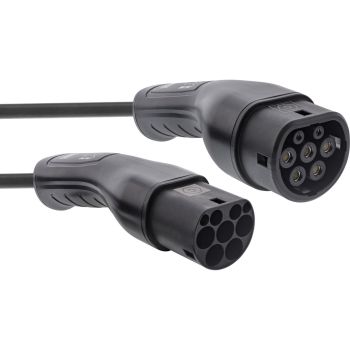

InLine® EV car charging cable Type 2, 11 kW, 3-phase, 10 m content_copy

Type 2 charging cable for electric cars up to 11 kW for convenient AC chargingReliable charging up to 11 kW: The 3-phase Type 2 charging cable supports charging power of up to 11 kW and can also be used for 1-phase and 2-phase charging.
High compatibility: Suitable for vehicles with Type 2 and CCS2 charging ports, as well as for use at public charging stations and private wall boxes.
Robust for outdoor use: The TPU cable H07BZ5-F is UV-resistant, oil-resistant, halogen-free and low-smoke, and is suitable for temperatures ranging from -30 °C to +50 °C.
Protected against dust and moisture: Protective caps and IP65 protection when plugged in ensure reliable use in a variety of weather conditions.
Practical for everyday use: The included storage bag with Velcro straps and eyelets makes it easy to transport and store neatly in the vehicle.
The InLine Type 2 charging cable has been developed for charging electric vehicles and plug-in hybrids at public charging stations and private wall boxes. It enables a reliable connection between the vehicle and the charging infrastructure and is suitable for daily use in both private and public settings.
The 3-phase AC charging cable supports charging powers of up to 11 kW and can also be used for 1-phase and 2-phase charging processes. This makes it suitable for a variety of charging situations and offers a high degree of flexibility in everyday use.
The high-quality TPU cable H07BZ5-F has been developed for demanding environmental conditions. It is halogen-free, low-smoke, UV-resistant and oil-resistant, and can be used at temperatures ranging from -30 °C to +50 °C.
Protective caps on the connectors help to protect the contacts from dirt and moisture. The IP65 protection rating when connected ensures it can be used in a variety of weather conditions. For transport and storage, the charging cable comes with a practical pouch featuring Velcro straps and eyelets.
The cable is suitable for vehicles with a Type 2 or CCS2 charging port. It is not compatible with Type 1, CCS1, CHAdeMO, Tesla Supercharger or GB/T charging points.
Type 2 to Type 2 in accordance with IEC EN 62196
Up to 11 kW charging power
Up to 16 A
3-phase
1-phase charging up to 3.7 kW
2-phase charging up to 7.4 kW IP65 protection rating when unplugged and fitted with protective caps
Suitable for EVs and PHEVs
TPU cable H07BZ5-F

Features
Cable colour	Black
Handle colour	Black
Connector 1	Type 2
Connector 2	Type 2
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector gender	Male
International Protection (IP) code	IP65
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Packaging data
Package width	370 mm
Package depth	360 mm
Package height	180 mm
Package weight	4.1 kg
Package volume	24000 cm³
Quantity per pack	1 pc(s)
Power
Number of phases	3
Minimum operating power (single-phase)	3.7 kW
Maximum operating power (three-phase)	11 kW
Maximum operating current (three-phase)	16 A
Technical data
Side A	Type 2 plug male (car charger cable)
Article width	7.00cm
Special feature	IP65
Signal	Power
Length packaging	0.360m
Article length	1000.00cm
Height packaging	0.180m
Net weight	3.175kg
Design	3-phase 11kW
Packaging volume	0.0240m³
Side B	Type 2 plug female (car charger cable)
Article height	7.00cm
Operation temperature	-30 bis +50°C
Colour	Black
Outer diameter	16.8mm
Width packaging	0.370m
Length	10m
Type	Car charger cable
Weight	4.101kg
Weight & dimensions
Cable length	10 m
Cable diameter	1.68 cm
Weight	3.17 kg

---
