InLine® Serial extension, 9pin male / female, moulded, 1:1 assigned, 3m content_copy

Reliable extension of serial connections: The serial extension allows existing RS232, RS422 or RS485 interfaces between PCs, servers and peripheral devices with 9-pin Sub-D connectors to be extended.
1:1 assignment without crossover: All pins are connected one-to-one and ensure direct signal transmission without zero modem function or crossover wiring.
9-pin Sub-D plug to socket: The combination of 9-pin plug and 9-pin socket allows easy extension of existing DB9 or COM port connections.
Moulded plug design: The moulded plugs support a stable mechanical connection and increase resistance in daily use.
Flexible application options: Suitable for serial interfaces in classic PC systems, control units or technical installations with RS232, RS422 or RS485.
The InLine serial extension with 9-pin Sub-D plug to 9-pin Sub-D socket is used to extend existing serial interfaces. It is suitable for RS232, RS422 and RS485 connections between PCs, servers or peripheral devices with a corresponding DB9 interface.
Thanks to the 1:1 pin assignment, all pins are directly connected. There is no cross-wiring. This means that the existing signal structure remains unchanged and the connection can be easily extended.
The moulded connectors support a stable mechanical connection and ensure long-lasting use in daily operation. The standardised 9-pin Sub D design allows easy integration into existing systems.
The cable is available in several lengths and offers a flexible solution for extending serial connections.
Available lengths: 2 m, 3 m, 5 m, 7 m, 10 m, 15 m, 20 m

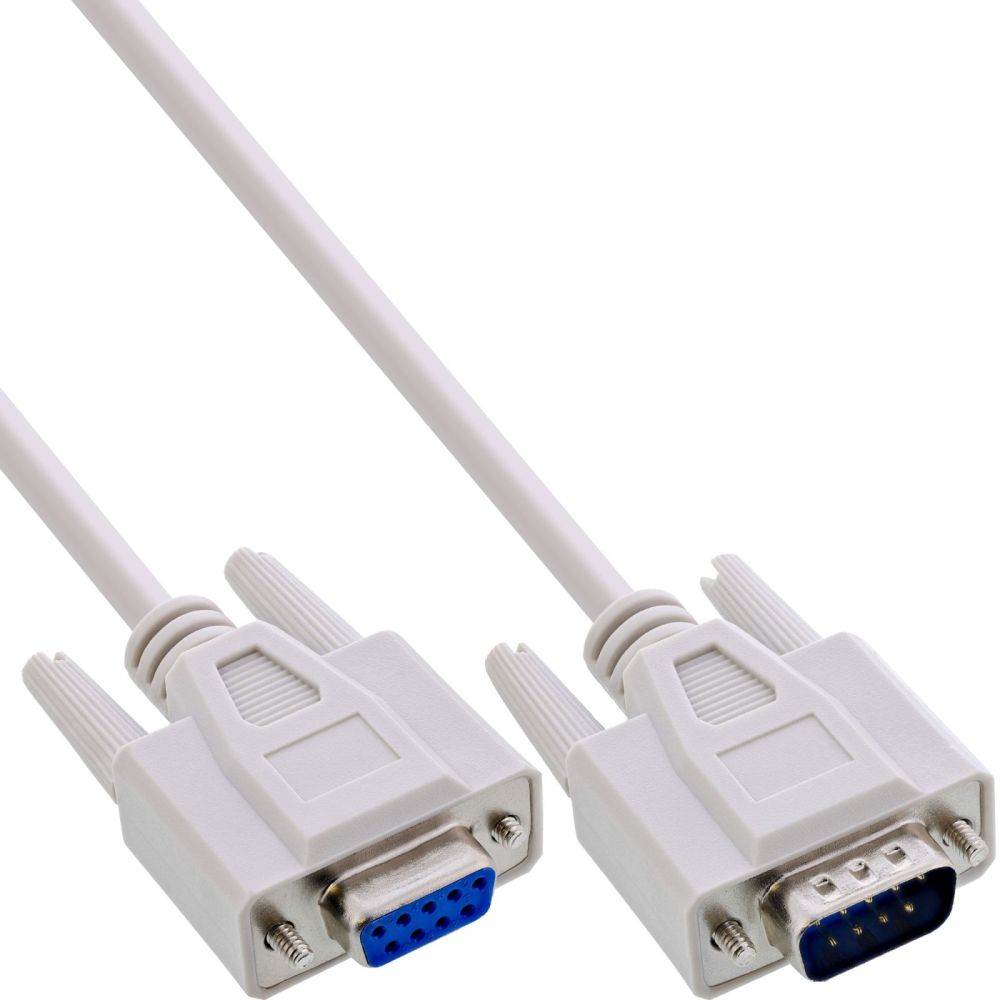

Connector type: 9-pin Sub-D plug to 9-pin Sub-D socket
Assignment: 1:1
Supported interfaces: RS232, RS422, RS485
Design: moulded connectors

Features
Product colour	Beige
Cable length	3 m
Connector 1	male 9pin Sub D
Connector 2	female 9pin Sub D
AWG wire size	28
Packaging data
Package width	175 mm
Package depth	225 mm
Package height	16 mm
Package weight	162 g
Package volume	600 cm³
Technical data
Operation temperature	-10 to +60°C
Diameter	AWG 28
Height packaging	0.016m
Side A	9pin female
Packaging volume	0.0006m³
Net weight	0.159kg
Variant	1:1 assignment
Length packaging	0.225m
Colour	Beige
Shielding	Foil shielding
Outer diameter	5.4mm
Article length	300.00cm
Weight	0.162kg
Packing	Retail
Side B	9pin male
Width packaging	0.175m
Signal	Data
UL
Weight & dimensions
Depth	3000 mm
Weight	159 g

---
