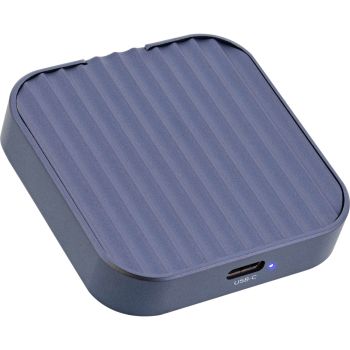

InLine® Clip Case - Magnetic USB-C case for SATA III & NVMe M.2 2230 SSDs content_copy

MagSafe compatible: Magnetic SSD enclosure for PCIe NVMe & SATA III M.2 2230 SSDs with up to 2 TB capacity
Rugged aluminum enclosure with shockproof design & passive cooling for on the go
Super-fast data transfer with up to 10 Gb/s – ideal for 4K video, gaming & large files
Tool-free clip design – change SSD in seconds, without any screws
Perfect for 4K video recording on the go, gaming to go, iPhone storage expansion and safe travel companion
The InLine® Clip Case is the perfect solution for anyone who needs to access large amounts of data quickly and easily on the go or in a professional environment. With this magnetic SSD case for M.2 NVMe or SATA III SSDs (format 2230), you can expand the storage of your smartphone, tablet or laptop by up to 2 TB - securely, on the go and at lightning speed.
Thanks to the modern USB-C 3.2 Gen2 interface, you can achieve transfer speeds of up to 10 Gb/s. Even large amounts of data - such as an hour of 4K video (approx. 45 GB) - can be transferred in just a few seconds. The robust aluminum housing protects your SSD from impacts and shocks and ensures reliable heat dissipation with the help of passive cooling.
The tool-free installation allows you to insert the SSD in seconds - without the need for a screwdriver or specialist knowledge. The magnetic back with 17 strong magnets also offers a secure hold on compatible devices, e.g. iPhones from model 12 (MagSafe-compatible, OTG adapter required).
An integrated Realtek RTL9210B smart chip ensures stable data transmission without any loss of speed. The housing is compatible with common operating systems such as Windows, macOS, Linux, Android and iOS/iPadOS. Ideal for content creators, mobile users, gamers and business travelers.
The ultra-compact design and a weight of just 85 grams make the Clip Case the ideal companion for everyday use, when traveling or for productions in the field - ready for use at any time thanks to Plug & Play.
The InLine® Clip Case is perfectly suited
as a storage expansion for iPhones, tablets and notebooks: up to 2 TB of additional storage in a flash,
for 4K video recordings on the go: high-resolution ProRes recordings directly onto the SSD – without storage bottlenecks on the device,
as a travel companion with maximum security: Compact, shockproof aluminum housing that provides robust protection on the go and
for gaming to go: store game libraries and game titles on the SSD – perfect for the console or gaming PC.
Technical specifications
Chip: Realtek RTL9210B
Data transfer rate: 10 Gb/s
Supports PCIe Gen3 x2, NVMe, AHCI SATA M.2 2230
Supported SSD types: M-Key & M+B Key
Material: aluminum
Dimensions: 61.8 × 61.8 × 13 mm
Weight: 85 g
Operating temperature: 0 °C to +40 °C
Compatible operating systems: Windows 8/10 (32/64 bit), macOS 10.X+, Linux, Android

Design
Product type	SSD enclosure
Product colour	Grey
Material	Aluminium
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Other features
Dimensions (WxDxH)	14 x 60 x 0.88 mm
Packaging content
Package type	Hanging box
Performance
Data transfer rate	10 Gbit/s
Chipset	RTL9210B
Plug and Play
Ports & interfaces
USB version	3.2 Gen 2 (3.1 Gen 2)
USB connector type	USB Type-C
USB connector gender	Female
USB ports quantity	1
USB connectivity
Power
Power source type	USB
Storage
Number of storage drives supported	1
Storage drive size	M.2
Supported storage drive interfaces	M.2, PCI Express, Serial ATA III
Maximum storage capacity	2 TB
NVMe
System requirements
Mobile operating systems supported	Android, iOS, iPadOS
Windows operating systems supported	Windows 10, Windows 11, Windows 8
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventu
Linux operating systems supported
Technical data
Hard disk type	SATA / M.2
Number of hard disks	1
Width packaging	0.100m
Article length	6.00cm
Cooling	Fanless
Suitable for	NVMe-M.2 SSD & SATA-M.2 SSD
Weight	0.120kg
Height packaging	0.018m
Colour	Anthracite
USB specification	USB 3.2 Gen.2
Net weight	0.088kg
Packaging volume	0.0001m³
Article width	6.00cm
Length packaging	0.145m
Article height	1.40cm
External connection	USB-C
Transmission rate	10Gb/s
Weight & dimensions
Width	14 mm
Depth	60 mm
Height	0.88 mm
Weight	120 g
Package width	100 mm
Package depth	145 mm
Package height	18 mm
Package volume	100 cm³
Package weight	6 kg

---
