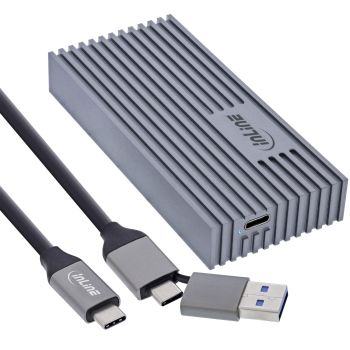

InLine® USB4 M.2 SSD enclosure, USB-C to M.2 NVMe, 40Gb/s, aluminium content_copy

Ultra-fast data transfer with USB4: Benefit from a transfer rate of up to 40 Gb/s for fast access to large files.
Compatible with Thunderbolt 3/4 and USB-C: Flexible connection to various end devices - no adapters required.
Optimal heat dissipation thanks to aluminium housing: Ribbed surface and heat-conducting materials protect your SSD even during continuous operation.
Supports large storage capacities up to 8 TB: Ideal for backups, media files or as an extension to your storage solution.
Easy plug-and-play installation with accessories: Includes cable (USB-C/C + USB-A), screw set, thermal pad/plate and tools.
Turn your M.2 NVMe SSD into a lightning-fast, mobile drive with the InLine® USB4 SSD enclosure. It supports transfer speeds of up to 40 Gb/s and thus offers ideal conditions for smooth data transfers - whether in the home office, on the go or when backing up large media files.
Thanks to its broad compatibility with Thunderbolt 3/4 and all common USB-C standards, the enclosure can be flexibly connected to modern devices - without any driver installation. Installing your SSD is straightforward and secure. The enclosure is made of anodised aluminium and has a ribbed surface for reliable heat dissipation. This keeps your SSD well cooled even during intensive use.
All important components are included in the scope of delivery: A USB-C to USB-C/USB-A cable (30 cm), a heat conduction plate, a heat conduction pad, a screw set and a suitable Phillips screwdriver. All common M.2 NVMe SSD formats (2230, 2242, 2260, 2280) with up to 8 TB capacity are supported - both single-sided and double-sided designs.
The InLine® enclosure is the perfect solution for anyone looking for a high-performance, mobile storage solution with professional standards.
Input interface: USB-C 4.0
Data transfer rate: 40 Gb/s
Compatibility: Thunderbolt 3/4, USB 3.2/3.1/3.0
Supported SSD sizes: 2230 / 2242 / 2260 / 2280
SSD type: NVMe, M-Key, single-sided and double-sided
Max. SSD height: 1.5 mm per side
Material: Aluminium alloy, anodised
Chip: ASM2464PD
Supported systems: Android / Linux / macOS / Windows
Operating temperature: 0 °C to +40 °C
Dimensions: 107 × 50 × 17 mm
Scope of delivery:
1x InLine® USB4 enclosure, USB-C to M.2 SSD NVME, aluminium
1x USB-C to USB-C/USB-A cable 0.30 m
1x heat conduction plate
1x heat conduction pad
1x cross screwdriver
1x screw set (2 metal screws + 2 twist locks)
1x operating instructions (German/English)

Design
Product type	SSD enclosure
Product colour	Grey
Material	Aluminium
LED indicators
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Other features
Dimensions (WxDxH)	18 x 50 x 0.89 mm
Packaging content
Package type	Hanging box
Cables included	USB
Screws included
Screwdriver included
Performance
Data transfer rate	40 Gbit/s
Chipset	ASM2464PD
Country of origin	Taiwan
Plug and Play
Ports & interfaces
USB connector type	USB Type-C
USB connector gender	Female
Thunderbolt 3 ports quantity	1
USB connectivity
Integrated USB cable
Power
Power source type	USB
Storage
Number of storage drives supported	1
Storage drive size	M.2
Supported storage drive interfaces	M.2, Serial ATA
Maximum storage capacity	8 TB
NVMe
System requirements
Mobile operating systems supported	Android, iOS
Mac operating systems supported	MacOS
Windows operating systems supported
Linux operating systems supported
Technical data
Suitable for	NVMe-M.2 SSD & SATA-M.2 SSD
USB specification	USB 4
Cooling	Fanless
Length packaging	0.220m
Article width	5.00cm
Width packaging	0.110m
Article height	1.80cm
Article length	10.70cm
Hard disk type	SATA / M.2
Number of hard disks	1
Height packaging	0.020m
External connection	USB-C
Net weight	0.089kg
Weight	0.171kg
Packaging volume	0.0002m³
Transmission rate	40Gb/s
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	18 mm
Depth	50 mm
Height	0.89 mm
Weight	171 g
Cable length	0.3 m
Package width	110 mm
Package depth	220 mm
Package height	20 mm
Package volume	200 cm³
Package weight	10.7 kg

---
