Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors

Your rating:
Average rating
product review for Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors
( 4.4 / 5 ) 27 ratings

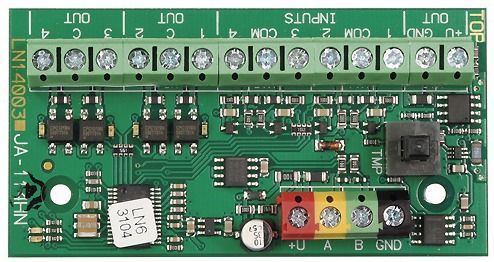

Indexa 35760
This image may differ from the desired article.
232,75 EUR 242,55 EUR
( 276,97 EUR incl. VAT )
≈ £196.67  |  ≈ $260.21
plus delivery charges: 53,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors
Lieske Part No.:1139419
Mfg Part No: 35760
UPC/EAN: 4015162357608
Weight:0.123 kg
Type:9000EA4
Graduated prices net
From piecesPrice per pieces
5227,51 EUR
10222,28 EUR
15217,04 EUR
20211,80 EUR

Product information for Indexa 35760:

Bus input/output module for connecting 4 wired detectors (NO/NC) or 4 detection lines (with up to 5 contacts) and 4 switching outputs (38V/500mA) to the System 9000 bus. NO/NC magnetic contacts, motion detectors or mechanical contacts can be connected to the 4 inputs. Each detection line can be assigned its own reaction, such as fire, flood or burglar alarm. A detection line can be wired using single or double resistance monitoring with adjustable resistance values (max. 10 kOhm). This enables existing systems to be easily converted. An integrated measuring tool for the resistance values enables convenient diagnosis of the detection lines. In the factory setting, the 4 outputs respond to the control panel's switching outputs 1 to 4. The assignment can be changed using the software; combinations of the switching outputs are also possible. A load of 500mA/38V can be switched potential-free across all 4 outputs. Power supply for external devices: 12V DC, max. 200mA. Can be installed in the mounting box 9000BD1/2 or directly in the control center. Occupies 4 addresses in the system when registered. Power supply via bus, quiescent current consumption: 11mA (all inputs on GND), I-calc =26mA, incl. 10x 1kOhm resistors, operating temperature -10°C to +40°C, dimensions: 77 x 40 x 31mm.


Questions & answers

What is the delivery time of Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors ?

The article Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Indexa 35760 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors always at the best possible price. We can give you a discount of 2% on Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Indexa 35760 9000EA4 SYSTEM 9000 Bus input and output module for 4 wired detectors we can offer you a price of 227,51 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
