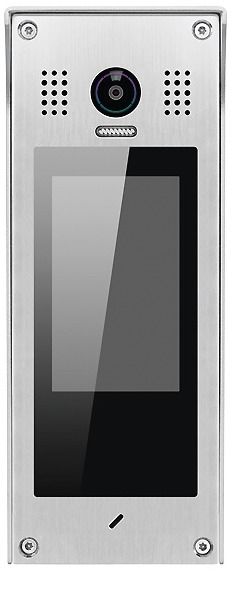

INDEXA IP220TA IP video door intercom surface-mounted PoE 28301

IP video door intercom for surface mounting, with 5-inch touchscreen and front panel made of 2mm brushed stainless steel in a weatherproof frame (IP54, impact resistance IK08). With super wide-angle color camera (170° horizontal detection, 140° section selectable), white light LED illumination (up to approx. 0.8m) and illuminated LCD display (480 x 800 pixels). Names are displayed and can be selected (alphabetical sorting with search function). For up to 4 residential units, an individual image file (also with text) can be displayed below the name fields. Control of the door opener via code or via integrated RFID reader (management via display). Acoustic and optical signaling of the door opening. System's own IP protocol for easy commissioning. RJ45 LAN connection to PoE switch via CAT cable, power supply via PoE: 802.3af, power consumption: max. 5.1W. Connection for door opener 1 (ET100A or 12V DC, max. 250mA) via PoE supply. Connection for door openers 1 and 2 via integrated potential-free relay (24V AC/DC, max. 1A). Door opening time: adjustable 1-99 sec. Up to 32 IP door intercoms and 256 IP video indoor stations can be operated in the system. Delivery includes transponder chip (RFID tag) in key chain format. Dimensions: 110 x 282 x 29mm. Required accessories: IP video indoor station(IP540M2, PoE switch (e.g. NWS44, NWS83, NWS241), relay module(IP540R2 (recommended for connecting door openers). Suitable accessories: additional transponder chips VT200TAG1, electric door opener ET100A, powerline adapter with PoE NWPL01-POE.
Type: IP220TA
