INDEXA WR120 SET M7B WR100M7 receiver with 7z screen plus 1x WR120B4 26670 content_copy

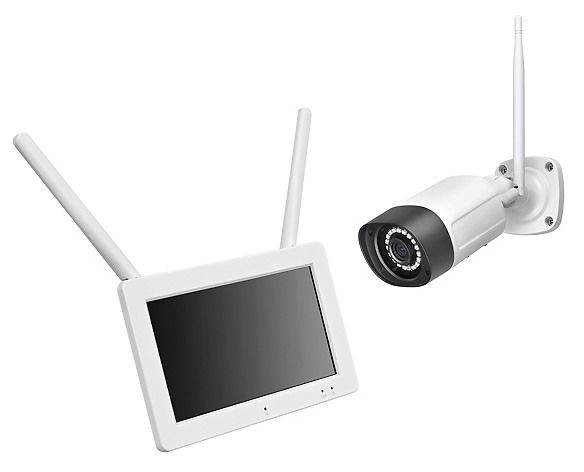

WLAN surveillance camera set consisting of a 3MP camera WR120B4 and receiver with 7 inch touch screen WR100M7. Day/night camera in metal housing for indoor or outdoor use (IP66).d. for wall and ceiling mounting with 50cm cable breakout with DC connection, resolution 2304 x 1296p at up to 15 frames/s, min. illumination 0.1 lux (color) / 0.01 lux (b/w) / 0 lux (with IR) with 4mm fixed lens (horizontal detection angle 80°), infrared illumination (850nm) up to 20m and day/night IR filter. Automatic white light illumination for color images in the dark up to 10m. 12V DC power supply for the camera via included plug-in power supply with 2.90m DC cable. Receiver with screen (visible image diagonal 17.6cm) and 5V power supply, for max. 4 cameras with single image or quad display. The receiver can be used to automatically start recordings when software motion is detected (pixel change in detection areas and/or detection of human forms up to 10m) and to record video and sound (with 2 second pre-alarm recording) on a microSDHC/microSDXC card (max. 128GB, UHS-II, U2, A1, V6, not included) in up to 3MP resolution (screen resolution: 1024 x 600 pixels) (ring buffer). Video compression optimizes bandwidth and storage requirements. The microphone and loudspeaker integrated in the camera and receiver enable two-way communication. If the receiver is connected to the home router via WLAN, it is possible to view live images and recordings and to have two-way communication via WLAN or the Internet from a smartphone or tablet. Plug-and-play setup for app/PC software access without a fixed public IP address or DynDNS. App for iOS (App Store) and Android (Play Store, Google version) available free of charge (not part of the product, no promise of a service level). Automatic push notification can be set when motion is detected. App access from up to 3 smartphones/tablets at the same time. Browser access not possible. Receiver can be set up or hung on the wall. USB connection for backup on USB stick or operation via optional mouse. Optional batteries enable portable use of the receiver for up to 3 hours. Dimensions: 72 x 58 x 99mm (camera housing), 191 x 123 x 31mm (receiver). Suitable accessories for the camera: antenna extension cable DWAK-3M, DWAK-6M, DC extension cable DC10, connection box AK50 or AK208 and flush-mounted power supply ORBIT-12/2000V. Suitable accessories for the receiver: BATTERY-WR100M7 (2 required), SD CARD 64GB, SD CARD 128GB, DC extension cable VKD-6M. Can be expanded with additional cameras WR120B4/B8, WR120SN, WR100B/D and with WLAN repeater WR100E/EW.
