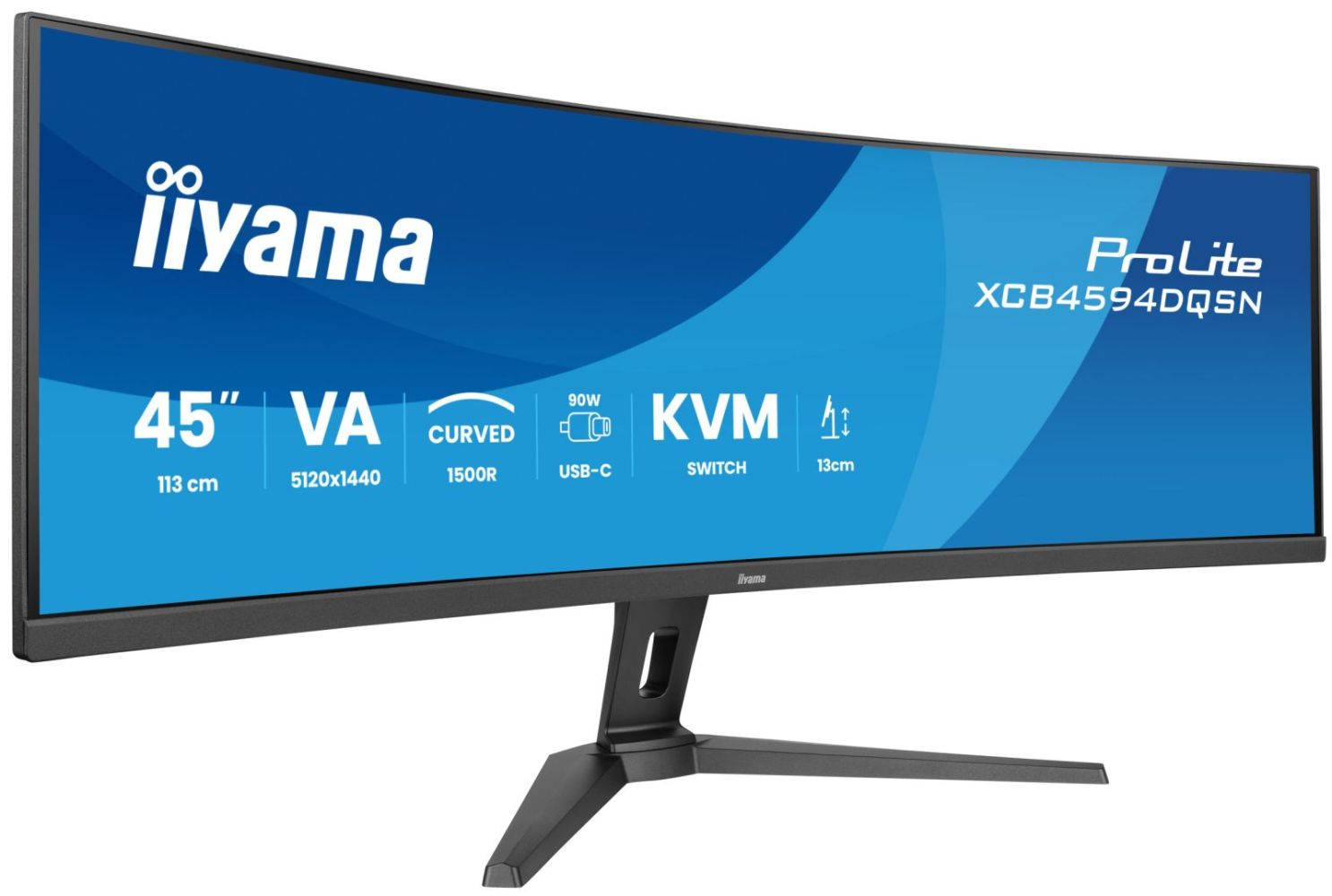

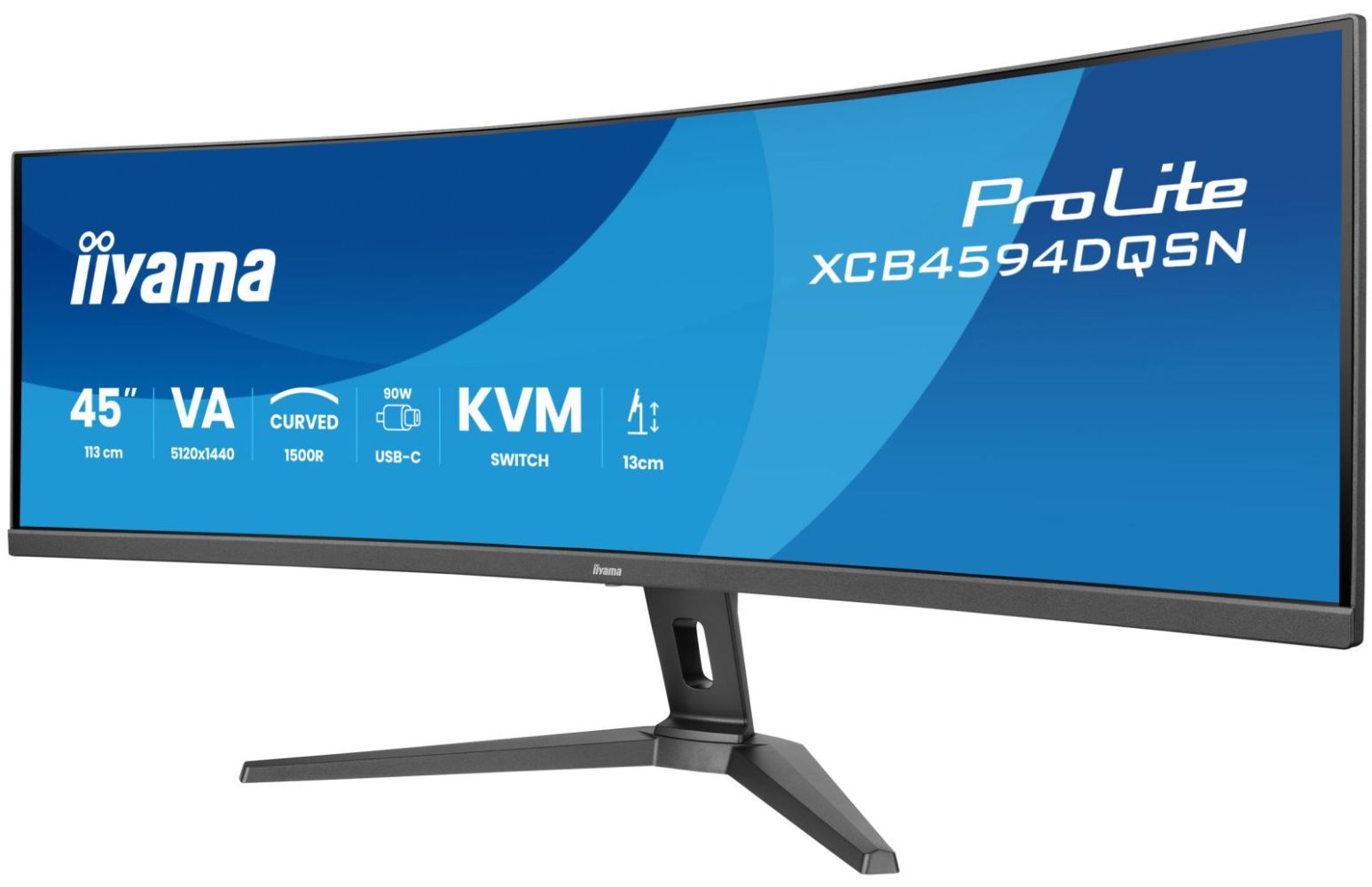

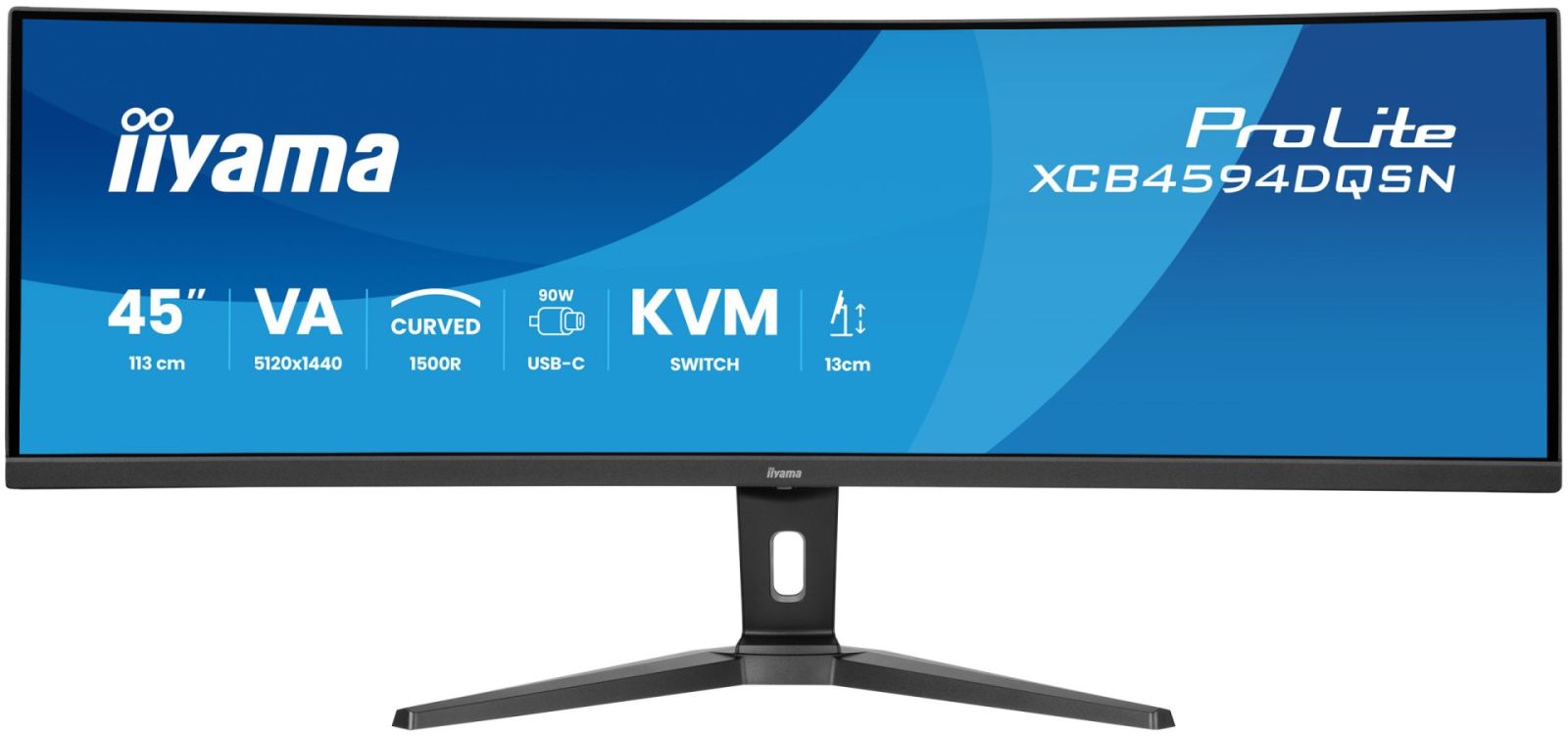

IIYAMA 113cm (44.5") XCB4594DQSN-B1 32:9 2xHDMI+DP+USB-C Cu retail content_copy

• Design: dreiseitig rahmenloses Design • Bilddiagonale: 113 cm ( 44,5 inch ), 113cm • Panel-Technologie: VA, matte Oberfläche • Curved: 1500R • Physikalische Auflösung: 5120 x 1440 @165Hz (7.4 megapixel DQHD) • Bildformat: 32:9 • Helligkeit: 450 cd/m² • Kontrastverhältnis: 3000:1 • Erweitertes Kontrast Verhältnis: 80M:1 • Reaktionszeit (GTG): 0.8ms • Blickwinkel: horizontal/vertikal: 178°/178°, rechts/links: 89°/89°, nach oben/unten: 89°/89° • Farbunterstützung: 16.7mln 8bit (sRGB: 100% NTSC: 80%) • Horizontalfrequenz: 30 - 260kHz • Arbeitsfläche H x B: 1087.5 x 305.9mm, 42.8 x 30,5 cm ( 12 inch ) • Pixelabstand : 0.212mm • Farbe: matt, schwarz • Video: Eingang HDMI x2 (v. 2.1), DisplayPort x1 (v. 1.4), USB-C x1 (Power delivery 90W) • USB HUB: x3 (v. 3.2 (Gen 1, 5Gbit DC5V, 900mA)) • USB-C DOCK: x1 (Energieabgabe 90W, LAN, USB v. 3.2 (Gen 1, 5Gbit)) • HDCP: ja • Kopfhörer Anschluss: ja • RJ45 (LAN): x1 • Produkt Abmessungen B x H x T: 1090 x 409 (539) x 275mm

Design
Market positioning	Gaming
Product colour	Black
Feet colour	Black
Detachable stand
Display
Display diagonal	113 cm (44.5")
Display resolution	5120 x 1440 pixels
HD type	Dual QHD
Native aspect ratio	32:9
Display technology	LED
Panel type	VA
Backlight type	LED
Display brightness (typical)	450 cd/m²
Response time	0.8 ms
Response time (MPRT)	0.8 ms
Display surface	Matt
Screen shape	Curved
Screen curvature rating	1500R
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	165 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.212 x 0.212 mm
Horizontal scan range	30 - 260 kHz
Viewable size, horizontal	108.8 cm
Viewable size, vertical	30.6 cm
Digital horizontal frequency	30 - 260 kHz
Display diagonal (metric)	113 cm
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 400
Colour depth	8 bit
sRGB coverage (typical)	100%
NTSC coverage (typical)	80%
Touchscreen
High Dynamic Range (HDR) supported
DDC/CI
Ergonomics
Panel mounting interface	100 x 100,200 x 100 mm
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Tilt angle range	3 - 20°
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages	9
VESA mounting
Wall mountable
Cable management
Cable lock slot
Height adjustment
Tilt adjustment
On Screen Display (OSD)
Multimedia
Number of speakers	2
RMS rated power	6 W
Built-in speaker(s)
Built-in camera
Network
Ethernet LAN
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Other features
Brand specific technologies	Black Equalizer, Eye Saver
User controls	picture (brightness, contrast, black tuner, sharpness, OD, ACR, ECO Mode, X-Res technology), colour (warm, normal, cool, user colour, i-Style colour, blue light reducer), input select, PBP (PBP mode, sub win input, PBP swap, audio input), audio (volume, mute), language, OSD settings (OSD H. position, OSD V. position, OSD background, OSD time out, information), setup menu 1 (MST, DSC, KVM, USB-C, USB BC), setup menu 2 (video mode adjust, HDMI RGB range, direct drive, adaptive sync, MBR, HDR, open
Volume control	Buttons
Packaging content	quick start guide, safety guide
Weight	11.2 kg
Width	1090 mm
Depth	275 mm
Control panel	Navigation (power) button: Center (Menu/Execution), Down (i-Style Colour), Up (Input Select), Right (Volume), Left (ECO Mode), Power
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports	1
Packaging content
Cables included	AC, USB, HDMI, DisplayPort, USB Type-C
Stand included
Power adapter included
Quick start guide
Manual
Packaging data
Package width	1260 mm
Package depth	315 mm
Package height	470 mm
Package weight	16.4 kg
Performance
AMD FreeSync
ConnectShare (USB)
Flicker-free technology
Low Blue Light technology

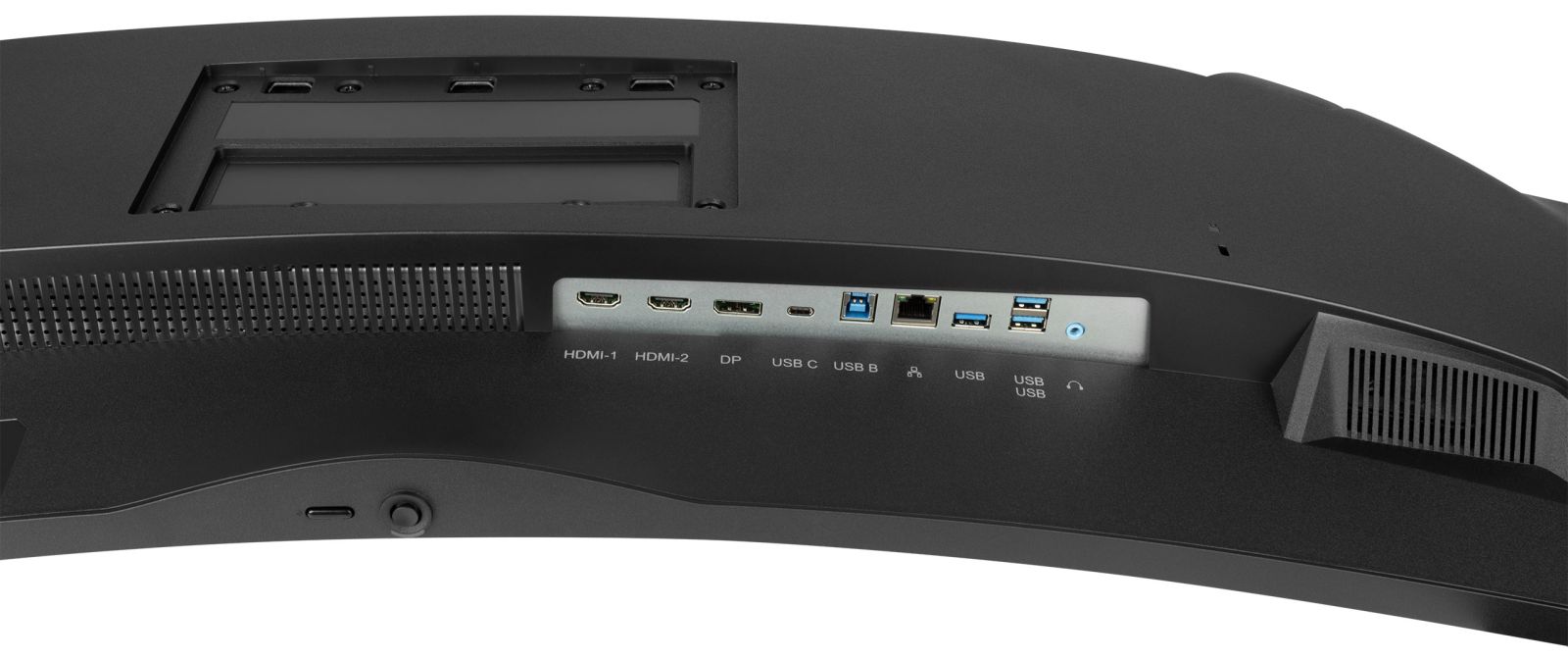

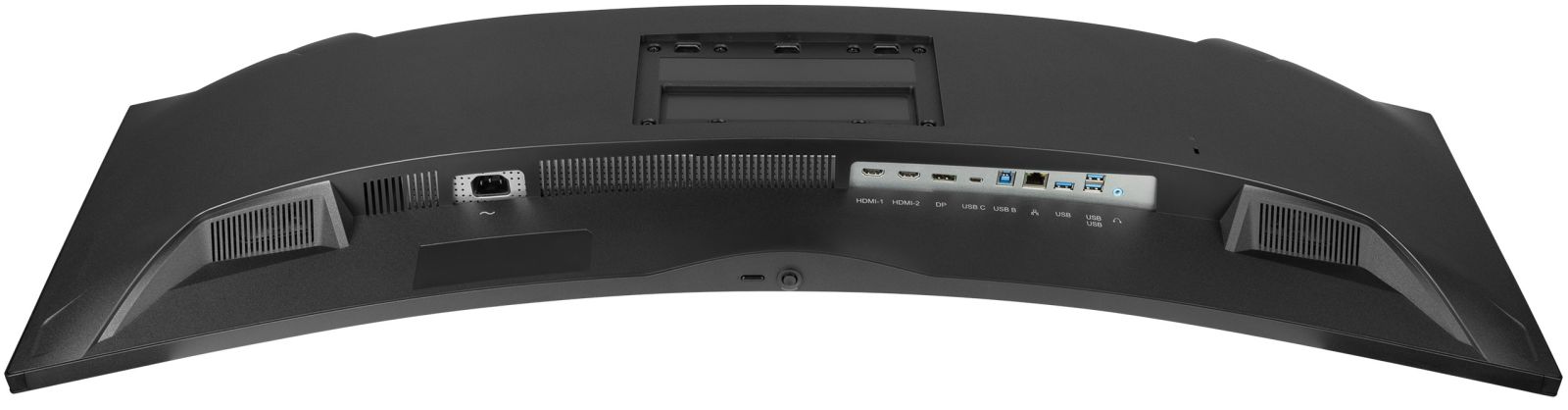

Ports & interfaces
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of downstream ports	3
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Power Delivery up to	90 W
HDMI ports quantity	2
DisplayPorts quantity	1
Headphone outputs	1
KVM switch ports quantity	1
Built-in USB hub
USB Power Delivery (USB PD)
HDMI
Headphone out
Built-in KVM switch
HDCP
DC-in jack
Power
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	37 kWh
Energy consumption (HDR) per 1000 hours	67 kWh
Power consumption (typical)	37 W
Power consumption (standby)	0.4 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G
Sustainability
Sustainability certificates	ErP
Sustainability compliance
Technical details
Native refresh rate	60 Hz
Weight & dimensions
Width (with stand)	1090 mm
Depth (with stand)	275 mm
Height (with stand)	539 mm
Weight (with stand)	11.2 kg
Height (without stand)	409 mm

---
