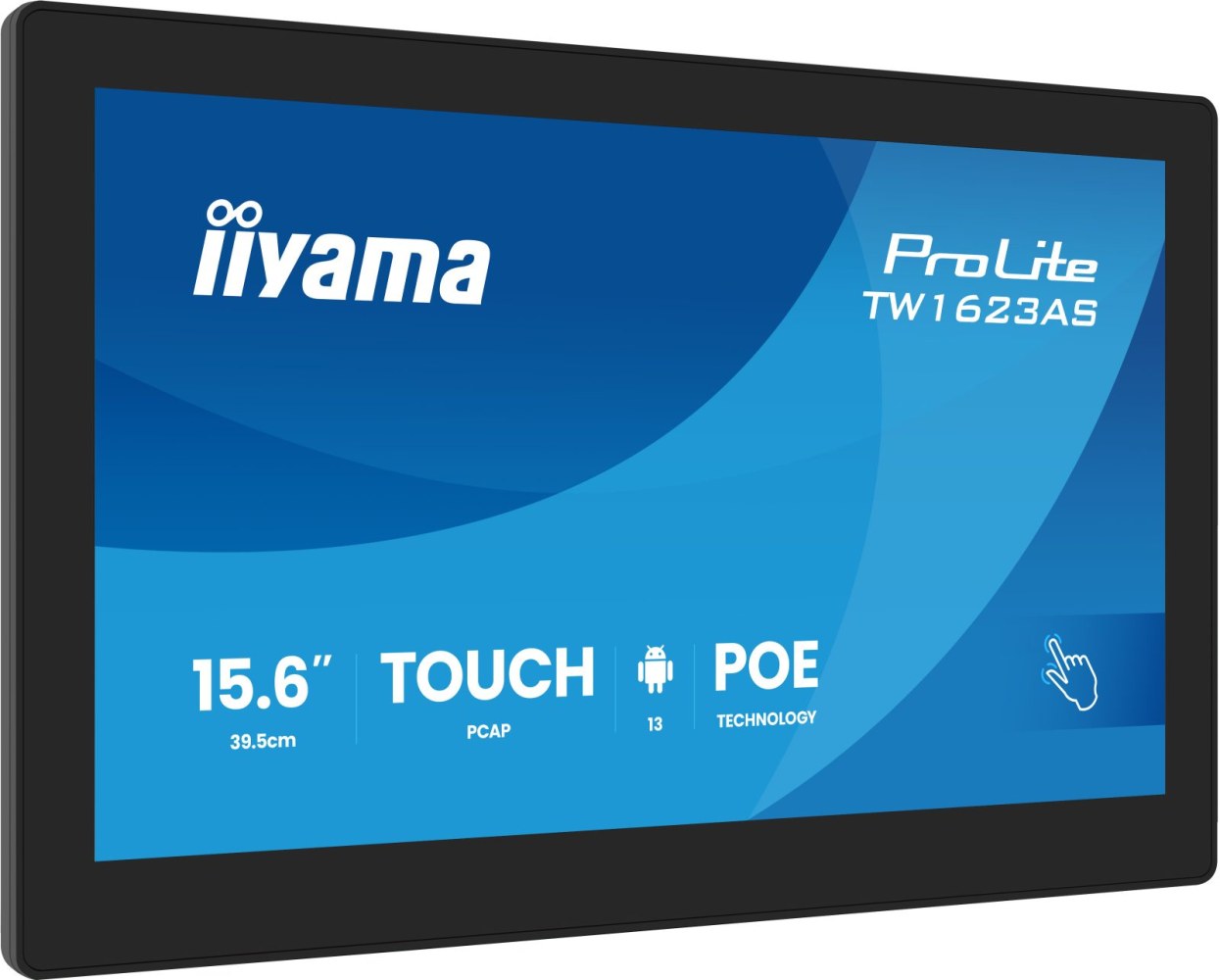

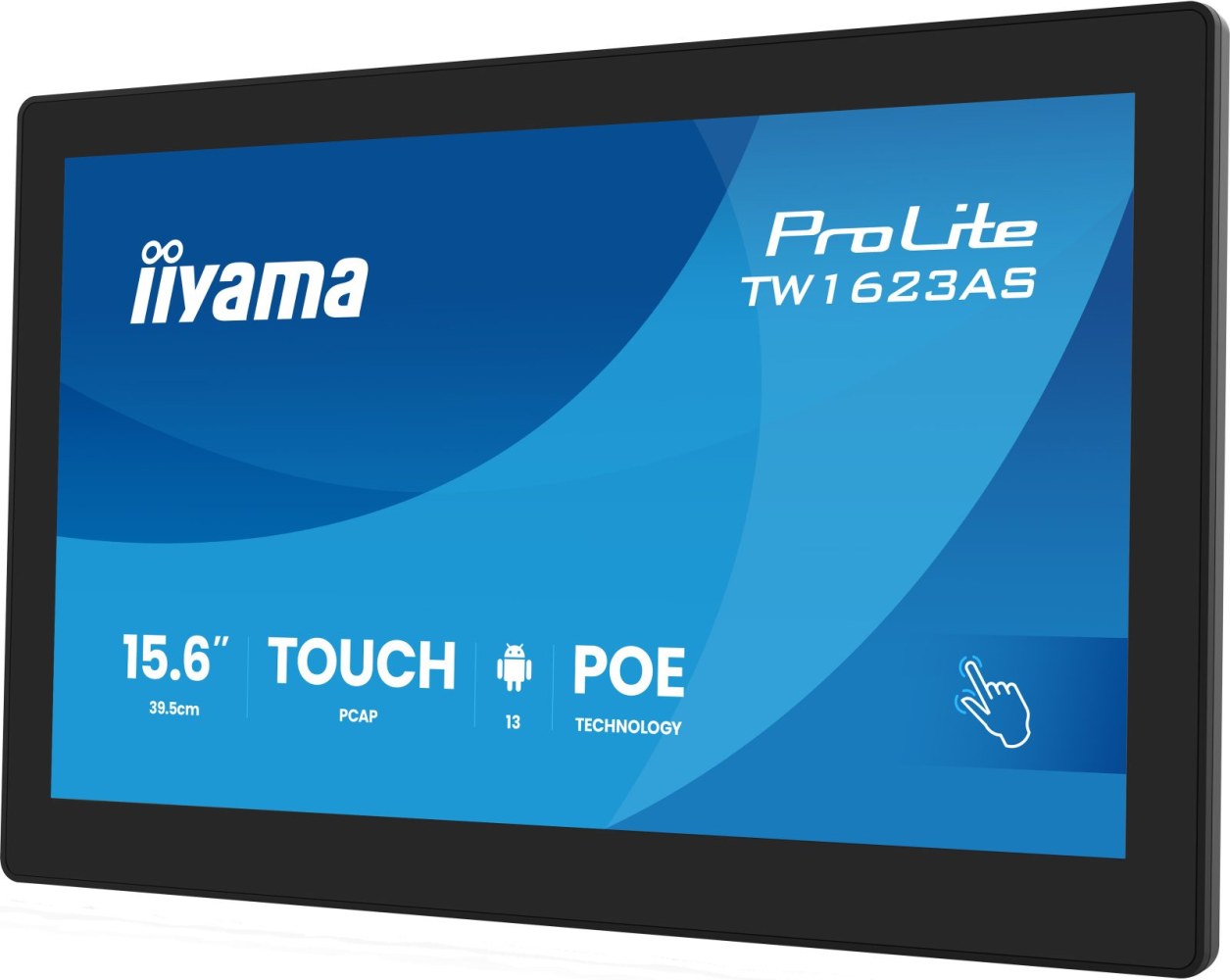

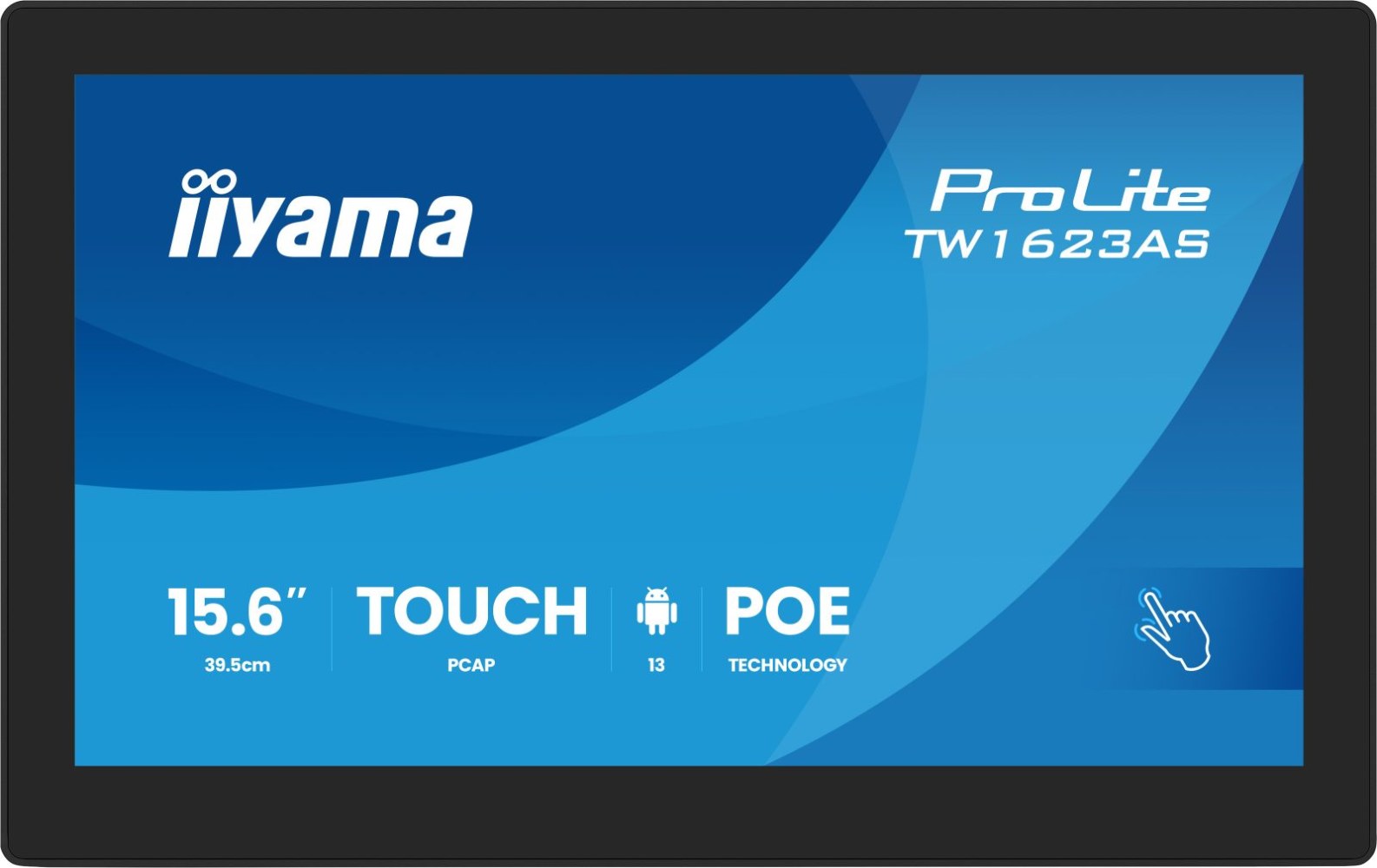

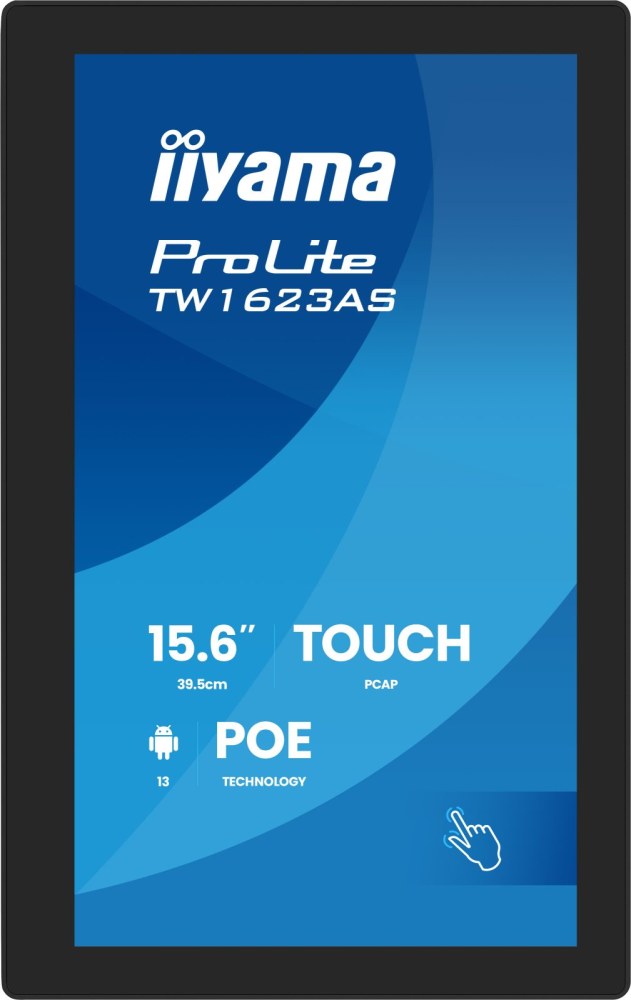

IIYAMA TW1623AS-B3P 15.6inch Panel-PC with Android 13+GMS SOC Quad-core RK3568 4GB Storage 32GB PCAP 10-Points Touch 1920x1080 IPS
|
-13% 326,74 EUR 375,39 EUR |
|
|
( 388,82 EUR incl. VAT ) ≈ £273.81 | ≈ $366.93 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 225783 |
| Mfg Part No: | TW1623AS-B3P |
| UPC/EAN: | 4948570126934 |
| Weight: | 2.46 kg |
| Type: | MNTR |
Product information for Iiyama TW1623AS-B3P:
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.8 mm |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 385 cd/m² |
| Response time | 30 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1792 x 0.1792 mm |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 6H |
| Colour depth | 8 bit |
| Touchscreen | |
| Ergonomics | |

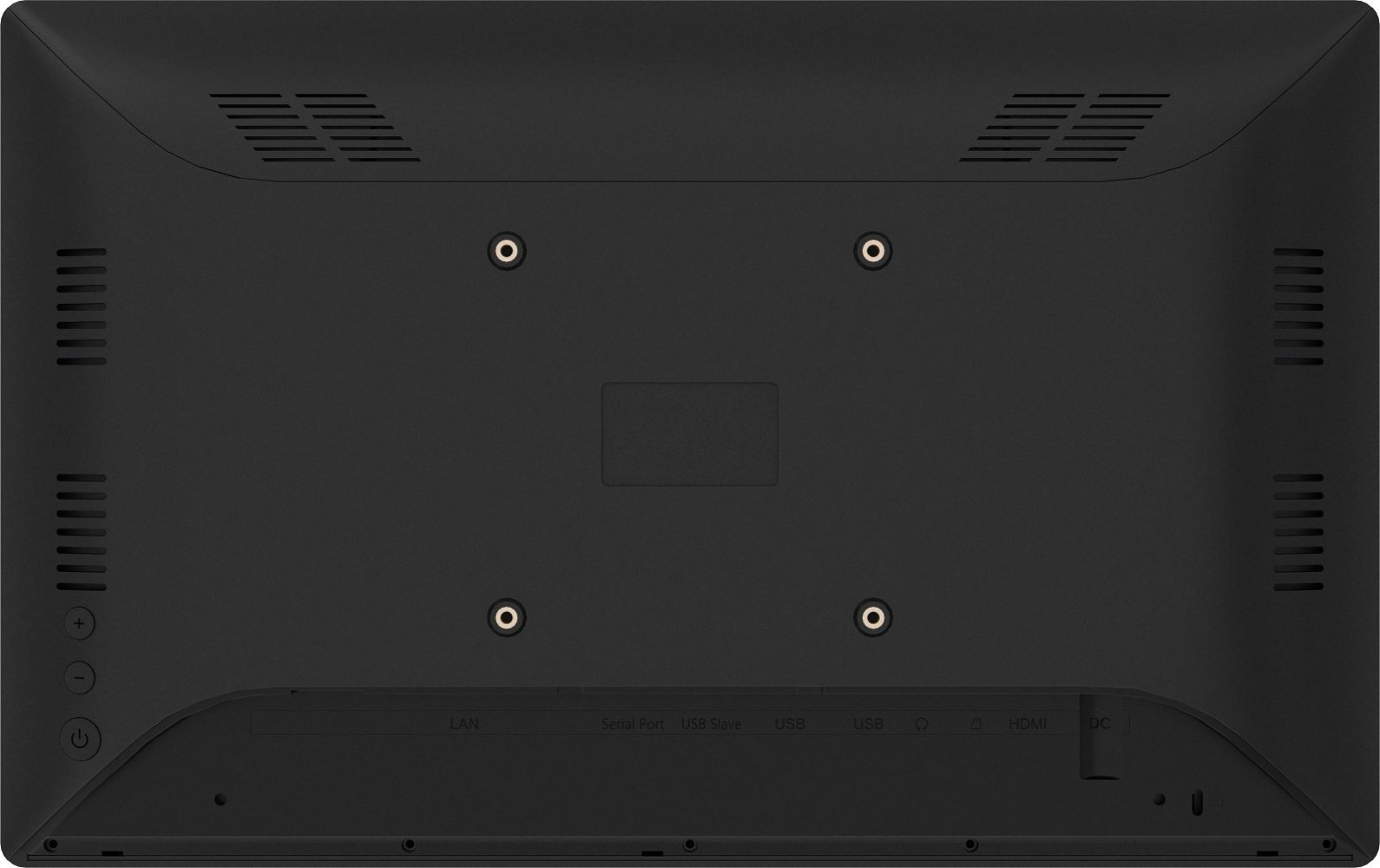

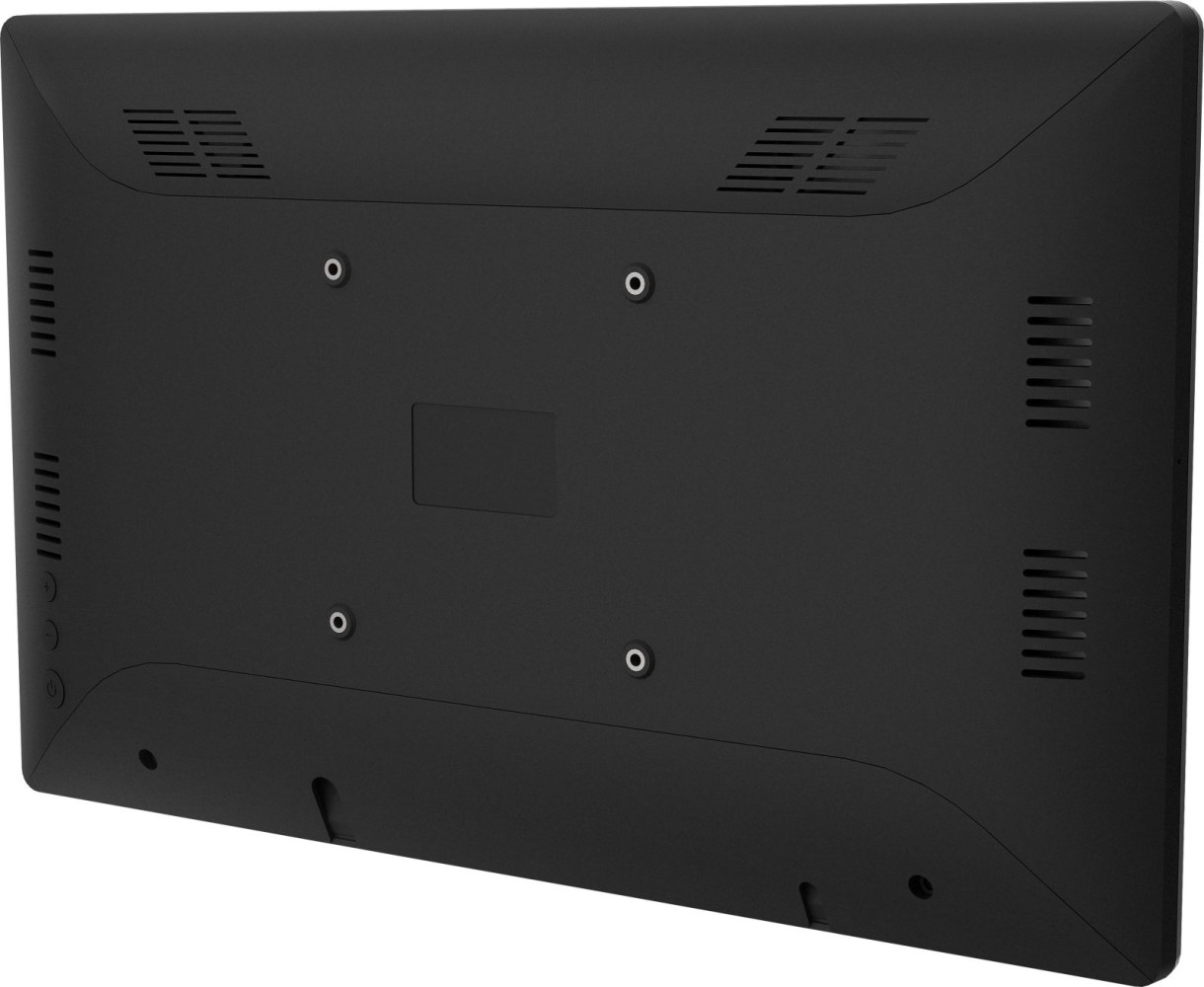

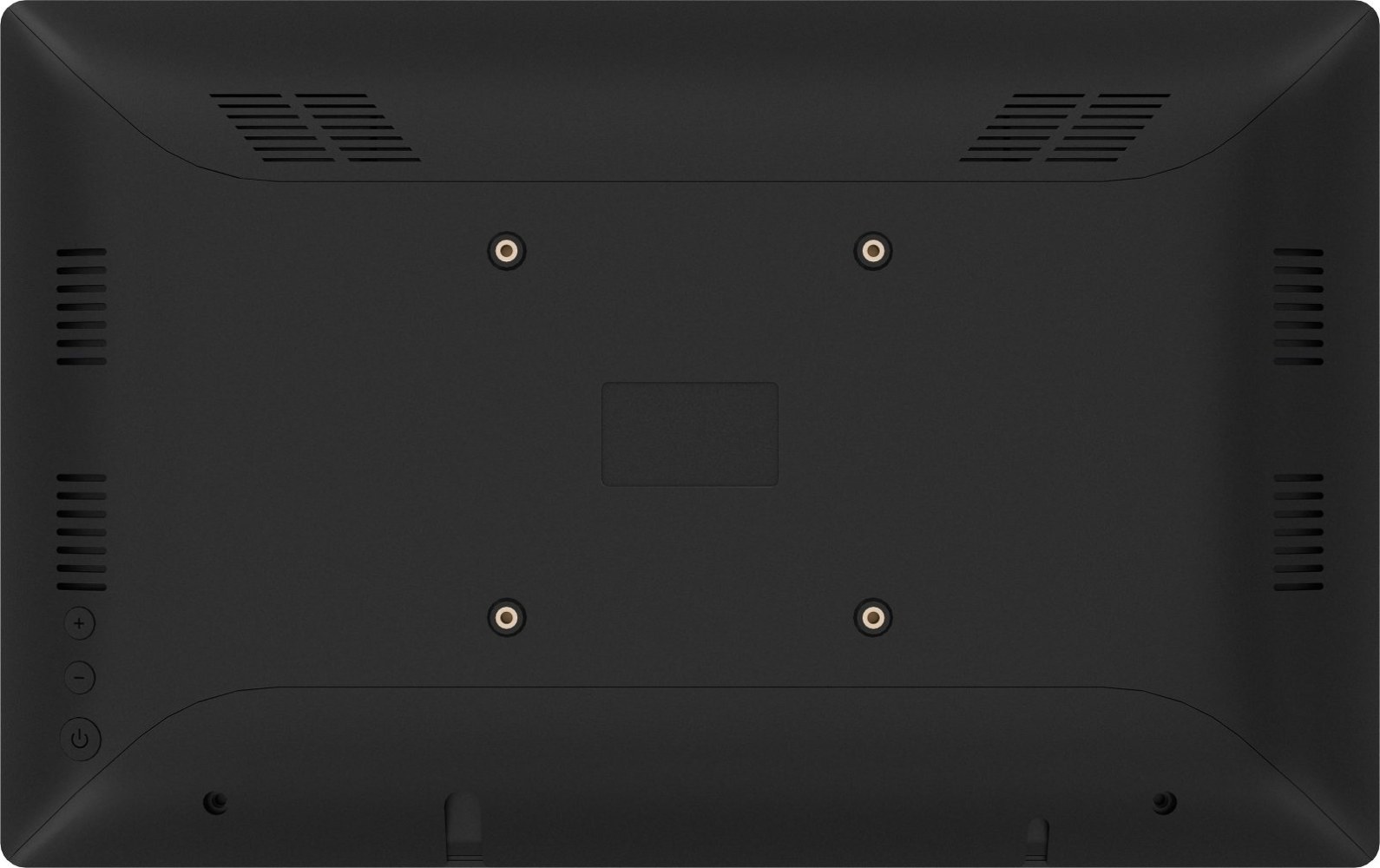

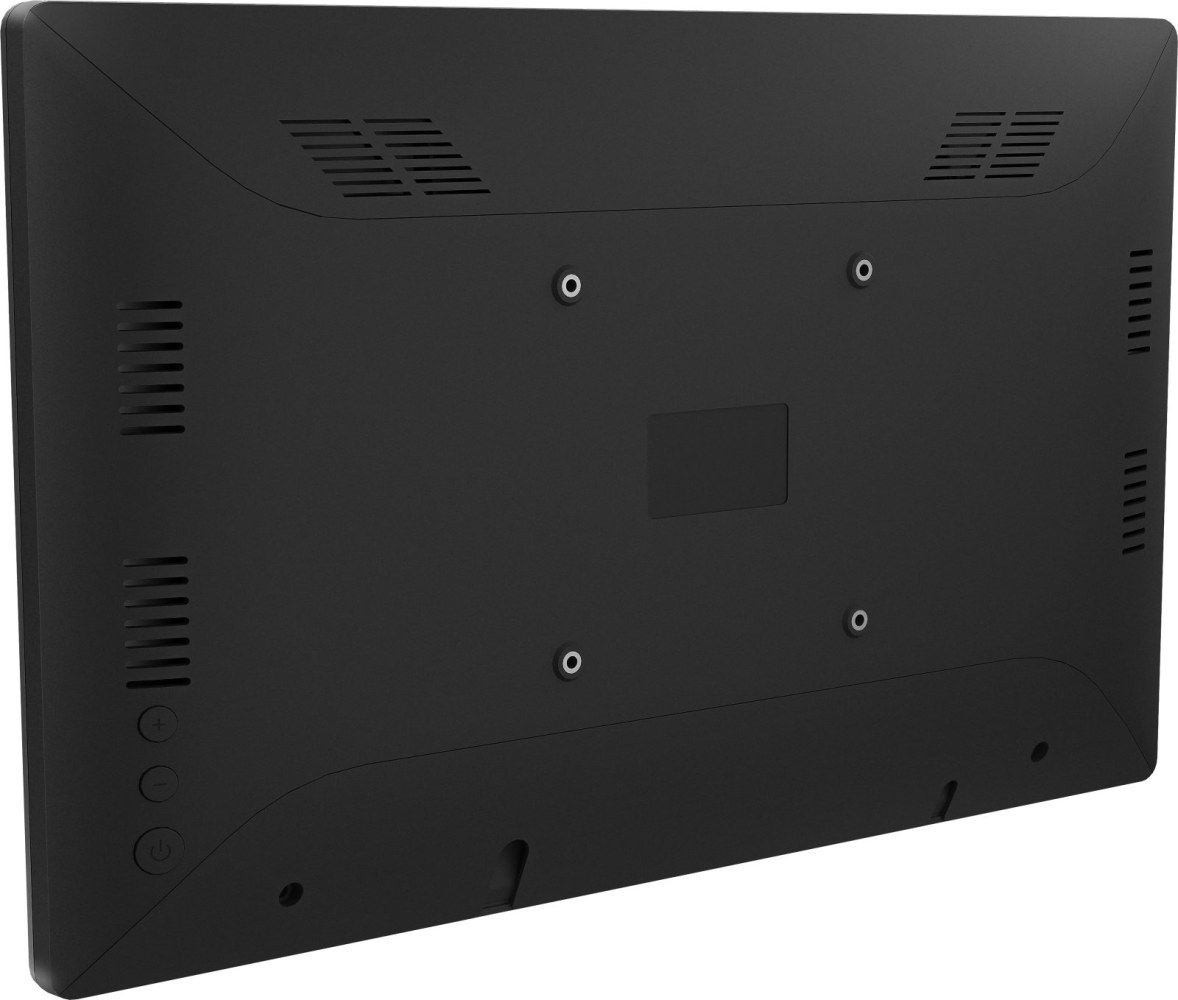

| Panel mounting interface | 100 x 100 mm |
| VESA mounting | |
| Cable management | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Bluetooth version | 5.2 |
| Wi-Fi | |
| Bluetooth | |
| Ethernet LAN | |
| Other features | |
| Placement supported | Indoor |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Brightness | 385 cd/m² |
| Packaging content | AC adapter, interchangeable plugs (EU/UK) |
| Active display area (W x H) | 344.2 x 193.6 mm |
| USB ports quantity | 3 |
| Weight | 1.5 kg |
| User controls | Power switch, volume/ button +, volume/ button - |
| Touch method | finger, glove (latex), capacitive stylus |
| Height | 244 mm |
| Width | 387 mm |
| Control panel | Power switch, volume/ button +, volume/ button - |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| AC adapter included | |
| Built-in processor | |
| Packaging content | |
| Power adapter included | |
| Quick start guide | |
| Packaging data | |
| Package width | 477 mm |
| Package depth | 75 mm |
| Package height | 298 mm |
| Package weight | 2.45 kg |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Android |
| Operating system version | 13 |

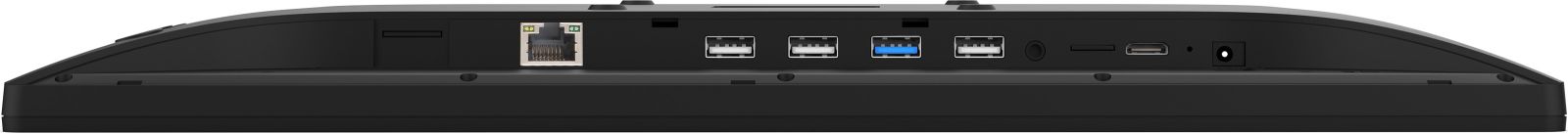

| Ports & interfaces | |
| USB version | 2.0 |
| HDMI ports quantity | 1 |
| Mini HDMI ports quantity | 1 |
| Audio input | Mini Jack |
| Compatible memory cards | SD |
| USB Touch port | |
| Microphone in | |
| HDCP | |
| Card reader integrated | |
| Power | |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Sustainability | |
| Sustainability certificates | ErP |
| Thin Client | |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor architecture | ARM Cortex-A55 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 244 mm |
| Weight (with stand) | 1.5 kg |
Questions & answers
What is the delivery time of IIYAMA TW1623AS-B3P 15.6inch Panel-PC with Android 13+GMS SOC Quad-core RK3568 4GB Storage 32GB PCAP 10-Points Touch 1920x1080 IPS?
The article IIYAMA TW1623AS-B3P 15.6inch Panel-PC with Android 13+GMS SOC Quad-core RK3568 4GB Storage 32GB PCAP 10-Points Touch 1920x1080 IPS is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TW1623AS-B3P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA TW1623AS-B3P 15.6inch Panel-PC with Android 13+GMS SOC Quad-core RK3568 4GB Storage 32GB PCAP 10-Points Touch 1920x1080 IPS always at the best possible price. We can give you a discount of 2% on IIYAMA TW1623AS-B3P 15.6inch Panel-PC with Android 13+GMS SOC Quad-core RK3568 4GB Storage 32GB PCAP 10-Points Touch 1920x1080 IPS if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
