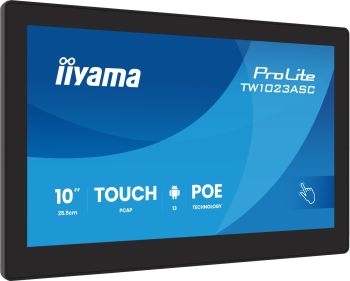

Iiyama TW1023ASC-B3P 25.5 cm (10.1") 16:10 M-Touch IPS with HDMI
|
244,05 EUR 244,05 EUR |
|
|
( 290,42 EUR incl. VAT ) ≈ £204.27 | ≈ $272.12 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1552902 |
| Mfg Part No: | TW1023ASC-B3P |
| Weight: | 1.345 kg |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 3 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Computer system | |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | Mali-G52 MC1 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Bezel colour | Black |
| VESA mounting | |
| Fingerprint resistant | |
| Display | |
| Panel type | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 385 cd/m² |
| HD type | WXGA |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:10 |
| Response time | 25 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Active display area (W x H) | 216.6 x 135.4 mm |
| Display diagonal (metric) | 25.5 cm |
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Glass thickness | 1.25 mm |
| Touchscreen | |
| Multi-touch | |
| Features | |
| Suitable for indoor use | |
| Logistics data | |
| Products per pallet | 256 pc(s) |
| Pallet gross length | 100 cm |
| Pallet gross width | 2.15 m |
| Pallet gross height | 120 cm |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Micro-USB ports quantity | 1 |
| Audio input | Y |
| Bluetooth version | 5.2 |
| Megapixel (approx.) | 5 MP |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Viewable size, horizontal | 21.7 cm |
| Viewable size, vertical | 13.5 cm |
| Brightness | 385 cd/m² |
| Power supply type | External |
| Quick start guide | |
| AC adapter included | |
| Bluetooth | |
| Built-in microphone | |
| Cable management | |
| Built-in camera | |
| Packaging content | |
| Cables included | AC |
| Power adapter included | |
| Packaging data | |
| Package width | 398 mm |
| Package depth | 68 mm |
| Package height | 223 mm |
| Package weight | 1.36 kg |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Number of microphones | 1 |
| Ports & interfaces | |
| HDMI input ports quantity | 1 |
| Mini HDMI ports quantity | 1 |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | Micro-USB, USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Compatible memory cards | SD |
| DVI port | |
| USB port | |
| PC Audio in | |
| Card reader integrated | |
| DC-in jack | |
| Power | |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Input voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Technical details | |
| User controls | Power, home, brightness +, brightness -, volume +, volume - |
| Sustainability certificates | ErP |
| Pallet net height | 120 cm |
| Pallet net length | 2.15 m |
| Pallet net width | 100 cm |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 255 mm |
| Display depth | 30.5 mm |
| Display height | 172 mm |
| Display weight | 800 g |
| Width | 255 mm |
| Depth | 30.5 mm |
| Height | 172 mm |
| Weight | 800 g |
| Width (with stand) | 255 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 172 mm |
| Weight (with stand) | 800 g |
Questions & answers
What is the delivery time of Iiyama TW1023ASC-B3P 25.5 cm (10.1") 16:10 M-Touch IPS with HDMI?
The article Iiyama TW1023ASC-B3P 25.5 cm (10.1") 16:10 M-Touch IPS with HDMI is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TW1023ASC-B3P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Iiyama TW1023ASC-B3P 25.5 cm (10.1") 16:10 M-Touch IPS with HDMI always at the best possible price. We can give you a discount of 2% on Iiyama TW1023ASC-B3P 25.5 cm (10.1") 16:10 M-Touch IPS with HDMI if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
