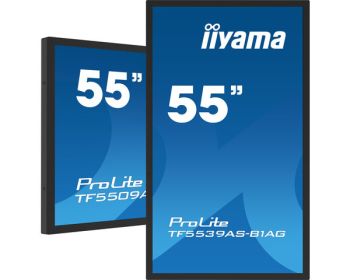

IIYAMA TF5539AS-B1AG 55inch PCAP Anti-glare Bezel Free Android 11 OS 40-Points Touch Screen 3840x2160 IPS panel 24/7
|
1.902,86 EUR 1.911,32 EUR |
|
|
( 2.264,40 EUR incl. VAT ) ≈ £1,592.69 | ≈ $2,121.69 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1066883 |
| Mfg Part No: | TF5539AS-B1AG |
| UPC/EAN: | 4948570123896 |
| Weight: | 51 kg |
| Type: | LFD |
Product information for Iiyama TF5539AS-B1AG:
• Integrierte Software: Android 11 OS, iiSignage², EShare, FailOver • Bild: 138,7 cm ( 54,6 inch ), 139cm, 3840 x 2160, 16:9 • Kontrast: 1200:1 • Reaktion: 8ms • Bildfrequenz: 60Hz • Anschlüsse: 2x HDMI, 1x DP, 1x RS-232c, 1x RJ45 • VESA: 400x400 • Maße mit Standfuß: 1274 x 744.8 x 65.2mm • Herstellergarantie: drei Jahre nach Registrierung
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Computer system | |
| Processor manufacturer | ARM |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Operating system version | 11 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 3 cm |
| Bezel width (side) | 3 cm |
| Bezel width (top) | 3 cm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 138.7 cm (54.6") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 435 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal (metric) | 139 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Surface hardness | 7H |
| Glass thickness | 4 mm |
| LED backlight | |
| Touchscreen | |
| Multi-touch | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Maximum refresh rate | 60 Hz |
| Viewable size, horizontal | 121 cm |
| Viewable size, vertical | 68 cm |
| Brightness | 435 cd/m² |
| Display surface | Matt |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| Remote control included | |
| Batteries included | |
| Packaging data | |
| Package width | 1428 mm |
| Package depth | 185 mm |
| Package height | 894 mm |
| Package volume | 47200 cm³ |
| Package weight | 47.2 kg |
| Performance | |
| Purpose | Universal |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP65 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | |
| USB port | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 139 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 78 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, co |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 1274 mm |
| Display depth | 65.2 mm |
| Display height | 744.8 mm |
| Display weight | 39.6 kg |
| Width | 1274 mm |
| Depth | 65.2 mm |
| Height | 744.8 mm |
| Weight | 39.6 kg |
| Width (with stand) | 1274 mm |
| Depth (with stand) | 65.2 mm |
| Height (with stand) | 744.8 mm |
| Weight (with stand) | 39.6 kg |
