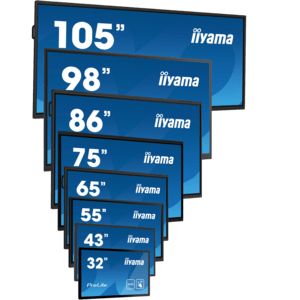

Iiyama TF5039AS-B1AG
ProLite , 24/7, 125,7 cm (49,5''), Projected Capacitive, 4K, USB, RS232, Ethernet, Android, kit (USB)
|
2.207,52 EUR |
|
|
( 2.626,95 EUR incl. VAT ) ≈ £1,847.69 | ≈ $2,461.38 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1385013 |
| Mfg Part No: | TF5039AS-B1AG |
| Weight: | 35.9 kg |
Product information for Iiyama TF5039AS-B1AG:
touch monitor (aspect ratio: 16:9), screen size: 125,7 cm (49,5''), Projected Capacitive, resolution: 3840x2160 pixels, VESA mount (400x400 mm), speaker, response time: 9,5ms, brightness 500cd, viewing angle 178/178°(H/V), contrast: 5000:1, connection: USB (type A, 2x), RS232, Ethernet, audio, display-port, HDMI, Android (11), incl.: cable (USB, HDMI, Display Port), power supply unit, power cable (EU, UK), Remote Control, QSG
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3 mm |
| Display | |
| Display diagonal | 125.7 cm (49.5") |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 40 |
| Display brightness (typical) | 500 cd/m² |
| Display brightness | 435 cd/m² |
| Response time | 9.5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 5000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.285 x 0.285 mm |
| Horizontal scan range | 28 - 160 kHz |
| Viewable size, horizontal | 109.6 cm |
| Viewable size, vertical | 61.6 cm |
| Display diagonal (metric) | 125.7 cm |
| Haze rate | 25% |
| Surface hardness | 7H |
| LED backlight | |
| Touchscreen | |
| Anti-glare screen | |
| Ergonomics | |
| Panel mounting interface | 400 x 400 mm |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Number of OSD languages | 13 |
| VESA mounting | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2.5 mm |
| Placement supported | Indoor |
| Brightness | 435 cd/m² |
| Packaging content | IR extender |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| USB ports quantity | 2 |
| Weight | 28.6 kg |
| Height | 670 mm |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, co |
| Touch method | stylus, finger, glove (latex) |
| Width | 1149.4 mm |
| Depth | 64 mm |
| Control panel | Power |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Package volume | 35900 cm³ |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Built-in processor | |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Remote control included | |
| Quick start guide | |
| Batteries included | |
| Remote control batteries included | |
| Packaging data | |
| Package width | 1297 mm |
| Package depth | 174 mm |
| Package height | 798 mm |
| Package weight | 35.9 kg |
| USB cable length | 1.8 m |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Android 11 |
| Operating system version | 11 |
| Palm rejection | |
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDCP version | 2.2 |
| USB Touch port | |
| DVI port | |
| HDCP | |
| RS-232C | |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 68.2 kWh |
| Power consumption (typical) | 137 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Thin Client | |
| Processor architecture | ARM Cortex-A73 |
| Weight & dimensions | |
| Width (with stand) | 1149.4 mm |
| Depth (with stand) | 64 mm |
| Height (with stand) | 670 mm |
| Weight (with stand) | 28.6 kg |
| Bezel width (side) | 2.4 cm |
| Bezel width (top) | 2.4 cm |
| Bezel width (bottom) | 2.4 cm |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
