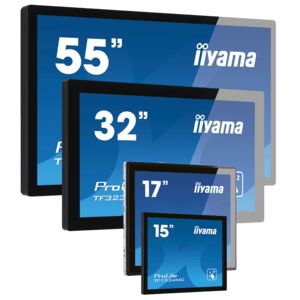

Iiyama TF3239AS-B1AG ProLite TF3239AS, 80cm (31,5''), Projected Capacitive, Full HD, RS232, Ethernet, Android, kit (USB), black
|
1.162,08 EUR |
|
|
( 1.382,88 EUR incl. VAT ) ≈ £972.66 | ≈ $1,295.72 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1064886 |
| Mfg Part No: | TF3239AS-B1AG |
| Weight: | 16.693 kg |
Product information for Iiyama TF3239AS-B1AG:
TFT screen, 16:9, screen size: 80 cm (31.5''), Touchscreen, Projected Capacitive, multi touch (40 points), resolution: 1920x1080 pixels, VESA mount (200x200 mm), response time: 8ms, brightness 500cd, viewing angle 178/178°(H/V), contrast: 1200:1, RS232, Ethernet, audio, display-port, HDMI, touch interface: USB, RAM: 4 GB, Flash: 32 GB, OS: Android (11), incl.: cable (USB, HDMI, Display Port), power supply unit (internal), power cable, QSG, order separately: adaptor, IP65, black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3 mm |
| Display | |
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 40 |
| Display brightness (typical) | 500 cd/m² |
| Display brightness | 435 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.363 x 0.363 mm |
| Horizontal scan range | 28 - 160 kHz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Display diagonal (metric) | 80 cm |
| Haze rate | 25% |
| Surface hardness | 7H |
| Colour depth | 8 bit |
| LED backlight | |
| Touchscreen | |
| Anti-glare screen | |
| Ergonomics | |
| Panel mounting interface | 200 x 200 mm |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Number of OSD languages | 13 |
| VESA mounting | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2.5 mm |
| Placement supported | Indoor |
| Brightness | 435 cd/m² |
| Active display area (W x H) | 698.4 x 392.8 mm |
| USB ports quantity | 2 |
| Weight | 13.2 kg |
| Height | 440.7 mm |
| Width | 746.2 mm |
| Touch method | stylus, finger, glove (latex) |
| Depth | 62.4 mm |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, co |
| Control panel | Power |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Package volume | 16600 cm³ |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Built-in processor | |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Remote control included | |
| Quick start guide | |
| Batteries included | |
| Remote control batteries included | |
| Packaging data | |
| Package width | 840 mm |
| Package depth | 149 mm |
| Package height | 560 mm |
| Package weight | 16.6 kg |
| USB cable length | 1.8 m |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Android 11 |
| Operating system version | 11 |
| Palm rejection | |
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDCP version | 2.2 |
| USB Touch port | |
| DVI port | |
| HDCP | |
| RS-232C | |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 31.3 kWh |
| Power consumption (typical) | 50 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Thin Client | |
| Processor architecture | ARM Cortex-A73 |
| Weight & dimensions | |
| Width (with stand) | 746.2 mm |
| Depth (with stand) | 62.4 mm |
| Height (with stand) | 440.7 mm |
| Weight (with stand) | 13.2 kg |
| Bezel width (side) | 2.2 cm |
| Bezel width (top) | 2.2 cm |
| Bezel width (bottom) | 2.2 cm |
Questions & answers
What is the delivery time of Iiyama TF3239AS-B1AG ProLite TF3239AS, 80cm (31,5''), Projected Capacitive, Full HD, RS232, Ethernet, Android, kit (USB), black?
The article Iiyama TF3239AS-B1AG ProLite TF3239AS, 80cm (31,5''), Projected Capacitive, Full HD, RS232, Ethernet, Android, kit (USB), black is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF3239AS-B1AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Iiyama TF3239AS-B1AG ProLite TF3239AS, 80cm (31,5''), Projected Capacitive, Full HD, RS232, Ethernet, Android, kit (USB), black always at the best possible price. We can give you a discount of 2% on Iiyama TF3239AS-B1AG ProLite TF3239AS, 80cm (31,5''), Projected Capacitive, Full HD, RS232, Ethernet, Android, kit (USB), black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
