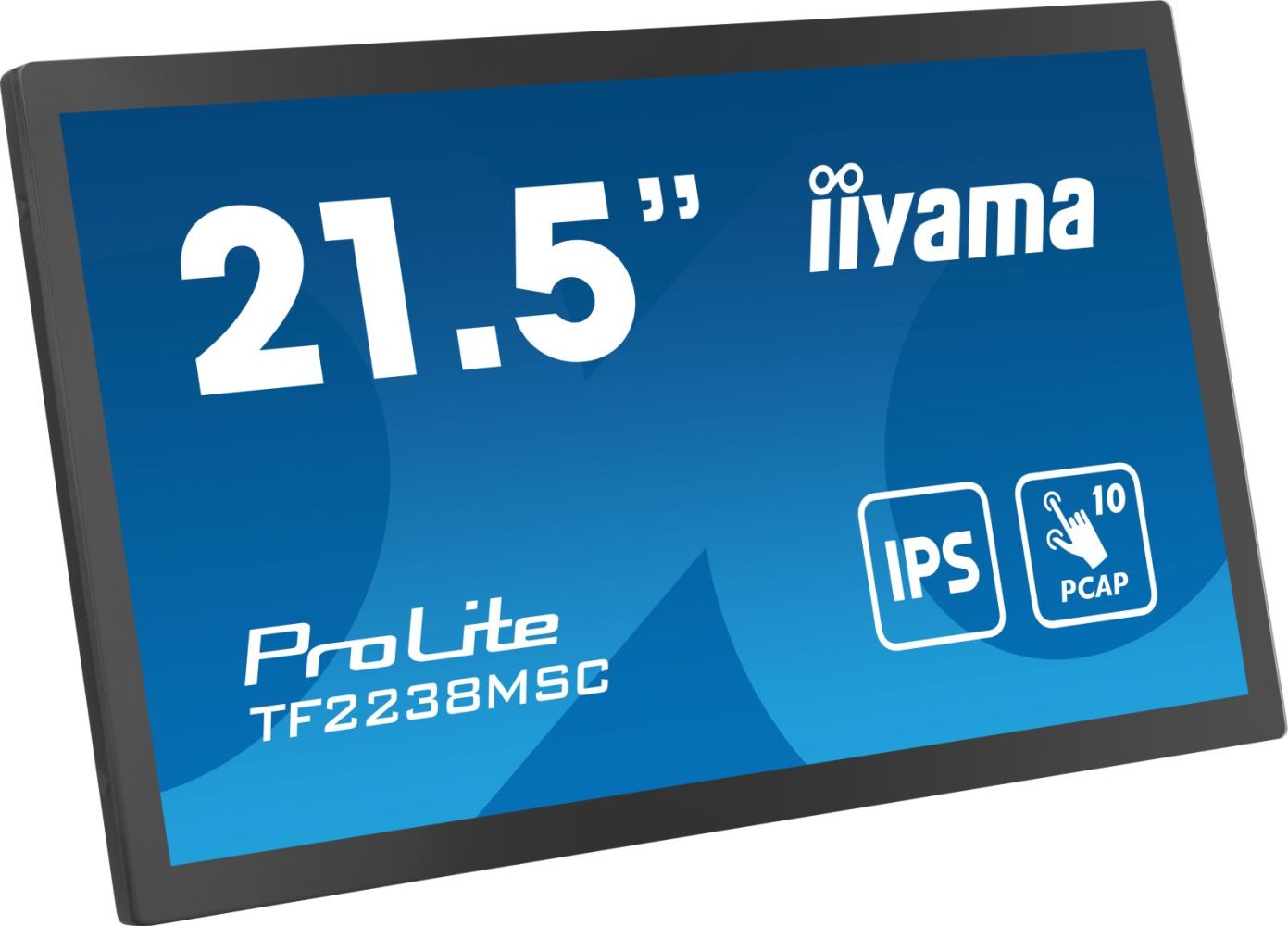

IIYAMA 54.5cm (21.5") TF2238MSC-B1 16:9 M-Touch HDMI+DP+USB retail
|
-20% 420,15 EUR 526,36 EUR |
|
|
( 499,98 EUR incl. VAT ) ≈ £352.93 | ≈ $471.41 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| End-Of-Life: | 06. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1141945 |
| Mfg Part No: | TF2238MSC-B1 |
| UPC/EAN: | 4948570121618 |
| Weight: | 6.52 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF2238MSC-B1:
• Diagonale: 54,6 cm ( 21,5 inch )/54.5cm • Auflösung: 1920x1080, 16:9 • Helligkeit: 525cd/m² • Kontrast: 1.000:1 (statisch) • Reaktionszeit: 5ms • Blickwinkel: 178°/178° • Panel: IPS • Anschlüsse: 1x HDMI, 1x DisplayPort • Weitere Anschlüsse: 2x USB Hub • Touchscreen: bonded PCAP • VESA: 100x100 • Abmessungen (BxHxT): 512,5x300x47mm • Gewicht: 5,1Kg
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3.6 mm |
| Display | |
| Display diagonal | 53.3 cm (21") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 600 cd/m² |
| Display brightness | 525 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.249 x 0.249 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 47.9 cm |
| Viewable size, vertical | 26 cm |
| Display diagonal (metric) | 54.5 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| VESA mounting | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | |
| Network | |
| Wi-Fi | |
| Ethernet LAN | |
| Other features | |
| International Protection (IP) code | IP1X |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Placement supported | Indoor |
| Brightness | 525 cd/m² |
| Active display area (W x H) | 479 x 260 mm |
| USB ports quantity | 2 |
| Weight | 5.1 kg |
| Height | 300 mm |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Touch method | stylus, finger, glove |
| Width | 512.5 mm |
| Depth | 47 mm |

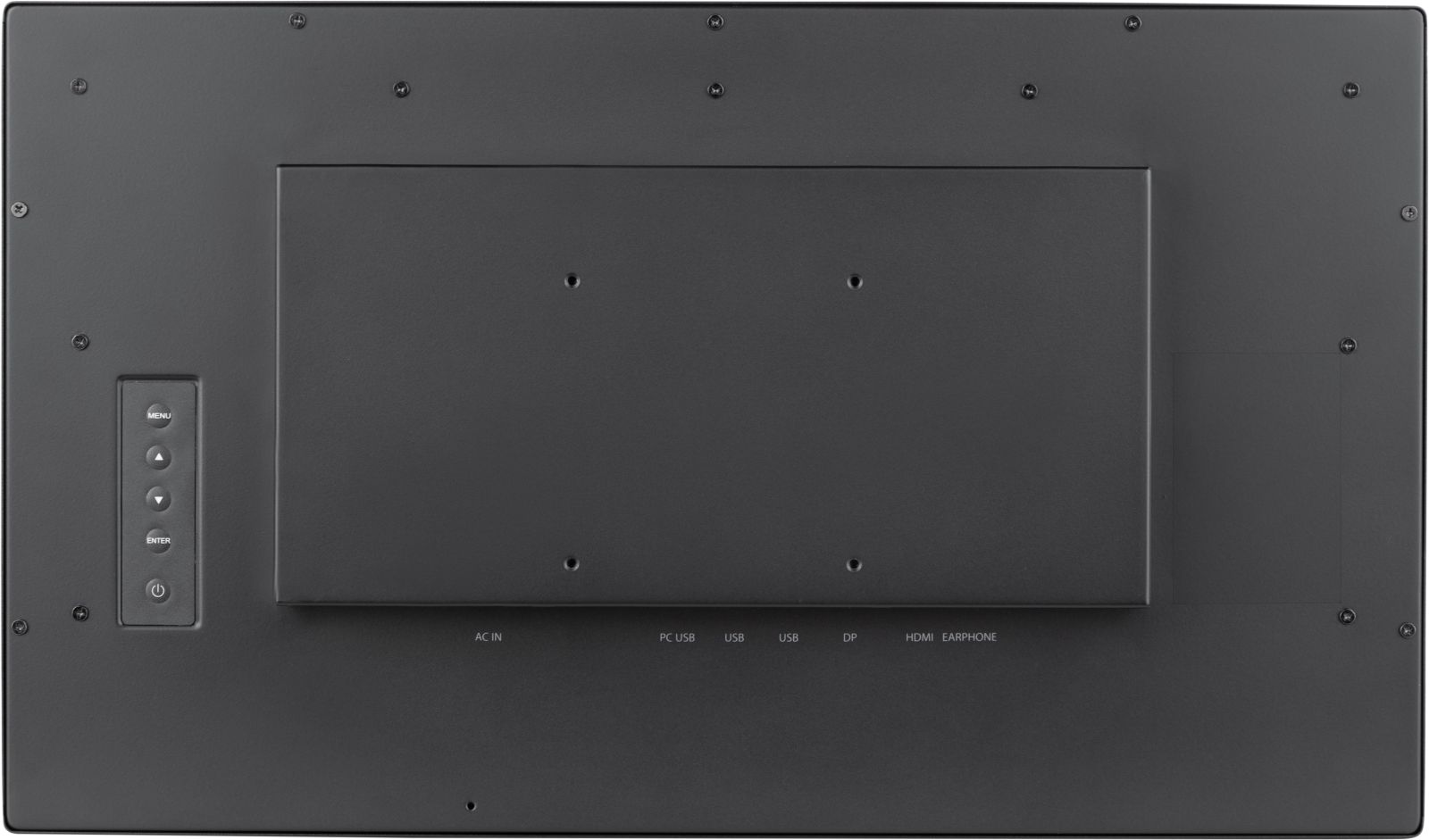

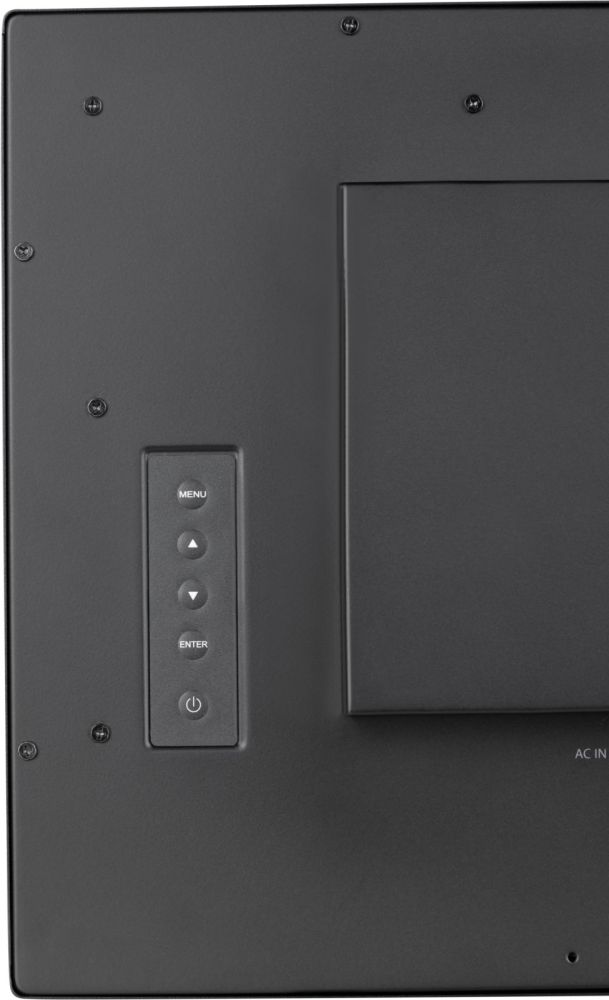

| Control panel | Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Built-in processor | |
| Packaging content | |

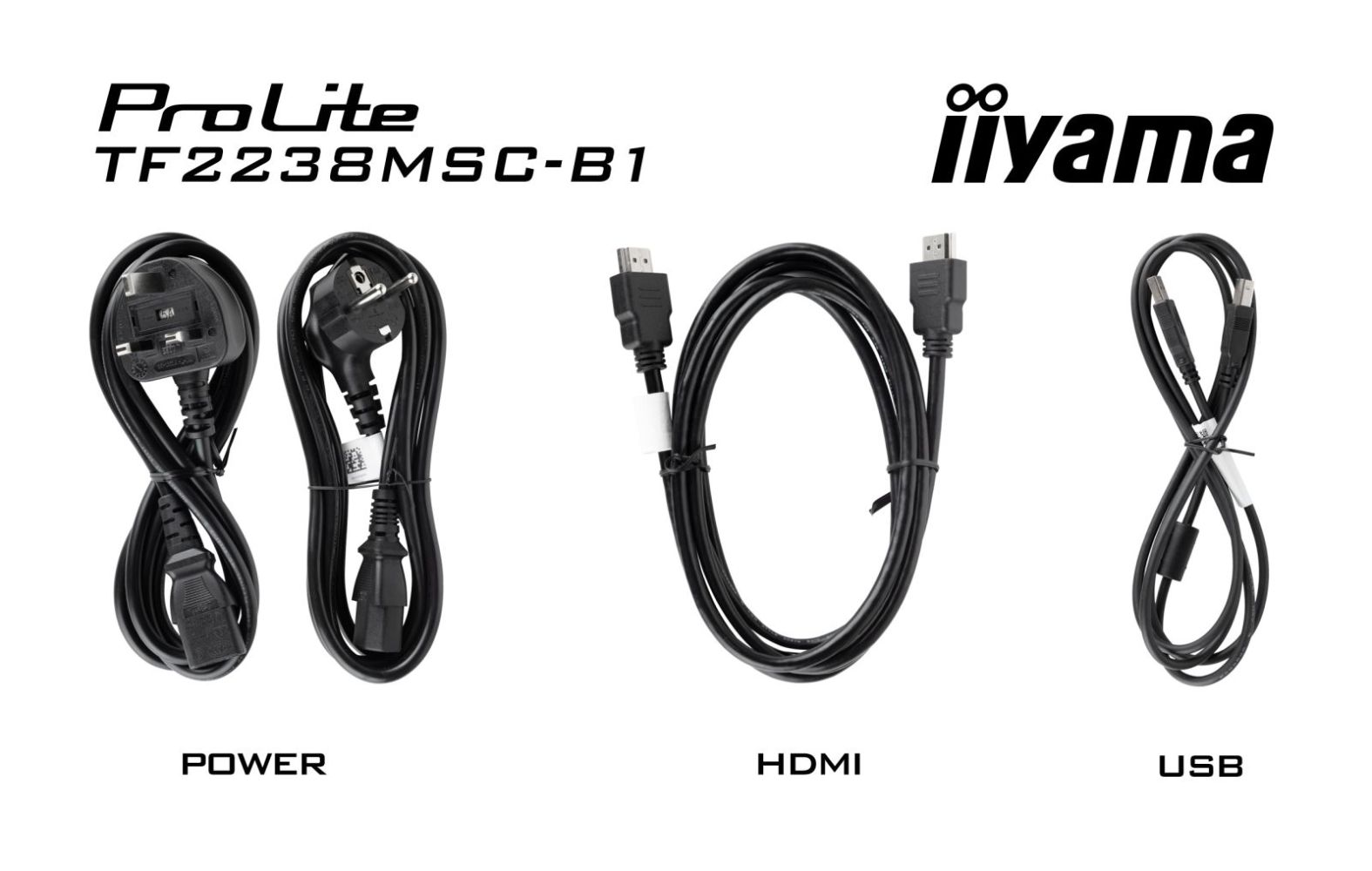

| Cables included | AC, USB, HDMI |
| Quick start guide | |
| Packaging data | |
| Package width | 572 mm |
| Package depth | 112 mm |
| Package height | 364 mm |
| Package weight | 6.4 kg |
| Performance | |
| Low Blue Light technology | |

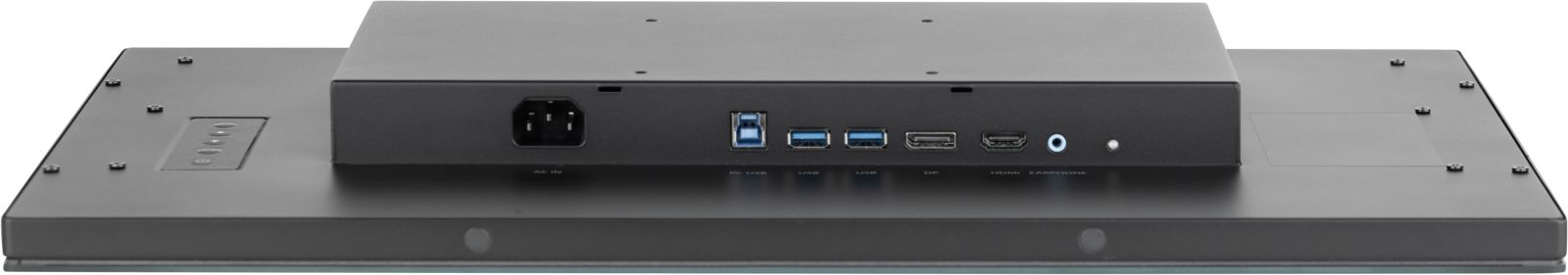

| Ports & interfaces | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of downstream ports | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| DVI port | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 12.9 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 512.5 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 300 mm |
| Weight (with stand) | 5.1 kg |
| Bezel width (side) | 1.7 cm |
| Bezel width (top) | 1.98 cm |
| Bezel width (bottom) | 1.98 cm |
