IIYAMA 48.0cm (19") TF1934MC-B7X 5:4 M-Touch HDMI+DP+USB
|
-12% 467,58 EUR 532,72 EUR |
|
|
( 556,42 EUR incl. VAT ) ≈ £392.77 | ≈ $524.62 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1175740 |
| Mfg Part No: | TF1934MC-B7X |
| UPC/EAN: | 4948570118403 |
| Weight: | 6.4 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama

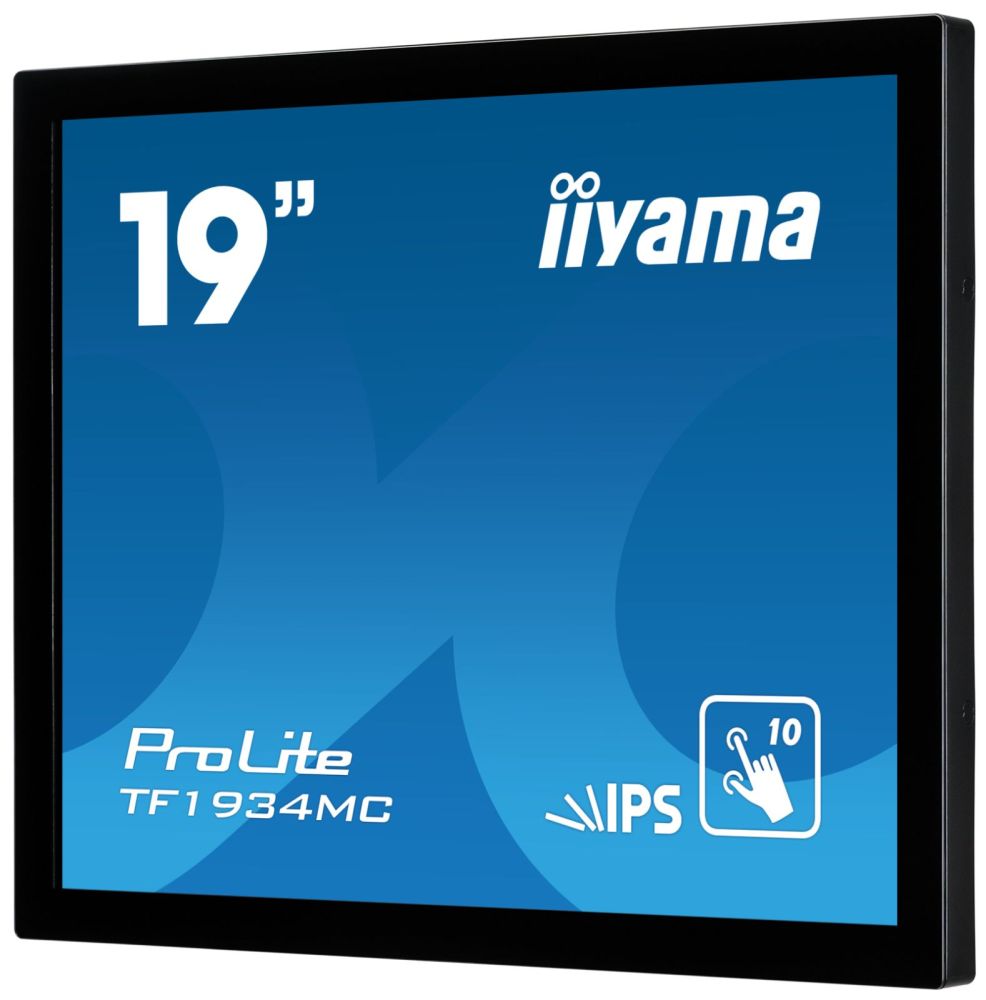

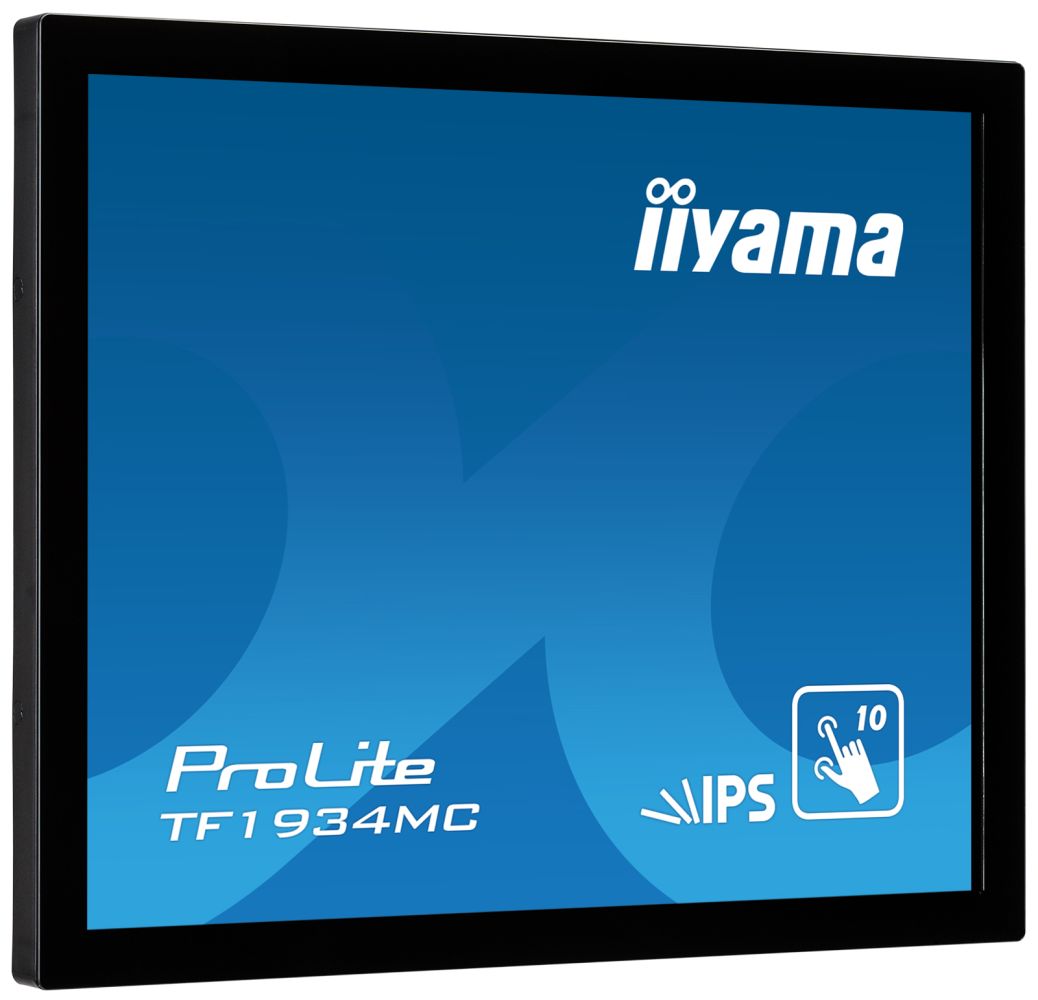

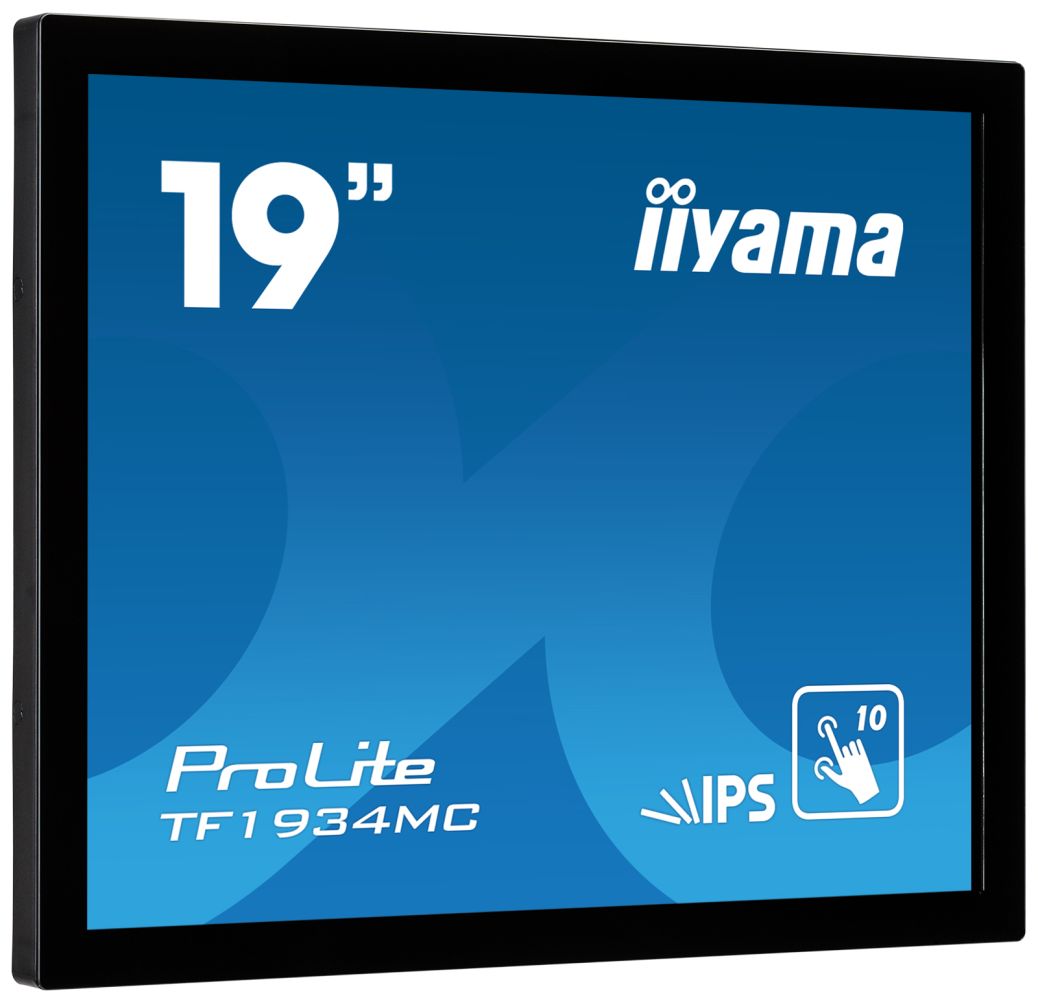

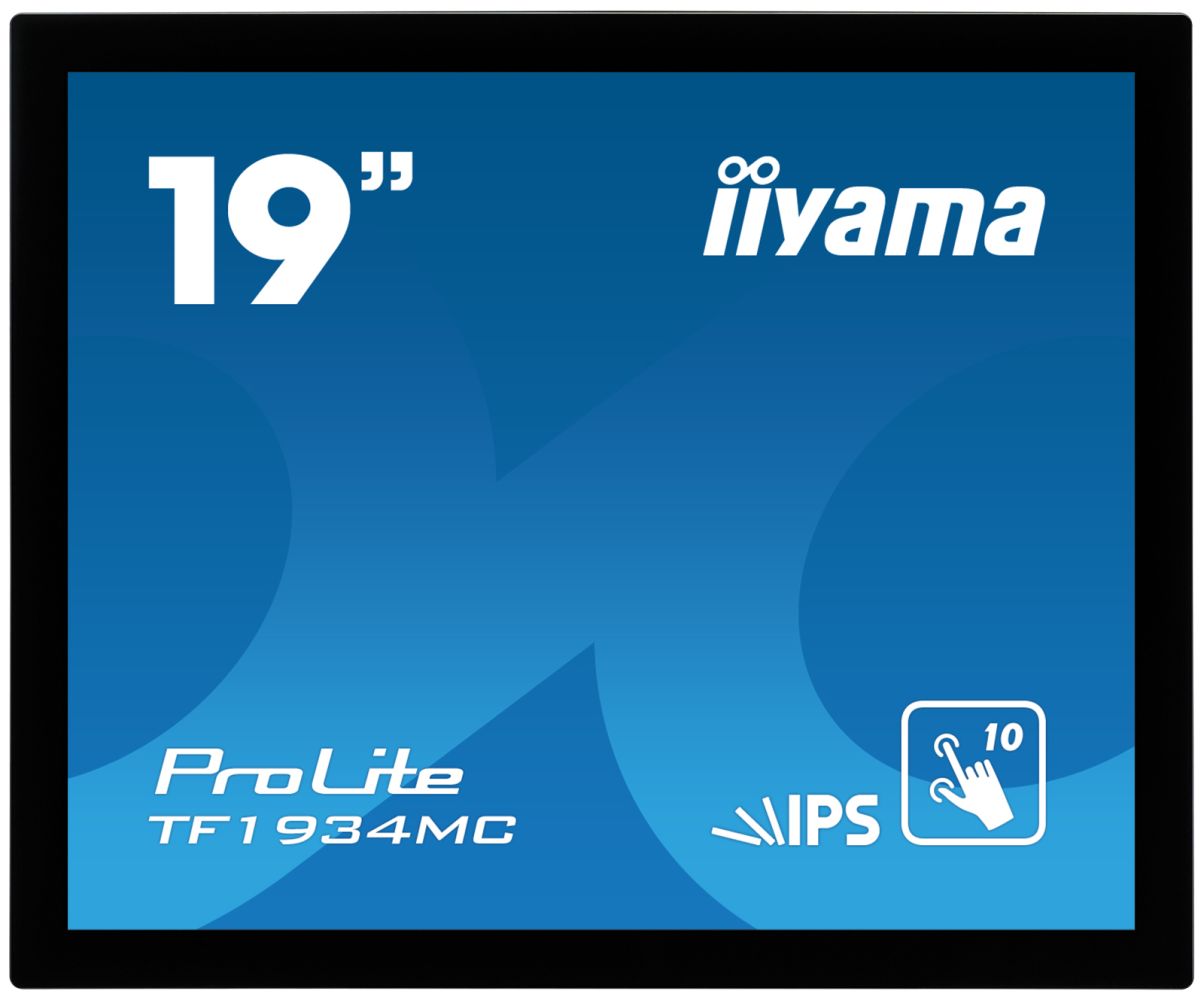

Product information for Iiyama TF1934MC-B7X:
Design Open Frame
- Screen diagonal 48,3 cm ( 19 inch ), 48cm
- Panel technology IPS LED
- Physical resolution 1280 x 1024 (1.3 megapixels)
- Image format 5:4
- Brightness 350 cd/m² typical
- Brightness 315 cd/m² with touch panel
- Contrast ratio 1000: 1 with touch panel
- light transmission 90%
- response time (GTG) 14ms
- viewing angle horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- color support 16.7mln
- Horizontal frequency 31.4 - 80kHz
- Vertical frequency 50 - 75Hz
- Working surface H x W 376.5 x 301.1mm, 14.8 x 11.9\dlash- Pixel pitch 0.294mm
- Housing color/type black, matt
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 6 mm |
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 14 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Viewable size diagonal | 48 cm |
| Display diagonal (metric) | 48 cm |
| LED backlight | |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| Cable management | |
| Cable lock slot | |
| On Screen Display (OSD) | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| Display viewable area (HxV) | 376.5 x 301.1 mm |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM) |
| Active display area (W x H) | 376.5 x 301.1 mm |
| Weight | 4.4 kg |
| Height | 344 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 416 mm |
| Depth | 46.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Supplied AC adapter type | AC |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| AC adapter included | |
| Packaging content | |

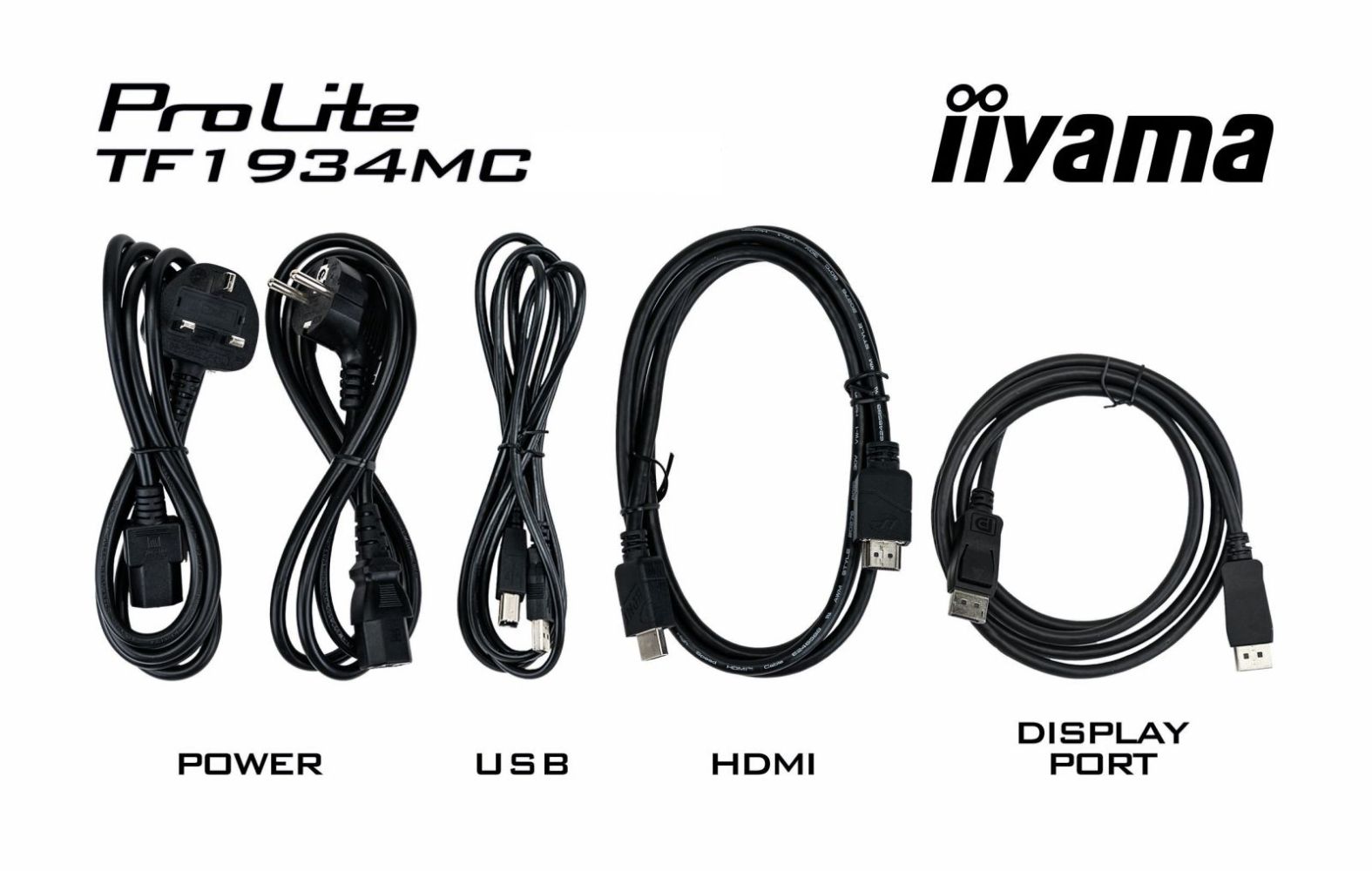

| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 425 mm |
| Package height | 133 mm |
| Package weight | 6.3 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Flicker-free technology | |
| Low Blue Light technology | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 1.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 416 mm |
| Depth (with stand) | 46.5 mm |
| Height (with stand) | 344 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 416 mm |
| Depth (without stand) | 46.5 mm |
| Height (without stand) | 344 mm |
| Weight (without stand) | 4.4 kg |
