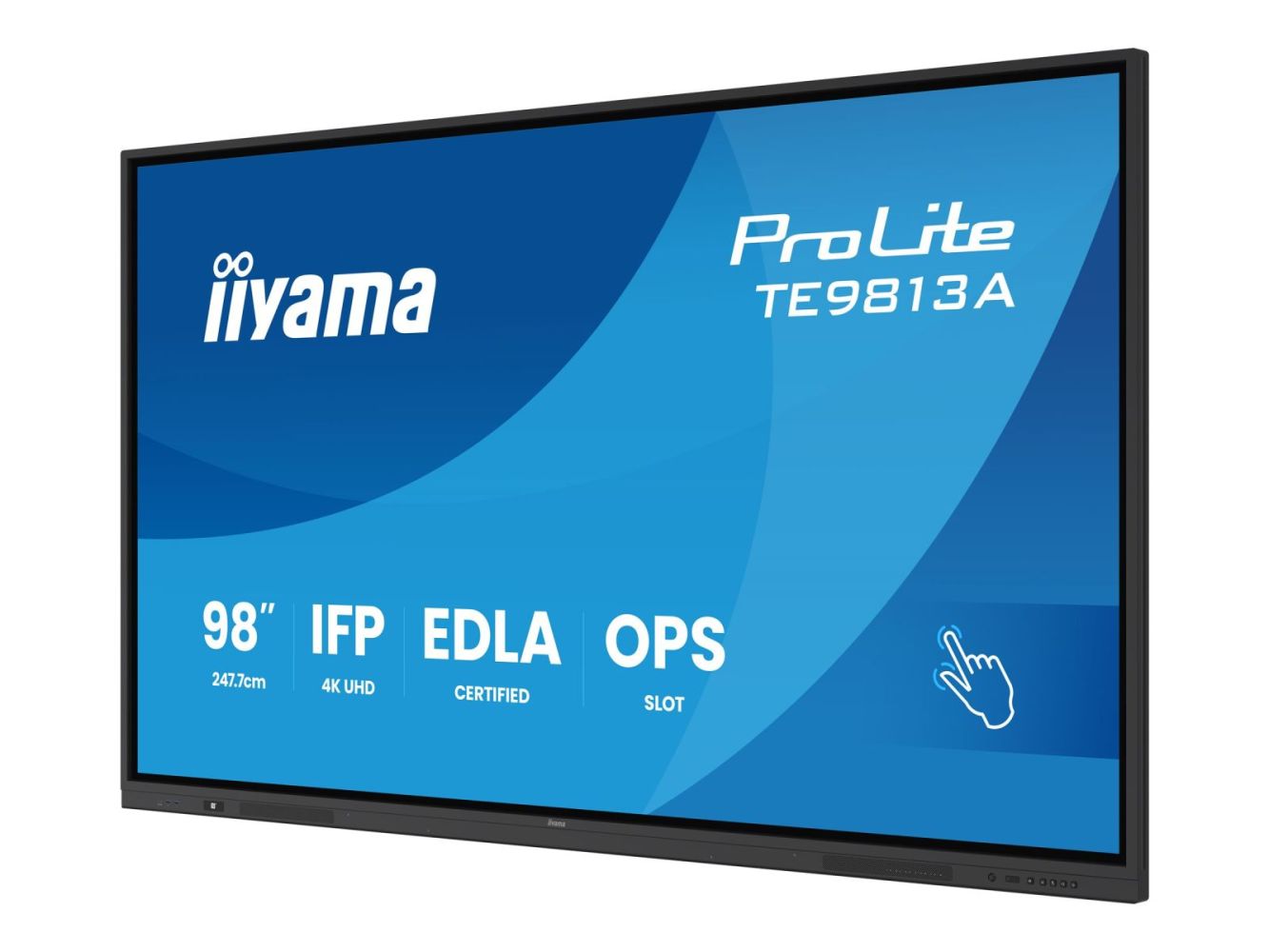

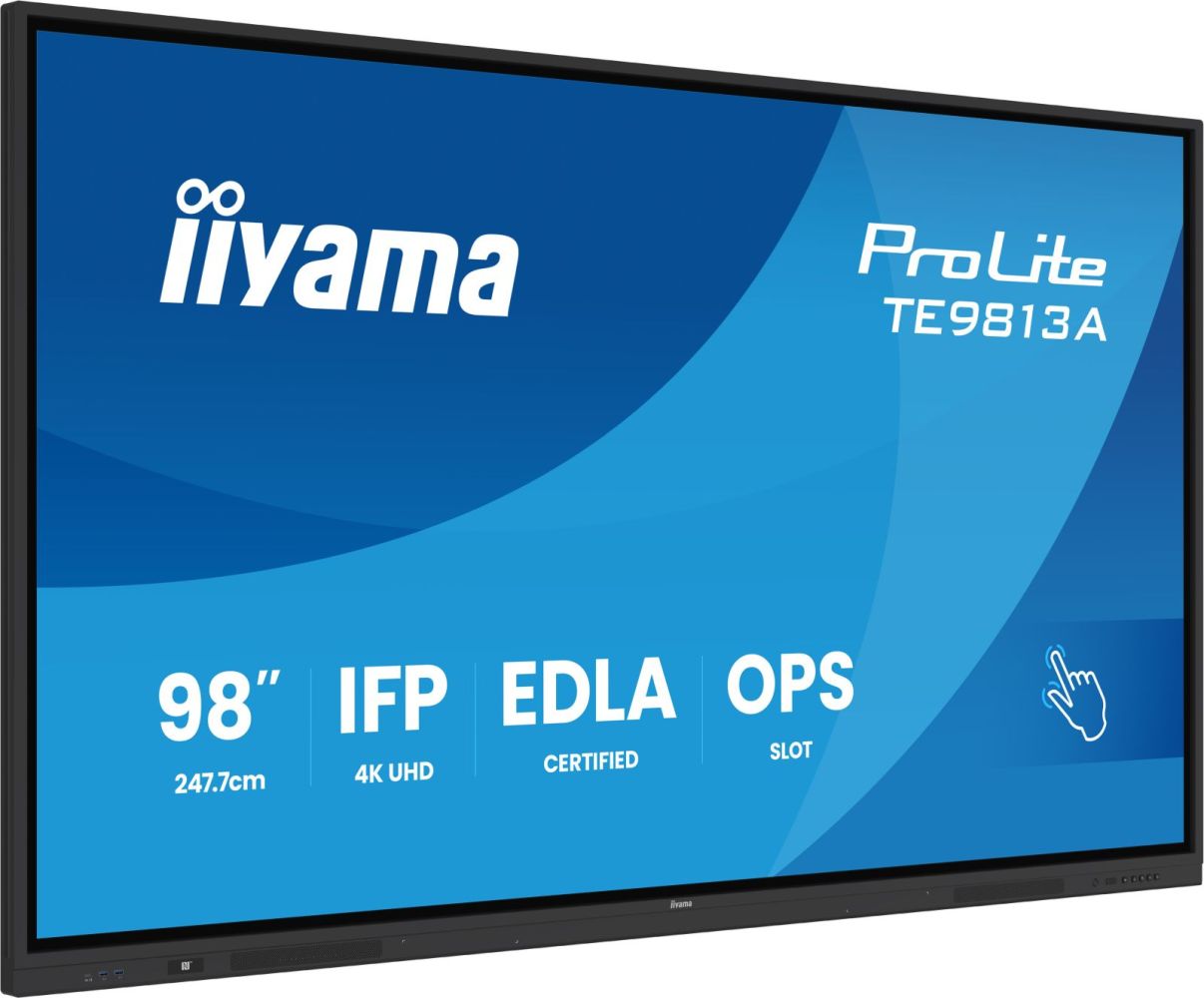

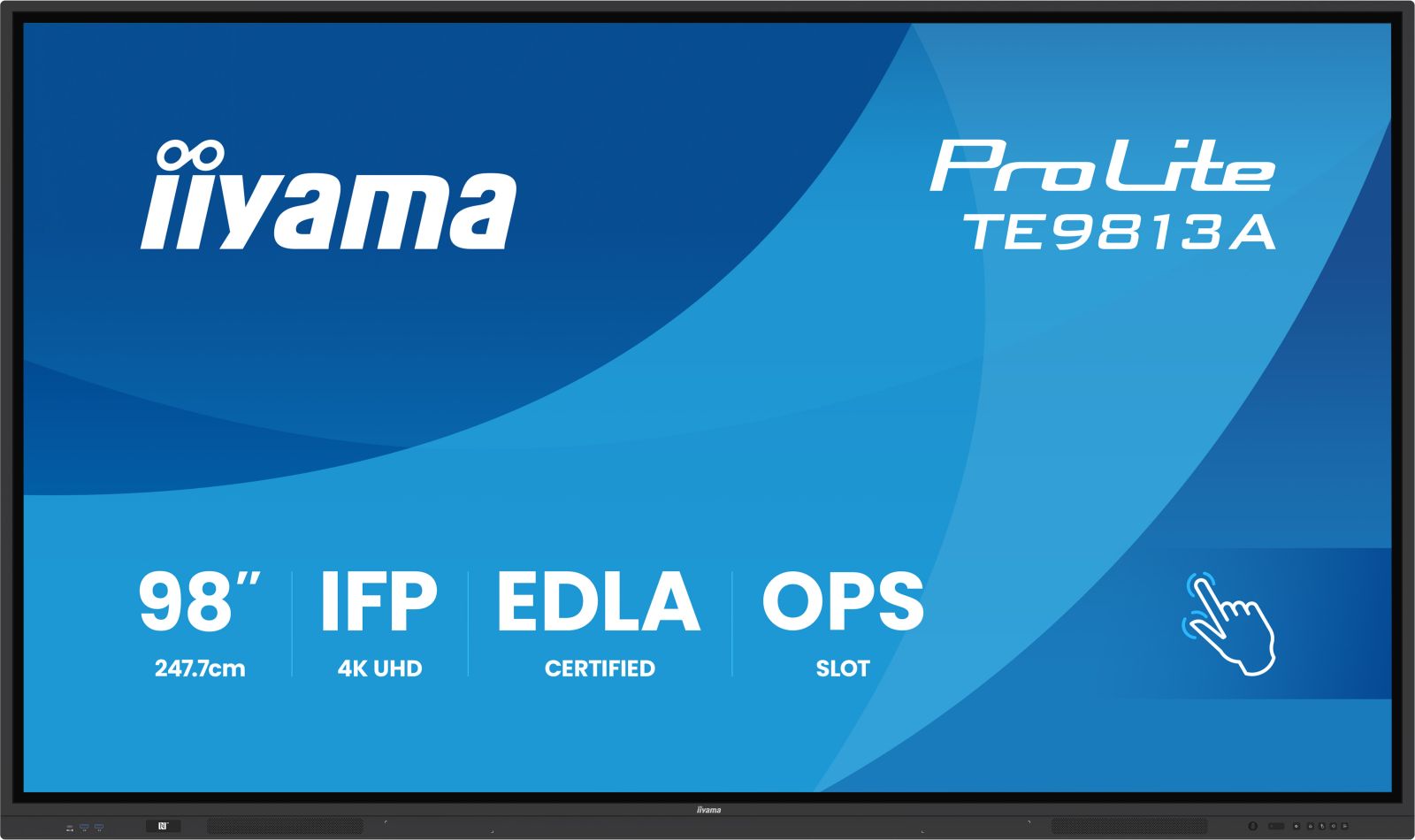

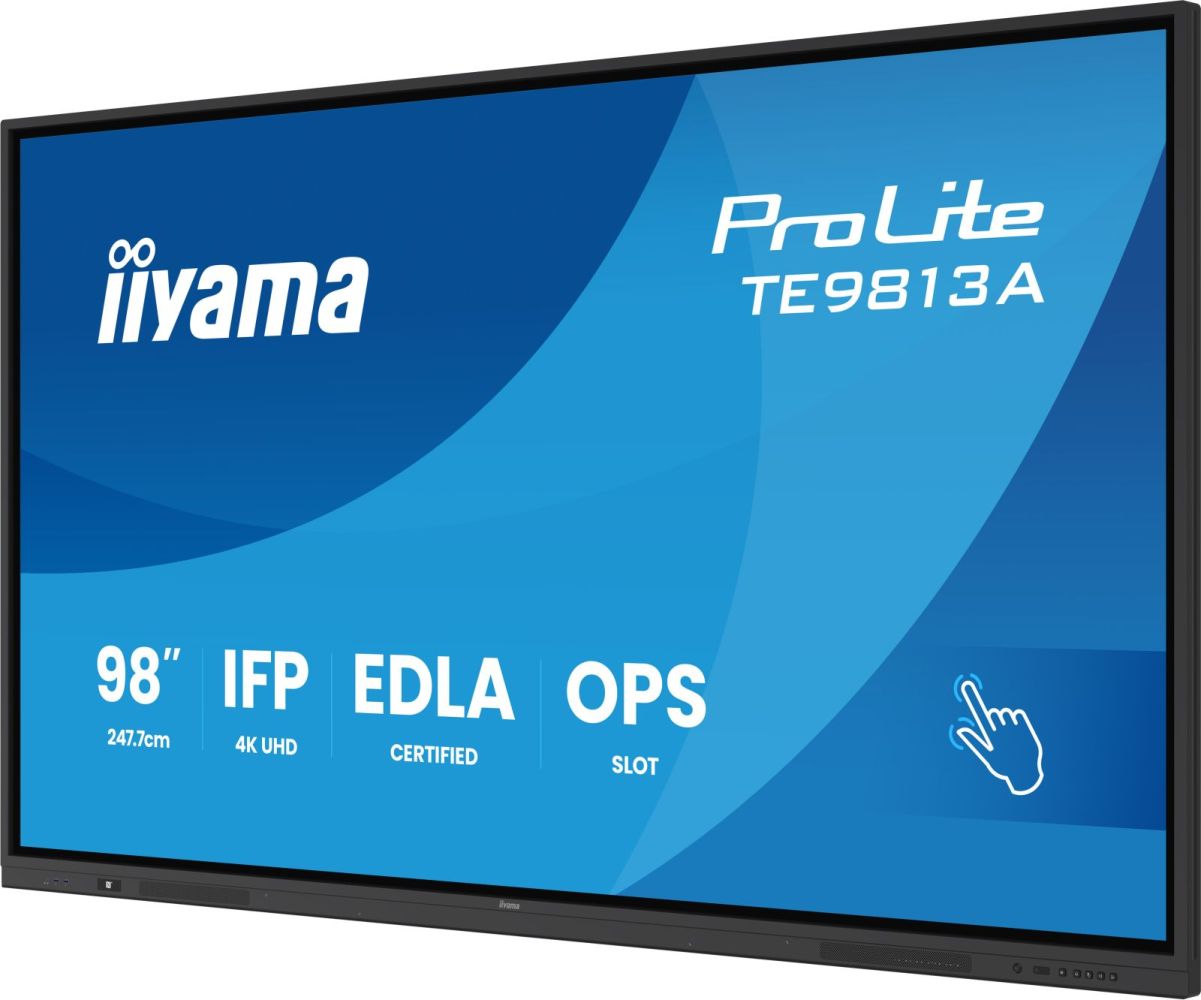

IIYAMA TE9813A-B2AG 98inch iiWare21E EDLA -Google-GMS-apps Android 14 16 summer 2026 Octa-core SOC 8/128GB 40-Points PureTouch IR+
|
3.726,94 EUR |
|
|
( 4.435,06 EUR incl. VAT ) ≈ £3,130.63 | ≈ $4,181.63 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 858934 |
| Mfg Part No: | TE9813A-B2AG |
| UPC/EAN: | 4948570125760 |
| Weight: | 131.5 kg |
| Type: | LFD |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TE9813A-B2AG:
• Bild: 247,7 cm ( 97,5 inch )/, 3840x2160, 16:9 • Kontrast: 1200:1 • Reaktion: 8ms • Anschlüsse: 2x HDMI 1.4, 1x DP, 2x USB-C, 1x Klinke • VESA: 800x600 • Maße: 2235.4 x 1326 x 103mm • Herstellergarantie: 5 Jahre
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Processor cores | 8 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

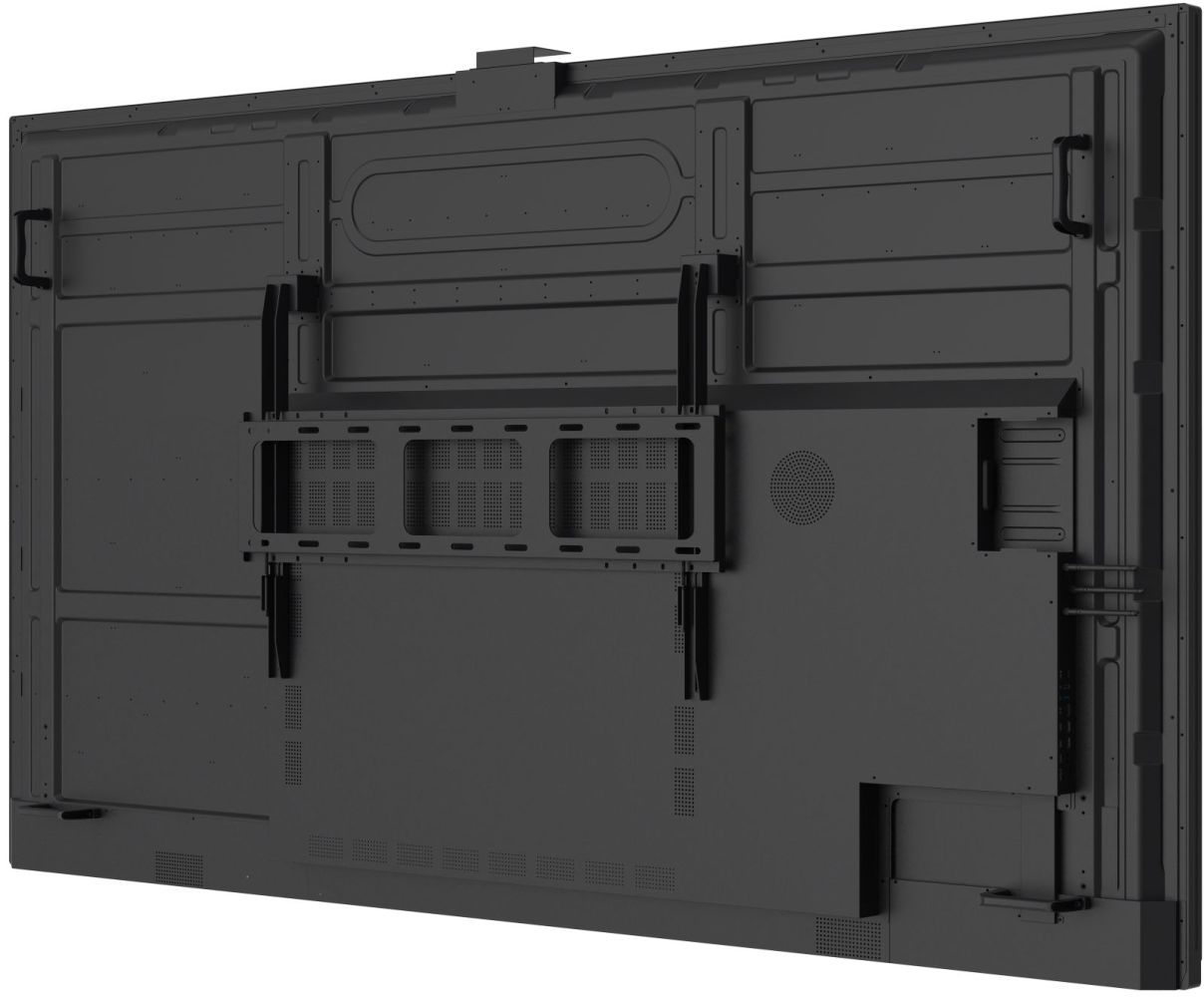

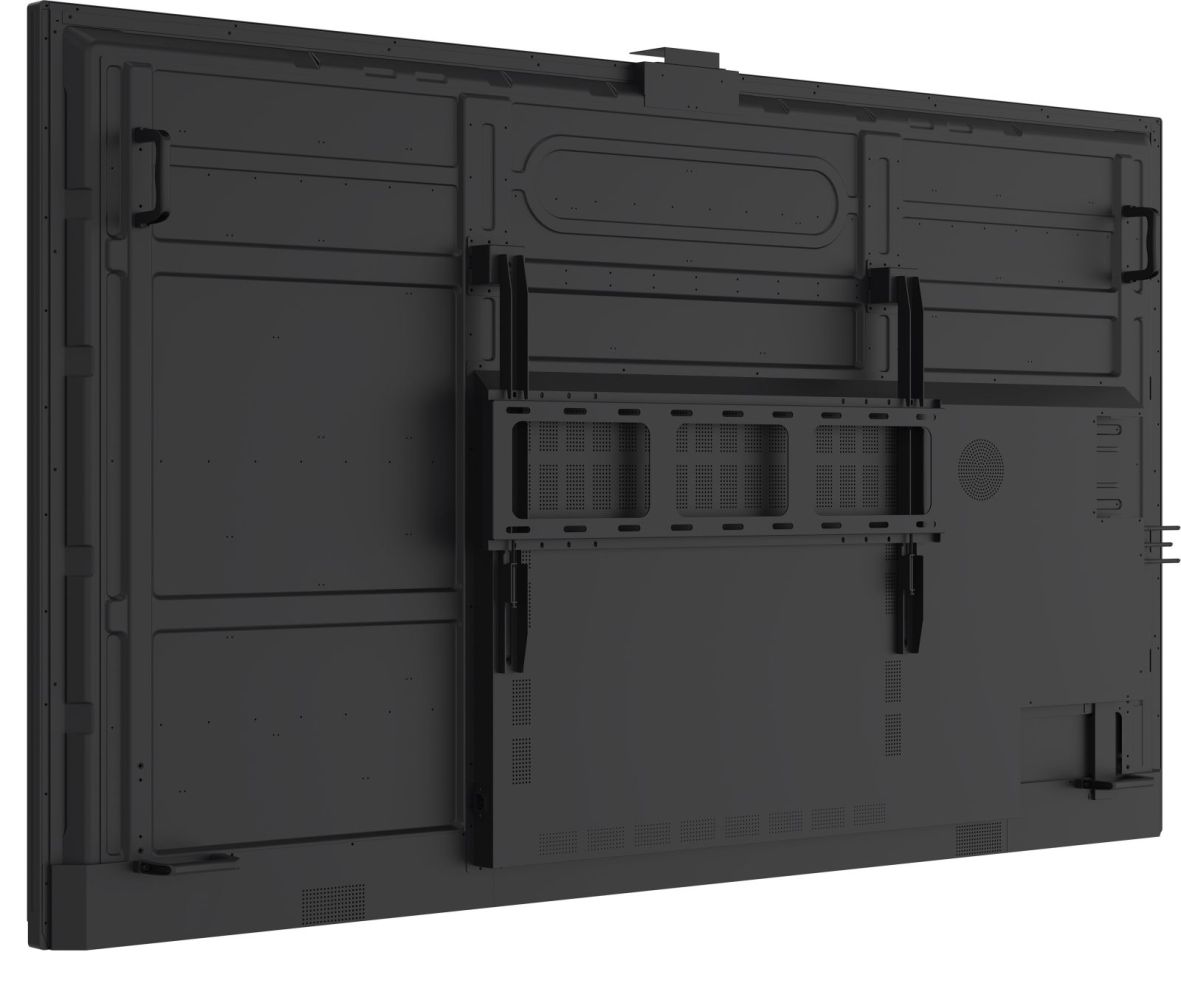

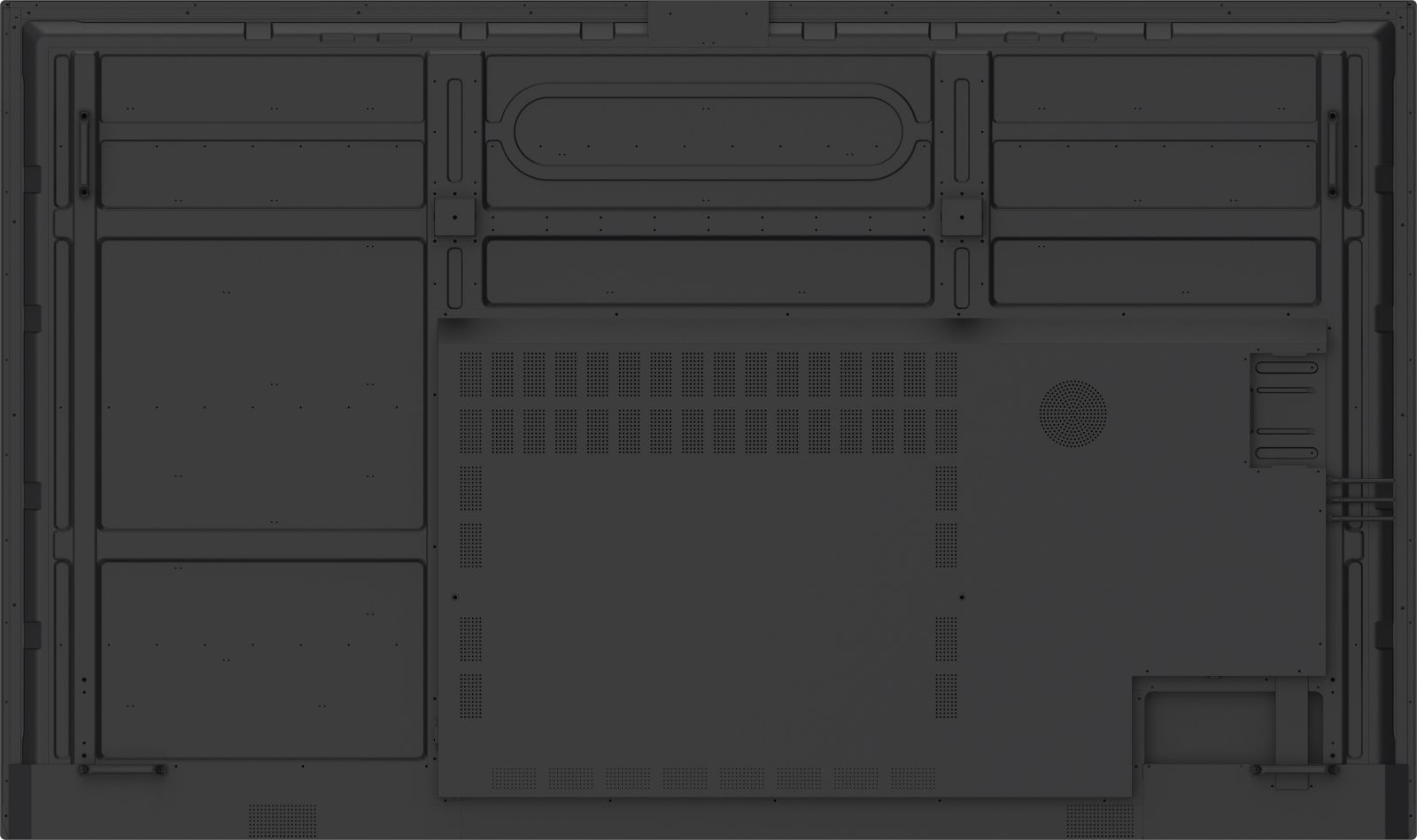

| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 4.1 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Bezel colour | Black |
| Positioning accuracy | 1 mm |

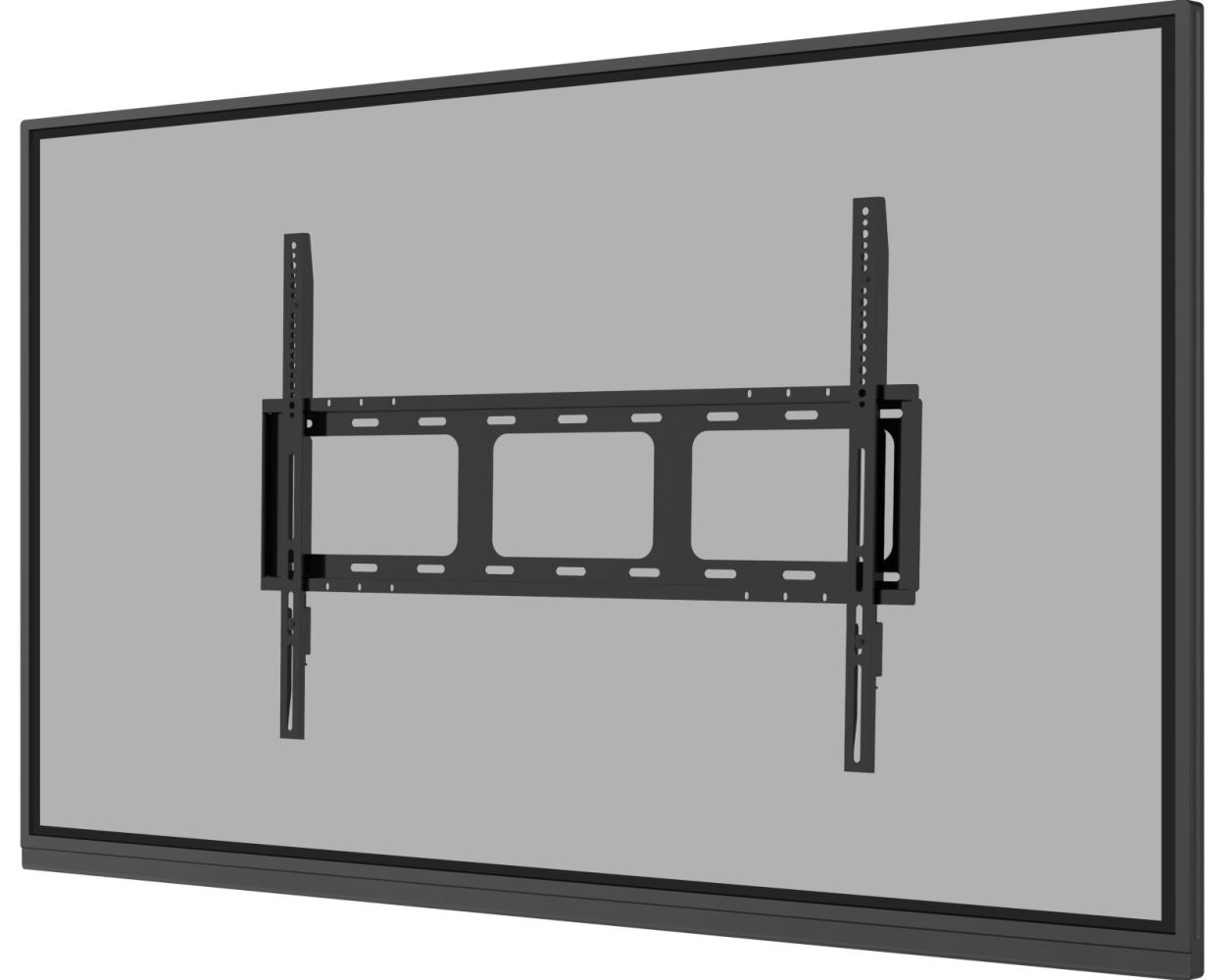

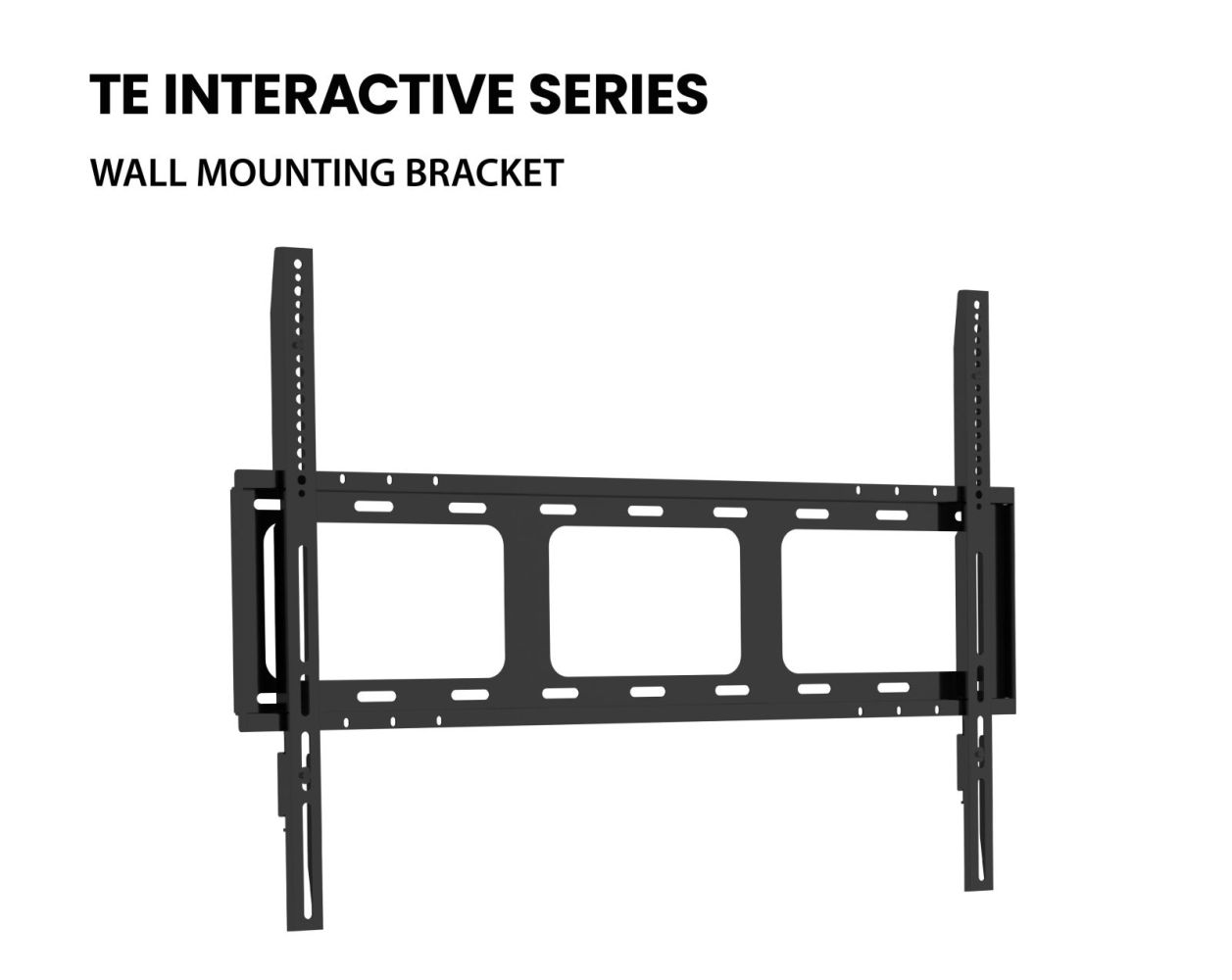

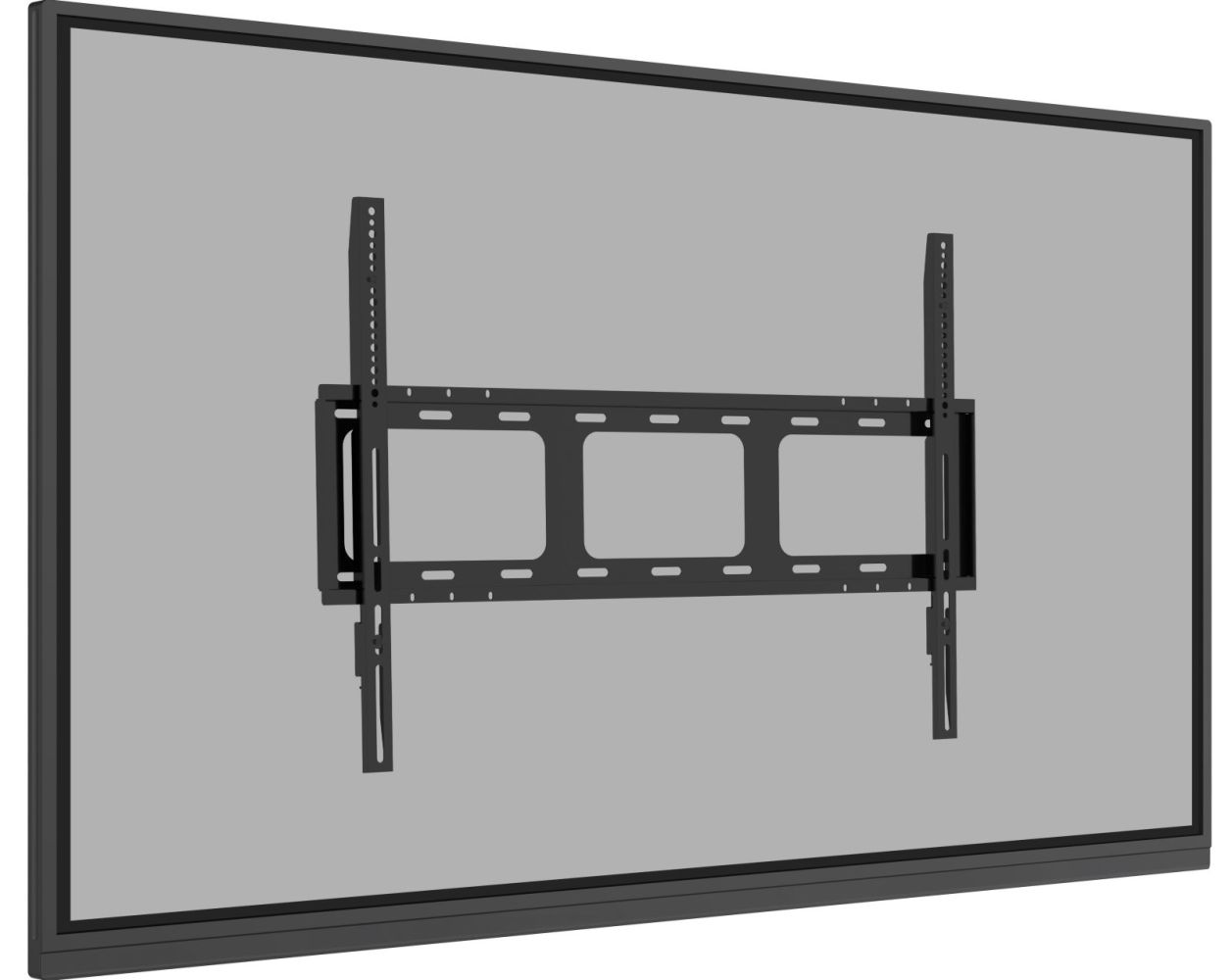

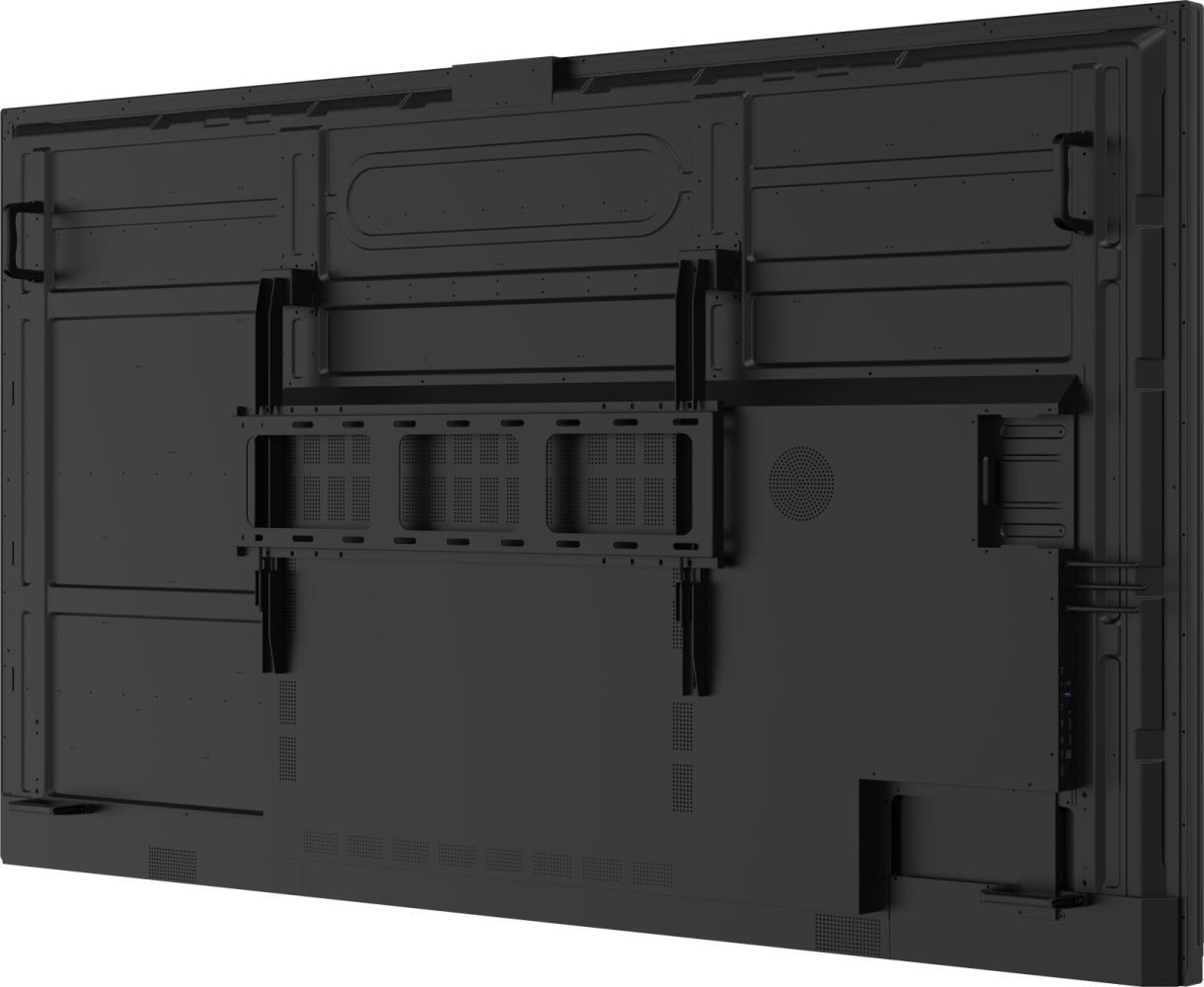

| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 2.48 m (97.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.562 x 0.562 mm |
| Active display area (W x H) | 2159 x 1214 mm |
| Display diagonal (metric) | 247.7 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 4 mm |
| Touchscreen | |
| Logistics data | |
| Products per pallet | 4 pc(s) |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Brightness | 500 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |

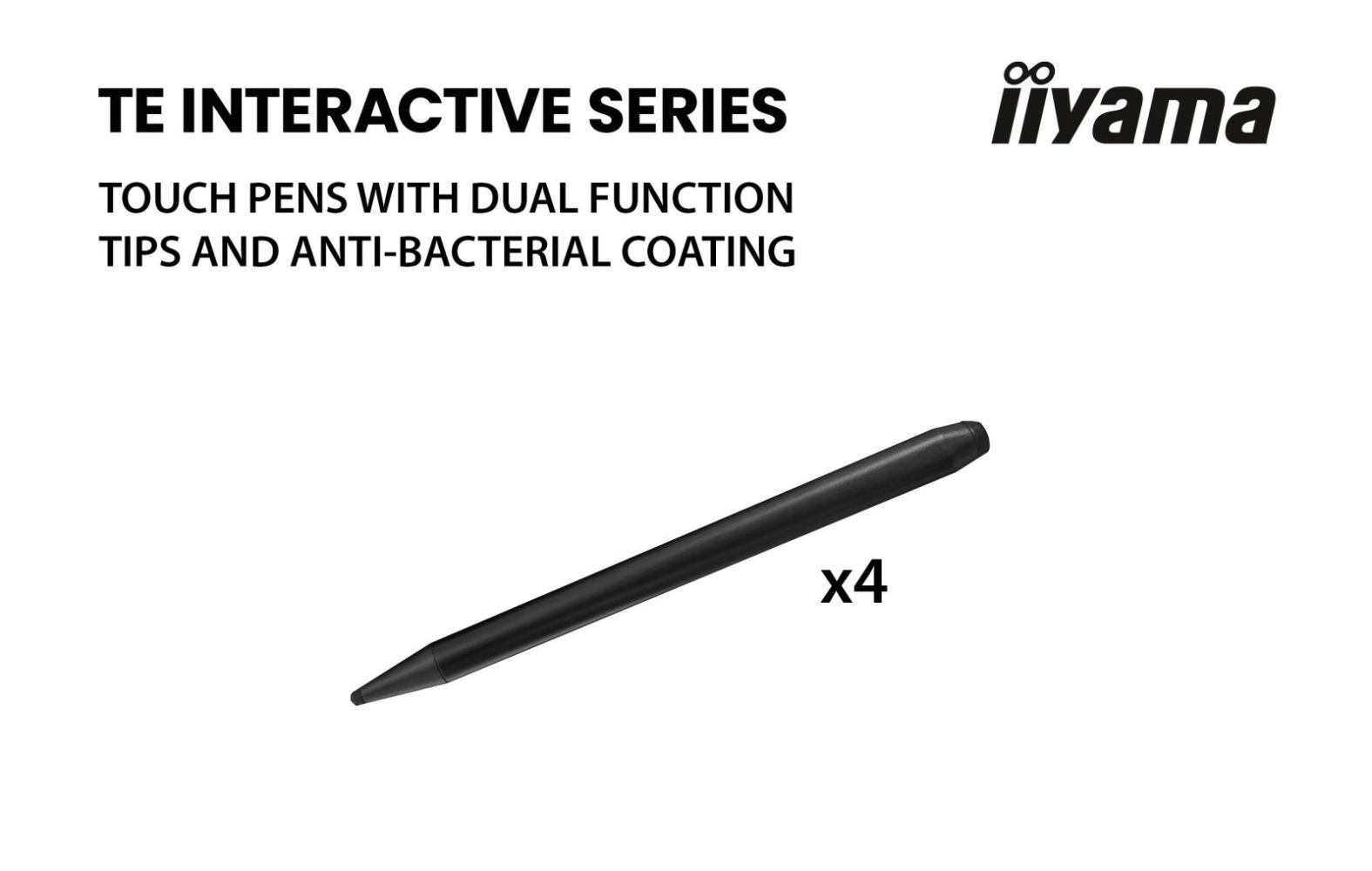

| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Remote control included | |
| Stylus pen | |
| Packaging data | |
| Package width | 2360 mm |
| Package depth | 280 mm |
| Package height | 1445 mm |
| Package weight | 132.2 kg |
| Performance | |
| Purpose | Education |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 5 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Compatible memory cards | MicroSD (TransFlash) |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| Card reader integrated | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 303 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 266 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 2235.4 mm |
| Display depth | 103 mm |
| Display height | 1326 mm |
| Display weight | 109.6 kg |
| Width | 2235.4 mm |
| Depth | 103 mm |
| Height | 1326 mm |
| Weight | 109.6 kg |
Questions & answers
What is the delivery time of IIYAMA TE9813A-B2AG 98inch iiWare21E EDLA -Google-GMS-apps Android 14 16 summer 2026 Octa-core SOC 8/128GB 40-Points PureTouch IR+?
The article IIYAMA TE9813A-B2AG 98inch iiWare21E EDLA -Google-GMS-apps Android 14 16 summer 2026 Octa-core SOC 8/128GB 40-Points PureTouch IR+ is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TE9813A-B2AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA TE9813A-B2AG 98inch iiWare21E EDLA -Google-GMS-apps Android 14 16 summer 2026 Octa-core SOC 8/128GB 40-Points PureTouch IR+ always at the best possible price. We can give you a discount of 2% on IIYAMA TE9813A-B2AG 98inch iiWare21E EDLA -Google-GMS-apps Android 14 16 summer 2026 Octa-core SOC 8/128GB 40-Points PureTouch IR+ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
