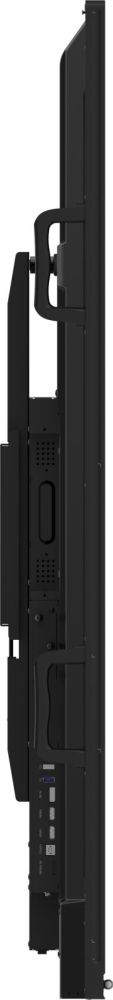

IIYAMA 86inch iiWare21E EDLA -Google-GMS-apps Android 14 16 summer 2026 Octa-core SOC 6/128GB 40-Points PureTouch IR+
|
1.801,56 EUR |
|
|
( 2.143,86 EUR incl. VAT ) ≈ £1,513.31 | ≈ $2,021.35 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 861193 |
| Mfg Part No: | TE8613A-B3AG |
| UPC/EAN: | 4948570128136 |
| Weight: | 76.3 kg |
| Type: | LFD |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama

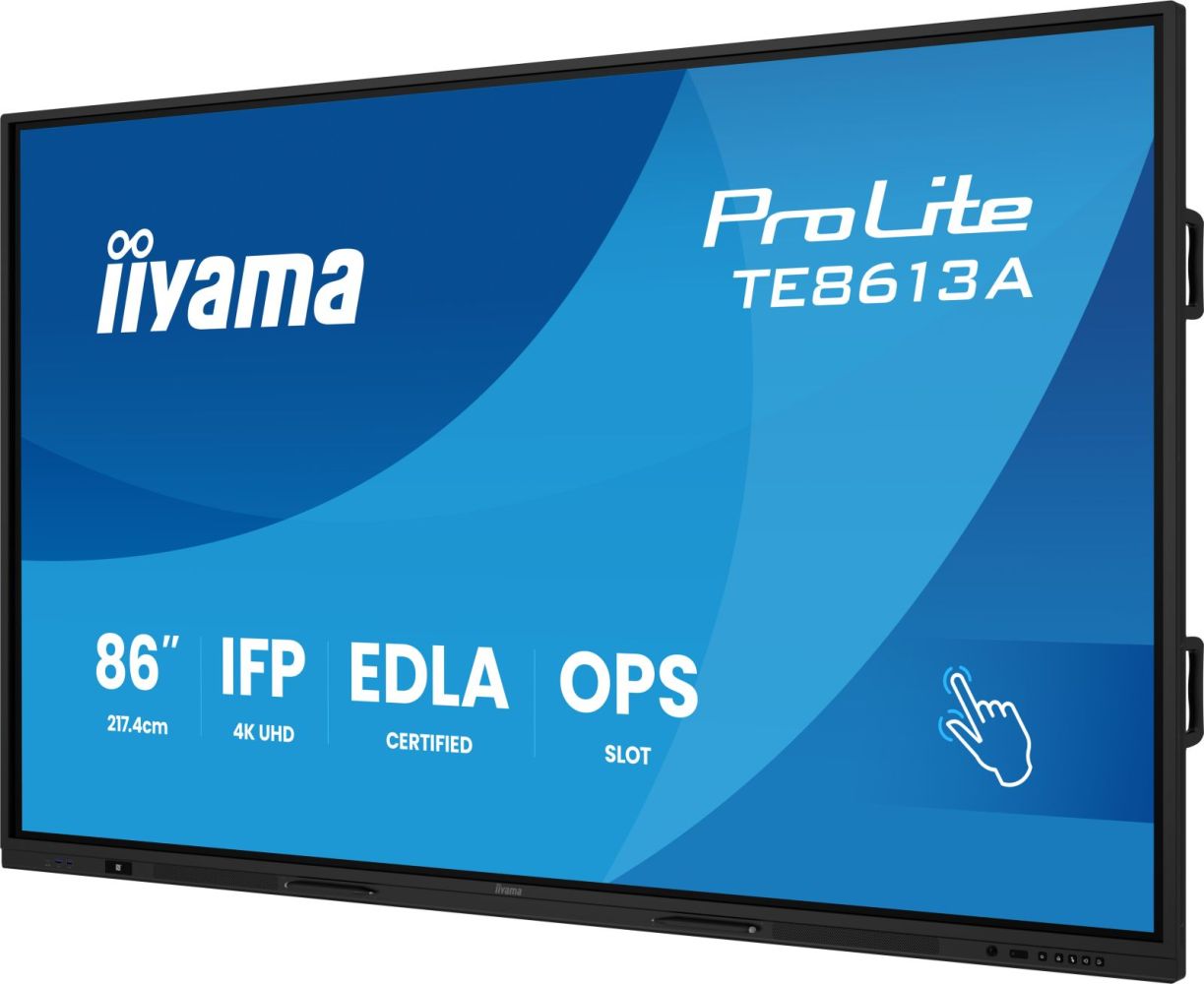

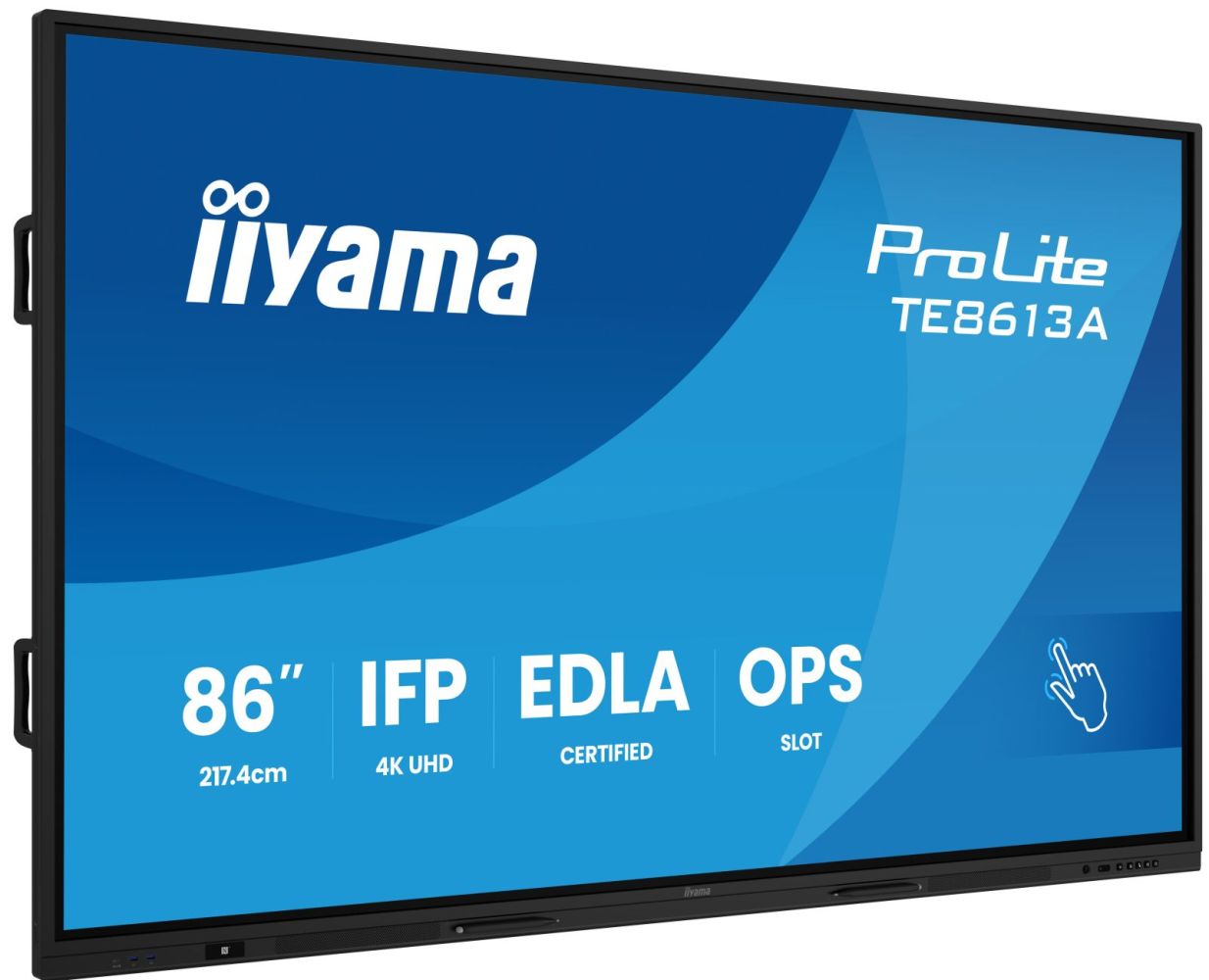

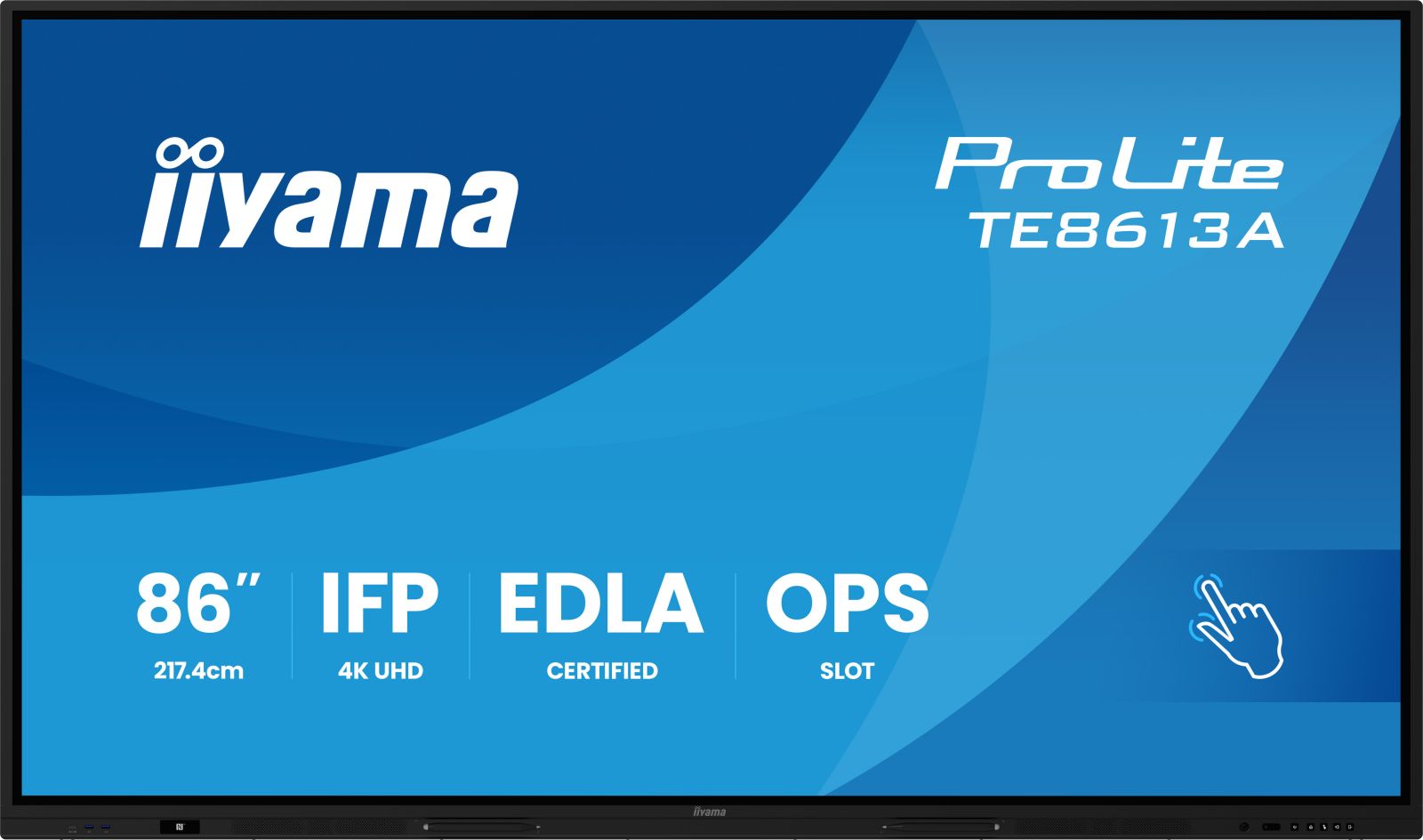

Product information for Iiyama TE8613A-B3AG:
• Sichtbare Bildschirmdiagonale: 217,4 cm ( 85,6 inch )/217,4cm • Auflösung: 3840x2160 @ 60Hz • Helligkeit: 500cd/m² • Kontrast: 1200:1 • Touch: PureTouch-IR • Touch-Oberfläche: USB • Reaktionszeit: 8ms • Blickwinkel: 178°/178° • Panel: IPS • Anschlüsse: 2x HDMI, 1x DisplayPort, 2x USB-C (DisplayPort Alt. Mode), 1x RS-232c, 2x RJ-45, 1x HDMI (out), 1x USB-C ((DisplayPort Alt. Mode (out)), 1x S/PDIF, 1x OPS Slot • USB-Hub: 1x USB-C 3.2, 2x USB-A 3.2, 1x USB-C 2.0, 1x USB 2.0, 1x USB 3.2 • Ergonomie: N/A • VESA: 800x400 • Audio: 2x20W + 20W Subwoofer • Maße: 1489x891,587mm • Farbe: Schwarz • Betriebssystem: iiWare 21E • CPU: RK3576 Octo-core A72*4 • Grafik: Mali G52 MC1 • RAM: 6Gb • Speicher: 128Gb • Wireless: WiFi 6E, Bluetooth 5.0^
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | |
| Computer system | |
| Computer system type | System on Chip (SoC) |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3576 |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 8 |
| Internal memory | 6 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 4.67 cm |
| Bezel width (side) | 1.67 cm |
| Bezel width (top) | 1.41 cm |
| Bezel colour | Black |

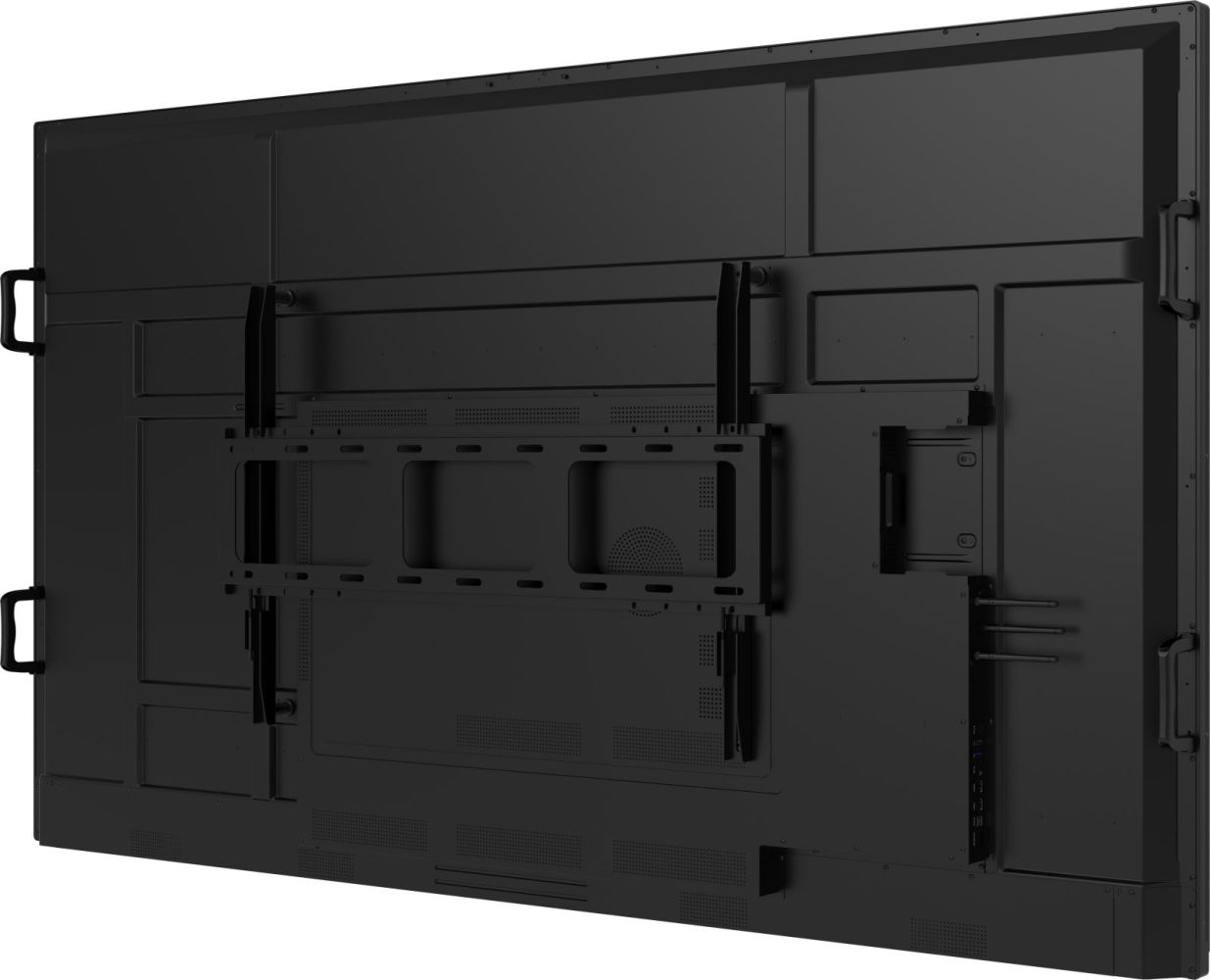

| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 2.17 m (85.6") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Colour saturation | 72% |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 3.2 mm |
| Touchscreen | |
| Multi-touch | |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Bluetooth version | 5.0 |
| Brightness | 500 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |
| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Remote control included | |
| Stylus pen | |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1265 mm |
| Package weight | 76.5 kg |
| Performance | |
| Purpose | Commercial |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 6 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Consumer Electronics Control (CEC) | |
| DVI port | |
| USB port | |
| USB Power Delivery (USB PD) | |
| RS-232 interface | |
| RS-232C | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 1955.6 mm |
| Display depth | 87.1 mm |
| Display height | 1154 mm |
| Display weight | 63.8 kg |
| Width | 1955.6 mm |
| Depth | 87.1 mm |
| Height | 1154 mm |
| Weight | 63.8 kg |
