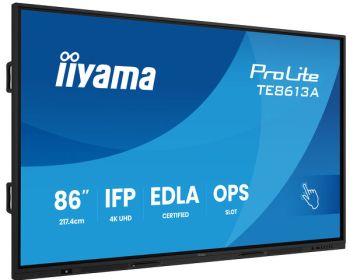

TFT-Touch 218,4 cm ( 86 inch )/217,4 cm iiyama ProLite TE8613A-B1AG 18/7 schwarz
|
-26% 1.661,67 EUR 2.237,36 EUR |
|
|
( 1.977,39 EUR incl. VAT ) ≈ £1,390.82 | ≈ $1,852.76 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 225902 |
| Mfg Part No: | TE8613A-B1AG |
| UPC/EAN: | 4948570124824 |
| Weight: | 76.5 kg |
Product information for Iiyama TE8613A-B1AG:
• Bild: 217,4 cm ( 85,6 inch )/, 3840x2160, 16:9 • Kontrast: 1200:1 • Reaktion: 8ms • Anschlüsse: 2x HDMI 1.4, 1x DP, 2x USB-C, 1x Klinke • VESA: 800x600 • Maße: 1955.6 x 1154 x 87mm • Herstellergarantie: drei Jahre
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor architecture | ARM Cortex-A73 |
| Processor frequency | 1.4 GHz |
| Processor cores | 4 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 800 x 600 mm |
| Bezel colour | Black |
| Positioning accuracy | 1 mm |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |
| Touchscreen | |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Bluetooth version | 5.0 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Bluetooth | |
| Packaging content | |
| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Remote control included | |
| Stylus pen | |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 185 mm |
| Package height | 1265 mm |
| Package weight | 76.5 kg |
| Performance | |
| Purpose | Education |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 18/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 282 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 282 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 1955.6 mm |
| Display depth | 87 mm |
| Display height | 1154 mm |
| Display weight | 63.8 kg |
| Width | 1955.6 mm |
| Depth | 87 mm |
| Height | 1154 mm |
| Weight | 63.8 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of TFT-Touch 218,4 cm ( 86 inch )/217,4 cm iiyama ProLite TE8613A-B1AG 18/7 schwarz?
The article TFT-Touch 218,4 cm ( 86 inch )/217,4 cm iiyama ProLite TE8613A-B1AG 18/7 schwarz is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TE8613A-B1AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TFT-Touch 218,4 cm ( 86 inch )/217,4 cm iiyama ProLite TE8613A-B1AG 18/7 schwarz always at the best possible price. We can give you a discount of 2% on TFT-Touch 218,4 cm ( 86 inch )/217,4 cm iiyama ProLite TE8613A-B1AG 18/7 schwarz if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
