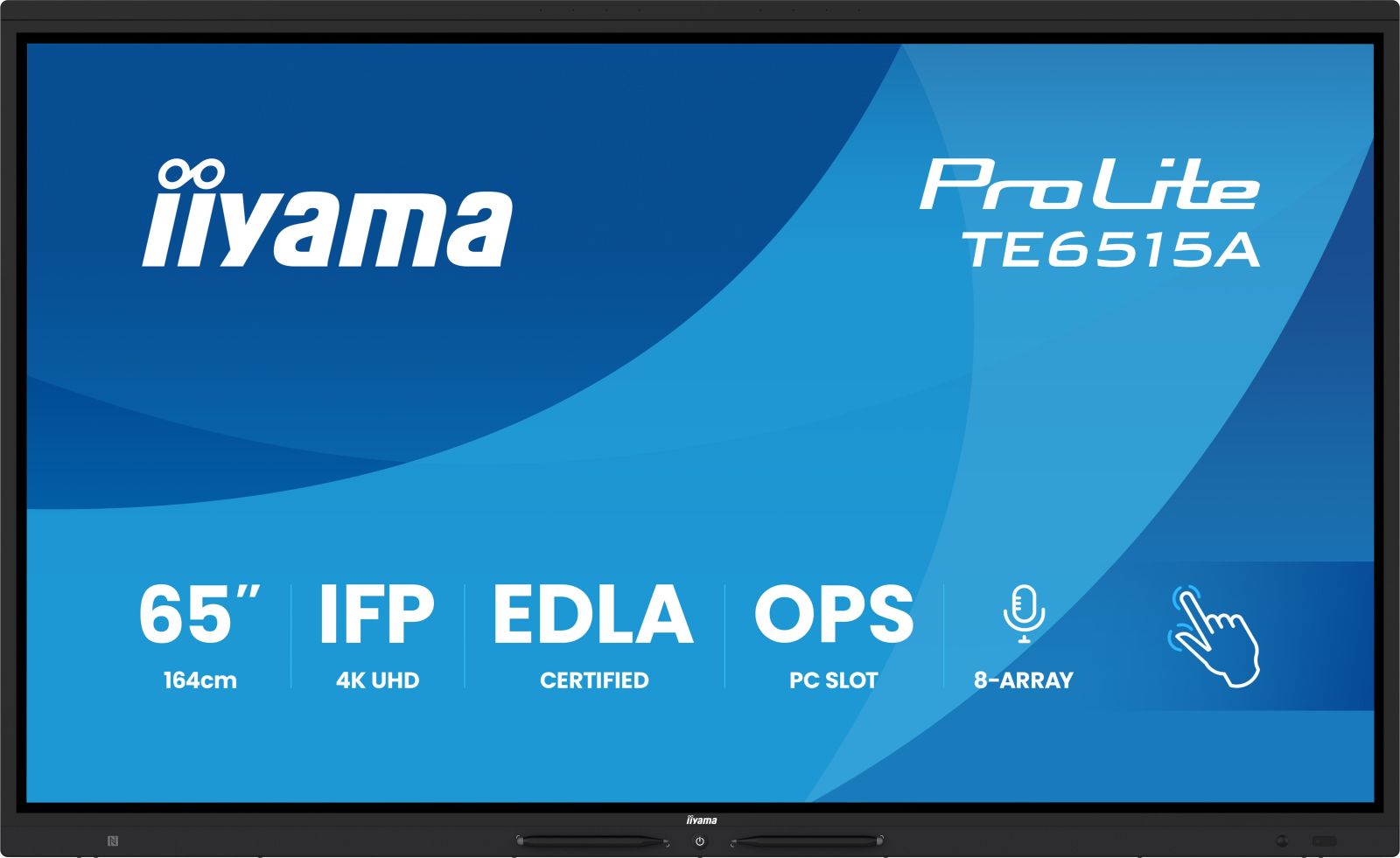

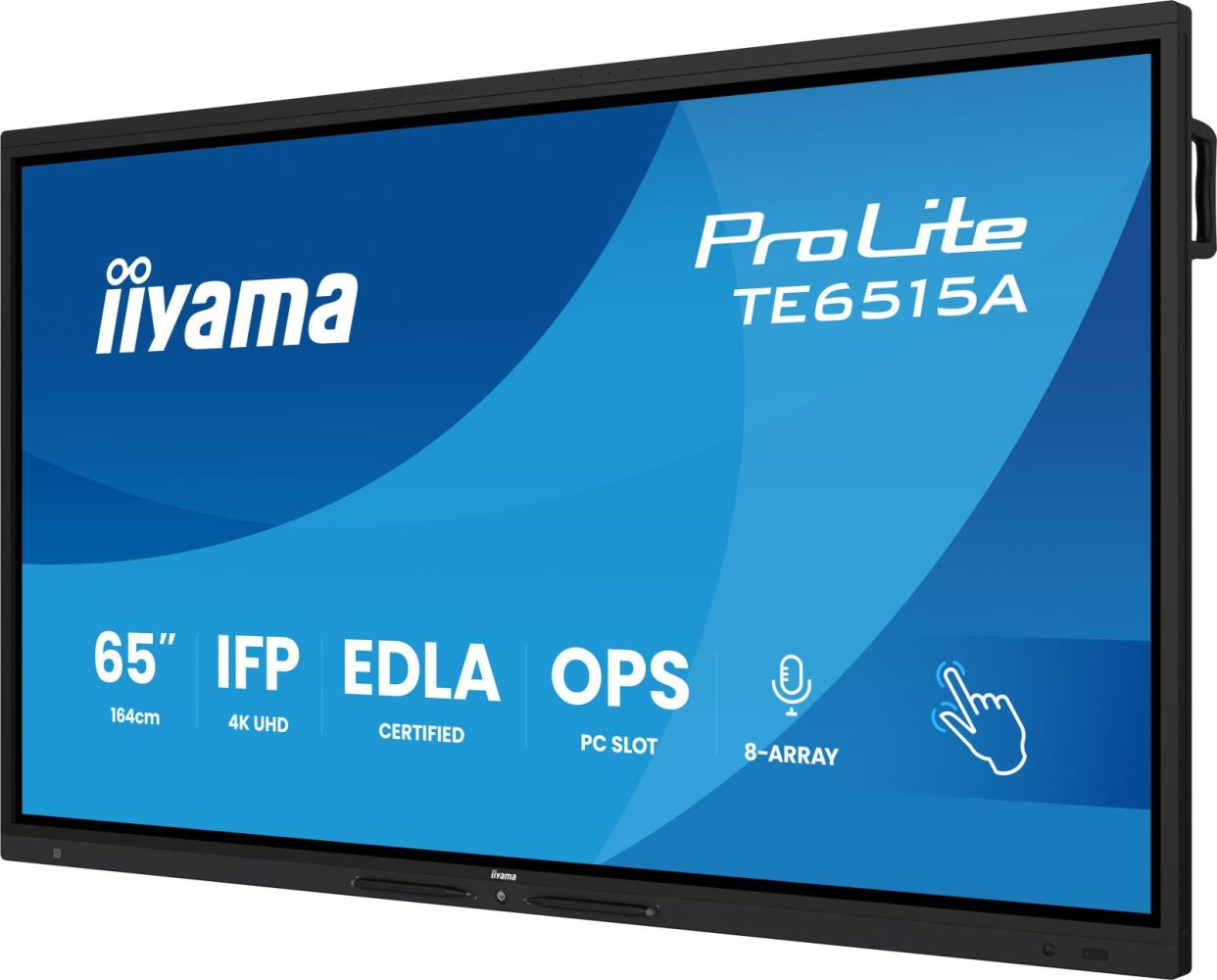

IIYAMA TE6515A-B2AG 65inch Stylish IFP iiWare21E EDLA -Google-GMS-apps Android 14 Octa-core SOC 16/128GB 40-Points DeepContrast IR+
|
1.459,78 EUR 1.466,02 EUR |
|
|
( 1.737,14 EUR incl. VAT ) ≈ £1,226.22 | ≈ $1,637.87 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 858899 |
| Mfg Part No: | TE6515A-B2AG |
| UPC/EAN: | 4948570127481 |
| Weight: | 52.25 kg |
| Type: | LFD |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama

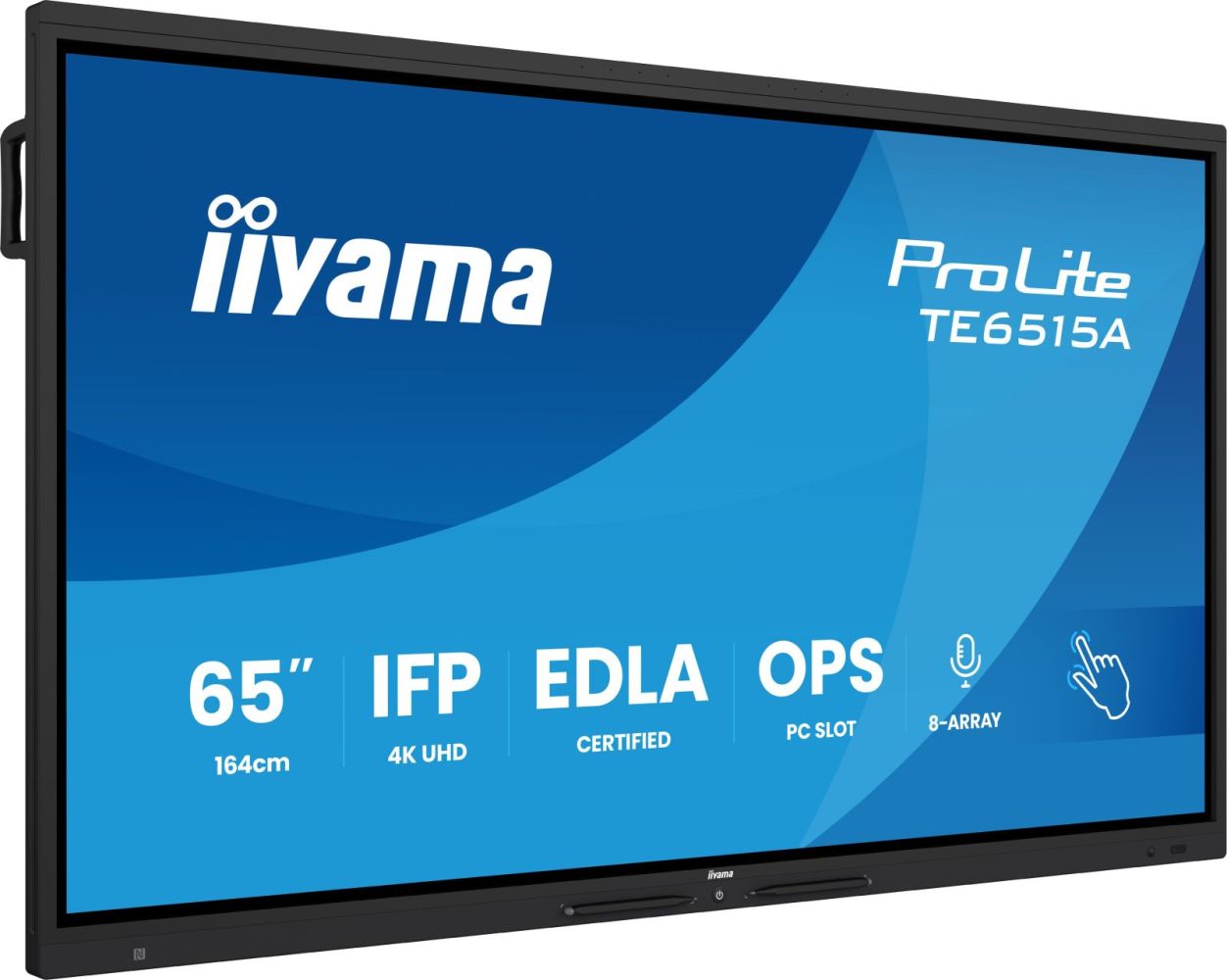

Product information for Iiyama TE6515A-B2AG:
• Sichtbare Bildschirmdiagonale: 163,8 cm ( 64,5 inch )/163,9cm • Auflösung: 3840x2160 @ 60Hz • Helligkeit: 550cd/m² • Kontrast: 5000:1 • Touch: PureTouch-IR • Touch-Oberfläche: USB • Reaktionszeit: 6,5ms • Blickwinkel: 178°/178° • Panel: IPS • Anschlüsse: 2x HDMI, 1x DisplayPort, 2x USB-C (DisplayPort Alt. Mode), 1x RS-232c, 2x RJ-45, 1x HDMI (out), 1x USB-C ((DisplayPort Alt. Mode (out)), 1x S/PDIF, 1x OPS Slot • USB-Hub: 2x USB-A 3.2, 1x USB 2.0, 1x USB-C 2.0 • Ergonomie: N/A • VESA: 600x400 • Audio: 2x20W + 20W Subwoofer • Maße: 1489x891,587mm • Farbe: Schwarz • Betriebssystem: iiWare 21E • CPU: RK3576 Octo-core A72*4+A53*4 • Grafik: Mali G52 MC3 • RAM: 6Gb • Speicher: 128Gb • Wireless: WiFi 6E, Bluetooth 5.0
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

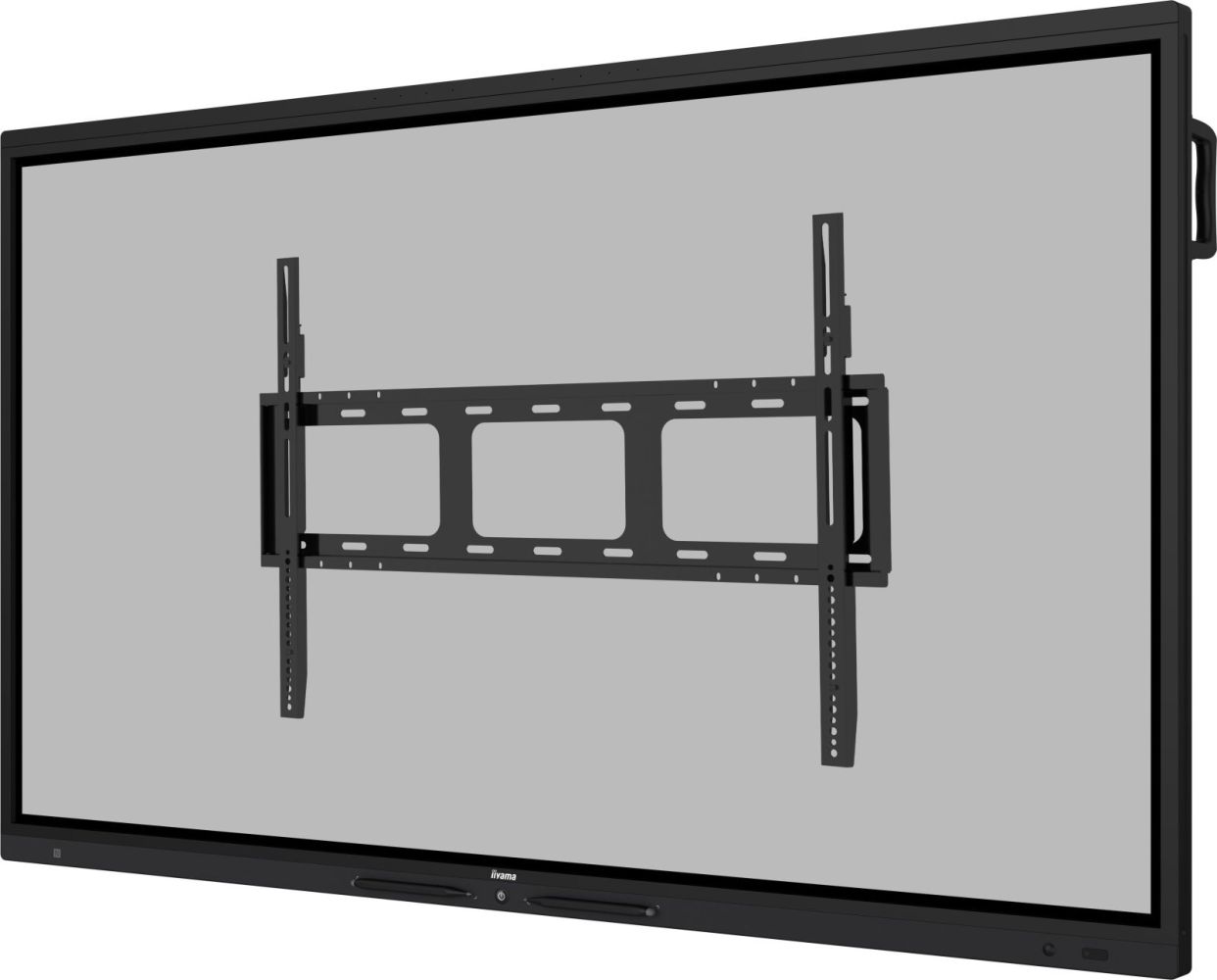

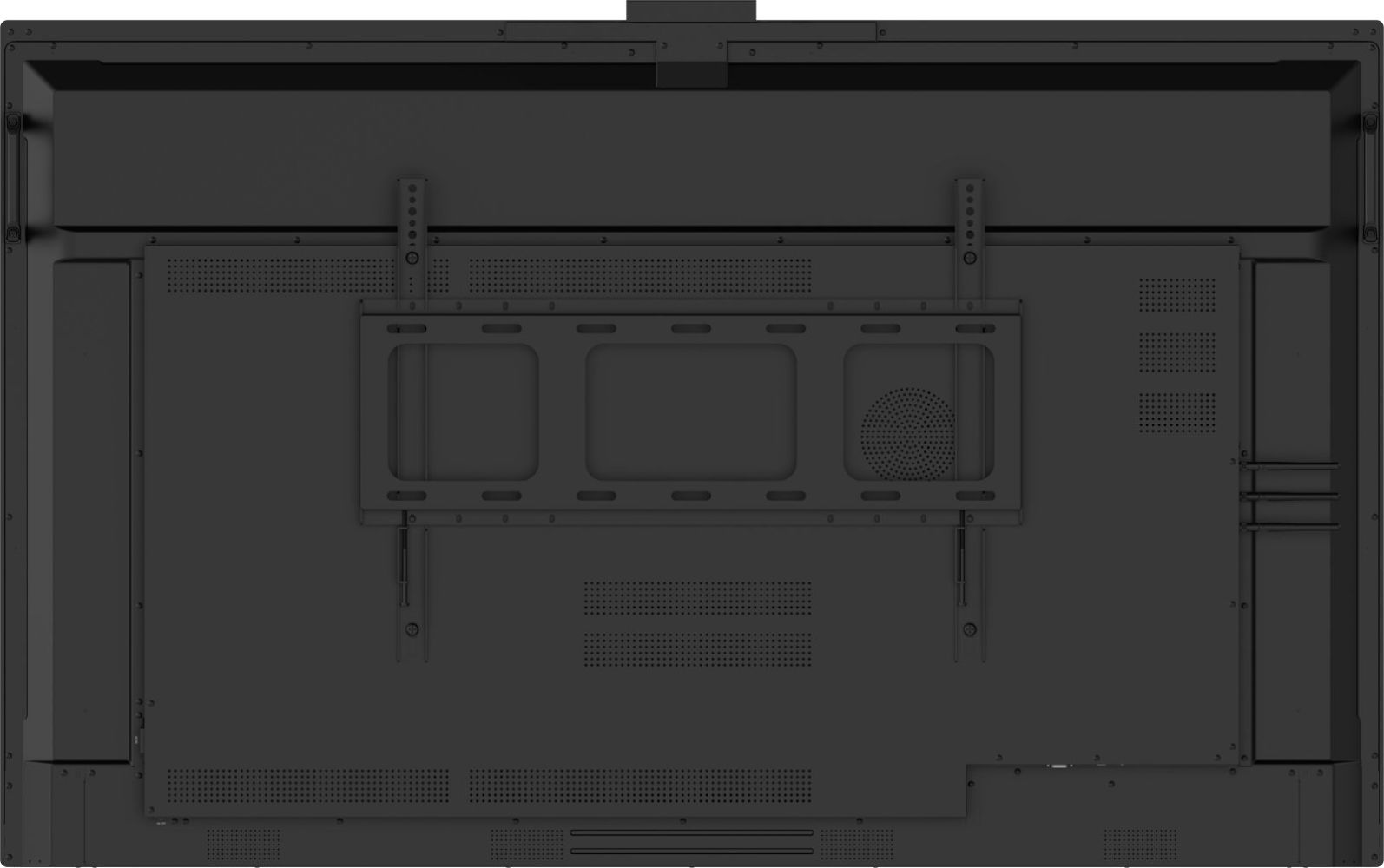

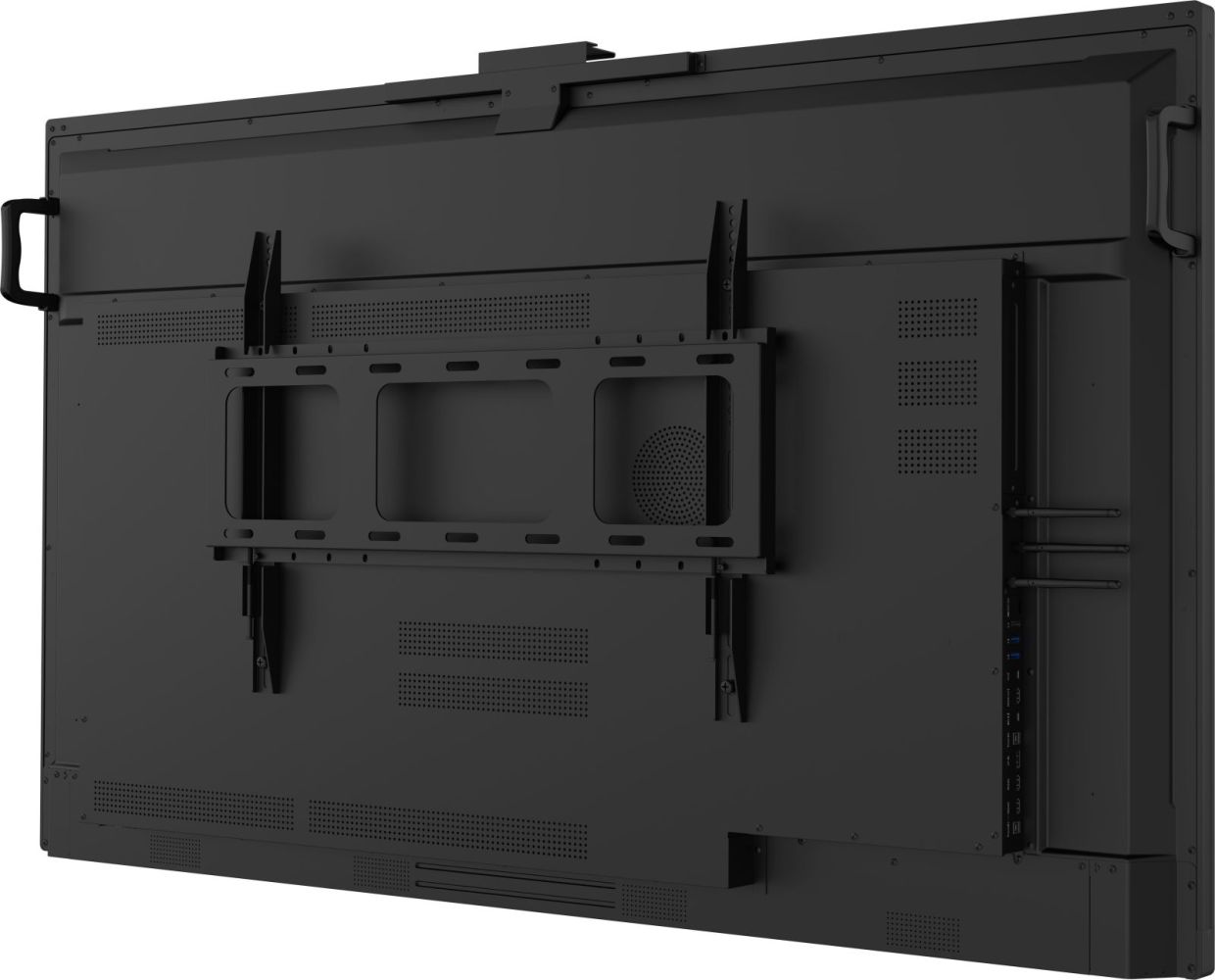

| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 4.67 cm |
| Bezel width (side) | 1.67 cm |
| Bezel width (top) | 3.43 cm |
| Bezel colour | Black |
| Positioning accuracy | 1 mm |

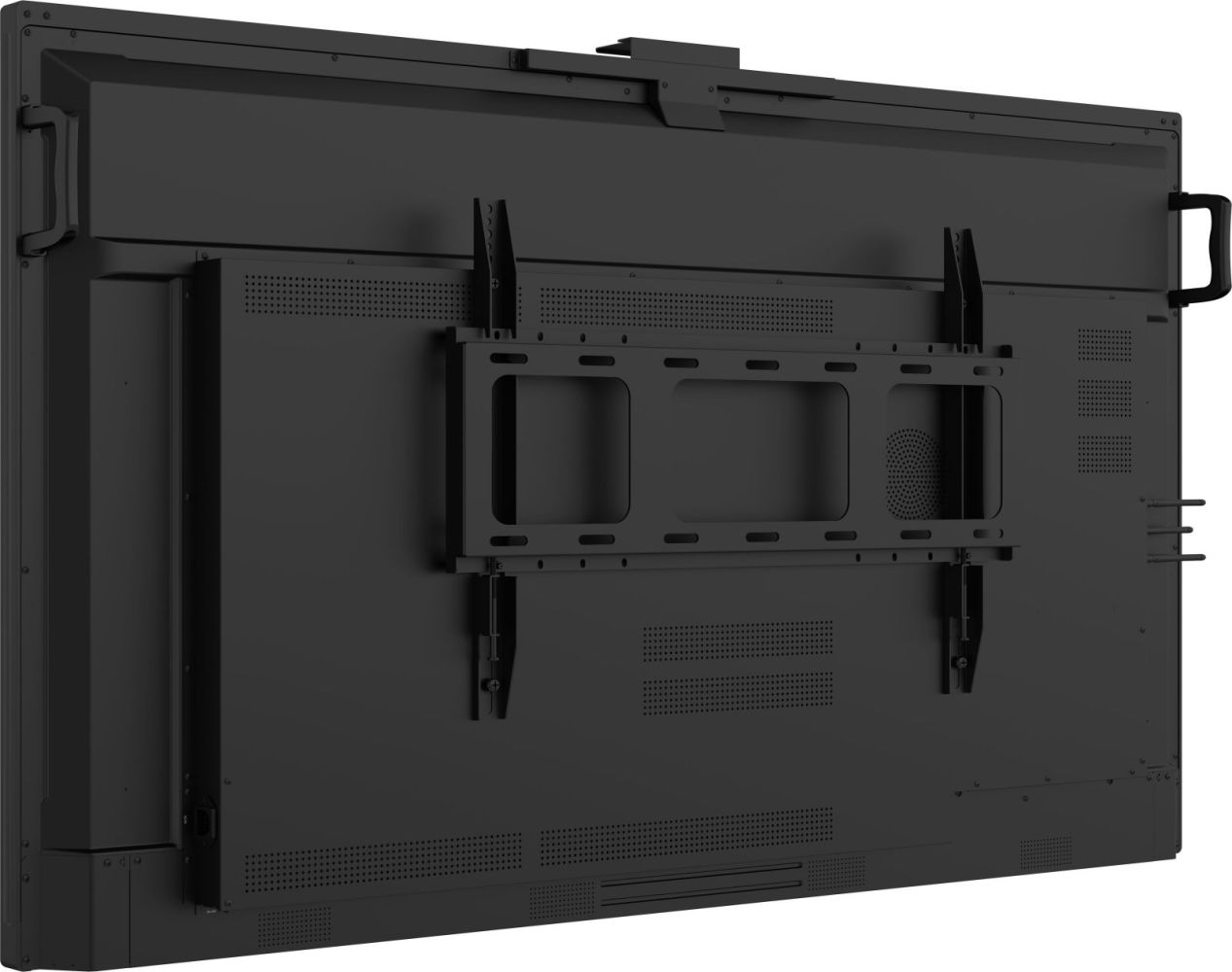

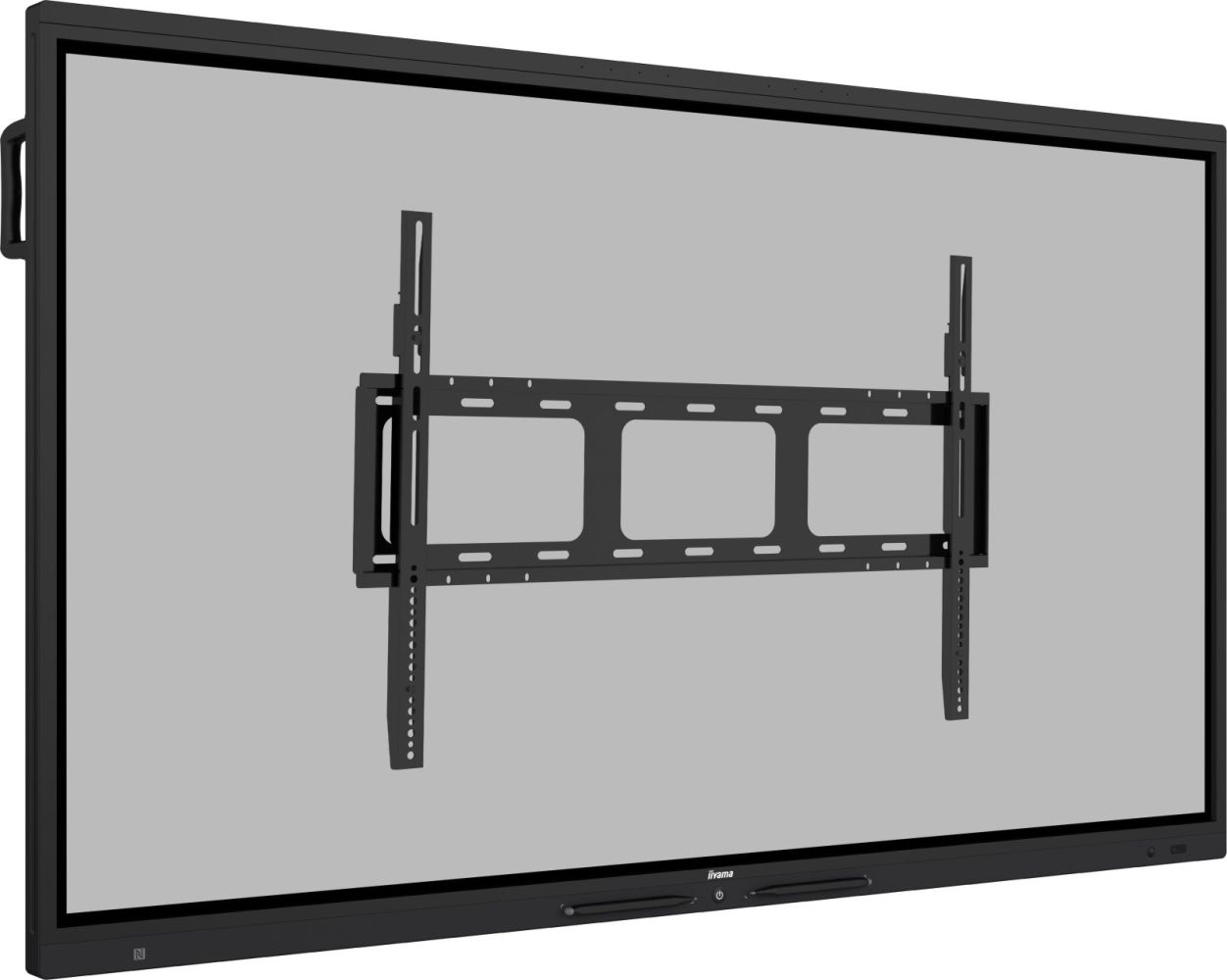

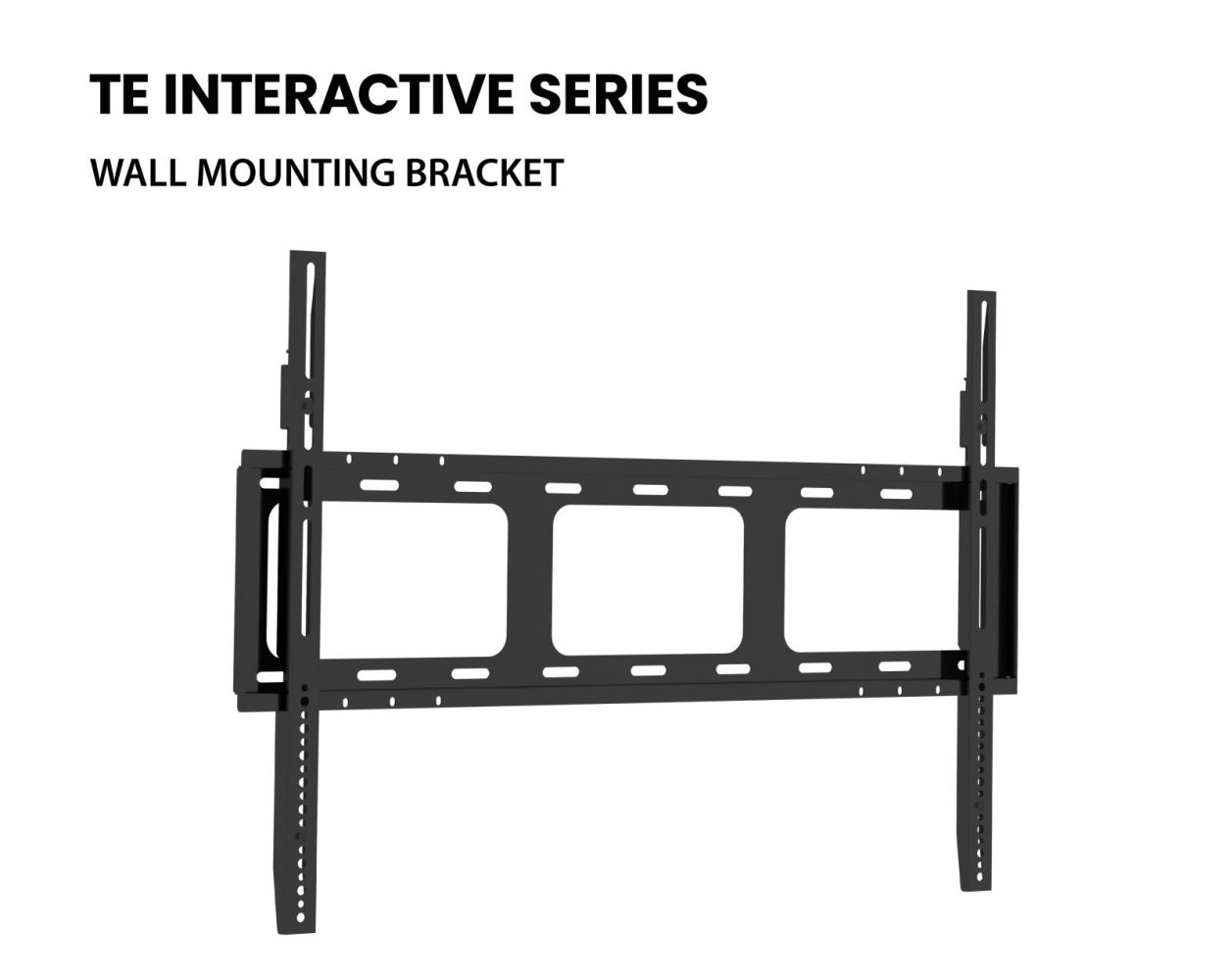

| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | VA |
| Display diagonal | 163.8 cm (64.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 550 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.124 x 0.124 mm |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Display diagonal (metric) | 163.9 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 3.2 mm |
| Touchscreen | |
| Logistics data | |
| Products per pallet | 6 pc(s) |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Bluetooth version | 5.0 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Bluetooth | |
| Built-in microphone | |
| Packaging content | |

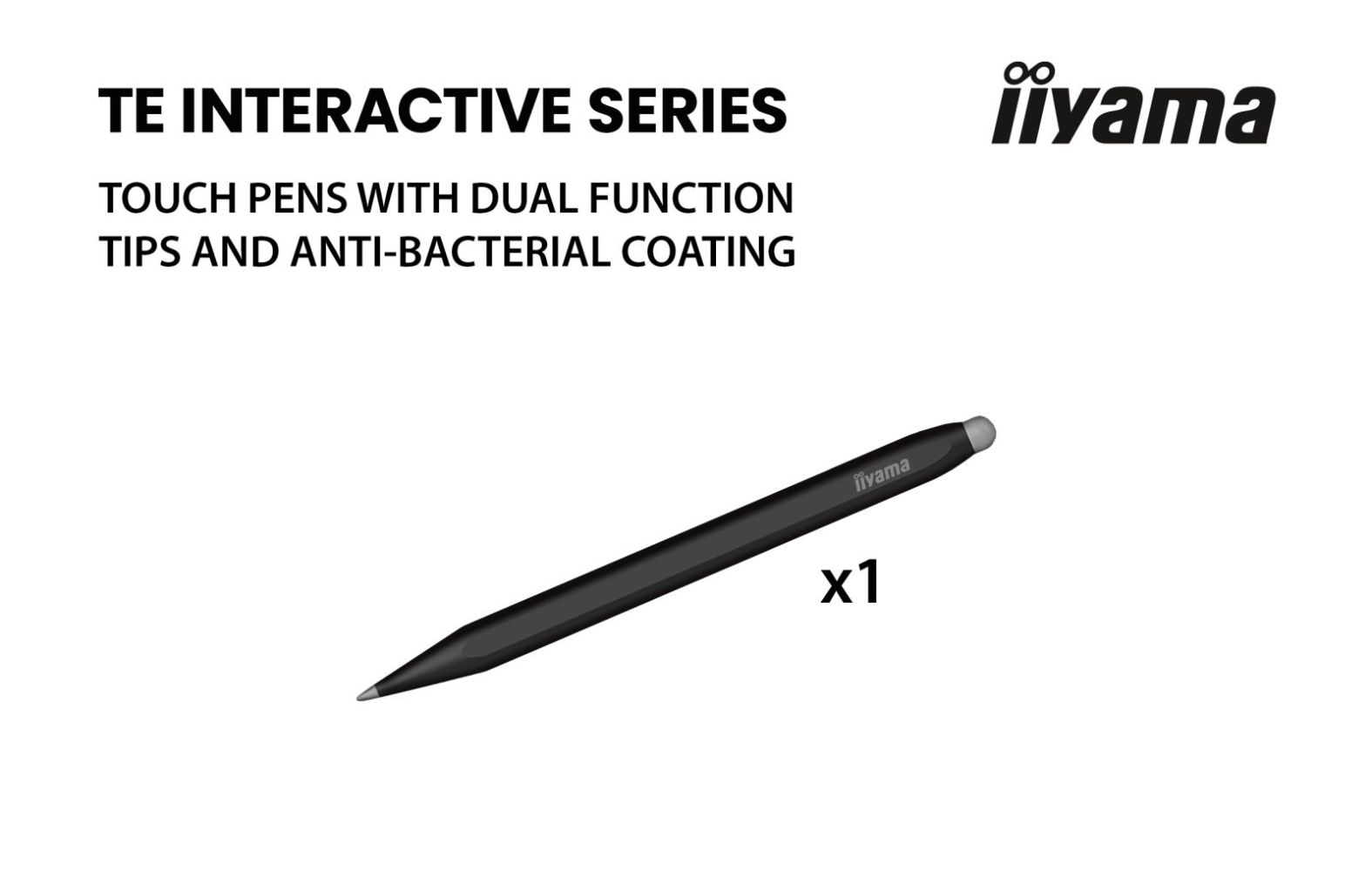

| Number of stylus pens | 4 |

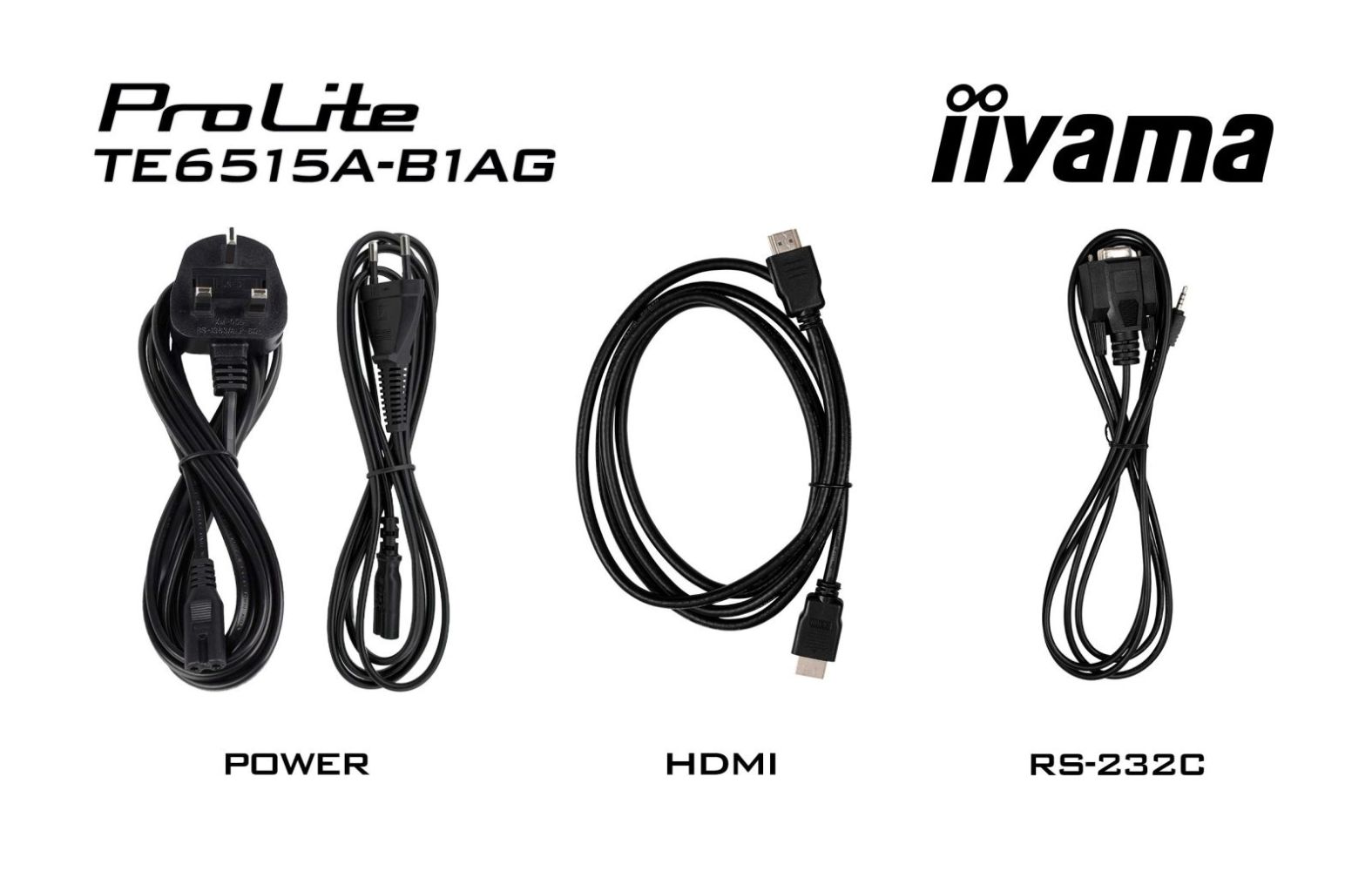

| Cables included | AC, USB, HDMI |
| Remote control included | |
| Stylus pen | |
| Packaging data | |
| Package width | 1640 mm |
| Package depth | 185 mm |
| Package height | 1010 mm |
| Package weight | 47.4 kg |
| Performance | |
| Purpose | Education |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Picture-in-Picture | |
| On Screen Display (OSD) | |
| HDCP | |

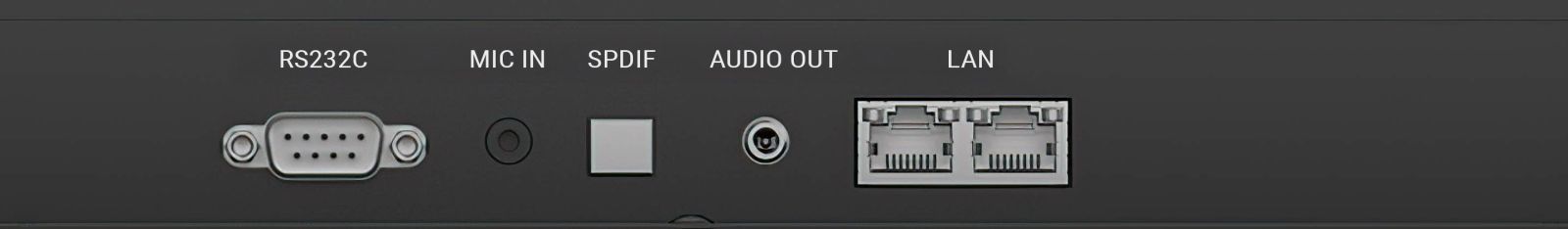

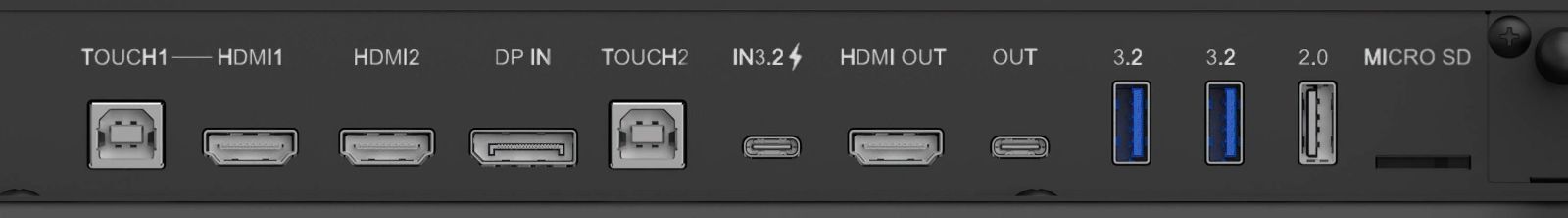

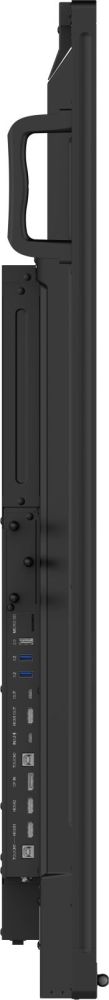

| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C, USB Type-A, USB Type-B |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Compatible memory cards | MicroSD (TransFlash) |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| Card reader integrated | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 170 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 170 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| OPS slot | 1 |
| Playback media | Y |
| User controls | personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input |
| Sustainability certificates | EPEAT, ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 1489.1 mm |
| Display depth | 87.1 mm |
| Display height | 911.8 mm |
| Display weight | 43.5 kg |
| Width | 1489.1 mm |
| Depth | 87.1 mm |
| Height | 911.8 mm |
| Weight | 43.5 kg |
Questions & answers
What is the delivery time of IIYAMA TE6515A-B2AG 65inch Stylish IFP iiWare21E EDLA -Google-GMS-apps Android 14 Octa-core SOC 16/128GB 40-Points DeepContrast IR+?
The article IIYAMA TE6515A-B2AG 65inch Stylish IFP iiWare21E EDLA -Google-GMS-apps Android 14 Octa-core SOC 16/128GB 40-Points DeepContrast IR+ is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TE6515A-B2AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA TE6515A-B2AG 65inch Stylish IFP iiWare21E EDLA -Google-GMS-apps Android 14 Octa-core SOC 16/128GB 40-Points DeepContrast IR+ always at the best possible price. We can give you a discount of 2% on IIYAMA TE6515A-B2AG 65inch Stylish IFP iiWare21E EDLA -Google-GMS-apps Android 14 Octa-core SOC 16/128GB 40-Points DeepContrast IR+ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
