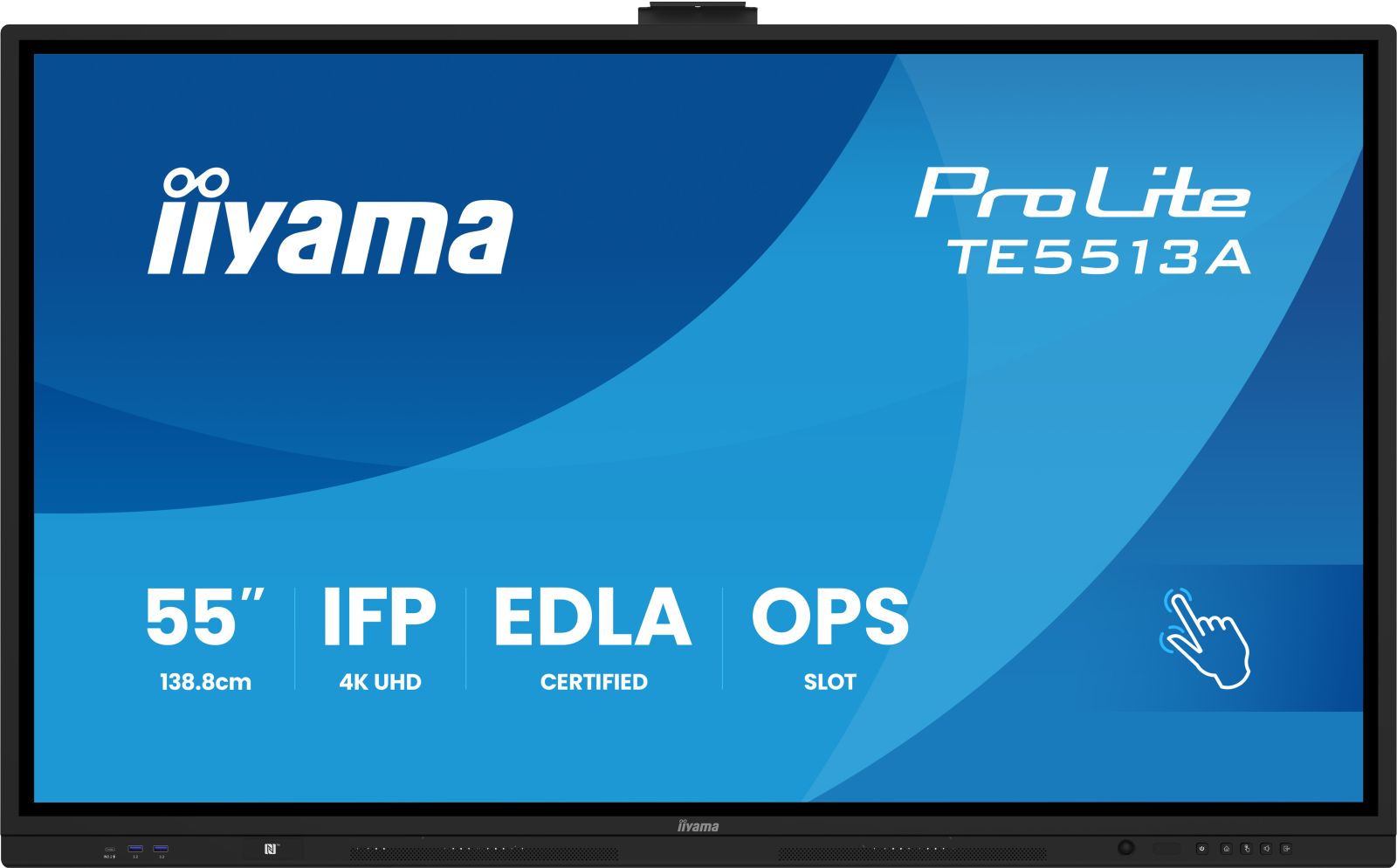

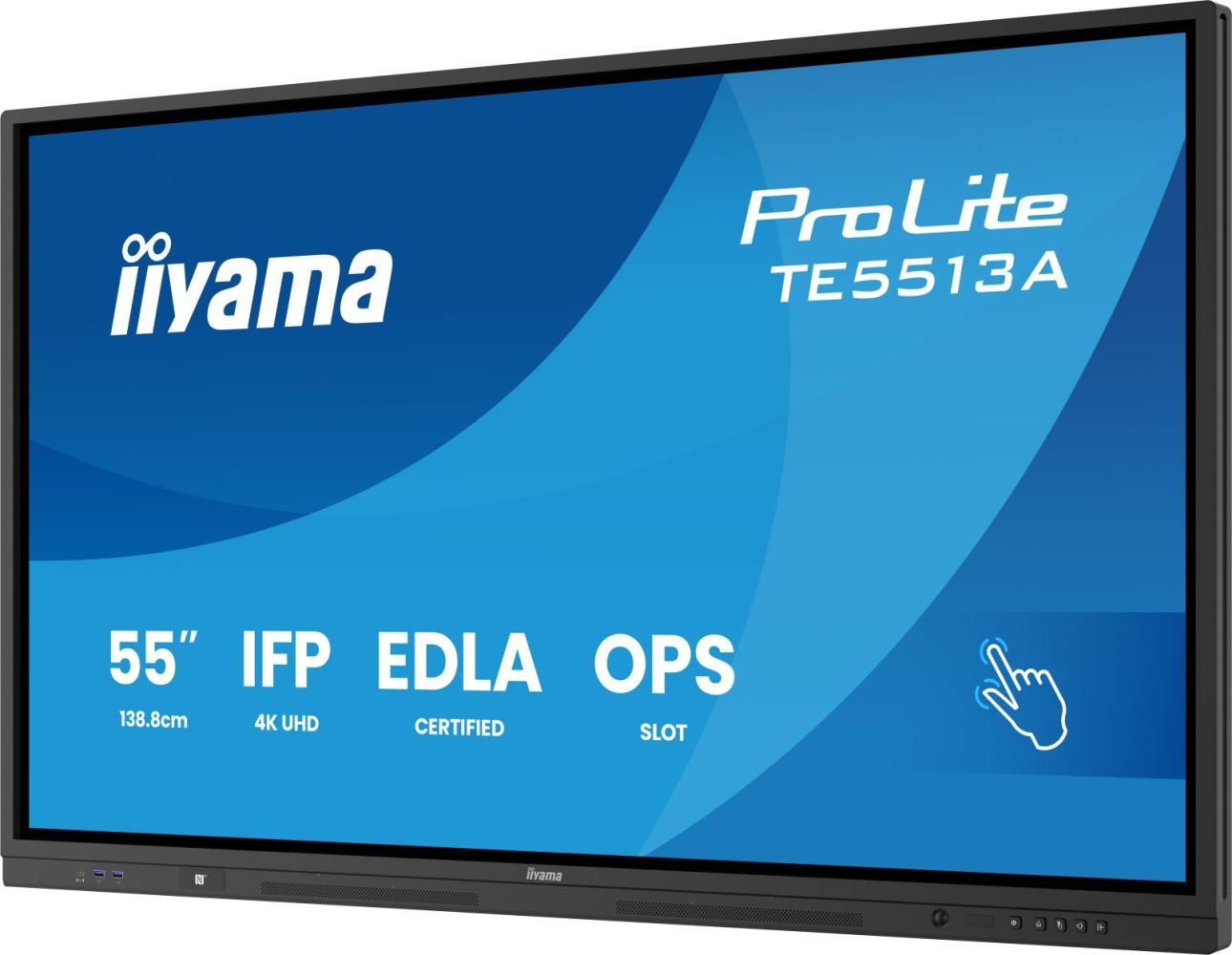

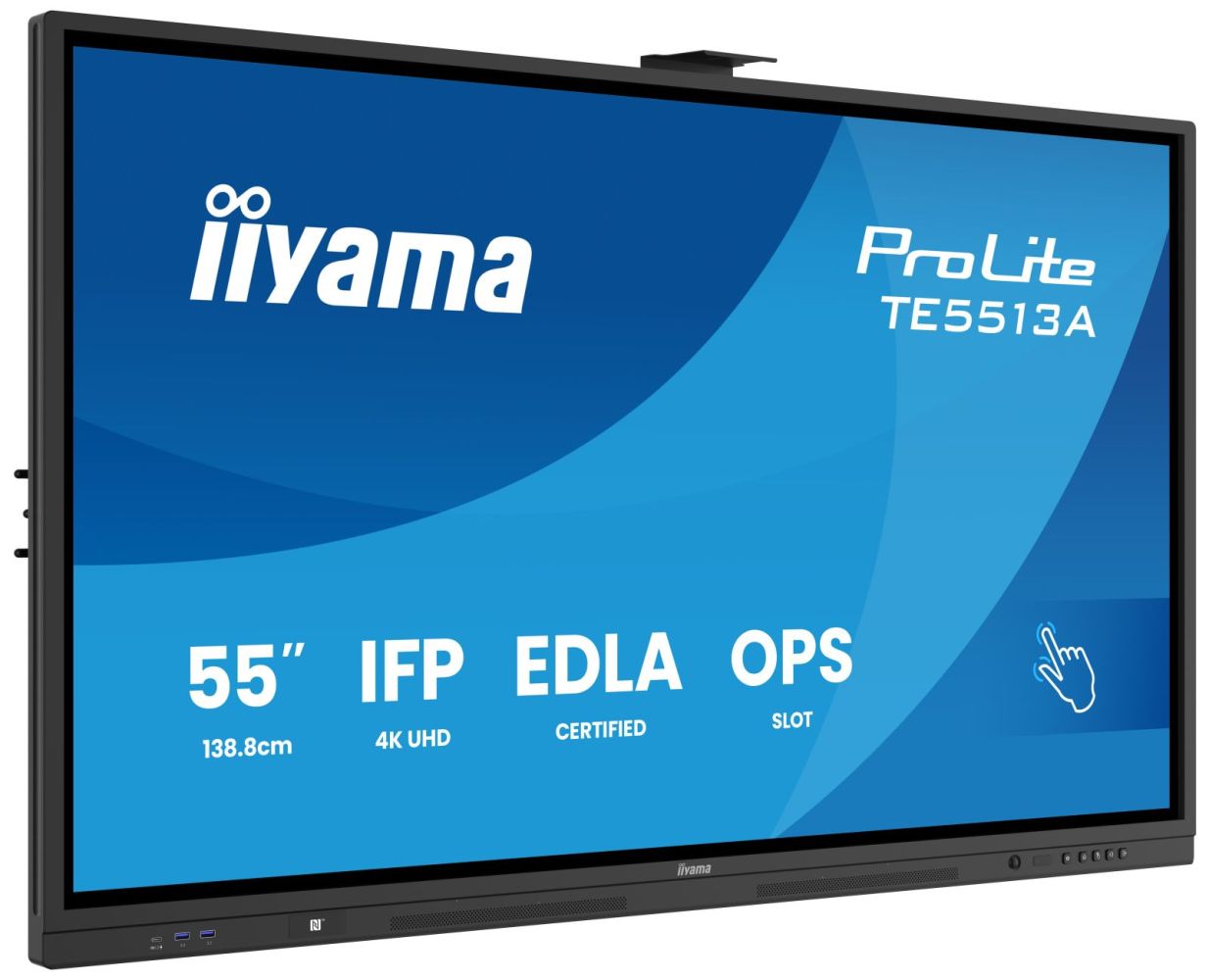

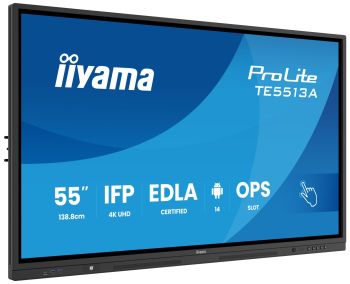

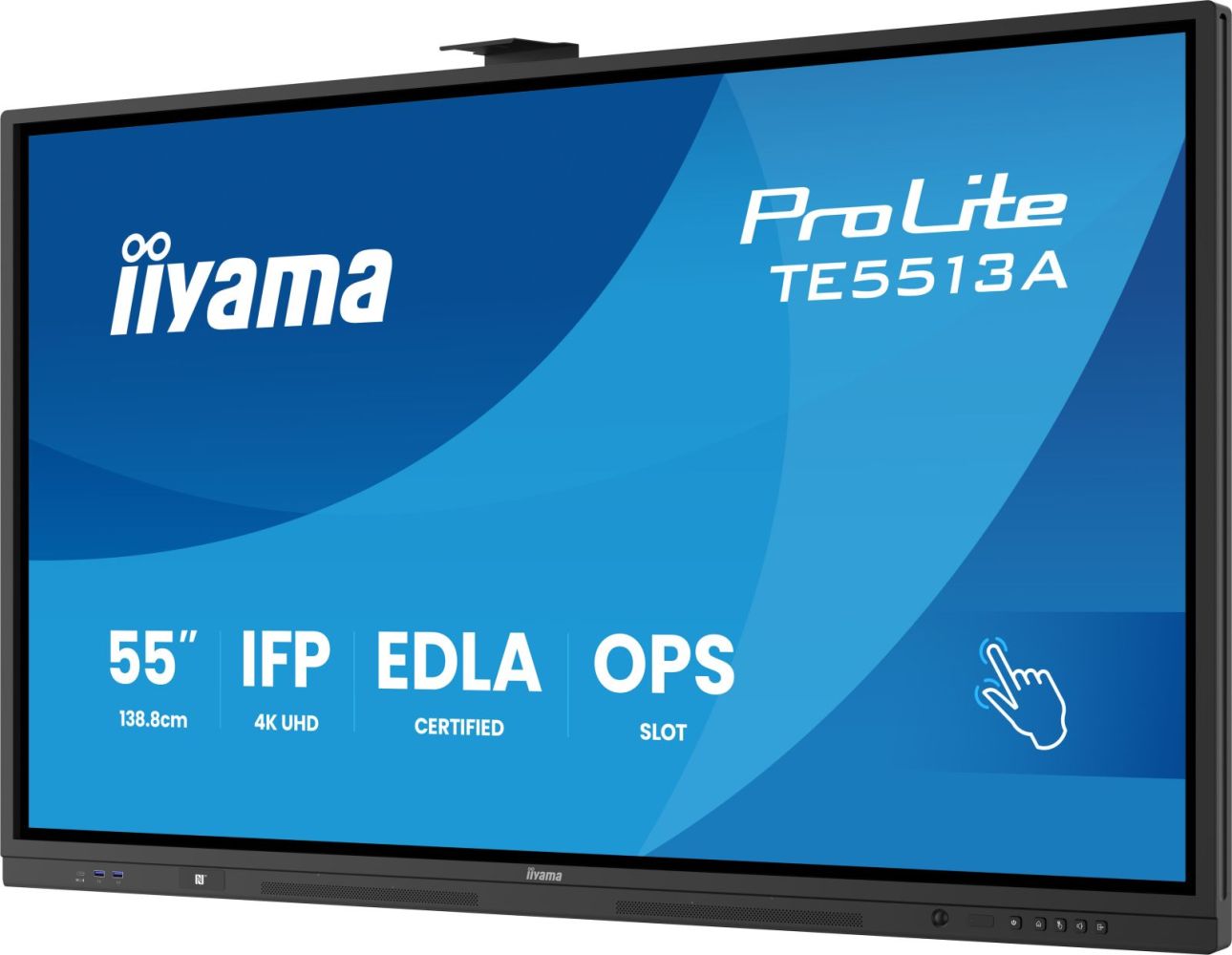

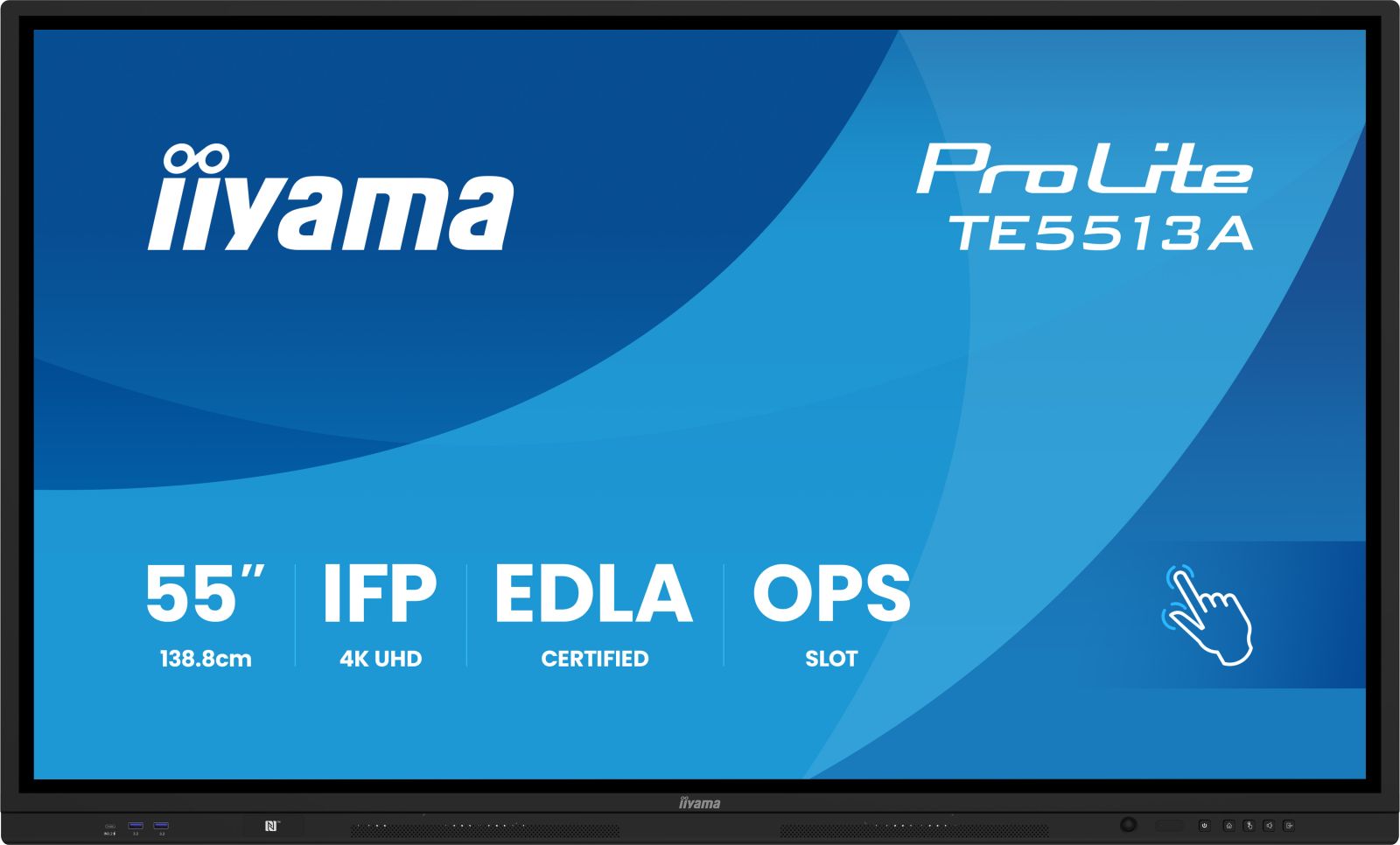

Iiyama TE5513A-B2AG 138.8 cm (55") 16:9 Touch 2xHDMI+DP+2xUSB-C (freight shipping)
|
1.140,14 EUR |
|
|
( 1.356,77 EUR incl. VAT ) ≈ £955.44 | ≈ $1,280.38 plus delivery charges |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 12. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2059254 |
| Mfg Part No: | TE5513A-B2AG |
| UPC/EAN: | 4948570125722 |
| Weight: | 33.25 kg |
| Type: | LFD |
Further Fiber and Components from IiyamaFurther products in category Fiber and Components
All products of Iiyama
Product information for Iiyama TE5513A-B2AG:
TOUCH AG WITH INTERACTIVE ANDROI
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

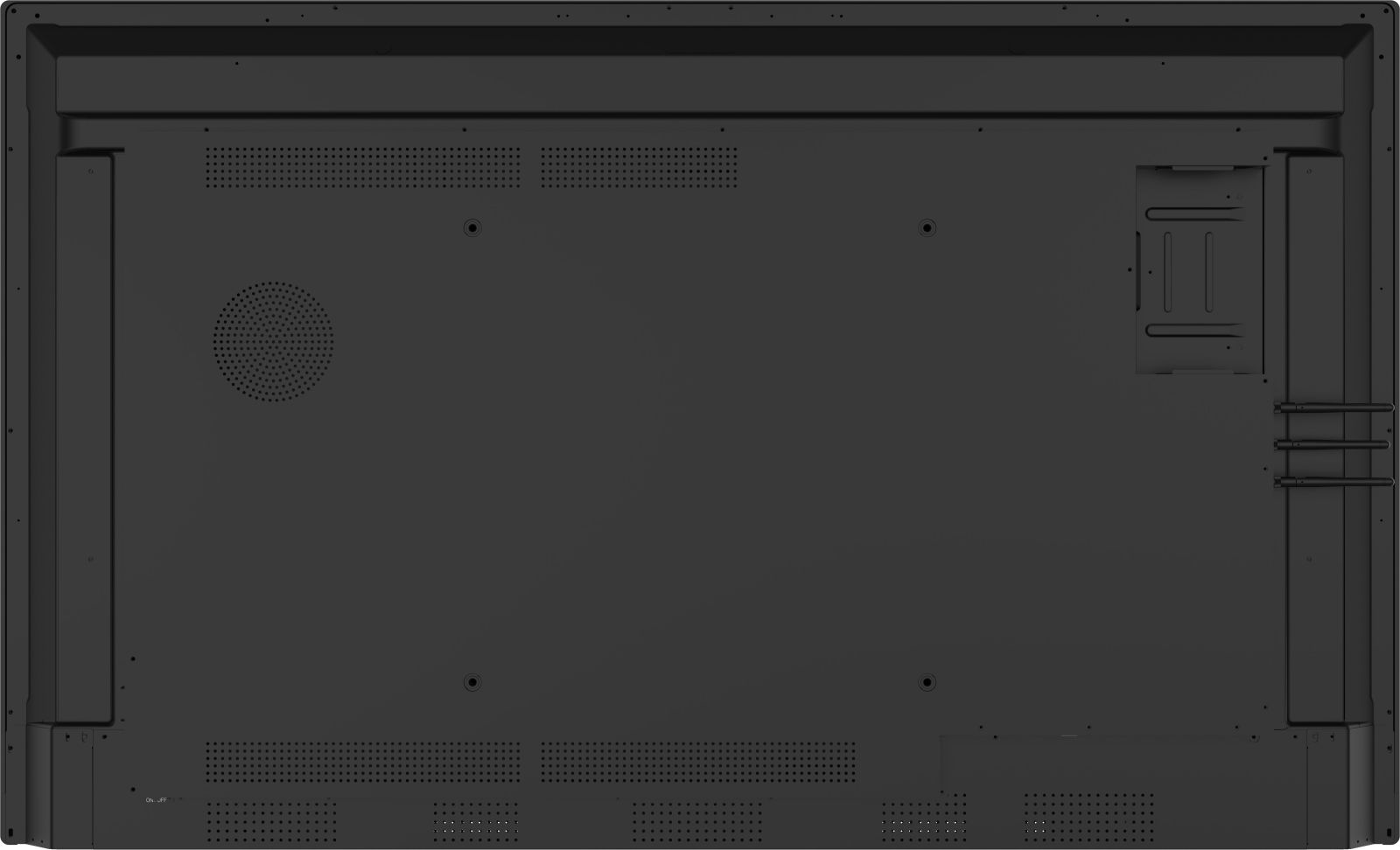

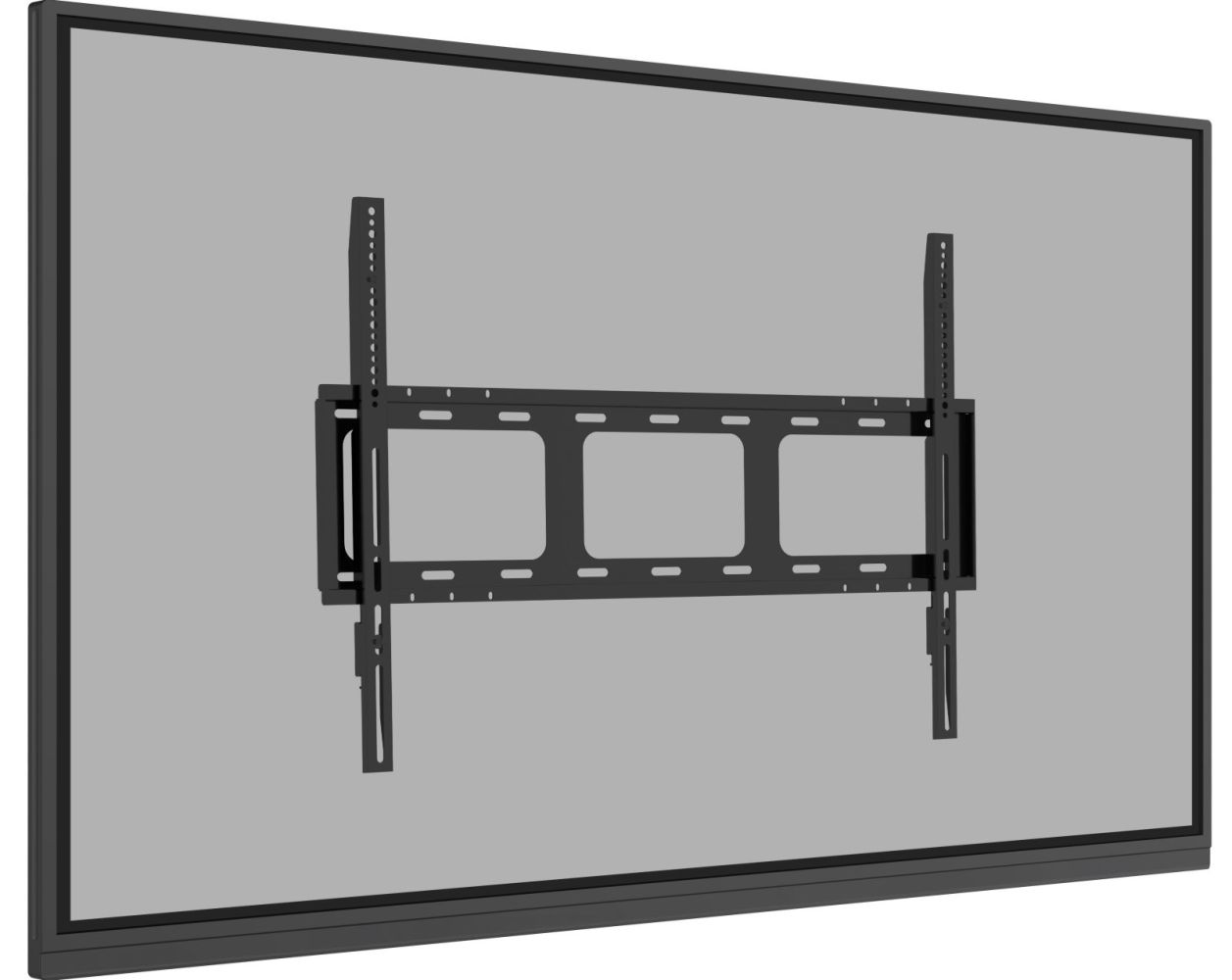

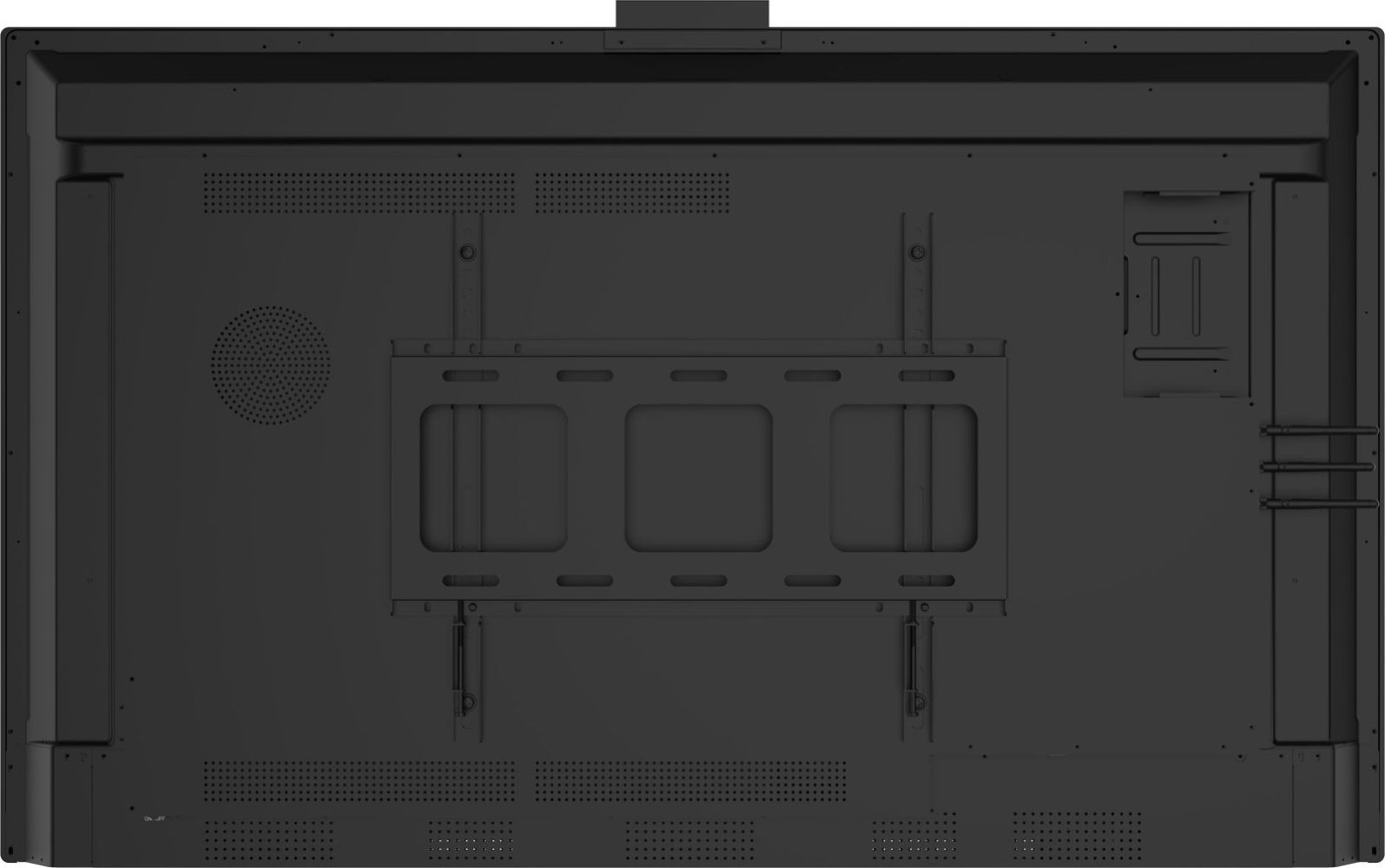

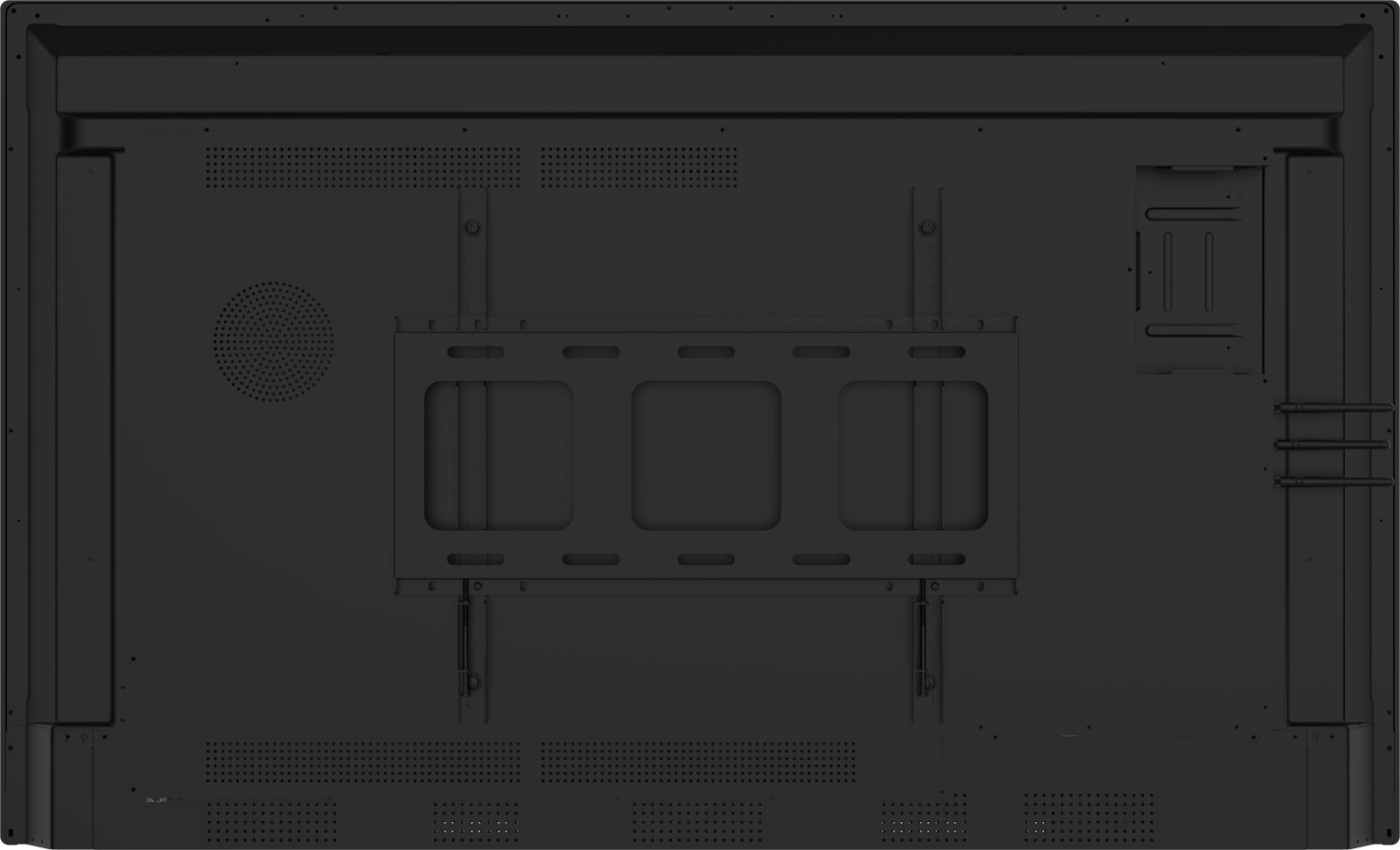

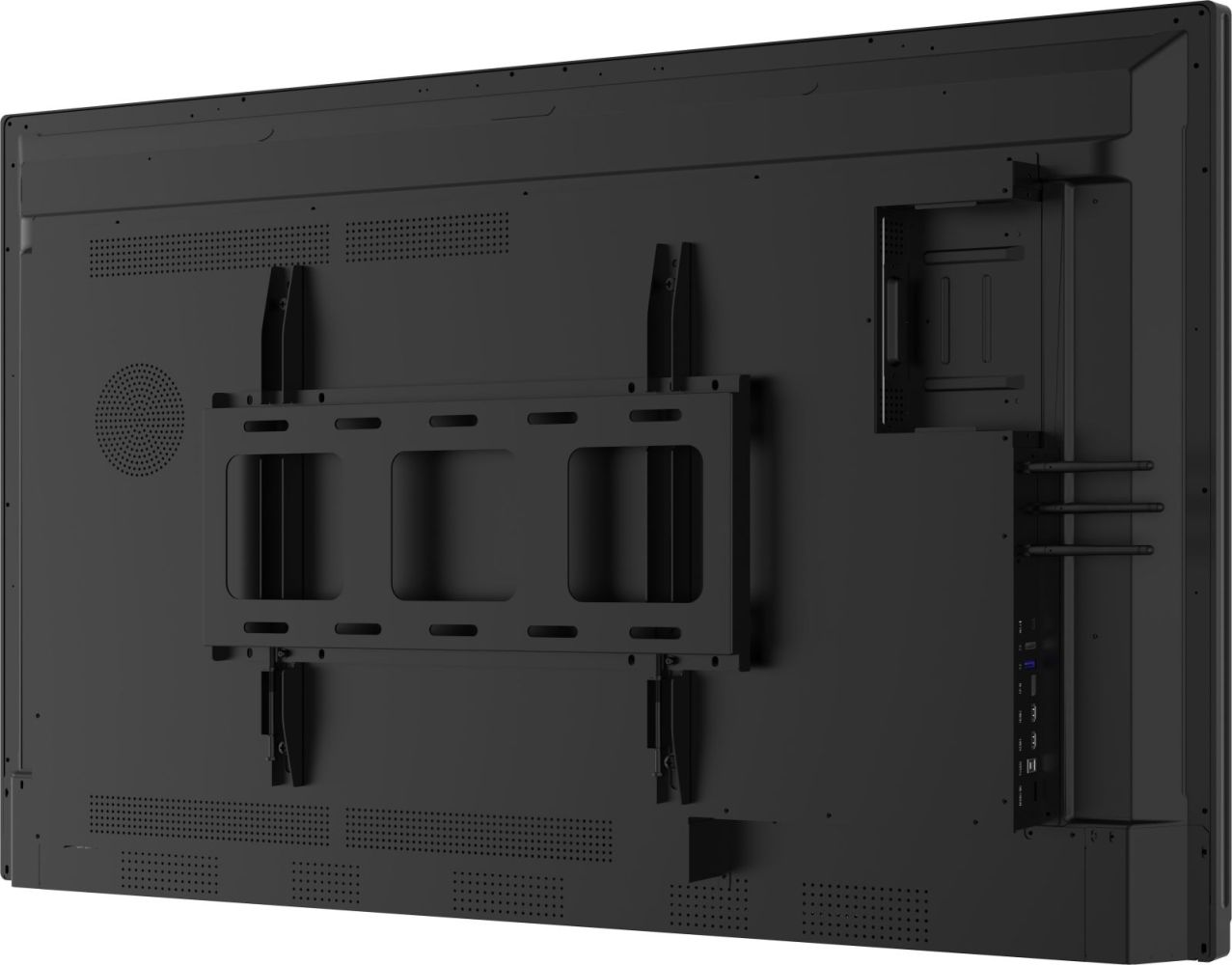

| Panel mounting interface | 400 x 400 mm |
| Bezel colour | Black |
| Positioning accuracy | 1 mm |

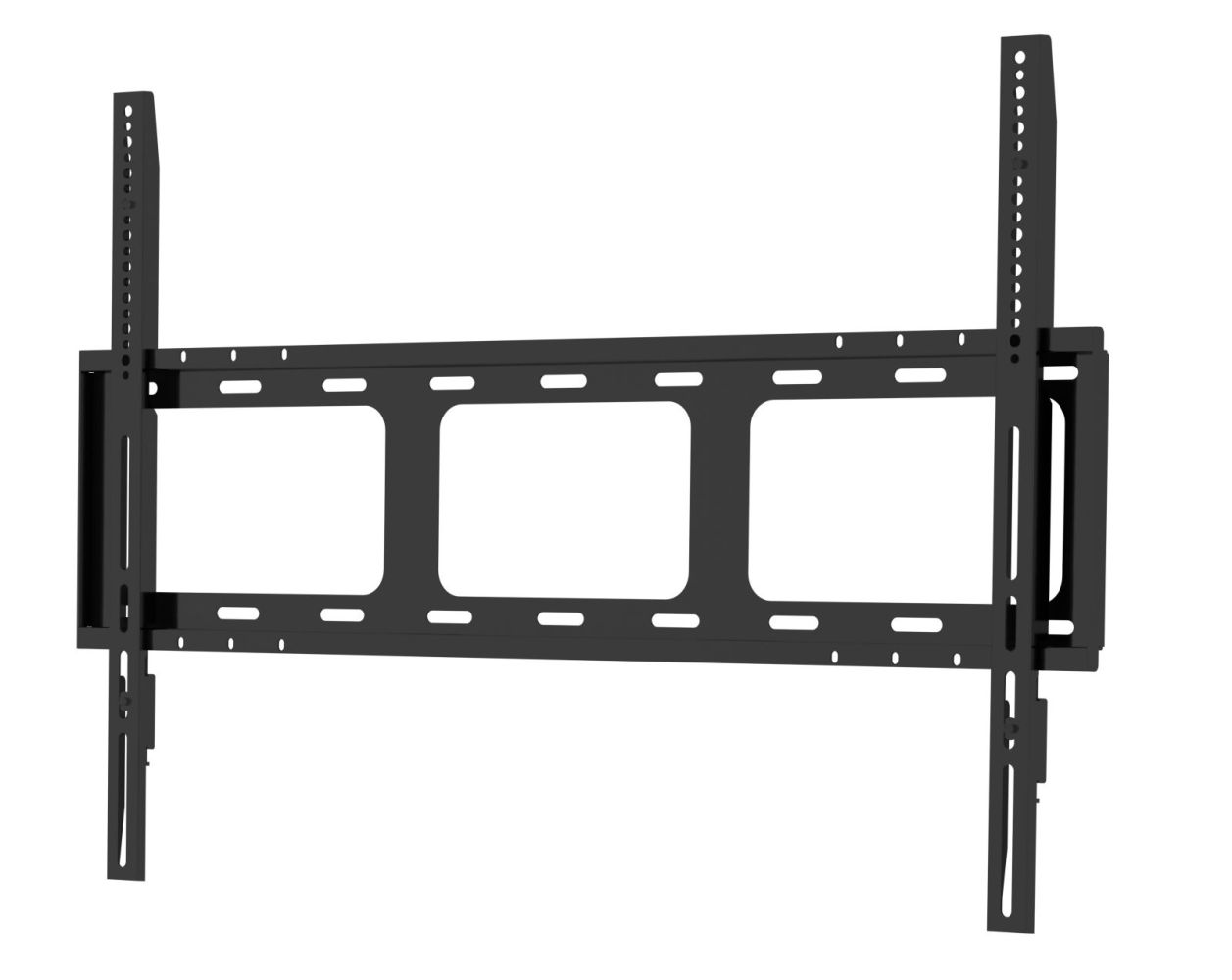

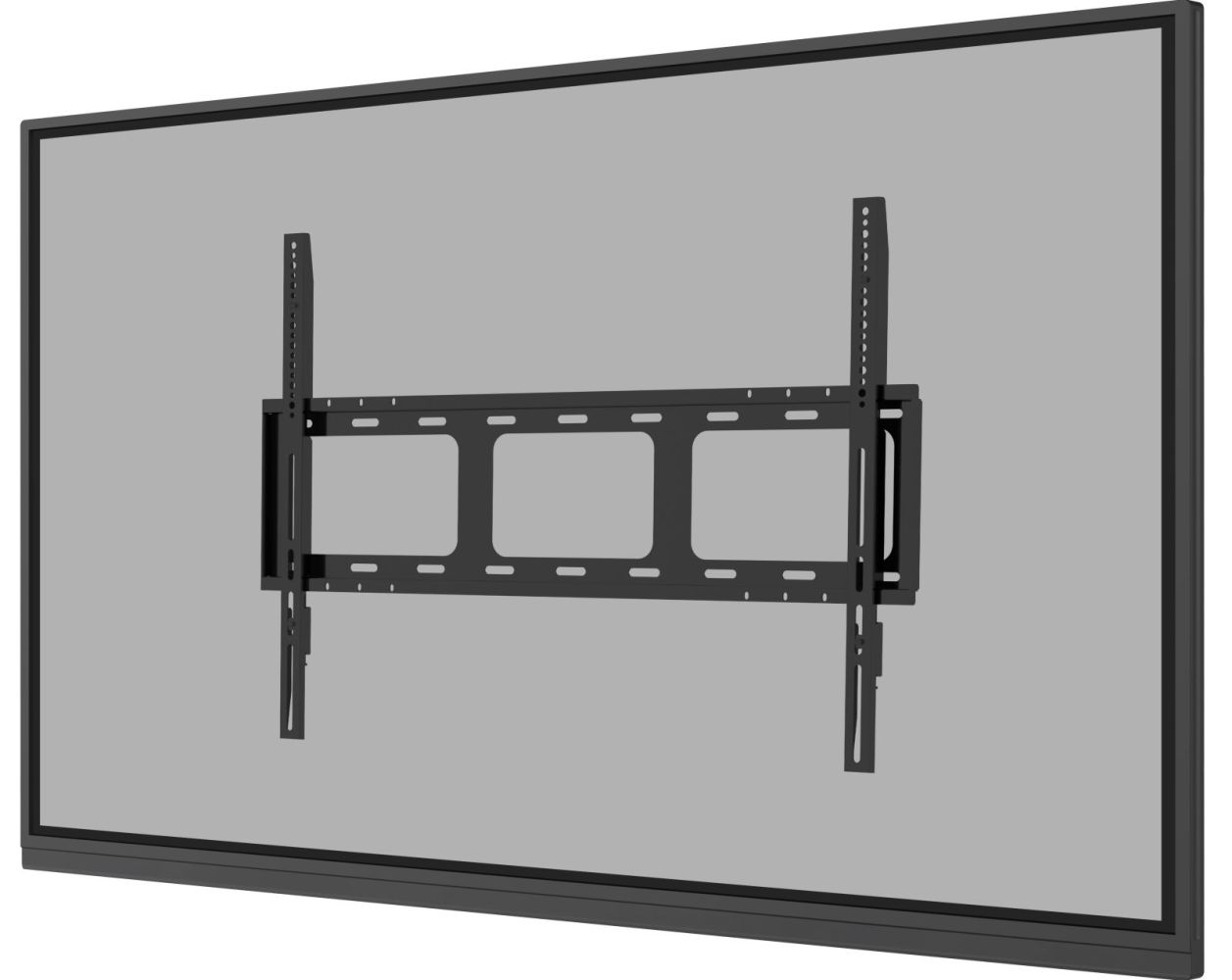

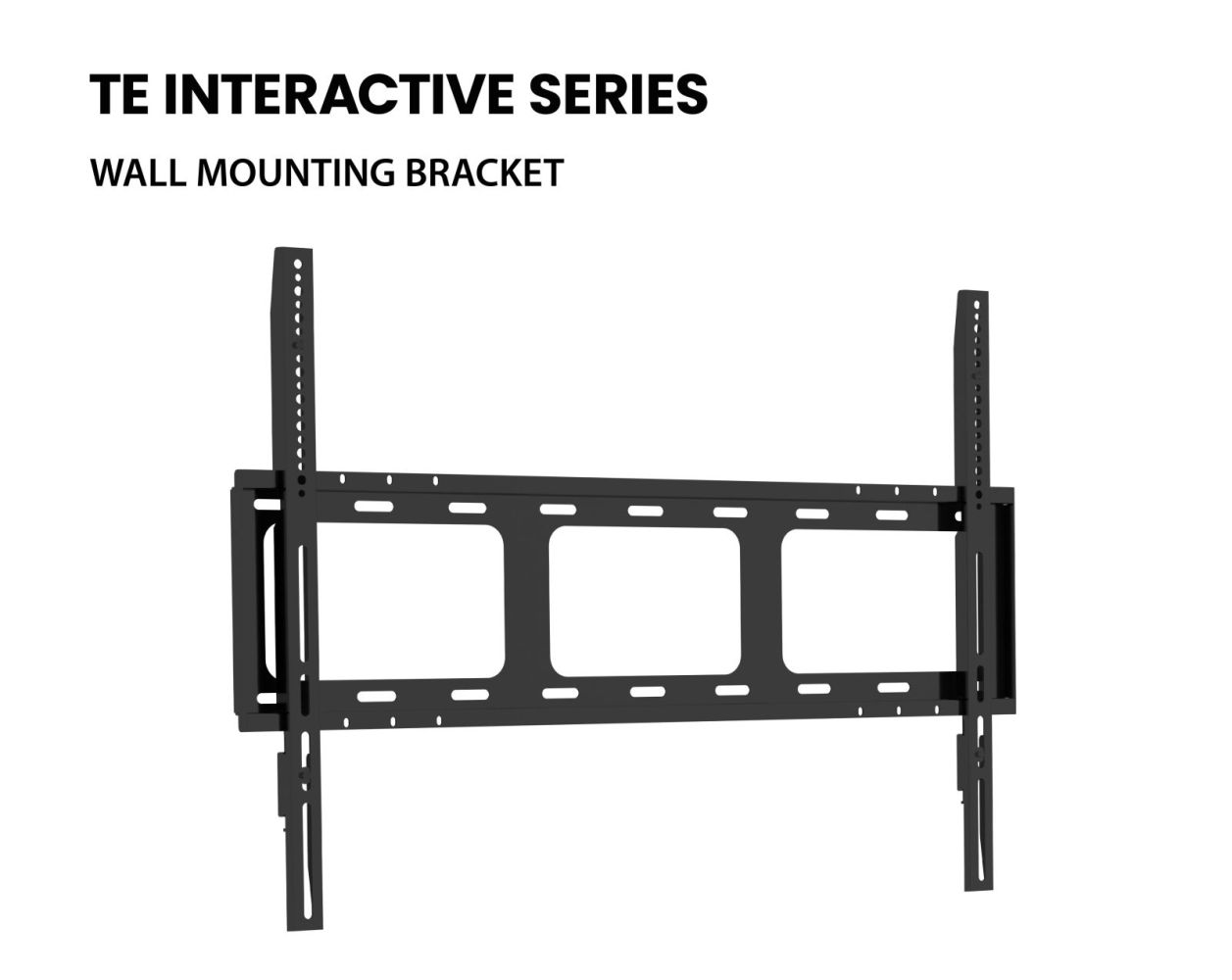

| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Touch response time | 5 ms |
| Glass thickness | 3.2 mm |
| Touchscreen | |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Bluetooth version | 5.0 |
| Brightness | 500 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Bluetooth | |
| Packaging content | |

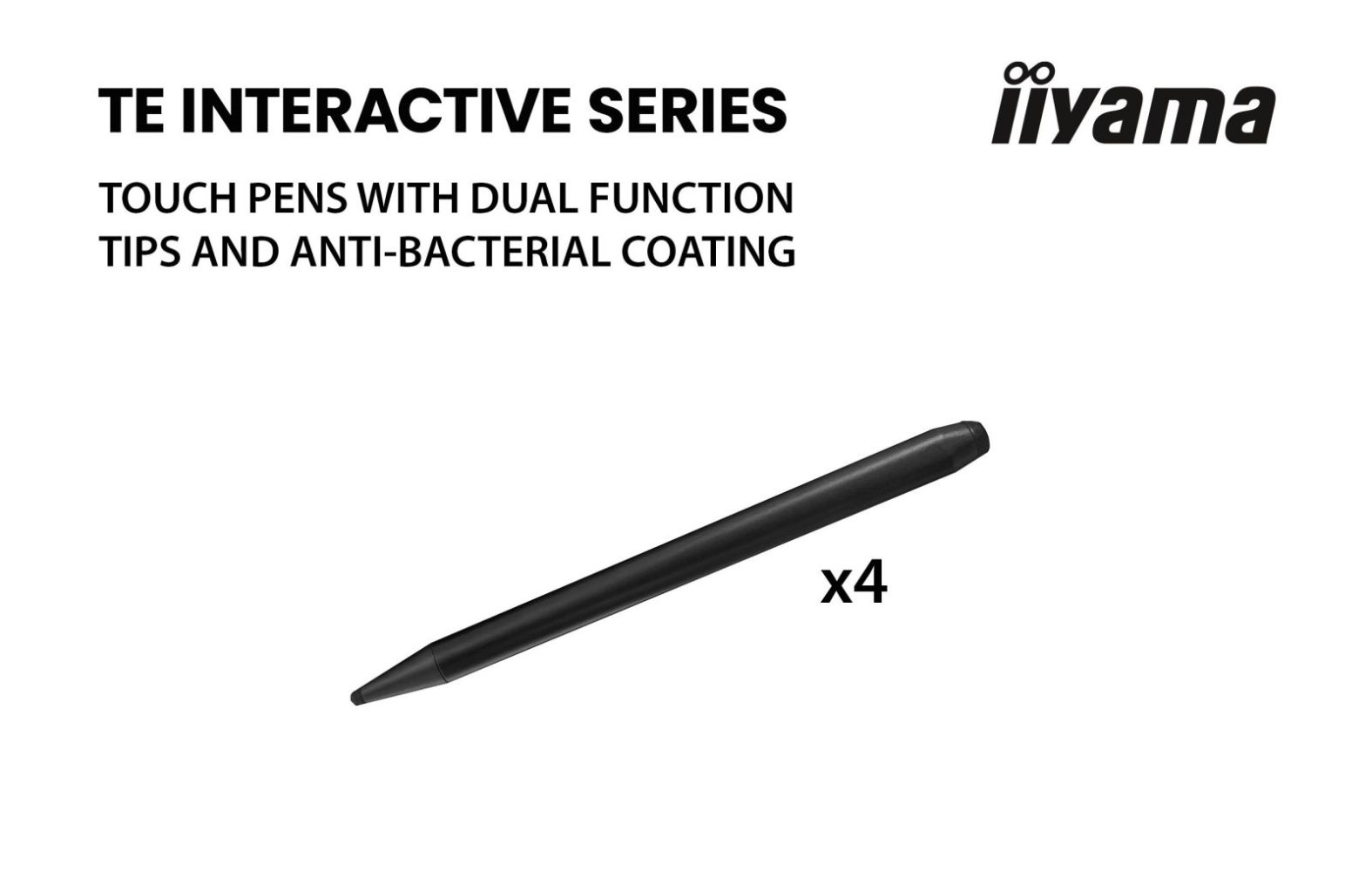

| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Remote control included | |
| Stylus pen | |
| Performance | |
| Purpose | Education |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |

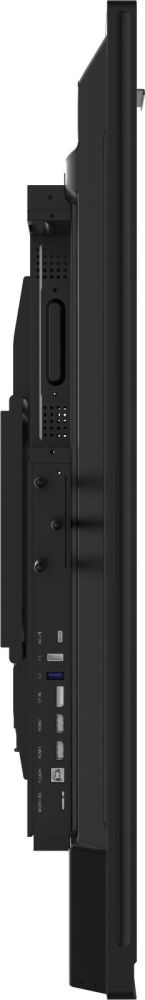

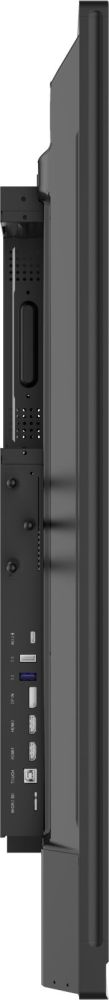

| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 6 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C, USB Type-A |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Compatible memory cards | MicroSD (TransFlash) |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 126 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 126 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 1267 mm |
| Display depth | 117.5 mm |
| Display height | 765.5 mm |
| Display weight | 28.7 kg |
| Width | 1267 mm |
| Depth | 117.5 mm |
| Height | 765.5 mm |
| Weight | 28.7 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Iiyama TE5513A-B2AG 138.8 cm (55") 16:9 Touch 2xHDMI+DP+2xUSB-C (freight shipping)?
The article Iiyama TE5513A-B2AG 138.8 cm (55") 16:9 Touch 2xHDMI+DP+2xUSB-C (freight shipping) is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TE5513A-B2AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Iiyama TE5513A-B2AG 138.8 cm (55") 16:9 Touch 2xHDMI+DP+2xUSB-C (freight shipping) always at the best possible price. We can give you a discount of 2% on Iiyama TE5513A-B2AG 138.8 cm (55") 16:9 Touch 2xHDMI+DP+2xUSB-C (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
