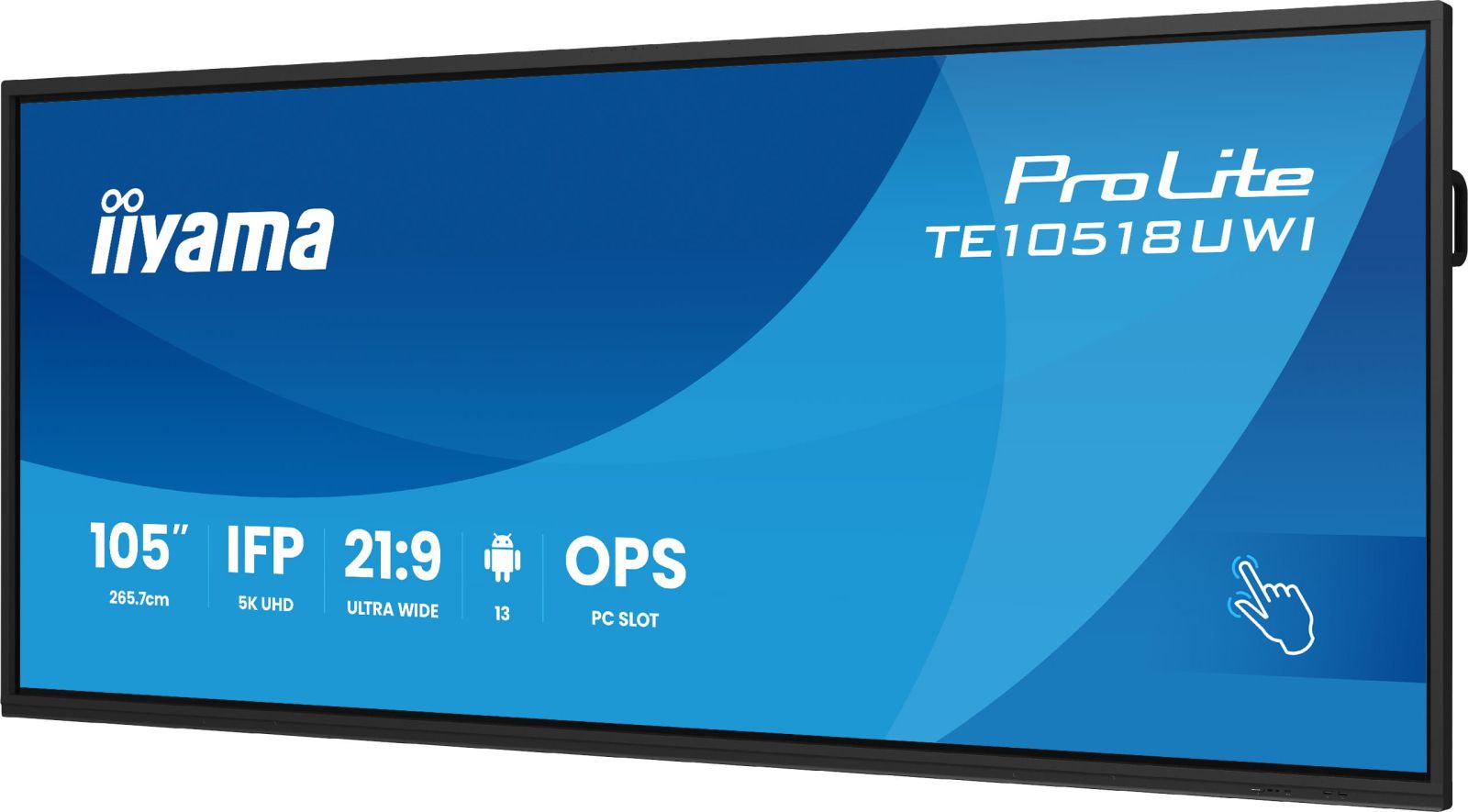

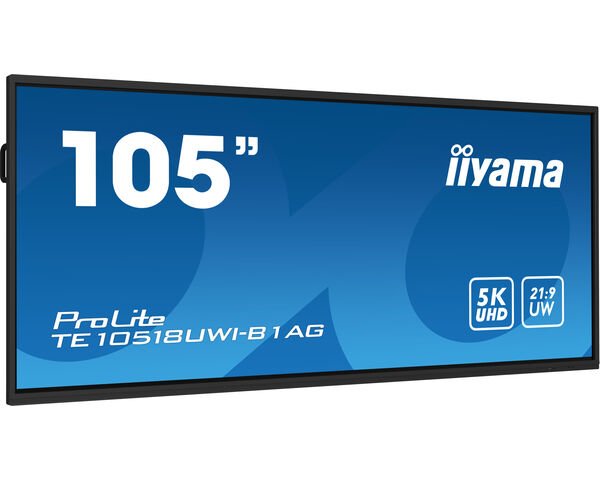

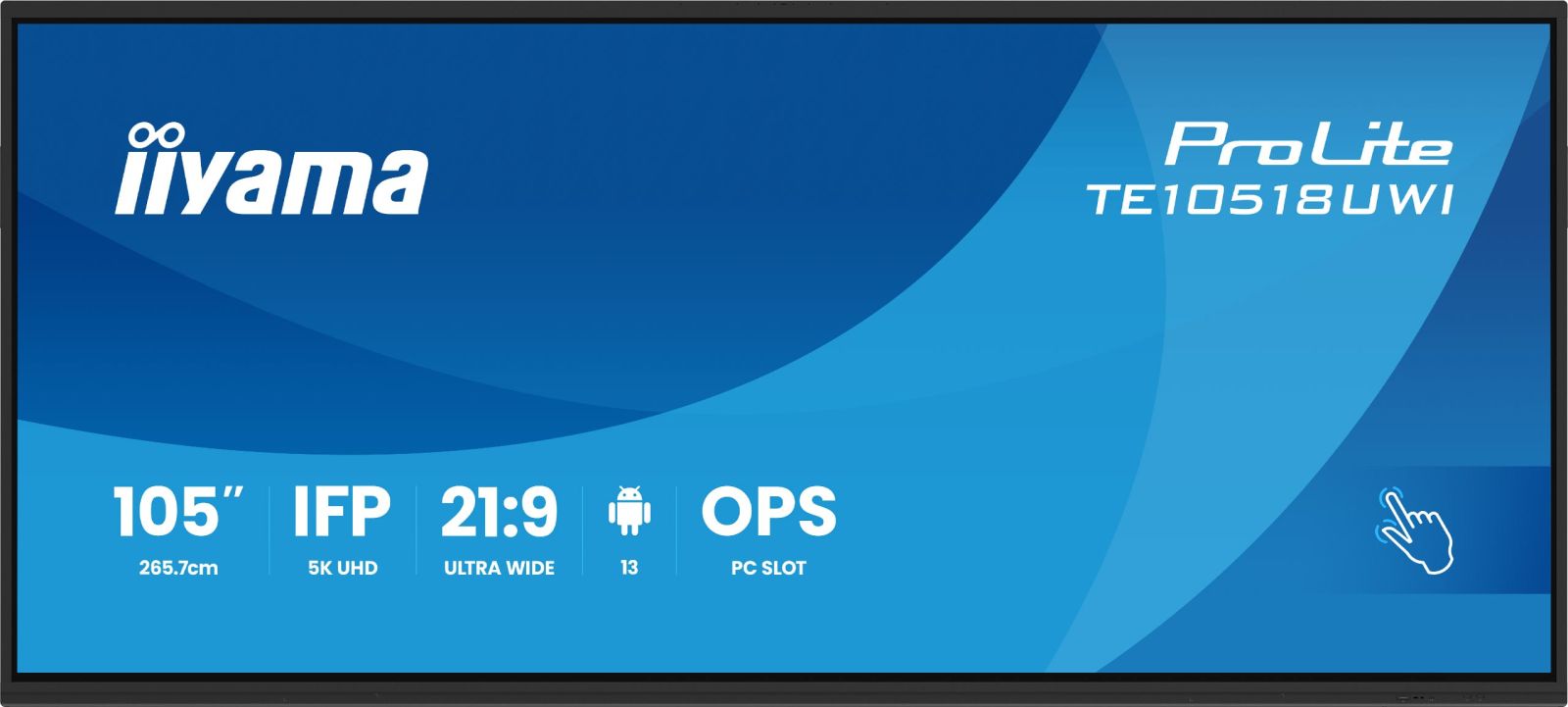

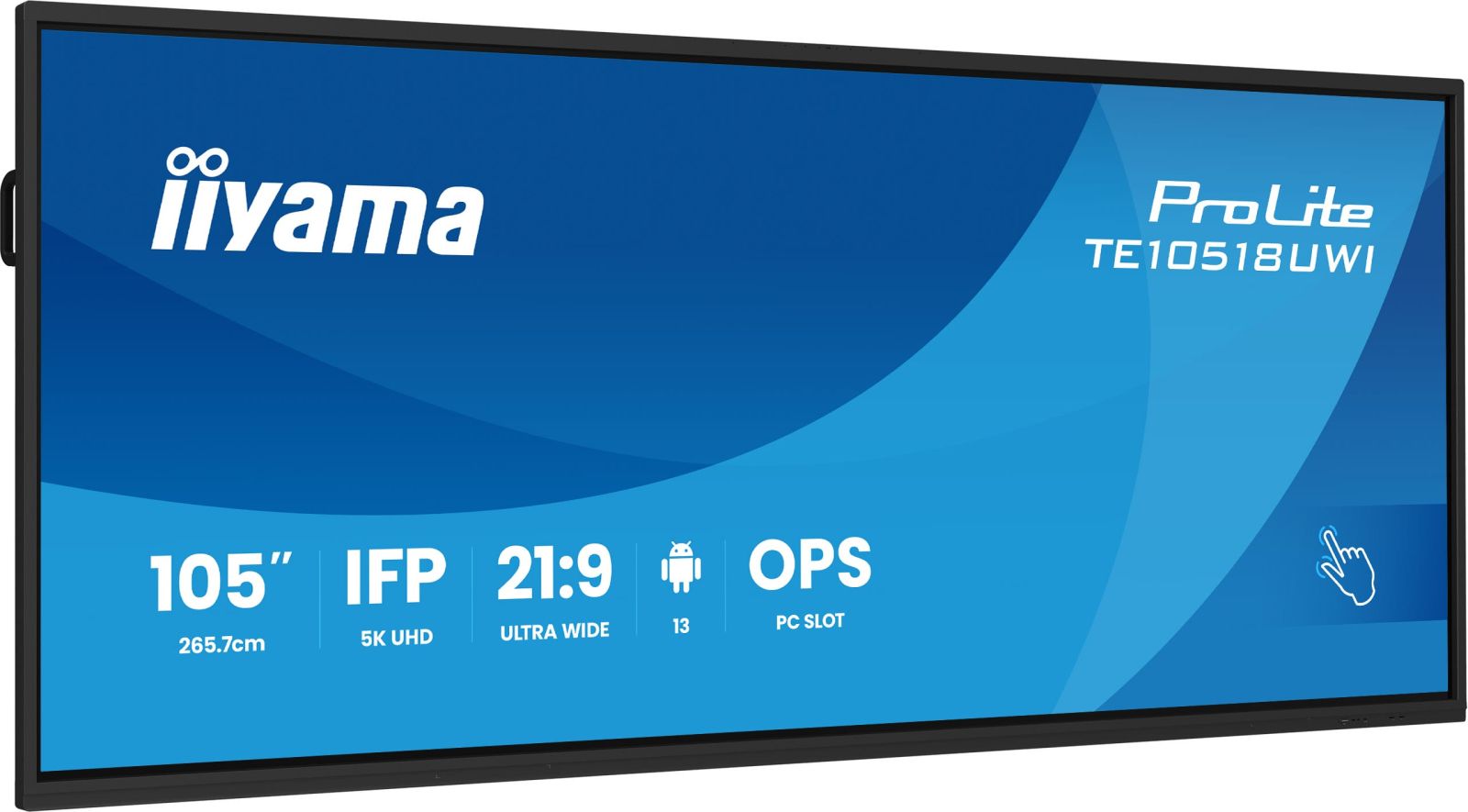

IIYAMA 265.7cm(105") TE10518UWI-B1AG 21:9 M-Touch 4xHDMI VA retail (forwarding)
|
5.806,00 EUR 5.910,48 EUR |
|
|
( 6.909,14 EUR incl. VAT ) ≈ £4,877.04 | ≈ $6,514.33 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1141950 |
| Mfg Part No: | TE10518UWI-B1AG |
| UPC/EAN: | 4948570122011 |
| Weight: | 125 kg |
| Type: | LFD |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TE10518UWI-B1AG:
• Bild: 265,7 cm ( 104,6 inch ), , 5120x2160, 21:9, • Kontrast: 40000:1 (statisch) • Reaktion: 6,5ms • Video Eingang: 4x HDMI, 1x DisplayPort, 2x USB-C / Audio Eingang: 1x Mini Jack / Monitorsteuerung: 1x RS-232c / Video Ausgang: 1x HDMI, USB-C / Audio Ausgang: 1x S/PDIF, 1x Mini Jack, 2x 16 Watt Lautsprecher / HDCP: HDMI, DP & USB-C / USB Ports: 8x / RJ-45: 2x / Mikrofon: 8-Array • Maße: 2507,2x1305x280mm • Enthaltenes Zubehör: Kabel, USB, HDMI, 4x Touch-Stift • Vesa: 1000x400mm • Extras: Multi-Touch • Herstellergarantie: drei Jahre nach Registrierung
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 48 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| Computer system | |
| Processor manufacturer | AMD |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G610 MP4 |
| Internal storage capacity | 64 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

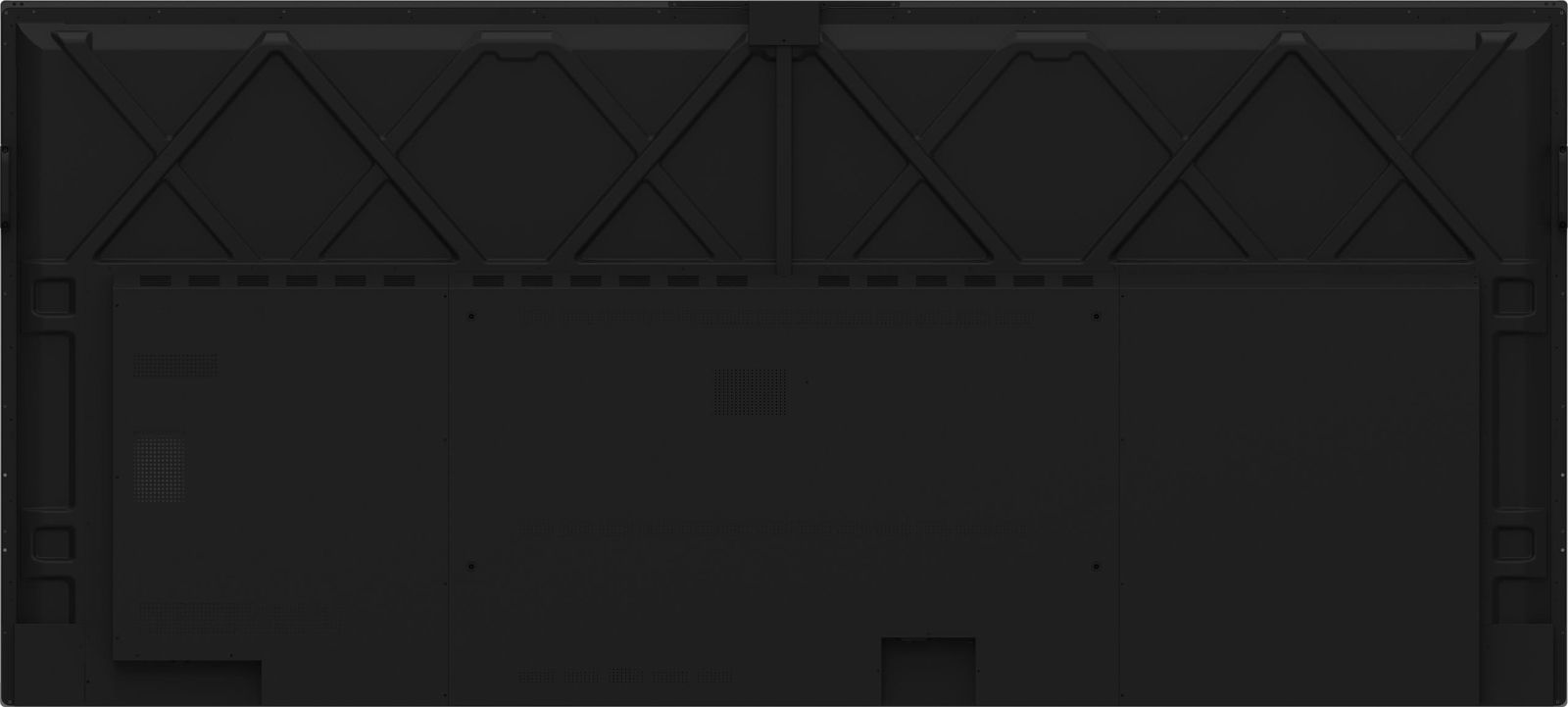

| Panel mounting interface | 1000 x 400 mm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | VA |
| Display diagonal | 2.66 m (104.6") |
| Display technology | LED |
| Display resolution | 5120 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 5K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 21:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.479 x 0.479 mm |
| Active display area (W x H) | 2450 x 1033.6 mm |
| Display diagonal (metric) | 265.7 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3 mm |
| Touchscreen | |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Bluetooth version | 5.0 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Bluetooth | |
| Built-in microphone | |
| Packaging content | |

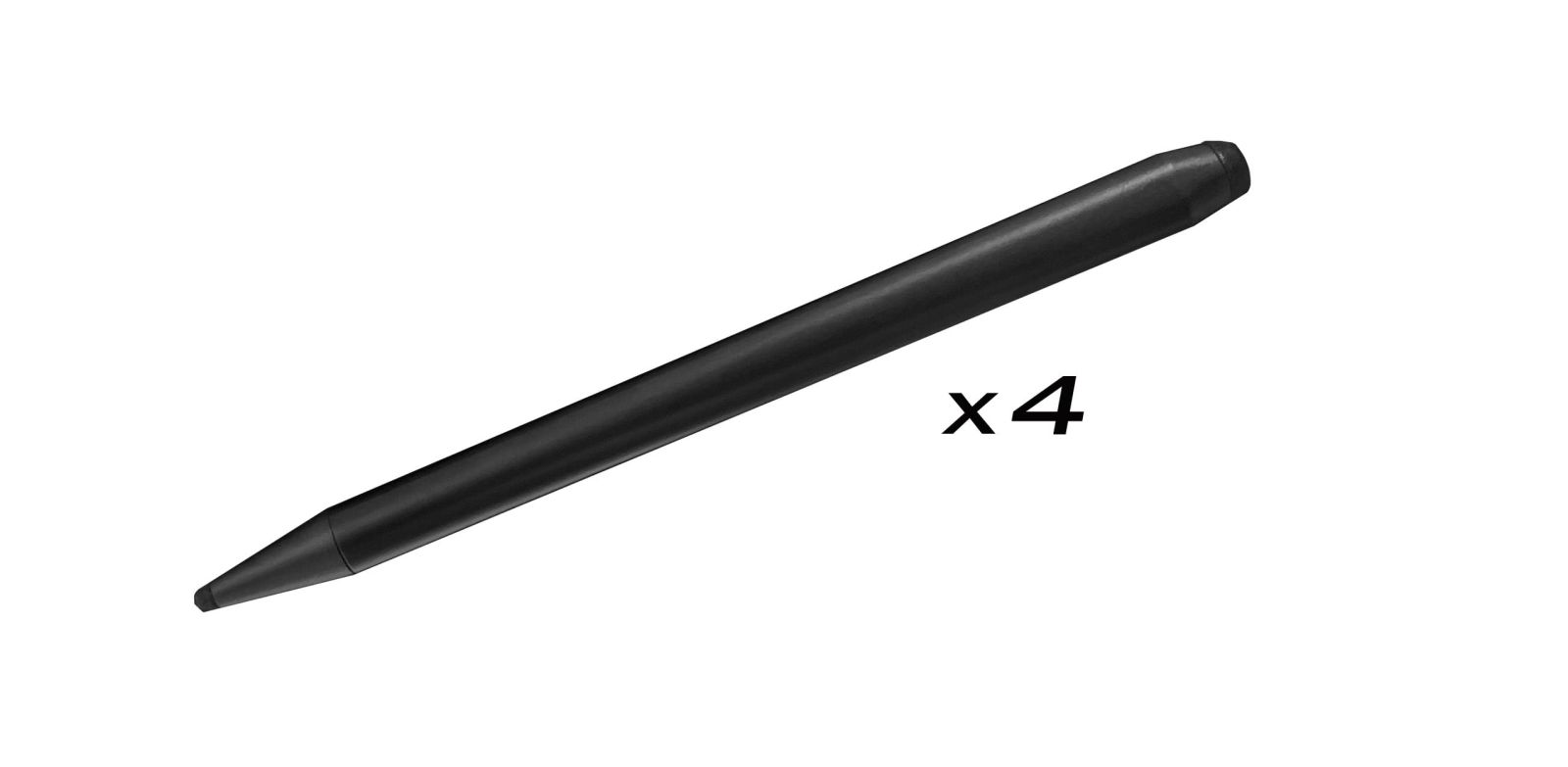

| Number of stylus pens | 4 |

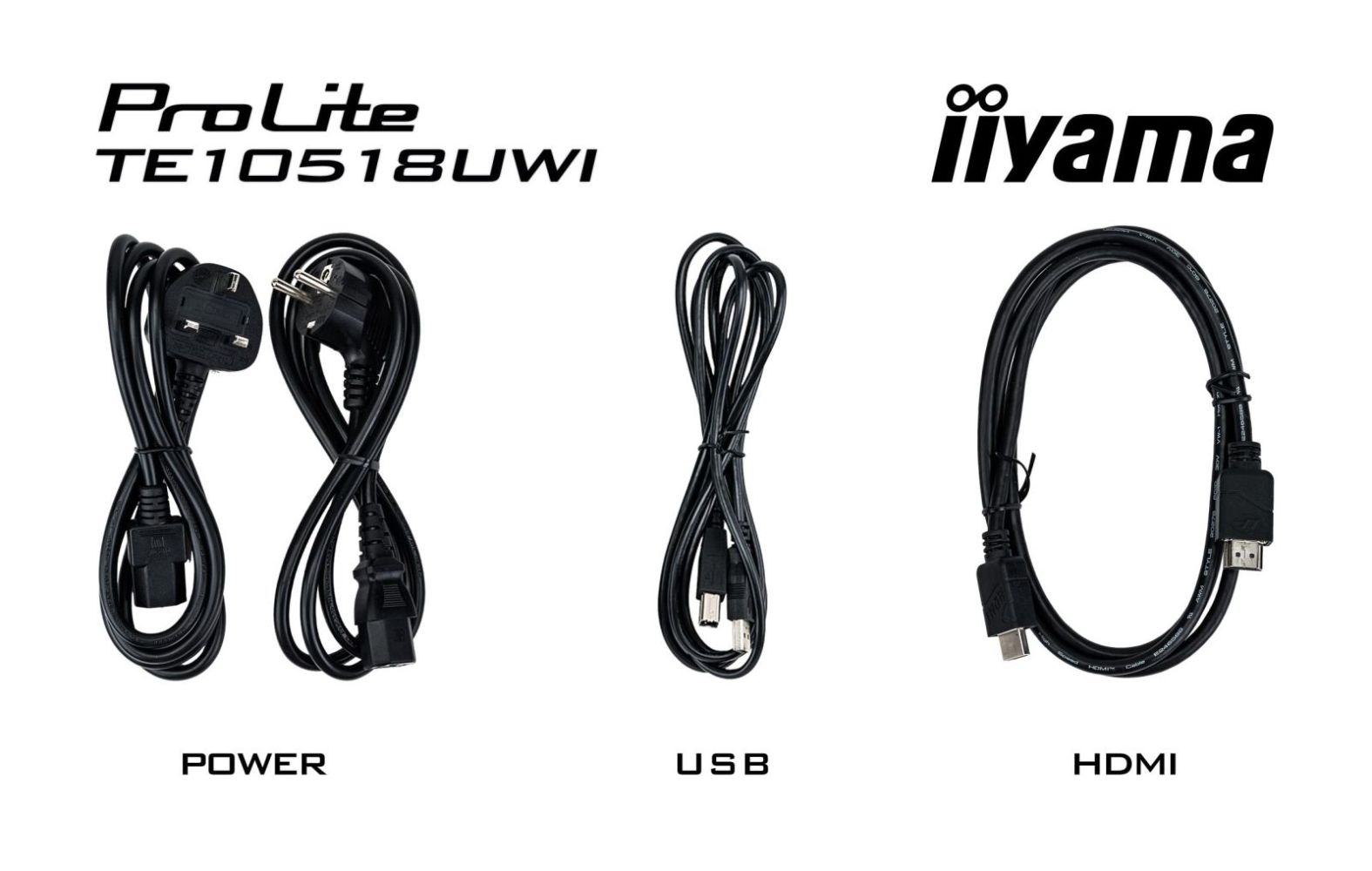

| Cables included | AC, USB, HDMI |
| Remote control included | |
| Batteries included | |
| Stylus pen | |
| Mounting kit | |
| Wi-Fi module included | |
| Packaging data | |
| Package width | 2668 mm |
| Package depth | 280 mm |
| Package height | 1305 mm |
| Package weight | 119.5 kg |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 16/7 |
| HDCP version | 2.3 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |

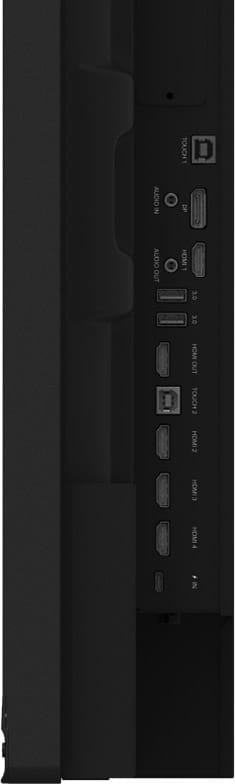

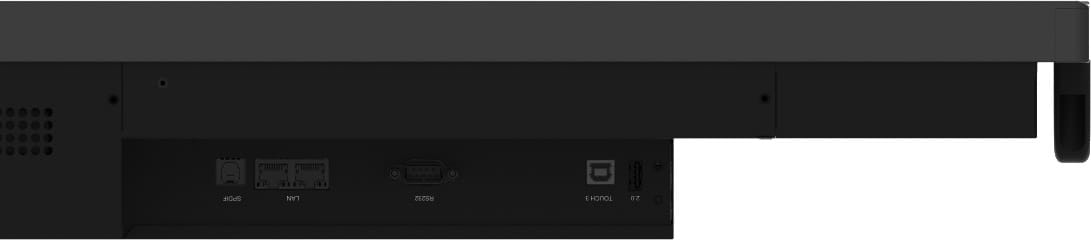

| Ports & interfaces | |
| HDMI ports quantity | 5 |
| HDMI version | 2.0/2.1 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| USB ports quantity | 8 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 16 |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 4 |
| DVI port | |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| Microphone in | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 282 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Playback media | Y |
| User controls | common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (pixel shift, eye care, auto light, ECO, ECR, auto colour temp.), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), settings (wireless & networks, personal, input & output, application, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 2507.2 mm |
| Display depth | 103 mm |
| Display height | 1130.1 mm |
| Display weight | 91.4 kg |
| Width | 2507.2 mm |
| Depth | 103 mm |
| Height | 1130.1 mm |
| Weight | 91.4 kg |
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
