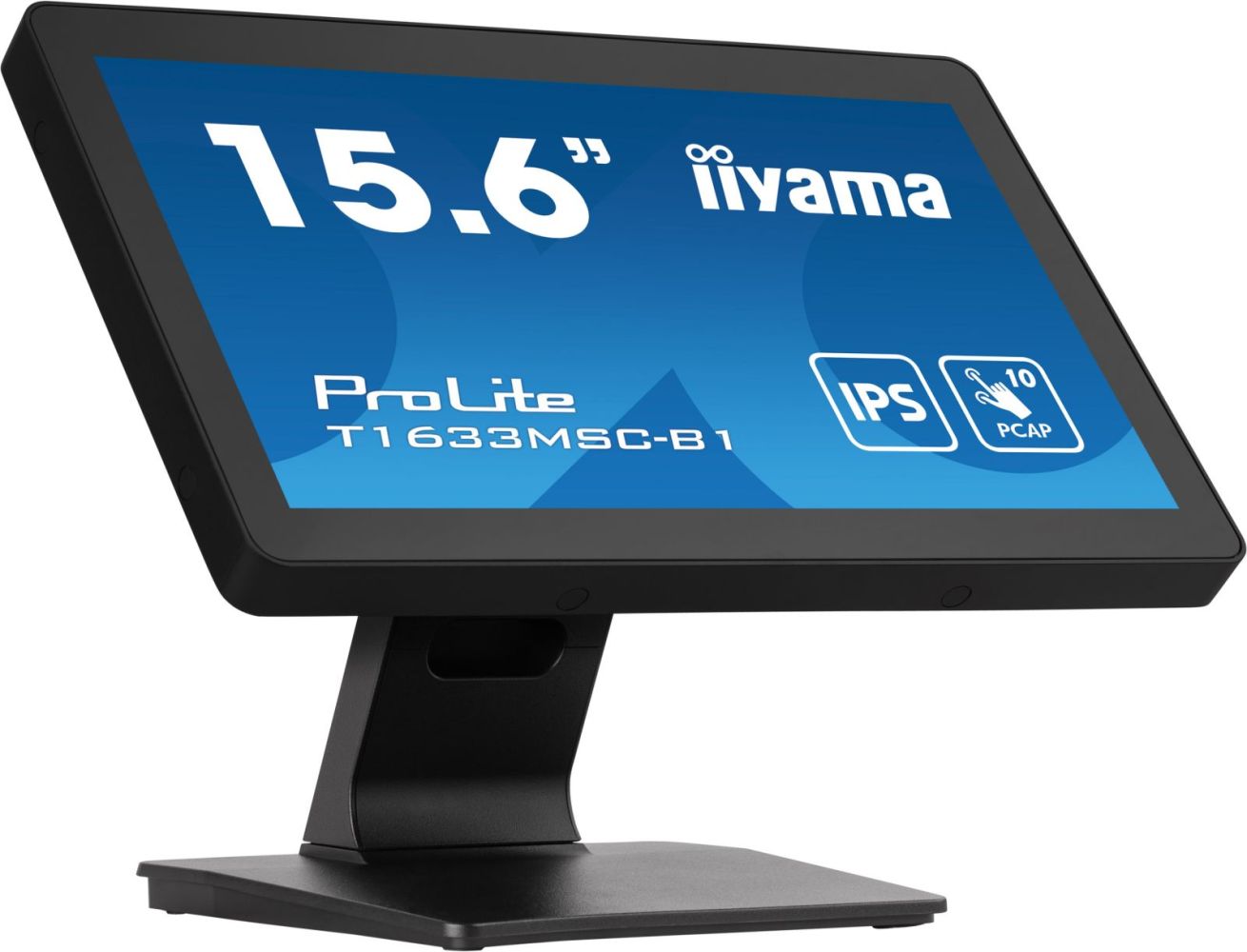

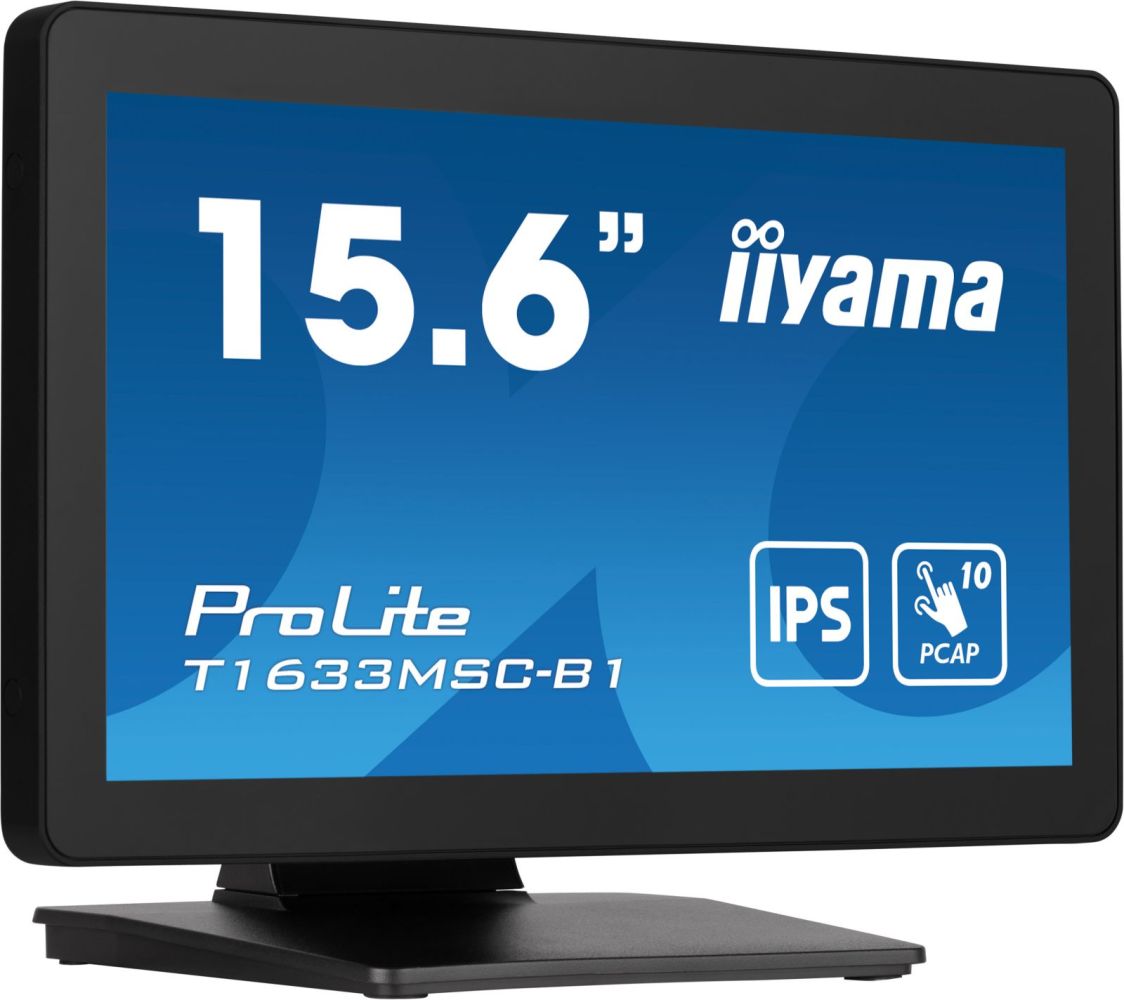

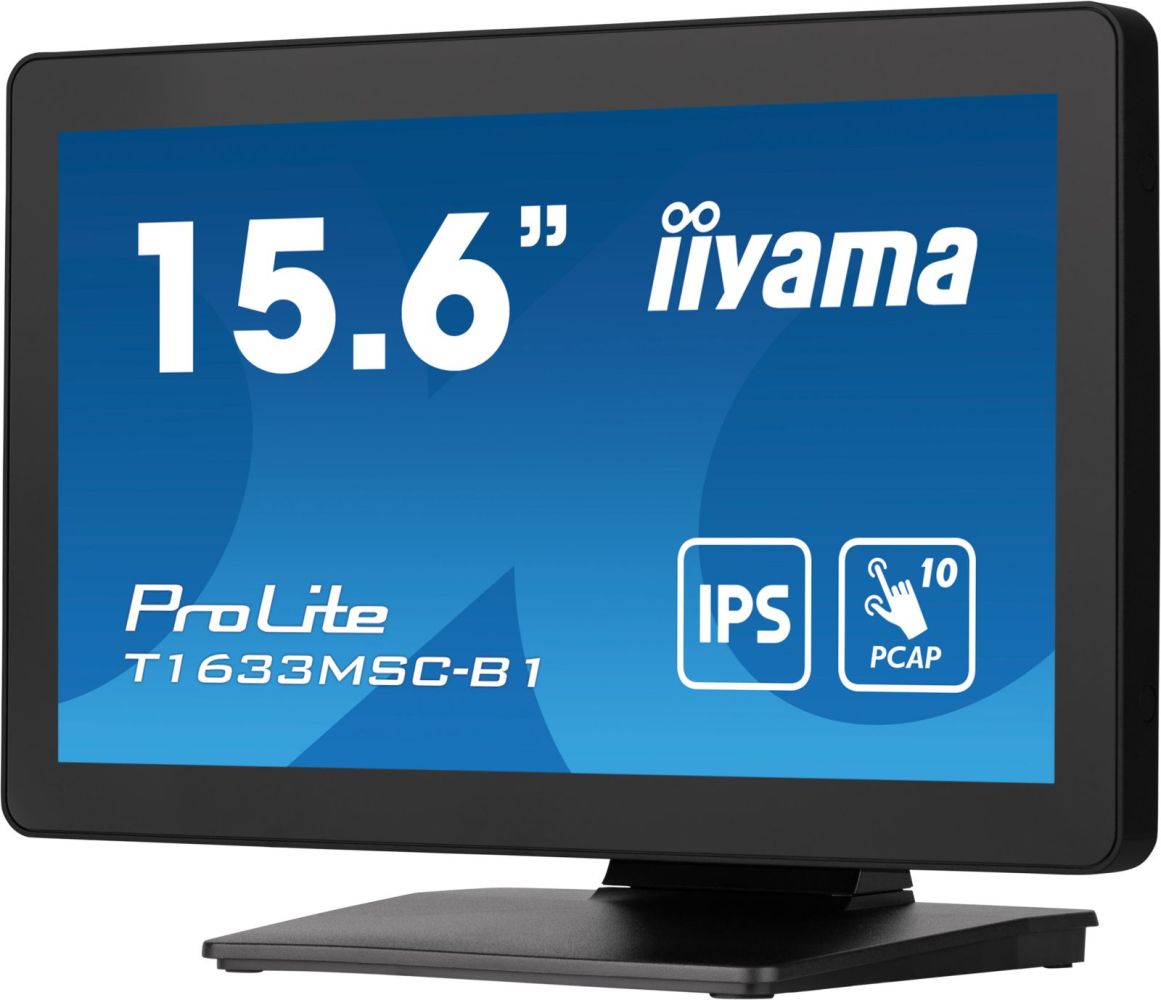

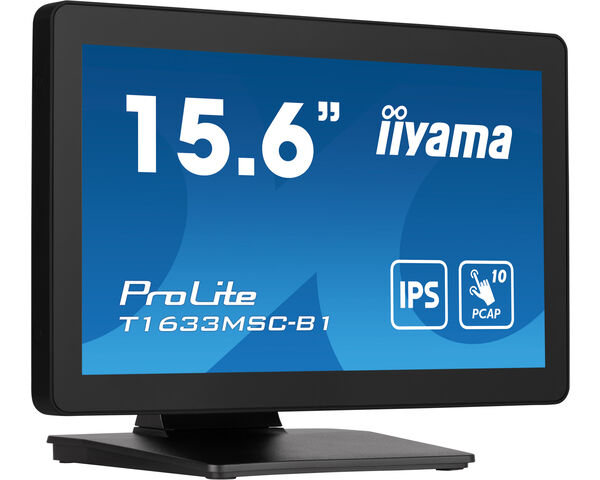

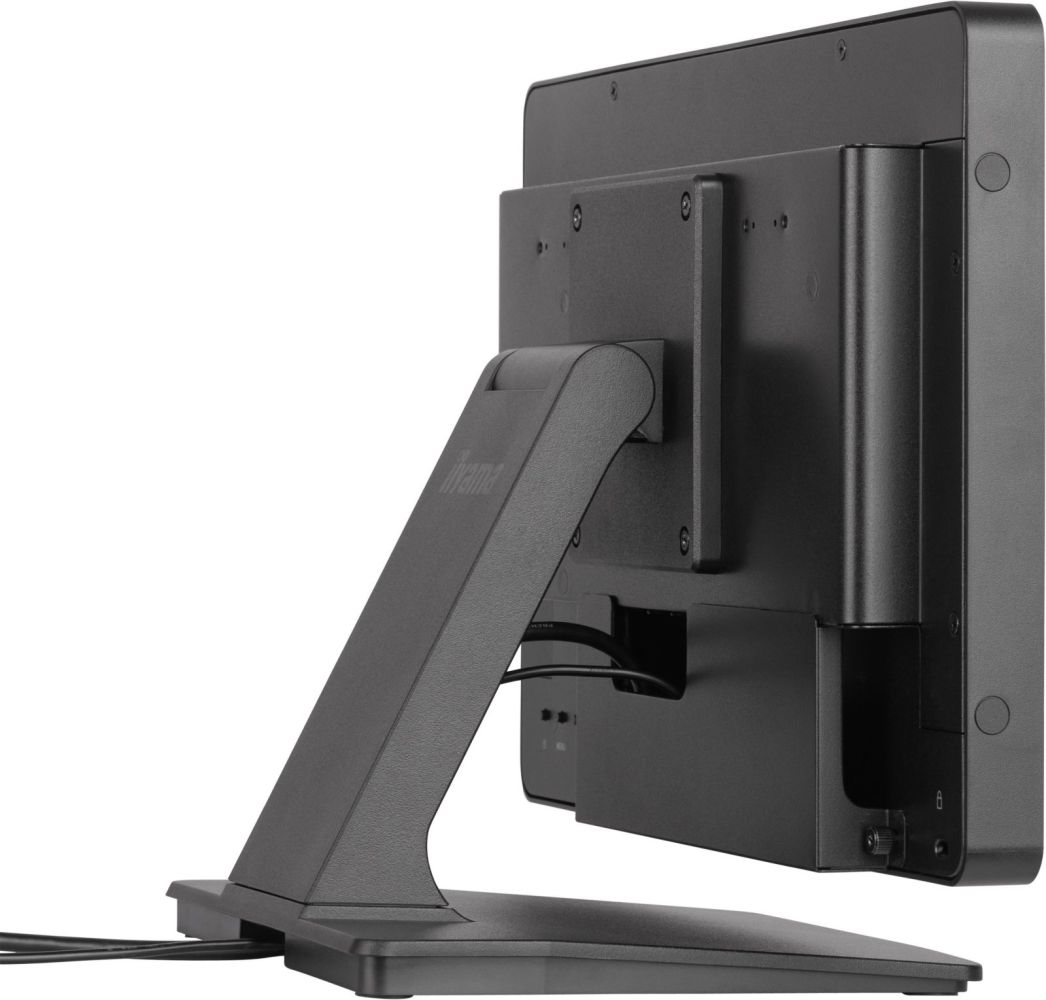

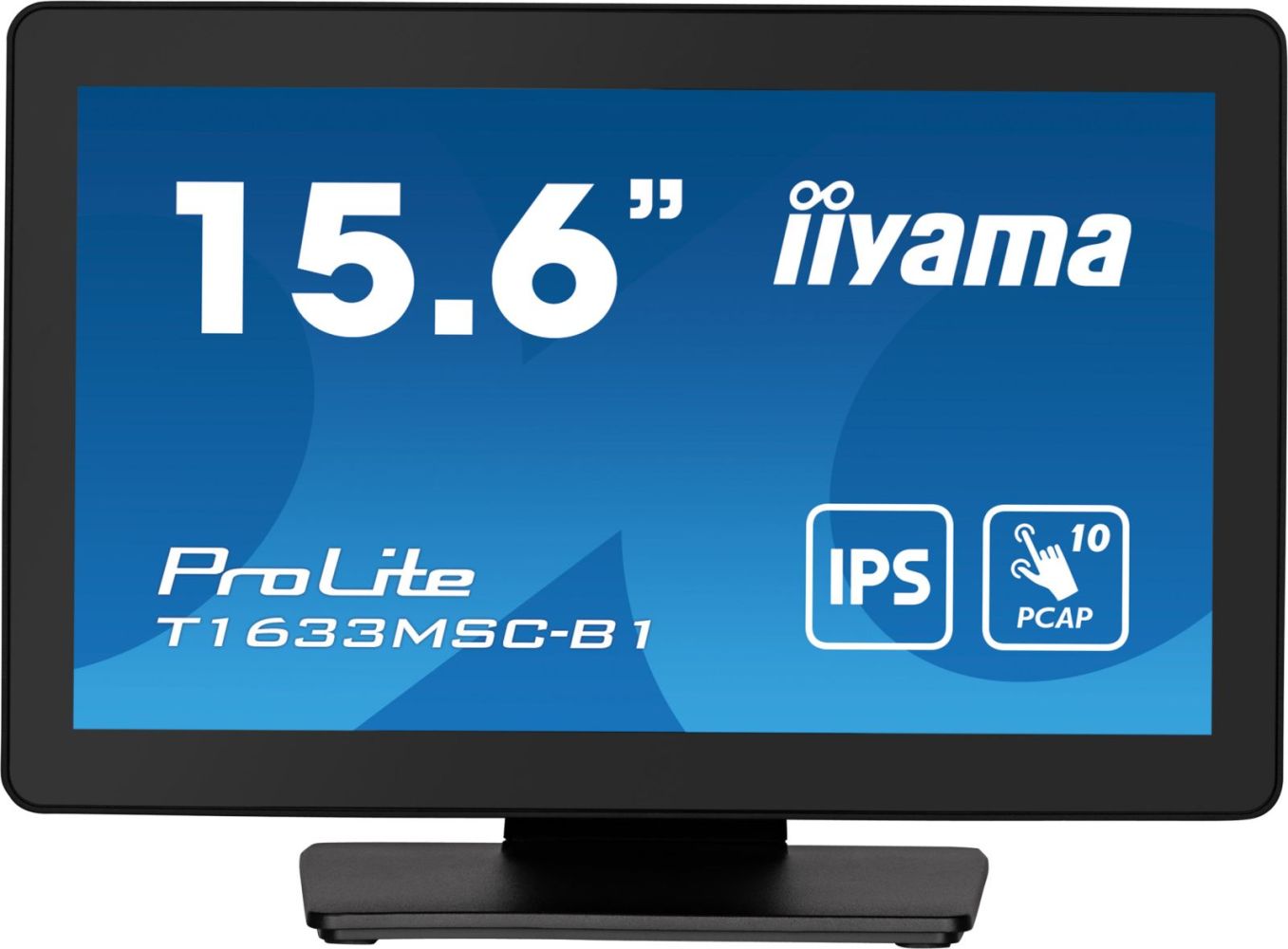

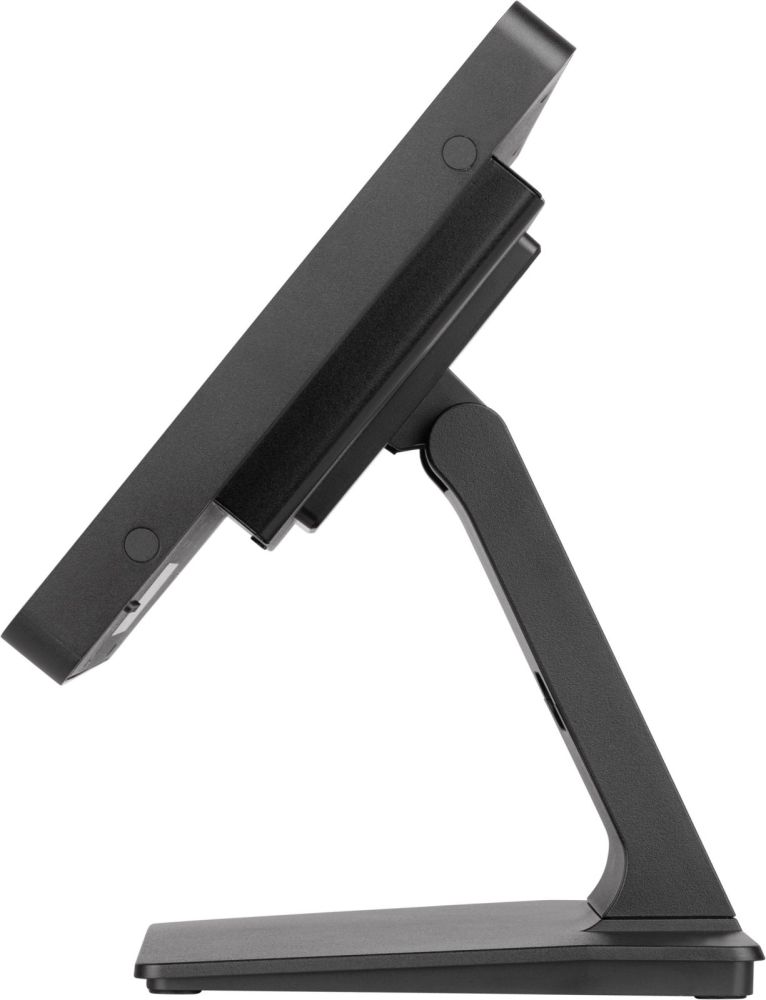

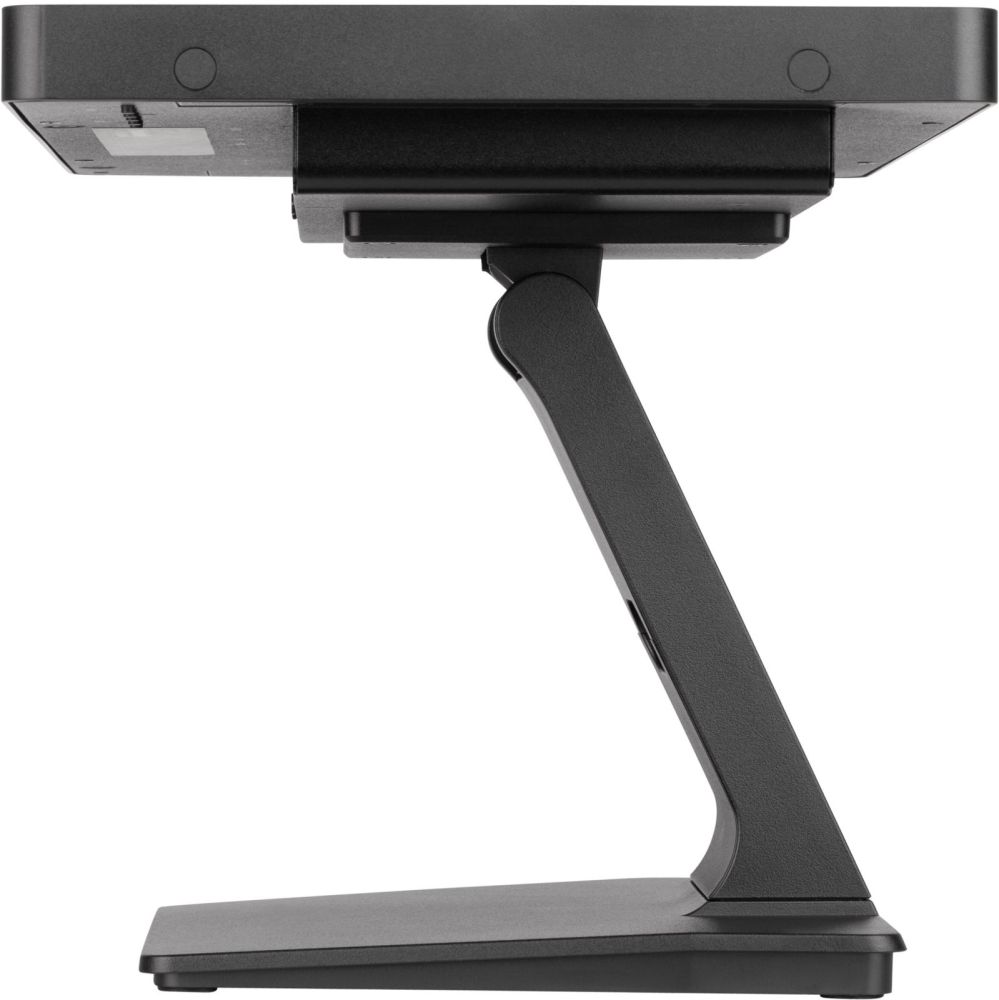

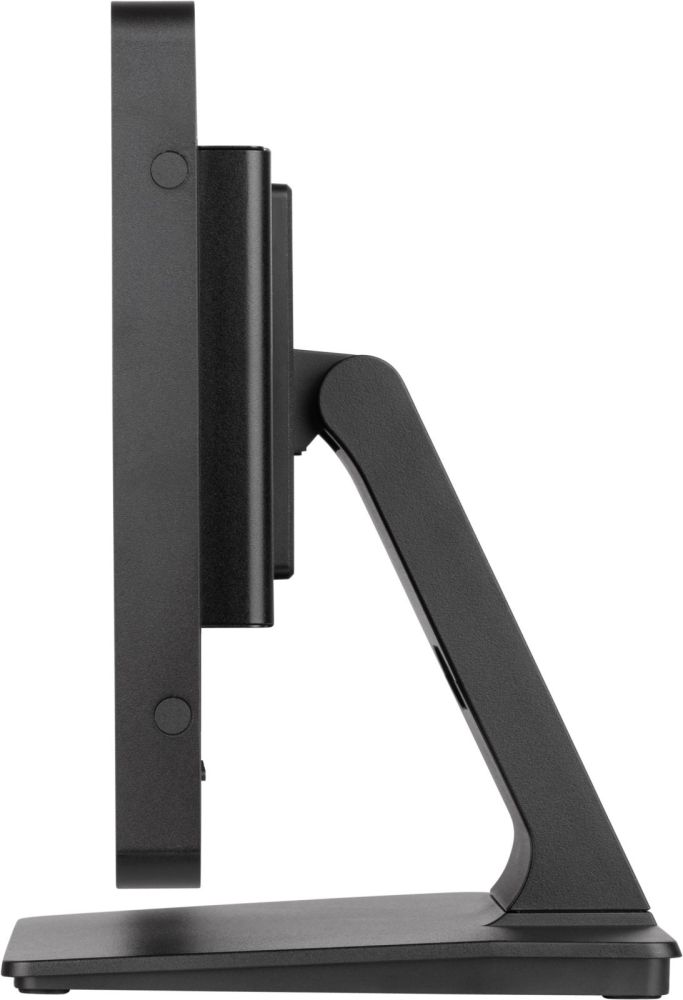

Iiyama T1633MSC-B1 39.5 cm (15.6") 16:9 M-Touch HDMI+DP+USB retail
|
-12% 365,06 EUR 415,09 EUR |
|
|
( 434,42 EUR incl. VAT ) ≈ £306.65 | ≈ $409.60 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 20 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2127668 |
| Mfg Part No: | T1633MSC-B1 |
| UPC/EAN: | 4948570122523 |
| Weight: | 5.35 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1633MSC-B1:
• Bild: 39,6 cm ( 15,6 inch )/39,5cm, 1920x1080, 16:9 • Kontrast: 1000:1 (statisch) • Reaktion: 5ms • Helligkeit: 450cd/m² mit Touch Panel • Anschlüsse: 1x HDMI 1x DisplayPort • Maße: 389x284.5x200mm • VESA: 100x100 • Ergonomie: +90°/-5° Neigung • Extras: Multi-Touch • Herstellergarantie: drei Jahre nach Registrierung
| Design | |
| Market positioning | Home |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 385 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display diagonal (metric) | 39.5 cm |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Number of OSD languages | 12 |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information) |
| Brightness | 385 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| USB ports quantity | 2 |
| Weight | 3.4 kg |
| Height | 284 mm |
| Width | 389 mm |
| Depth | 200 mm |
| Control panel | Power, Menu, Volume +, Volume -, Input |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI |
| Power adapter included | |
| Quick start guide | |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 5.3 kg |
| Package type | Box |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Low Blue Light technology | |
| Palm rejection | |
| Ports & interfaces | |
| USB hub version | 2.0 |
| Number of downstream ports | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 7.7 kWh |
| Power consumption (typical) | 12 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 389 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 284 mm |
| Weight (with stand) | 3.4 kg |
| Weight (without stand) | 5.3 kg |
Questions & answers
What is the delivery time of Iiyama T1633MSC-B1 39.5 cm (15.6") 16:9 M-Touch HDMI+DP+USB retail?
The article Iiyama T1633MSC-B1 39.5 cm (15.6") 16:9 M-Touch HDMI+DP+USB retail is currently in stock
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama T1633MSC-B1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Iiyama T1633MSC-B1 39.5 cm (15.6") 16:9 M-Touch HDMI+DP+USB retail always at the best possible price. We can give you a discount of 2% on Iiyama T1633MSC-B1 39.5 cm (15.6") 16:9 M-Touch HDMI+DP+USB retail if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
