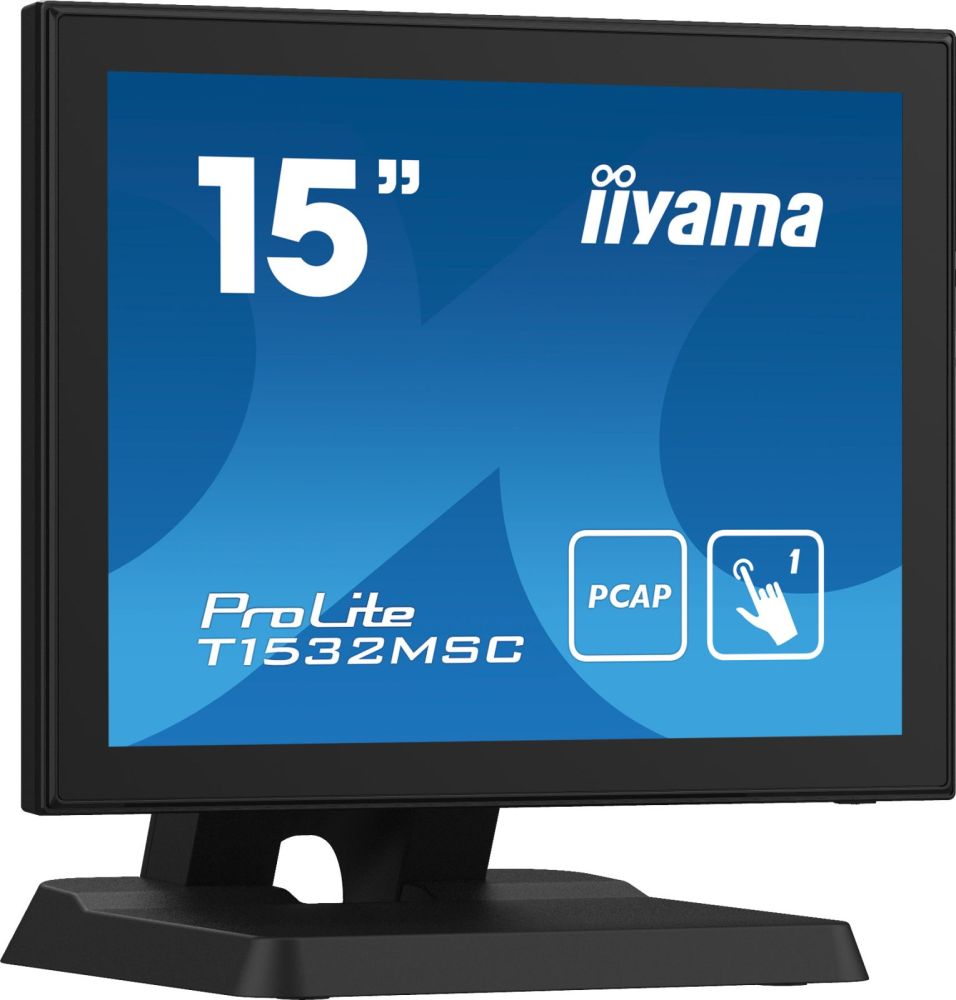

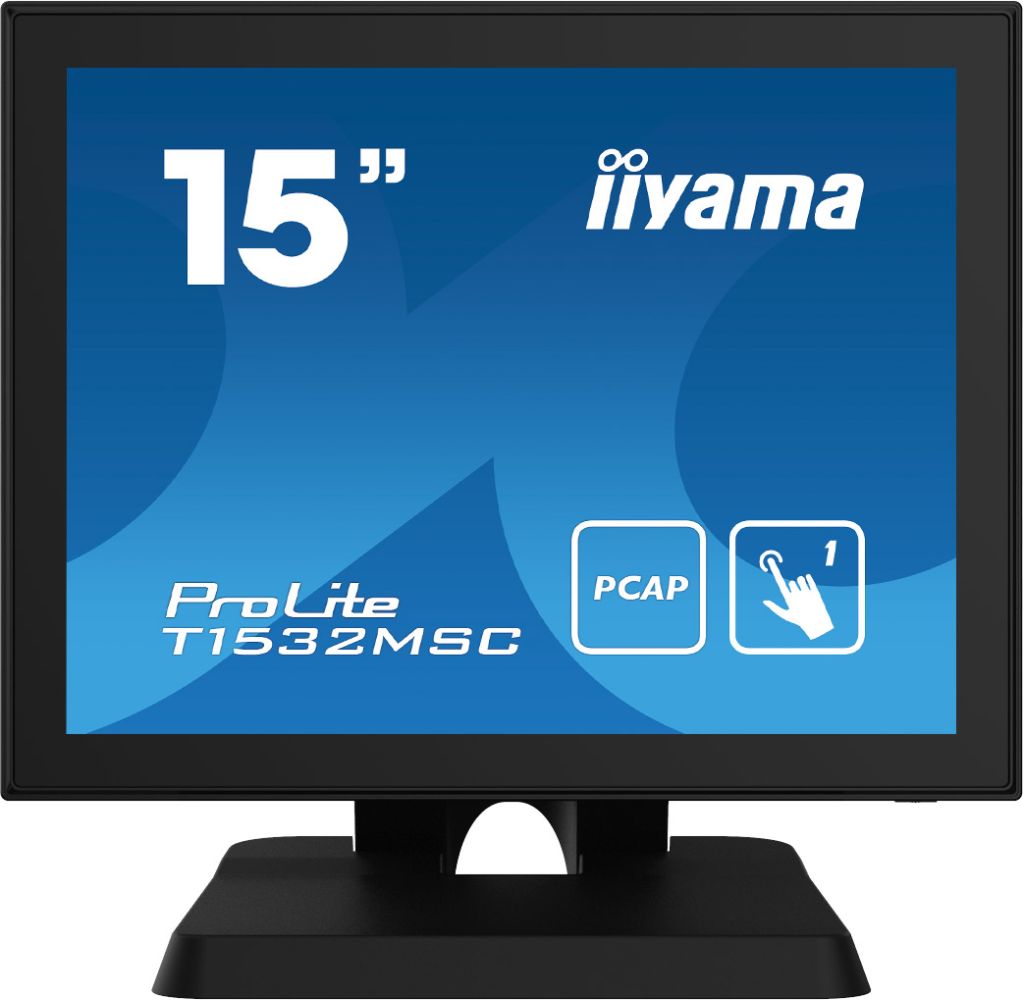

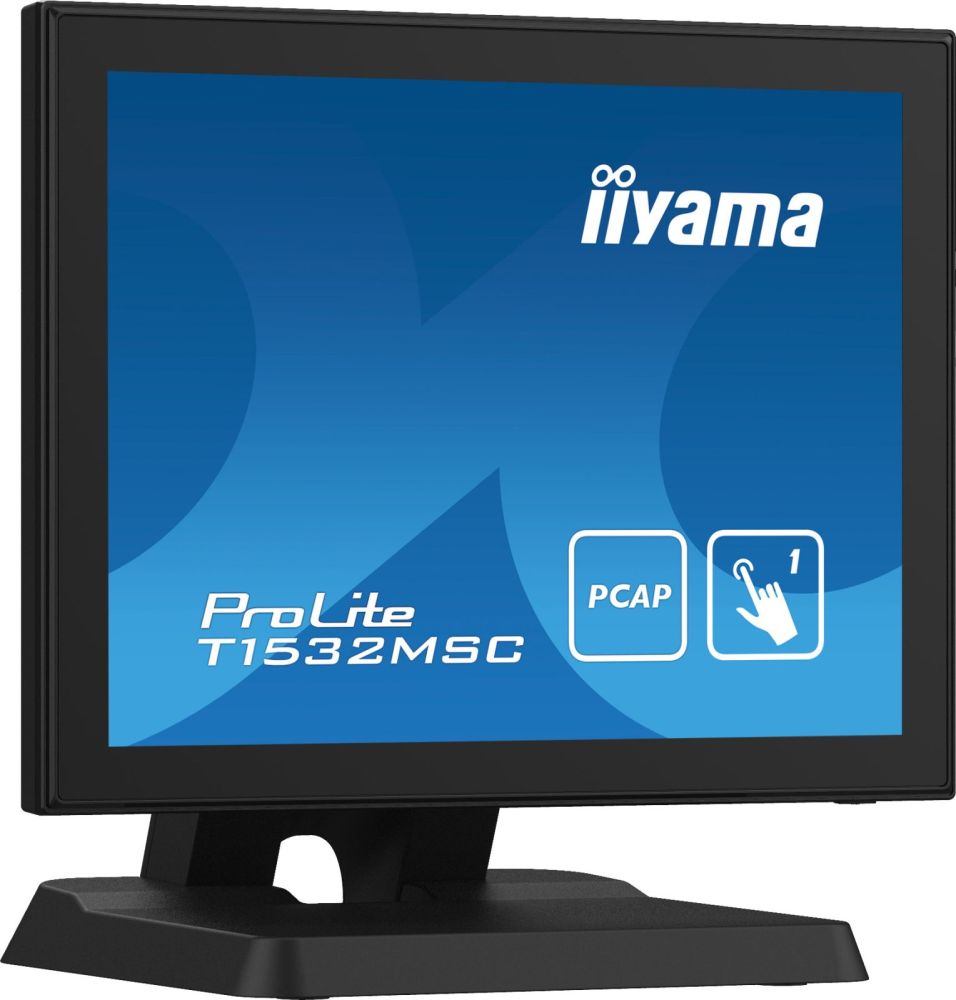

IIYAMA T1532MSC-B5X 38,1CM 15Zoll LCD 4:3 Projective Capacitive 10-Points Touch Bezel Free LED
|
441,45 EUR |
|
|
( 525,33 EUR incl. VAT ) ≈ £370.82 | ≈ $495.31 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 30. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1463605 |
| Mfg Part No: | T1532MSC-B5X |
| UPC/EAN: | 4948570115983 |
| Weight: | 6.13 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 370 cd/m² |
| Display brightness | 330 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31 - 60 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Touchscreen | |
| Ergonomics | |

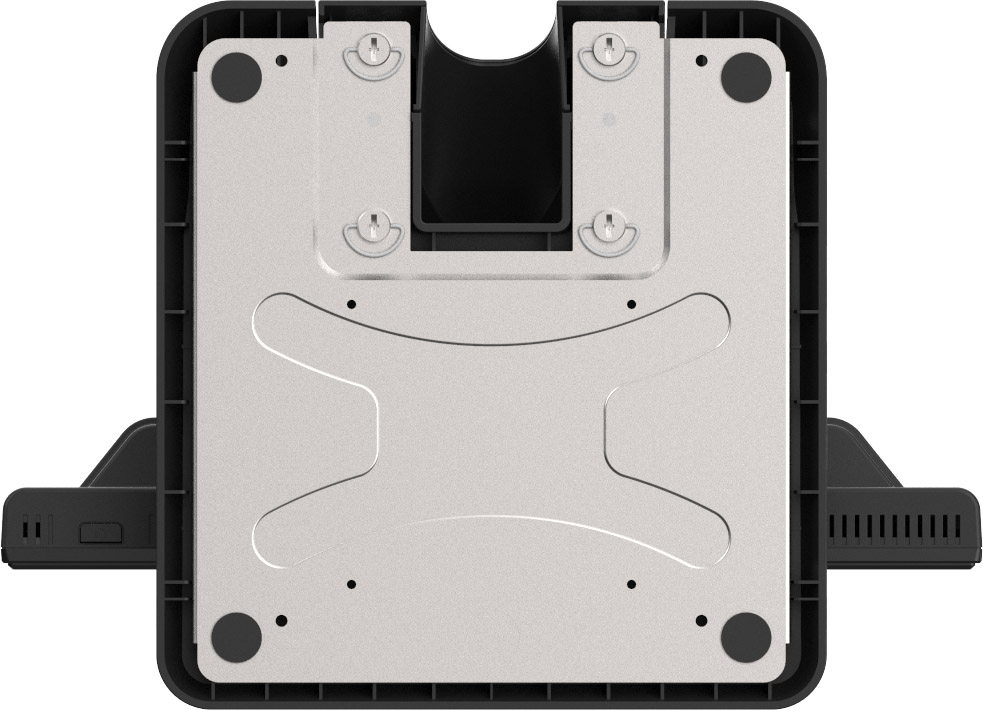

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| Cable management | |
| Cable lock slot | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Plug and Play | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Built-in microphone | |
| Built-in camera | |
| Network | |
| Ethernet LAN | |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Brightness | 330 cd/m² |
| Packaging content | Touch Panel Driver Disk (CD-ROM) |
| Active display area (W x H) | 304.1 x 228.1 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 4.5 kg |
| Height | 306.5 mm |
| Width | 351 mm |
| Depth | 202 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, VCCI, WEEE |
| Supplied AC adapter type | AC |
| Certification | CB, CE, TÜV, VCCI, EAC |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Ports & interfaces | |
| USB Touch ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.2 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 351 mm |
| Depth (with stand) | 202 mm |
| Height (with stand) | 306.5 mm |
| Weight (with stand) | 4.5 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of IIYAMA T1532MSC-B5X 38,1CM 15Zoll LCD 4:3 Projective Capacitive 10-Points Touch Bezel Free LED?
The article IIYAMA T1532MSC-B5X 38,1CM 15Zoll LCD 4:3 Projective Capacitive 10-Points Touch Bezel Free LED is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama T1532MSC-B5X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA T1532MSC-B5X 38,1CM 15Zoll LCD 4:3 Projective Capacitive 10-Points Touch Bezel Free LED always at the best possible price. We can give you a discount of 2% on IIYAMA T1532MSC-B5X 38,1CM 15Zoll LCD 4:3 Projective Capacitive 10-Points Touch Bezel Free LED if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
