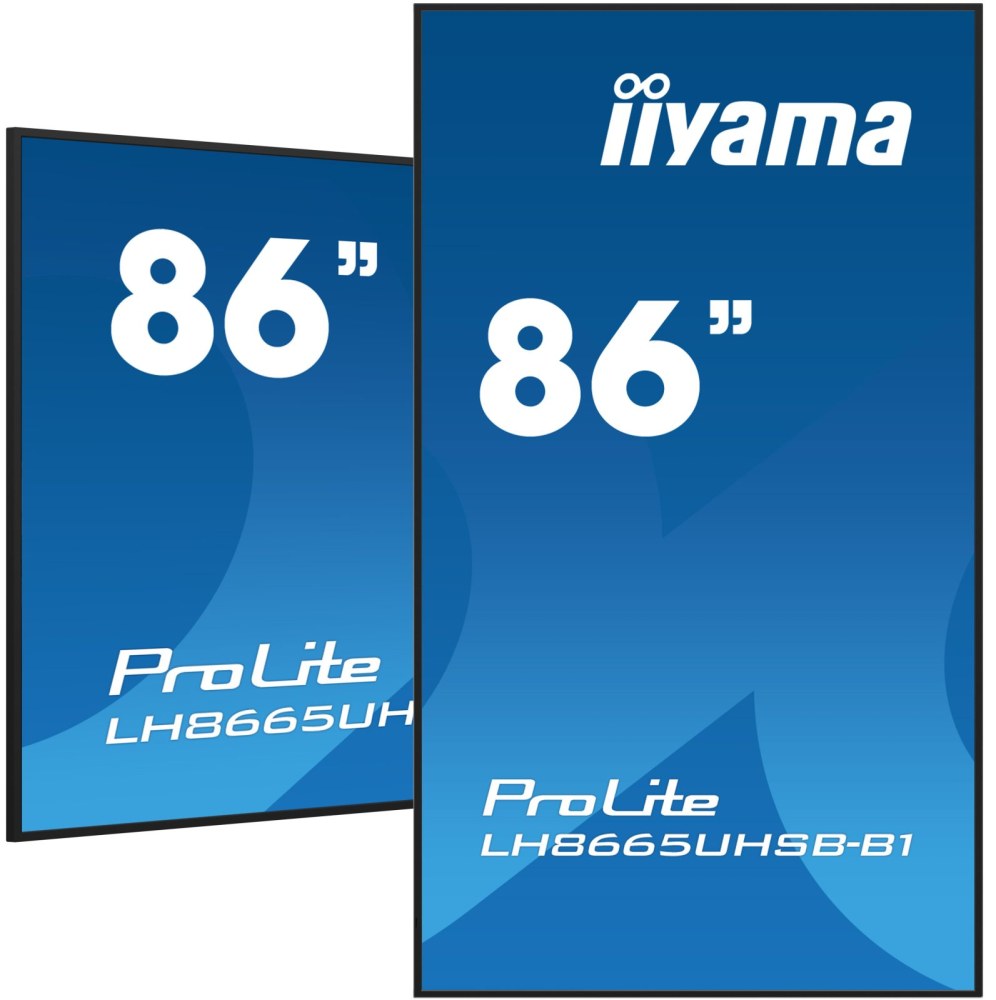

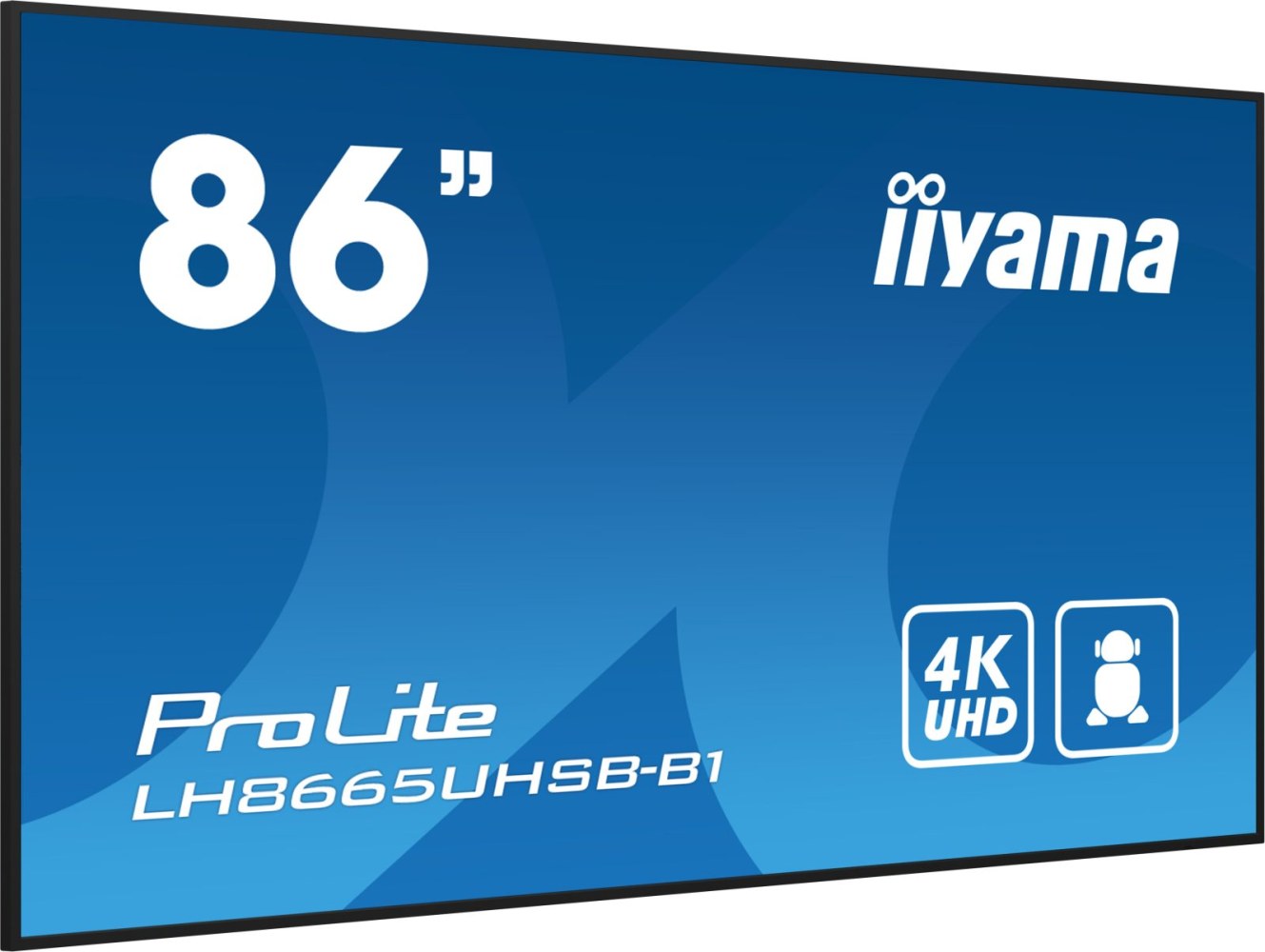

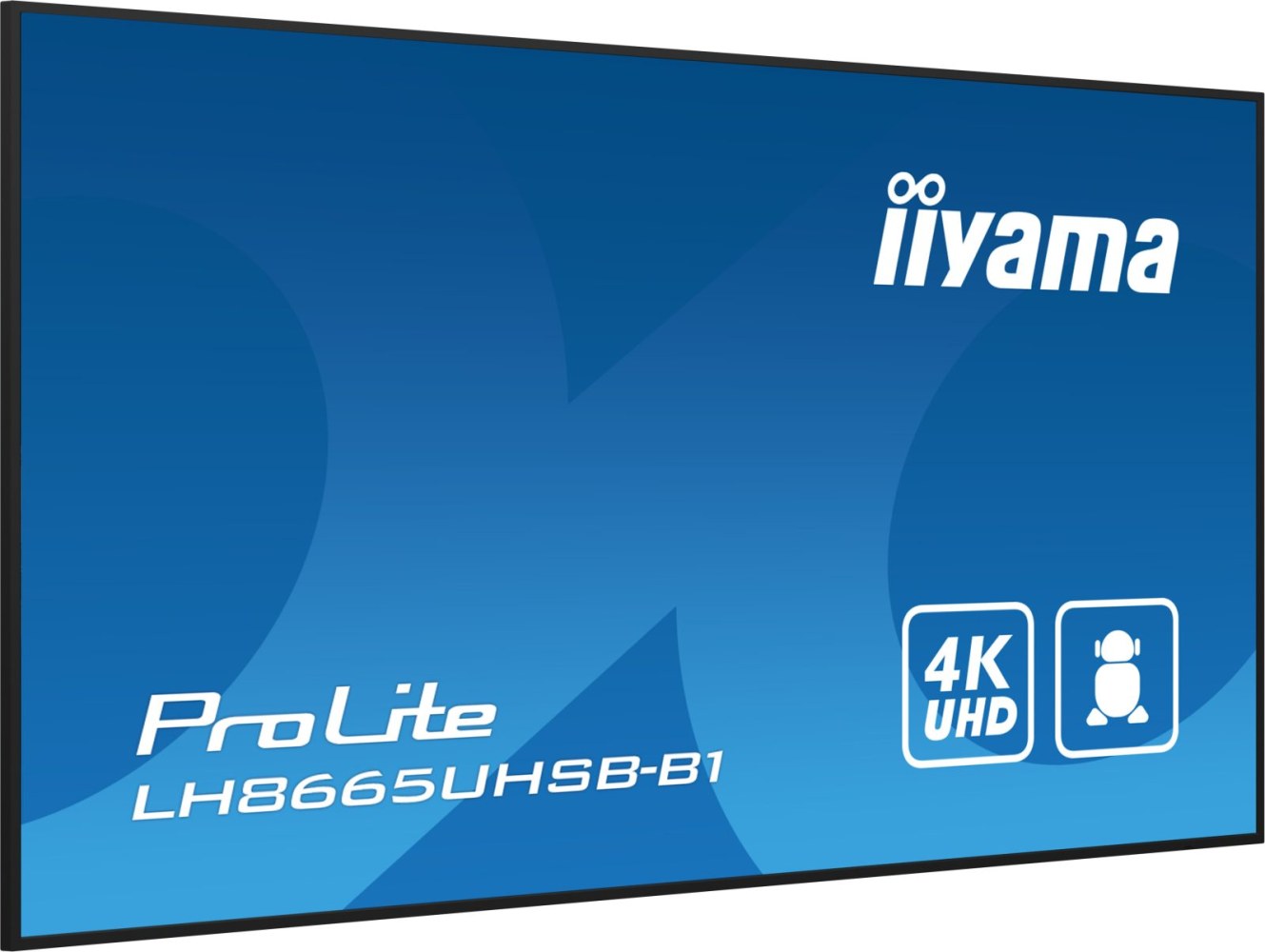

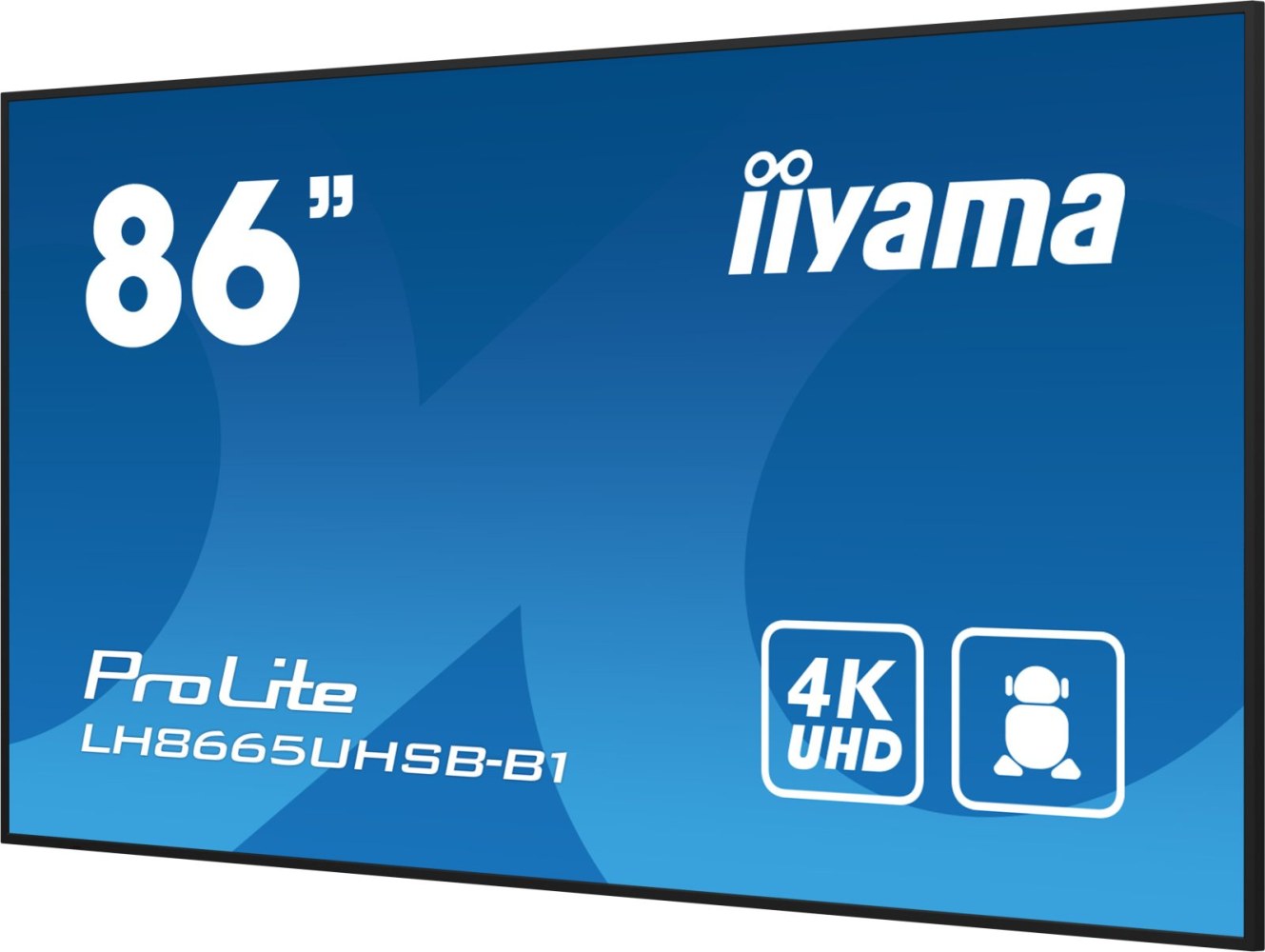

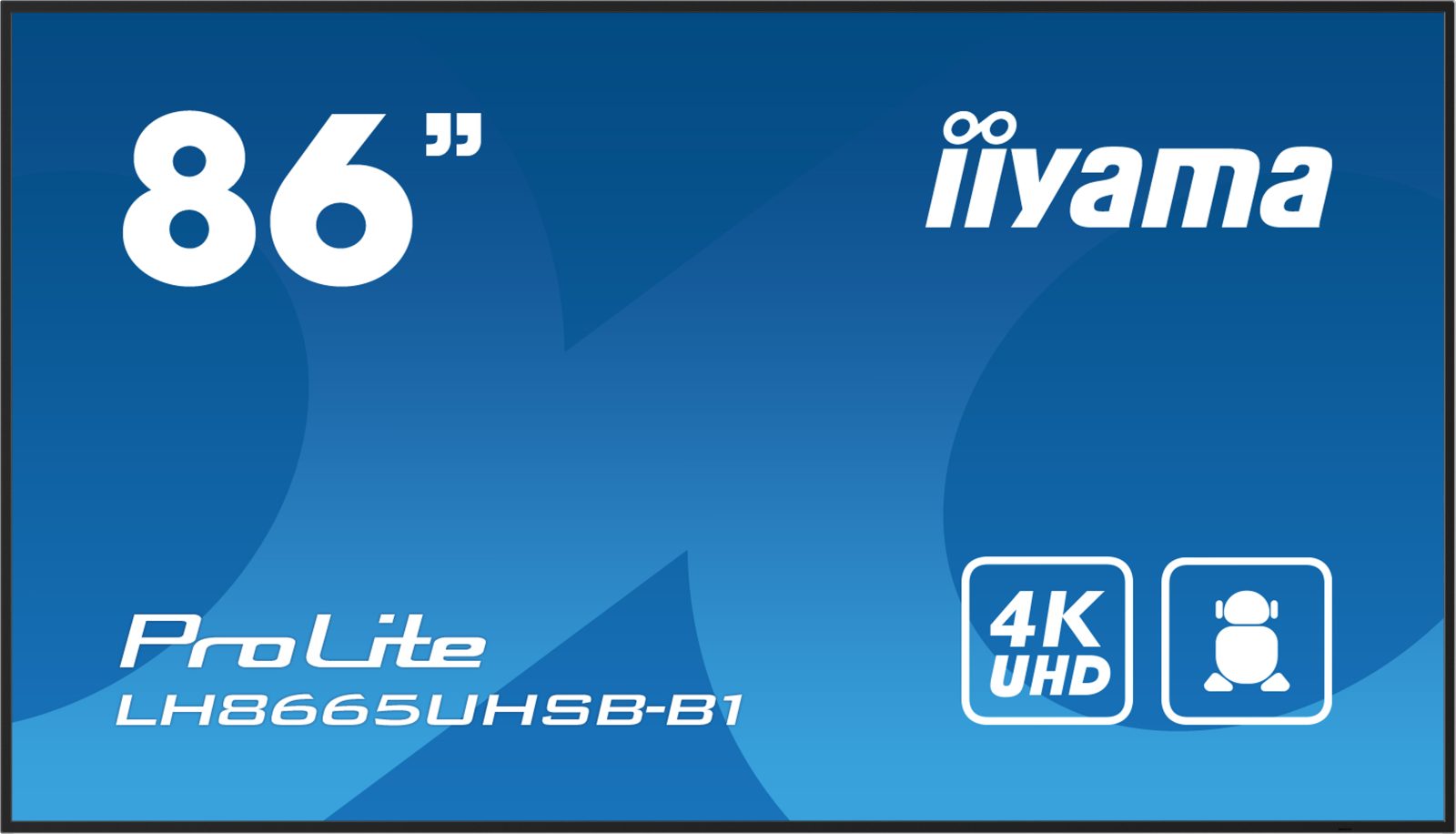

IIYAMA LH8665UHSB-B1 86inch 3840x2160 UHD VA panel 800cd/m2 1200:1 Static Contrast 8ms Landscape or Portrait mode
|
2.289,50 EUR |
|
|
( 2.724,50 EUR incl. VAT ) ≈ £1,932.34 | ≈ $2,564.24 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 282711 |
| Mfg Part No: | LH8665UHSB-B1 |
| UPC/EAN: | 4948570123605 |
| Weight: | 66.5 kg |
Product information for Iiyama LH8665UHSB-B1:
TFT screen, 16:9, screen size: 217 cm (218,4 cm ( 86 inch )), resolution: 3840x2160 pixels, 600x400 mm, response time: 8ms, brightness 800cd, viewing angle 178/178°(H/V), contrast: 1200:1, connection: USB (2x), RS232, Ethernet, Wi-Fi, audio, display-port, HDMI, Android (11), incl.: cable (RS232, HDMI), power supply unit, power cable, Remote Control, QSG, colour: black
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |

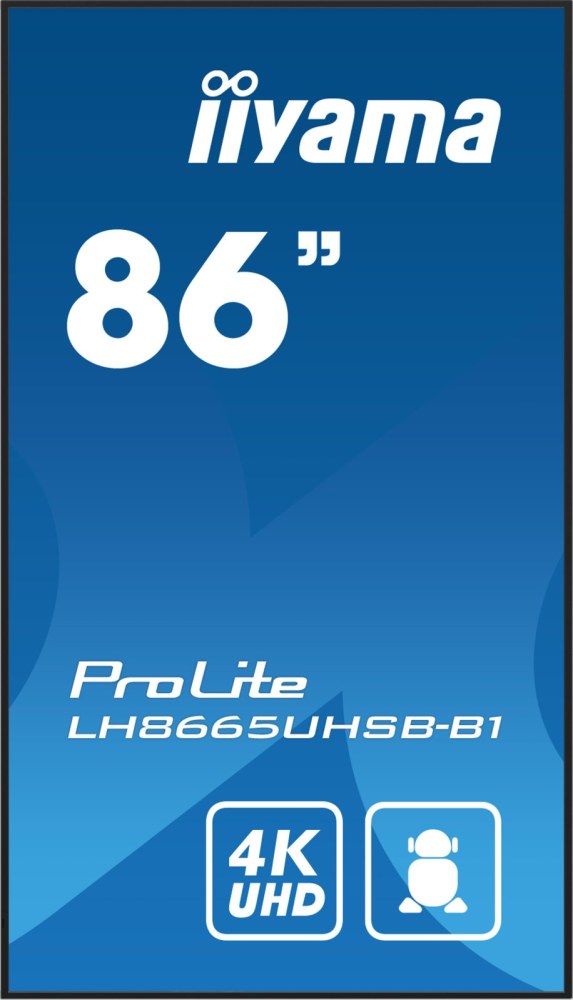

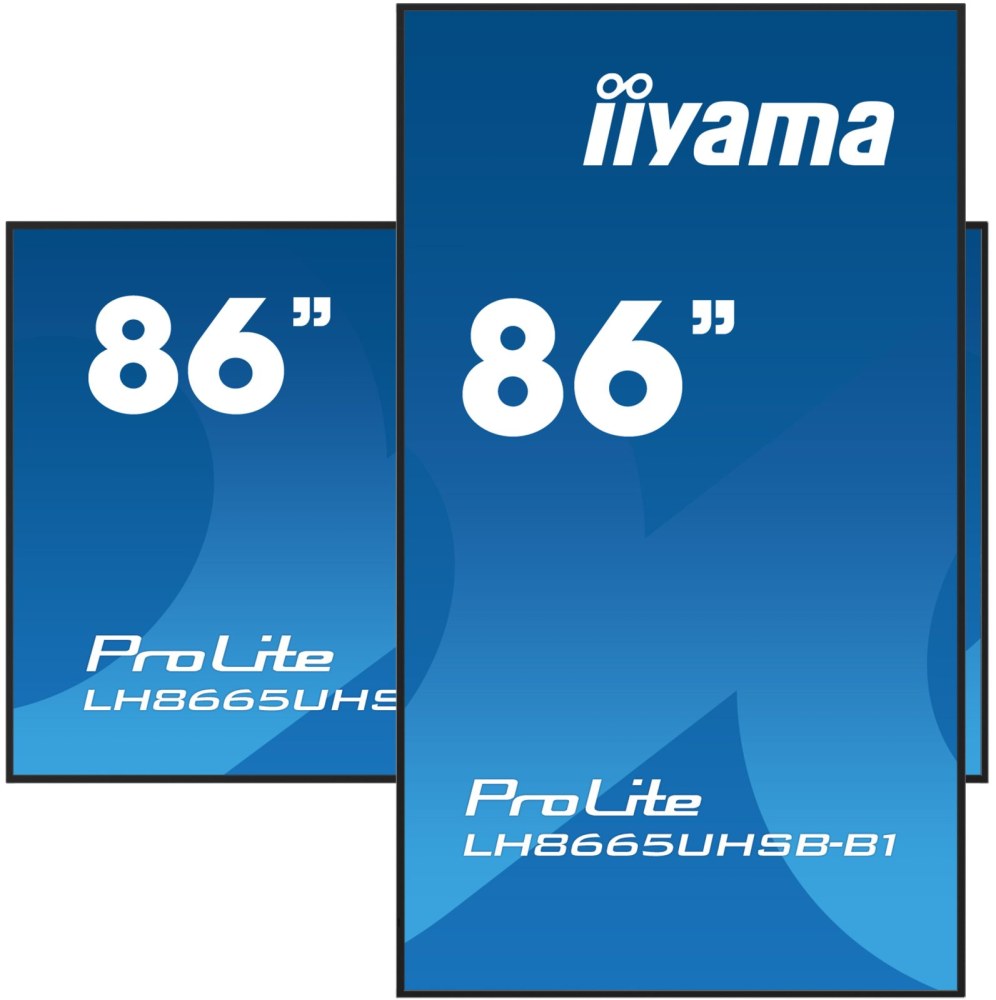

| Orientation | Horizontal/Vertical |
| Product colour | Black |

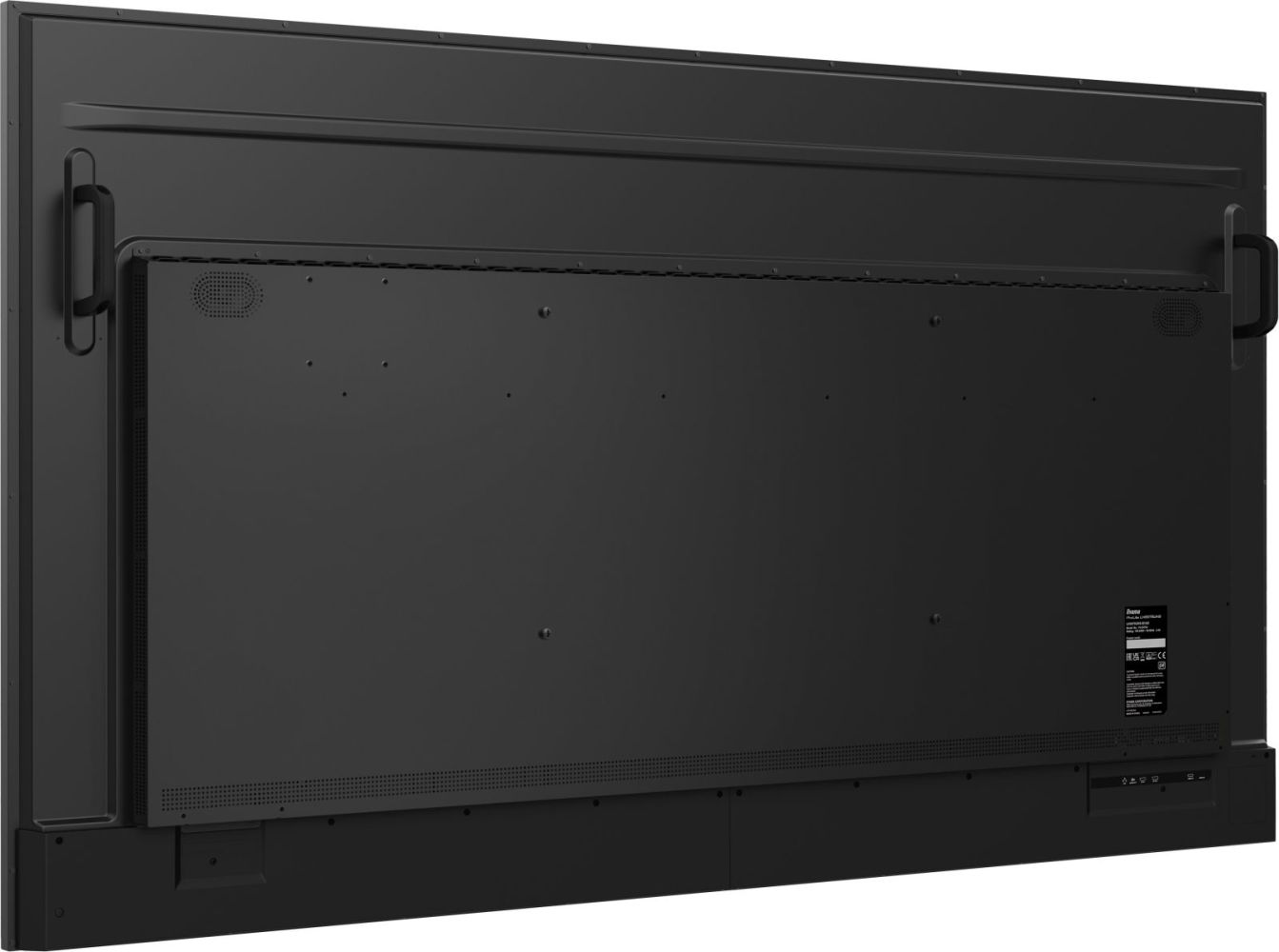

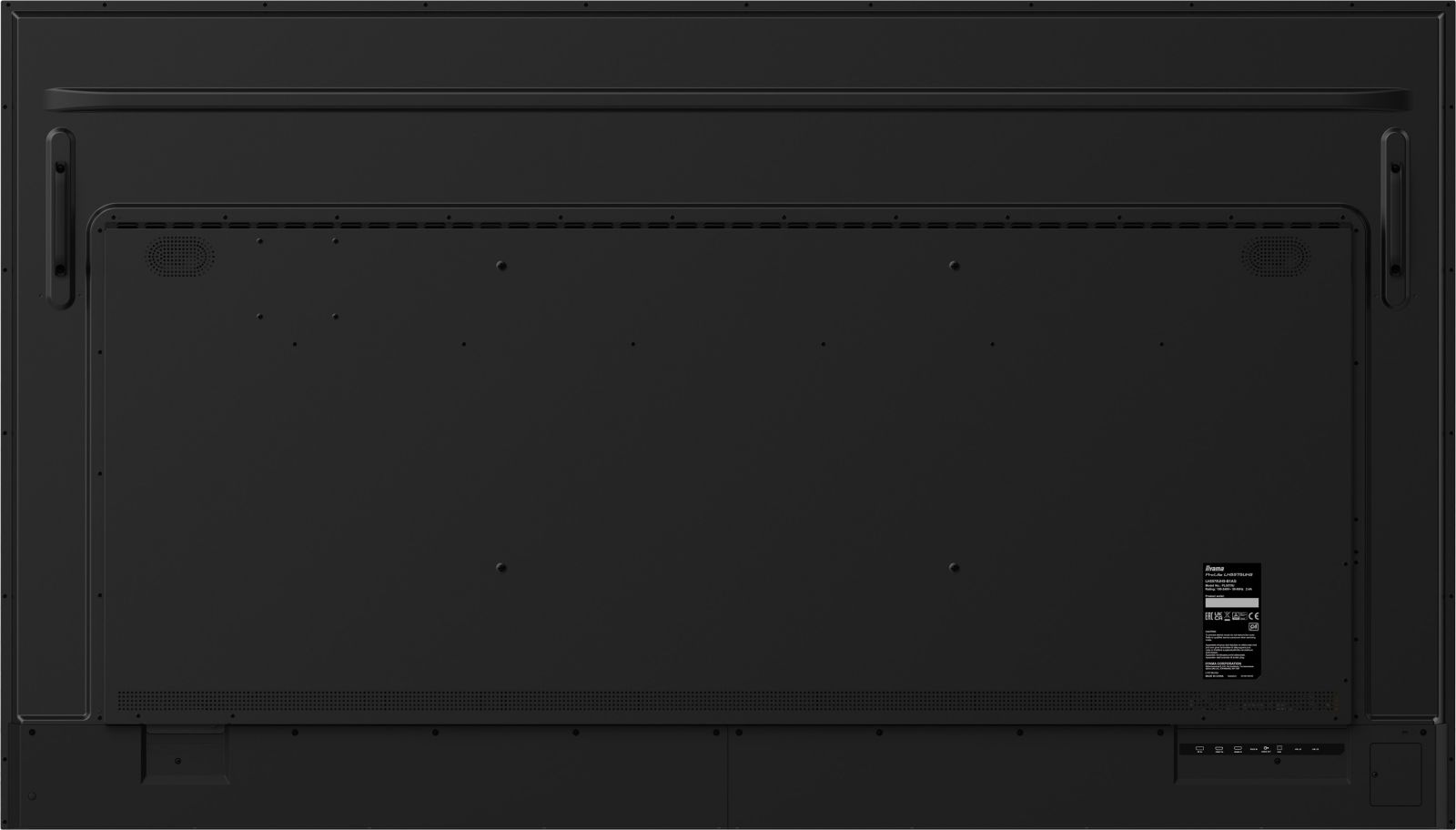

| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.62 cm |
| Bezel width (side) | 1.6 cm |
| Bezel width (top) | 1.62 cm |
| Bezel colour | Black |
| VESA mounting | |
| Display | |
| Panel type | IPS |
| Display diagonal | 2.18 m (86") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 1% |
| RGB colour space | NTSC |
| Touchscreen | |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |

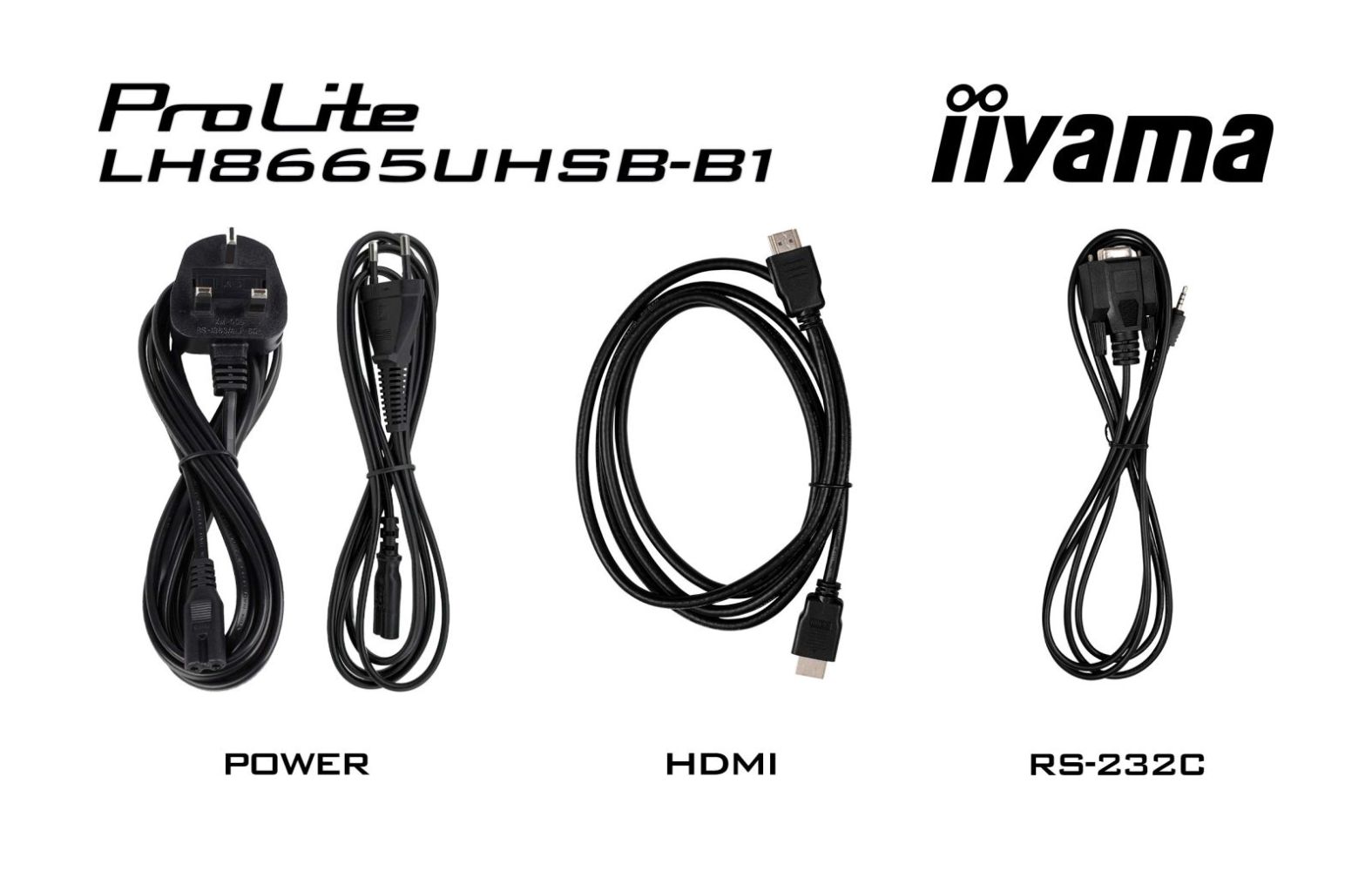

| Cables included | AC, HDMI, RS-232 |
| Remote control included | |
| Packaging data | |
| Package width | 2123 mm |
| Package depth | 225 mm |
| Package height | 1247 mm |
| Package weight | 64 kg |
| Performance | |
| Purpose | Commercial |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |

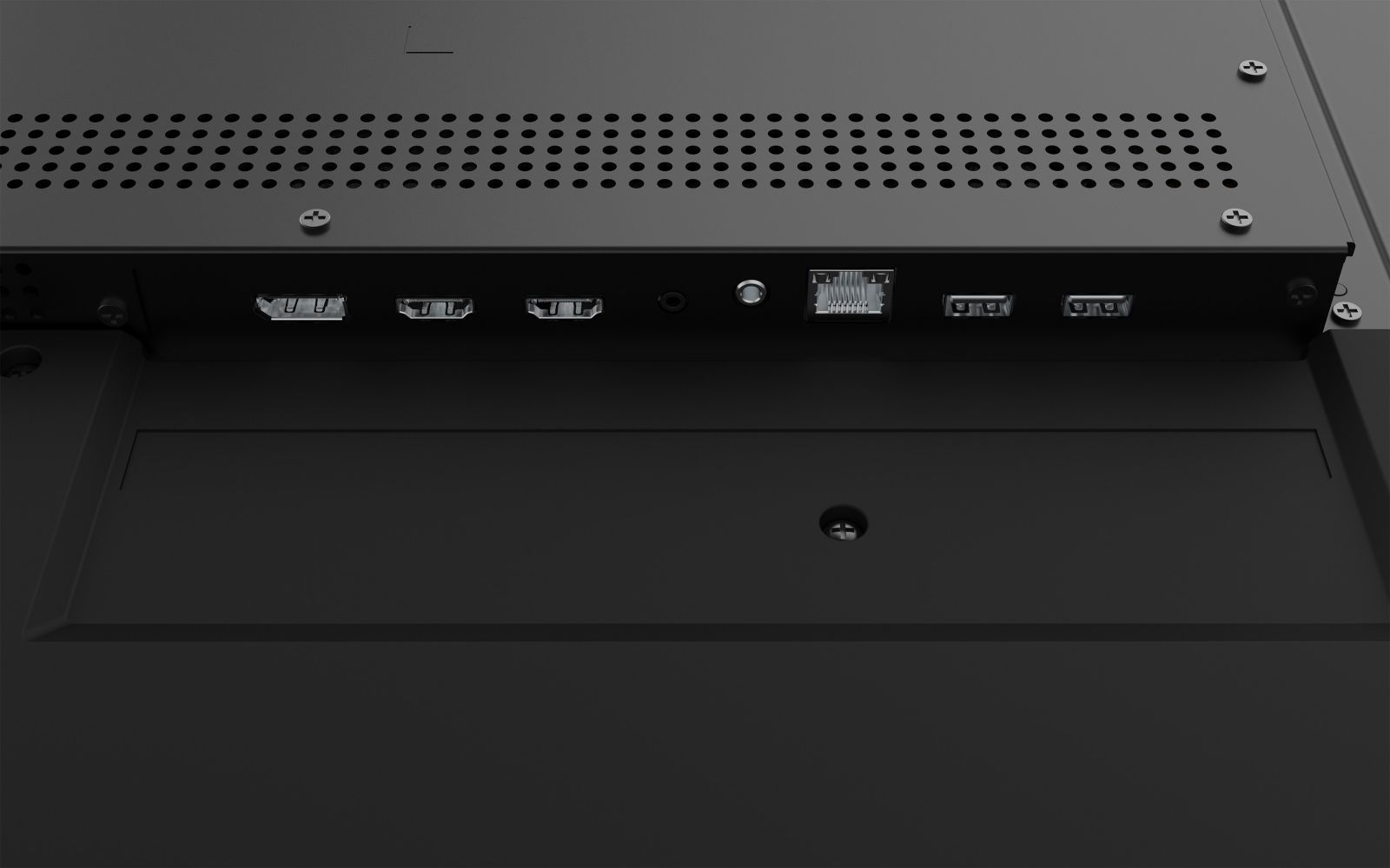

| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| USB port | |
| RS-232 interface | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 159 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 159 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configu |
| Sustainability certificates | ErP |
| Compliance certificates | CE, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 1927 mm |
| Display depth | 57 mm |
| Display height | 1098.5 mm |
| Display weight | 49 kg |
| Width | 1927 mm |
| Depth | 57 mm |
| Height | 1098.5 mm |
| Weight | 49 kg |
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
