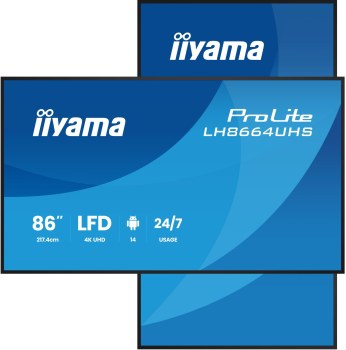

IIYAMA LH8664UHS-B3AG 86inch 3840x2160 UHD IPS panel Haze 25perc 500cd/m Landscape and Portrait Speakers 2x 10W 2x HDMI 1x USB-C DP
|
1.538,15 EUR 1.548,36 EUR |
|
|
( 1.830,40 EUR incl. VAT ) ≈ £1,287.43 | ≈ $1,715.04 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 226394 |
| Mfg Part No: | LH8664UHS-B3AG |
| UPC/EAN: | 4948570125357 |
| Weight: | 70.3 kg |
| Type: | LFD |
Product information for Iiyama LH8664UHS-B3AG:
TFT screen, 16:9, screen size: 217.4 cm (85.6''), resolution: 3840x2160 pixels, VESA mount (800x600 mm), speaker, response time: 8ms, brightness 500 cd, viewing angle 178/178°(H/V), contrast: 1200:1, connection: USB (type A, 2x), USB-C, RS232, Ethernet, Wi-Fi (802.11ac), audio, HDMI, Android (11), incl.: cable (RS232, HDMI), power supply unit, power cable, Remote Control, wall mount kit, QSG, colour: black
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor manufacturer | MediaTek |
| Processor model | MT9679 |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 2.2 cm |
| Bezel width (side) | 2.15 cm |
| Bezel width (top) | 2.2 cm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |
| Cables included | AC, HDMI, RS-232 |
| Remote control included | |
| Mounting kit | |
| Packaging data | |
| Package width | 2095 mm |
| Package depth | 225 mm |
| Package height | 1215 mm |
| Package weight | 62.2 kg |
| Performance | |
| Purpose | Corporate |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 1.4/2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-C |
| USB Power Delivery up to | 15 W |
| Ethernet LAN (RJ-45) ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| Infrared data port | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 277 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 277 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| Playback media | Y |
| User controls | network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, |
| Sustainability certificates | EPEAT, ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 1937.8 mm |
| Display depth | 79.6 mm |
| Display height | 1108.8 mm |
| Display weight | 47.9 kg |
| Width | 1937.8 mm |
| Depth | 79.6 mm |
| Height | 1108.8 mm |
| Weight | 47.9 kg |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of IIYAMA LH8664UHS-B3AG 86inch 3840x2160 UHD IPS panel Haze 25perc 500cd/m Landscape and Portrait Speakers 2x 10W 2x HDMI 1x USB-C DP?
The article IIYAMA LH8664UHS-B3AG 86inch 3840x2160 UHD IPS panel Haze 25perc 500cd/m Landscape and Portrait Speakers 2x 10W 2x HDMI 1x USB-C DP is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama LH8664UHS-B3AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA LH8664UHS-B3AG 86inch 3840x2160 UHD IPS panel Haze 25perc 500cd/m Landscape and Portrait Speakers 2x 10W 2x HDMI 1x USB-C DP always at the best possible price. We can give you a discount of 2% on IIYAMA LH8664UHS-B3AG 86inch 3840x2160 UHD IPS panel Haze 25perc 500cd/m Landscape and Portrait Speakers 2x 10W 2x HDMI 1x USB-C DP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
