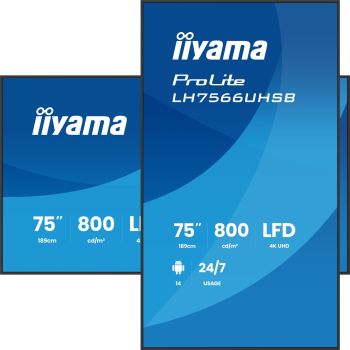

Iiyama LH7566UHSB-B1AG 189.0 cm (75") 16:9 2xHDMI+USB-C VA (freight shipping)
|
1.306,37 EUR |
|
|
( 1.554,58 EUR incl. VAT ) ≈ £1,093.43 | ≈ $1,456.60 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2439991 |
| Mfg Part No: | LH7566UHSB-B1AG |
| UPC/EAN: | 4948570128242 |
| Weight: | 39.9 kg |
| Type: | LFD |
Product information for Iiyama LH7566UHSB-B1AG:
Flatscreen monitor for digital signage, continuous operation, ideal for shops, conference rooms, schools and universities, outstanding presentation and picture quality, 4K UHD resolution, LED backlighting, environmental light sensor, horizontal or vertical installation, long-term operation up to 24 hours, video and audio inputs, remote control, rear-side PC slot, TFT screen, 16:9, screen size: 75', resolution: 3840x2160pixels, response time: 6.5ms, brightness: 800cd, viewing angle: 178/178° (H/V), contrast: 5000:1, glass properties: Antiglare, connectivity: Ethernet, HDMI, RS232, USB-C, interface - video: HDMI, interface - wifi: Wi-Fi (802.11ac), operating system: Android 14, VESA / AMPS: 500x500mm, accessories: Remote Control, Accessories - Power Cord - Country: EU, UK, Accessories - Power Cord - Type: C13, IEC Connector, Accessories - Power Supply: Internal
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor manufacturer | MediaTek |
| Processor family | ARM Cortex |
| Processor model | MT9679 |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 500 x 500 mm |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (top) | 1.28 cm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | VA |
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.429 x 0.429 mm |
| Active display area (W x H) | 1650.24 x 928.26 mm |
| Display diagonal (metric) | 189.5 cm |
| Horizontal scan range | 57 - 62 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Touchscreen | |
| Features | |
| Base material | Plastic |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Other features | |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |
| Cables included | AC, HDMI, RS-232 |
| Remote control included | |
| Mounting kit | |
| Packaging data | |
| Package width | 1840 mm |
| Package depth | 1112 mm |
| Package height | 177 mm |
| Package weight | 39.6 kg |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
| HDCP version | 1.4/2.0 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB Power Delivery up to | 15 W |
| Ethernet LAN (RJ-45) ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DVI port | |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 219 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 219 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| Playback media | Y |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen |
| Sustainability certificates | ErP |
| Pallet net height | 107.2 cm |
| Pallet net length | 111.2 cm |
| Pallet net width | 185 cm |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 1679 mm |
| Display depth | 69 mm |
| Display height | 957.1 mm |
| Display weight | 28 kg |
| Width | 1679 mm |
| Depth | 69 mm |
| Height | 957.1 mm |
| Weight | 28 kg |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Iiyama LH7566UHSB-B1AG 189.0 cm (75") 16:9 2xHDMI+USB-C VA (freight shipping)?
The article Iiyama LH7566UHSB-B1AG 189.0 cm (75") 16:9 2xHDMI+USB-C VA (freight shipping) is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama LH7566UHSB-B1AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Iiyama LH7566UHSB-B1AG 189.0 cm (75") 16:9 2xHDMI+USB-C VA (freight shipping) always at the best possible price. We can give you a discount of 2% on Iiyama LH7566UHSB-B1AG 189.0 cm (75") 16:9 2xHDMI+USB-C VA (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
