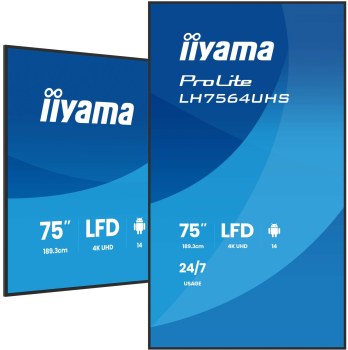

IIYAMA LH7564UHS-B1AG 75inch 3840x2160 UHD VA DLED panel Haze 25percent 500cd/m2 Landscape and Portrait Speakers 2x 10W 2x HDMIx 1x
|
-15% 1.233,08 EUR 1.453,80 EUR |
|
|
( 1.467,37 EUR incl. VAT ) ≈ £1,032.09 | ≈ $1,374.88 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 225897 |
| Mfg Part No: | LH7564UHS-B1AG |
| UPC/EAN: | 4948570125333 |
| Weight: | 54 kg |
| Type: | LFD |
Product information for Iiyama LH7564UHS-B1AG:
• Diagonale: 189,2 cm ( 74,5 inch )/189cm • Auflösung: 3840x2160, 16:9 • Helligkeit: 500cd/m² • Kontrast: 5000:1 (typisch) • Reaktionszeit: 6,5ms • Blickwinkel: 178°/178° • Panel: VA • Anschlüsse: 2x HDMI, 1x USB-C, 1x MiniJack In, 1x RS-232c, 1x RJ-45, 1x IR • VESA: 500x500 • Abmessungen (BxHxT): 1679x957.1x68.8mm • Besonderheiten: Lautsprecher (2x 10W)
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 500 x 500 mm |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (top) | 1.28 cm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | VA |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.43 x 0.43 mm |
| Active display area (W x H) | 1650.2 x 928.3 mm |
| Display diagonal (metric) | 189.5 cm |
| Number of displays | 1 |
| Horizontal scan range | 57 - 62 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Touchscreen | |
| Network | |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |
| Cables included | AC, HDMI, RS-232 |
| Remote control included | |
| Batteries included | |
| Mounting kit | |
| Packaging data | |
| Package width | 1840 mm |
| Package depth | 177 mm |
| Package height | 1112 mm |
| Package weight | 39.1 kg |
| Performance | |
| Purpose | Universal |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 1.4/2.0 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB Power Delivery up to | 15 W |
| Ethernet LAN (RJ-45) ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 219 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 219 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| Playback media | Y |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 1679 mm |
| Display depth | 68.8 mm |
| Display height | 957.1 mm |
| Display weight | 27.7 kg |
| Width | 1679 mm |
| Depth | 68.8 mm |
| Height | 957.1 mm |
| Weight | 27.7 kg |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
